Etuva cu convectie / ventilatie fortata

etuve_convectie_fortata

Etuve cu convectie fortata sunt dedicate aplicatiilor de incubare hibridizare uscare sterilizare si tratarii termice care cer un proces controlat de uscare sau anumite procedeuri de tratament termic speciale, dar si pentru calibrare diverse instrumente sau pentru incubarea anumitor produse.



Etuva termostatata cu ventilatie fortata
Capacitate 23 lit. / 56 lit. / 115 lit. / 260 lit.
Domeniu de temperatura Amb.±5 .. 300°C
Seria Binder FD FD23, FD56, FD115 si FD260

Etuve programabile si termoreglabile cu convectie fortata

Drying and heating ovens with forced convection


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
• Camere termostatate cu accelerare fortata pentru procese de uscare si sterilizare
• Programare: timp si temperatura
• Controlul temperaturii si al sensibilitatii termice
• Setarea si programarea temperatura si timpului de operare: 0 .. . 99/ore
• Volume disponibile lit.: 23; 56; 115 si 260 lit.
• Domeniu de temperatura: 5 .. 300°C
• Afisaj: digital
• Interfata de comunicare: RS 422
• Tehnologie: microprocesor de control PID si APT
• Garantie: 24 luni

Date tehnice

Model FD 23 FD 56 FD115 FD260
Cod produs 9010-0194 9010-0303 9010-0305 9010-0309
Domeniu de temperatura 5 .. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C
Variatia temperaturii la 150°C 2,5 ± K 1,7 ± K 1,7 ± K 1,9 ± K
Fluctuatia temperaturii la 150°C 0.3 ± K 0.3 ± K 0.3 ± K 0.5 ± K
Timp necesar de incalzire pana 150 °C 25 min 15 min 19 min 20 min
Timp de revenire daca usa a fost deschisa 30 secunde la 150 °C 6 min 4 min 5 min 6 min
Alimentare 230 V 230 V 230 V 230 V
Frecventa 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Putere nominala 0.8 kW 1.1 kW 1.3 kW 2.3 kW
Consum energetic la 150 °C 300 Wh/h 300 Wh/h 340 Wh/h 420 Wh/h
Volum interior / util 20 lt. 60 lt. 116 lt. 259 lt.
Greutate neta 27 Kg 39 Kg 50 Kg 85 Kg
Incarcarea maxima 25 Kg 70 Kg 150 Kg 270 Kg
Incarcarea pe raft 12 Kg 30 Kg 30 Kg 40 Kg
Nr. usi 1 1 1 1
Numar de rafturi (incluse/optional) 2/4 2/4 2/5 2/8
Dimensiuni interioare
latime / mm 222 400 550 650
Inaltime / mm 330 440 550 780
Adancime / mm 300 345 385 515
Dimensiuni exterioare
latime / mm 435 560 710 810
Inaltime / mm 495 625 735 965
Adancime / mm 520 565 605 760

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
FD series heating oven is used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.

Performance & Advantages
Electronically controlled APT.line preheating chamber assuring temperature accuracy and reproducible results
Temperature range from 5 °C above ambient temperature to 300 °C
DS control with integrated timer 0 to 99,59 hrs
Digital temperature setting with an accuracy of one degree
Independent adjustable temperature safety device class 2 (DIN 12880), with visual temperature alarm
Adjustable front ventilation flap slide and rear exhaust Ø50 mm (1.97 inch)
Units up to 115 liters are stackable
2 chrome-plated racks included
FD 23 with space-saving door mechanism
BINDER test confirmation

Technical data

Model FD 23 FD 56 FD115 FD260
Order number 9010-0194 9010-0303 9010-0305 9010-0309
Temperature range 5 .. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C
Temperature variation at 150 °C 2,5 ± K 1,7 ± K 1,7 ± K 1,9 ± K
Temperature fluctuation at 150 °C [± K] 0.3 0.3 0.3 0.5
Heating-up time to 150 °C [min] 25 15 19 20
Recovery time after 30 seconds door open at 150 °C [min] 6 4 5 6
Air change (approx.) at 150 °C [x/h] 64 - - -
Rated Voltage 230V 230V 230V 230V
Power frequency [Hz] 50/60 50/60 50/60 50/60
Nominal power [kW] 0.8 1.1 1.3 2.3
Unit fuse [A] 10 6.3 6.3 6.3
Phase (Nominal voltage) [ph] 1 1 1 1
Energy consumption at 150 °C 300 Wh/h 300 Wh/h 340 Wh/h 420 Wh/h
Interior volume [L] 20 60 116 259
Net weight of the unit [kg] 27 39 50 85
permitted load [kg] 25 70 150 270
Load per rack [kg] 12 30 30 40
Unit doors 1 1 1 1
Number of shelves (std./max.) 2/4 2/4 2/5 2/8
Internal Dimensions
Width [mm] 222 400 550 650
Height [mm] 330 440 550 780
Depth [mm] 300 345 385 515
Outer dimensions
Width net [mm] 435 560 710 810
Height net [mm] 495 625 735 965
Depth net [mm] 520 565 605 760



Accesorii optionale
- Usa cu fereastra de vizualizare in interior cu lampa lumina rece
- Usa cu garnitura din VITON
- Lacket / chie pentru usa
- Alarma acoustica pentru limita setata de temperatura
- Dispozitiv independent pentru controlul temperaturii clasa 3.1 (DIN 12880) cu alarma optica
- Inregistrator continuu de temperatura cu dispozitiv achiziţie de date (Data Logger) in domeniu 0°C .. 350°C
- Iesire analogica pentru temp. 4 la 20mA. cu mufa tip DIN de 6-pin
- Porturi de acces cu garnitura siliconica pentru diferite instrumente de masura cu diametru de Ø 10, 30, 50 si 100 mm
- Masa suport cu/fara roti pentru etuve d elaborator
- Raft cromat sau din otel inox
- Raft perforat din otel inox
- Certificat de calibrare in centru la 150°C sau la o temperatura specificata. (documente de validare, protocol, GLP,..etc)
- Certificat de masurarea temperaturi in 27 de puncte conform DIN 12880

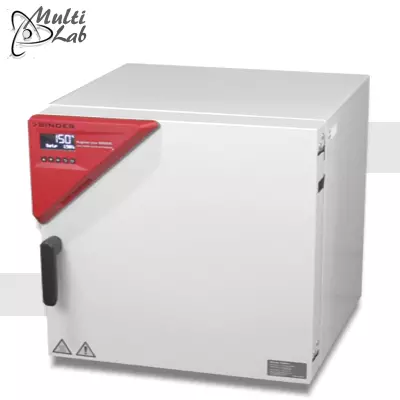

Etuva termostatata cu ventilatie fortata
Capacitate 56 lit. / 115 lit. / 260 lit.
Domeniu de temperatura Amb.±5 .. 300°C
Seria Binder FED FED56, FED115, FED260, FED400, FED720

Etuve cu sistem performant de conditionare si convectie fortata

Drying and heating chambers with forced convection and enhanced timer functions


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Etuvele multifunctionale din seria FED cu convecţie fortata, adaptate cu microprocesoare de control PID; sistem de protectie si siguranta clasa IP20 cu sistem de incalzire fortata FRT (fast response time). Configurate pentru aplicaţii in care se cer schimbari frecvente in procesele de tratare termica.
Aplicatii
pentru uscare si sterilizare produse care nu cer o viteza mare de uscare sau programe de tratament speciale,
Seria FED cuprinde urmatoarele volume interioare: 23, 56, 115, 260 si 720 lit.

Caracteristici tehnice
• Camera termostatata cu sistem de conditionare integrat si sistem de accelerare fortata pentru procese in care se cer schimbari frecvente in procesele de tratare termica, uscare si sterilizare.
• Programare: ventilatie, timp si temperatura
• Controlul temperaturii si al sensibilitatii termice
• Setarea si programarea temperatura si timpului de operare: 0 .. . 99/ore
• Volume disponibile lit. : 56; 116; 260; 400 si 720 lit.
• Domeniu de temperatura: 5 .. 300°C
• Afisaj: digital
• Interfata de comunicare: RS 422
• Tehnologie: microprocesor de control PID si APT
• Garantie: 24 luni

Date tehnice

Model FED 56 FED115 FDE260 FDE400 FDE720
Cod produs 9010-0295 9010-0293 9010-0299 9010-0216 9010-0218
Domeniu de temperatura 10 .. 300°C 10 .. 300°C 10 .. 300°C 5 .. 300°C 5 .. 300°C
Variatia temperaturii la 150°C 1,4 ± K 1,2 ± K 1,6 ± K 3,8 ± K 3 ± K
Fluctuatia temperaturii la 150°C 0.3 ± K 0.3 ± K 0.5 ± K 0.7 ± K 0.3 ± K
Timp necesar de incalzire pana 150 °C 15 min 19 min 20 min 29 min 29 min
Timp de revenire daca usa a fost deschisa 30 secunde la 150 °C 4 min 5 min 6 min 6 min 12 min
Alimentare 230 V 230 V 230 V 400 V 400 V
Frecventa 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Faze 1 1 1 3 3
Putere nominala 1.1 kW 1.3 kW 2.3 kW 3.4 kW 5 kW
Consum energetic la 150 °C 300 Wh/h 340 Wh/h 420 Wh/h 1200 Wh/h 1320 Wh/h
Volum interior / util 60 lt. 116 lt. 259 lt. 400 lt. 720 lt.
Greutate neta, 39 Kg 50 Kg 85 Kg 145 Kg 195 Kg
Incarcarea maxima 70 Kg 150 Kg 270 Kg 90 Kg 120 Kg
Incarcarea pe raft 30 Kg 30 Kg 40 Kg 35 Kg 45 Kg
Nr. usi 1 1 1 2 2
Numar de rafturi (incluse/optional) 2/4 2/5 2/8 2/10 2/16
Interfata USB USB USB RS 422 RS 422
Dimensiuni interioare
latime / mm 400 550 650 1000 1000
Inaltime / mm 440 550 780 800 1200
Adancime / mm 345 385 515 510 610
Dimensiuni exterioare
latime / mm 560 710 810 1235 1235
Inaltime / mm 625 735 965 1025 1530
Adancime / mm 565 605 760 765 865

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
Temperature range: ambient temperature plus 10 °C to 300 °C
High temperature accuracy thanks to APT.line technology
Adjustable fan speed
Controller with LCD display
Electromechanical control of the exhaust air flap
2 chrome-plated racks
Units up to 115 L are stackable
Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
Ergonomic handle design
Ethernet interface
USB port for recording data (models FED56, FED115 and FED260 only)
Computer interface: RS 422 (models FED400 and FED720 only)

Technical data

Model FED 56 FED115 FDE260 FDE400 FDE720
Product code 9010-0295 9010-0293 9010-0299 9010-0216 9010-0218
Temperature range 10 .. 300°C 10 .. 300°C 10 .. 300°C 5 .. 300°C 5 .. 300°C
Temperature variation at 150 °C 1,4 ± K 1,2 ± K 1,6 ± K 3,8 ± K 3 ± K
Temperature fluctuation at 150 °C 0.3 ± K 0.3 ± K 0.5 ± K 0.7 ± K 0.3 ± K
Heating-up time to 150 °C 15 min 19 min 20 min 29 min 29 min
Recovery time after 30 seconds door open at 150 °C 4 min 5 min 6 min 6 min 12 min
Rated Voltage 230 V 230 V 230 V 400 V 400 V
Power frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Phase 1 1 1 3 3
Nominal power 1.1 kW 1.3 kW 2.3 kW 3.4 kW 5 kW
Energy consumption at 150 °C 300 Wh/h 340 Wh/h 420 Wh/h 1200 Wh/h 1320 Wh/h
Interior volume 60 lt. 116 lt. 259 lt. 400 lt. 720 lt.
Net weight of the unit (empty) 39 Kg 50 Kg 85 Kg 145 Kg 195 Kg
permitted load 70 Kg 150 Kg 270 Kg 90 Kg 120 Kg
Load per rack 30 Kg 30 Kg 40 Kg 35 Kg 45 Kg
Unit doors 1 1 1 2 2
Number of shelves (std./max.) 2/4 2/5 2/8 2/10 2/16
Interface USB USB USB RS 422 RS 422
Internal Dimensions
Width [mm] 400 550 650 1000 1000
Height [mm] 440 550 780 800 1200
Depth [mm] 345 385 515 510 610
Outer dimensions
Width [mm] 560 710 810 1235 1235
Height [mm] 625 735 965 1025 1530
Depth [mm] 565 605 760 765 865



Accesorii optionale
- Usa cu fereastra de vizualizare in interior cu lampa lumina rece
- Usa cu garnitura din VITON
- Lacket / chie pentru usa
- Alarma acoustica pentru limita setata de temperatura
- Dispozitiv independent pentru controlul temperaturii clasa 3.1 (DIN 12880) cu alarma optica
- Inregistrator continuu de temperatura cu dispozitiv achiziţie de date (Data Logger) in domeniu 0°C .. . 350°C
- Iesire analogica pentru temp. 4 la 20mA. cu mufa tip DIN de 6-pin
- Porturi de acces cu garnitura siliconica pentru diferite instrumente de masura cu diametru de Ø 10, 30, 50 si 100 mm
- Masa suport cu/fara roti pentru etuve d elaborator
- Raft cromat sau din otel inox
- Raft perforat din otel inox
- Certificat de calibrare in centru la 150°C sau la o temperatura specificata. (documente de validare, protocol, GLP,..etc)
- Certificat de masurarea temperaturi in 27 de puncte conform DIN 12880


Etuva termostatata cu ventilatie fortata
Capacitate 53 lit. / 115 lit. / 240 lit. / 400 lit. / 720 lit.
Domeniu de temperatura Amb.±5 .. 300°C
Seria Binder FP FP53, FP115, FP240, FP400 si FP720

Etuve pentru testare materialelor cu programari ciclice complexe cu sistem de ventilatie fortata

Drying and heating chambers Classic.Line with forced convection and program functions


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
• Camera termostatata cu accelerare fortata pentru procese in care se cer schimbari frecvente in procesele ciclice de tratare termica, uscare si sterilizare.
• Programare: ventilatie, timp si temperatura
• Programare ciclice: 2 programe ciclice cu 10 sectiuni sau 1 program cu 20 sectiuni
• Controlul temperaturii si al sensibilitatii termice
• Setarea si programarea temperatura si timpului de operare: 0 .. 99/ore
• Volume disponibile lit.: 53; 115; 240; 400 si 720 lit.
• Domeniu de temperatura: 5 .. 300°C
• Afisaj: digital
• Interfata de comunicare: RS 422
• Tehnologie: microprocesor de control PID si APT
• Garantie: 24 luni

Date tehnice

Model FP53 FP115 FP240 FP400 FP720
Cod produs 9010-0153 9010-0255 9010-0263 9010-0265 9010-0267
Domeniu de temperatura 5.. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C
Variatia temperaturii la 150°C 2 ± K 1,8 ± K 2 ± K 2,5 ± K 2 ± K
Fluctuatia temperaturii la 150°C 0.3 ± K 0.3 ± K 0.3 ± K 0.3 ± K 0.3 ± K
Timp necesar de incalzire pana 150 °C 24 min 30 min 27 min 35 min 39 min
Timp de revenire daca usa a fost deschisa 30 secunde la 150 °C 5 min 8 min 10 min 17 min 20 min
Alimentare 230 V 230 V 230 V 400 V 400 V
Frecventa 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Faze 1 1 1 3 3
Putere nominala 1.2 kW 1.6 kW 2.7 kW 3.4 kW 5 kW
Consum energetic la 150 °C 300 Wh/h 544 Wh/h 850 Wh/h 1200 Wh/h 1320 Wh/h
Volum interior / util 53 lt. 115 lt. 240 lt. 400 lt. 720 lt.
Greutate neta 44 Kg 62 Kg 96 Kg 145 Kg 195 Kg
Incarcarea maxima 40 Kg 50 Kg 70 Kg 90 Kg 120 Kg
Incarcarea pe raft 15 Kg 20 Kg 30 Kg 35 Kg 45 Kg
Nr. usi 1 1 2 2 2
Numar de rafturi (incluse/optional) 2/5 2/6 2/7 2/10 2/16
Interfata RS 422 RS 422 RS 422 RS 422 RS 422
Dimensiuni interioare
latime / mm 400 600 800 1000 1000
Inaltime / mm 440 480 600 800 1200
Adancime / mm 340 410 510 510 610
Dimensiuni exterioare
latime / mm 635 835 1035 1235 1235
Inaltime / mm 620 705 825 1025 1530
Adancime / mm 575 645 745 765 865

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
Temperature range: room temperature plus 5 °C to 300 °C
APT.line preheating chamber technology
Adjustable fan speed
Adjustable exhaust air flap
Controller with time-segment and real-time programming
2 chrome-plated racks
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Computer interface: RS 422

Technical data

Model FP53 FP115 FP240 FP400 FP720
Product code 9010-0153 9010-0255 9010-0263 9010-0265 9010-0267
Temperature range 5.. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C
Temperature variation at 150 °C 2 ± K 1,8 ± K 2 ± K 2,5 ± K 2 ± K
Temperature fluctuation at 150 °C 0.3 ± K 0.3 ± K 0.3 ± K 0.3 ± K 0.3 ± K
Heating-up time to 150 °C 24 min 30 min 27 min 35 min 39 min
Recovery time after 30 seconds door open at 150 °C 5 min 8 min 10 min 17 min 20 min
Rated Voltage 230 V 230 V 230 V 400 V 400 V
Power frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Phase 1 1 1 3 3
Nominal power 1.2 kW 1.6 kW 2.7 kW 3.4 kW 5 kW
Energy consumption at 150 °C 300 Wh/h 544 Wh/h 850 Wh/h 1200 Wh/h 1320 Wh/h
Interior volume 53 lt. 115 lt. 240 lt. 400 lt. 720 lt.
Net weight of the unit 44 Kg 62 Kg 96 Kg 145 Kg 195 Kg
permitted load 40 Kg 50 Kg 70 Kg 90 Kg 120 Kg
Load per rack 15 Kg 20 Kg 30 Kg 35 Kg 45 Kg
Unit doors 1 1 2 2 2
Number of shelves (std./max.) 2/5 2/6 2/7 2/10 2/16
Interface RS 422 RS 422 RS 422 RS 422 RS 422
Internal Dimensions
Width [mm] 400 600 800 1000 1000
Height [mm] 440 480 600 800 1200
Depth [mm] 340 410 510 510 610
Outer dimensions
Width [mm] 635 835 1035 1235 1235
Height [mm] 620 705 825 1025 1530
Depth [mm] 575 645 745 765 865



Accesorii optionale
- Usa cu fereastra de vizualizare in interior cu lampa lumina rece
- Usa cu garnitura din VITON
- Lacket / chie pentru usa
- Alarma acoustica pentru limita setata de temperatura
- Dispozitiv independent pentru controlul temperaturii clasa 3.1 (DIN 12880) cu alarma optica
- Inregistrator continuu de temperatura cu dispozitiv achiziţie de date (Data Logger) in domeniu 0°C .. . 350°C
- Iesire analogica pentru temp. 4 la 20mA. cu mufa tip DIN de 6-pin
- Porturi de acces cu garnitura siliconica pentru diferite instrumente de masura cu diametru de Ø 10, 30, 50 si 100 mm
- Masa suport cu/fara roti pentru etuve d elaborator
- Raft cromat sau din otel inox
- Raft perforat din otel inox
- Certificat de calibrare in centru la 150°C sau la o temperatura specificata. (documente de validare, protocol, GLP,..etc)
- Certificat de masurarea temperaturi in 27 de puncte conform DIN 12880


Etuva termostatata cu ventilatie fortata
Capacitate 53 lit. / 115 lit. / 240 lit. / 400 lit. / 720 lit.
Domeniu de temperatura Amb.±5 .. 300°C
Seria Binder M M53, M115, M240, M400 si M720

Etuve cu programari ciclice complexe si sistem de ventilatie fortata

Drying and heating chambers e with forced convection and advanced program


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Etuva programabile utilizate pentru analize si testarea materialelor prin incalzire, uscare fortata sau pentru sterilizare accelerata sau in orice proces de sterilizare si/sau uscare, se poate utiliza in biotehnologie, industrie alimentara si farmaceutica

Date tehnice

Model M53 M115 M240 M400 M720
Cod produs 9010-0201 9010-0202 9010-0203 9010-0204 9010-0205
Domeniu de temperatura 5 .. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C
Variatia temperaturii la 150°C 1,3 ± K 1,5 ± K 1,5 ± K 1,5 ± K 1,9 ± K
Fluctuatia temperaturii la 150°C 0.3 ± K 0.3 ± K 0.3 ± K 0.3 ± K 0.3 ± K
Timp necesar de incalzire pana 150 °C 15min 16 min 19 min 18 min 21 min
Timp de revenire daca usa a fost deschisa 30 secunde la 150 °C 3 min 3 min 3 min 3 min 3 min
Alimentare 230 V 230 V 230 V 400 V 400 V
Frecventa 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Faze 1 1 1 3 3
Putere nominala 1.2 kW 1.6 kW 2.7 kW 3.4 kW 5 kW
Consum energetic la 150 °C 300 Wh/h 544 Wh/h 850 Wh/h 1200 Wh/h 1320 Wh/h
Volum interior / util 53 lt. 115 lt. 240 lt. 400 lt. 720 lt.
Greutate neta, 61 Kg 89 Kg 131Kg 173 Kg 203 Kg
Incarcarea maxima 40 Kg 50 Kg 70 Kg 90 Kg 120 Kg
Incarcarea pe raft 15 Kg 20 Kg 30 Kg 35 Kg 45 Kg
Nr. usi 1 1 2 2 2
Numar de rafturi (incluse/optional) 2/5 2/6 2/7 2/10 2/16
Interfata RS 422 RS 422 RS 422 RS 422 RS 422
Dimensiuni interioare
latime / mm 400 600 800 1000 1000
Inaltime / mm 400 480 600 800 1200
Adancime / mm 340 410 510 510 610
Dimensiuni exterioare
latime / mm 635 835 1035 1235 1235
Inaltime / mm 780 865 985 1190 1690
Adancime / mm 575 645 745 795 865

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
Temperature range: room temperature plus 5 °C to 300 °C
APT.line preheating chamber technology
Adjustable fan speed
Program-controlled ventilation flap
Color LCD controller with time-segment programming
2 chrome-plated racks
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Computer interface: RS 422

Technical data

Model M53 M115 M240 M400 M720
Product code 9010-0201 9010-0202 9010-0203 9010-0204 9010-0205
Temperature range 5 .. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C
Temperature variation at 150 °C 1,3 ± K 1,5 ± K 1,5 ± K 1,5 ± K 1,9 ± K
Temperature fluctuation at 150 °C 0.3 ± K 0.3 ± K 0.3 ± K 0.3 ± K 0.3 ± K
Heating-up time to 150 °C 15min 16 min 19 min 18 min 21 min
Recovery time after 30 seconds door open at 150 °C 3 min 3 min 3 min 3 min 3 min
Rated Voltage 230 V 230 V 230 V 400 V 400 V
Power frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Phase 1 1 1 3 3
Nominal power 1.2 kW 1.6 kW 2.7 kW 3.4 kW 5 kW
Energy consumption at 150 °C 300 Wh/h 544 Wh/h 850 Wh/h 1200 Wh/h 1320 Wh/h
Interior volume 53 lt. 115 lt. 240 lt. 400 lt. 720 lt.
Net weight of the unit (empty) 61 Kg 89 Kg 131Kg 173 Kg 203 Kg
permitted load 40 Kg 50 Kg 70 Kg 90 Kg 120 Kg
Load per rack 15 Kg 20 Kg 30 Kg 35 Kg 45 Kg
Unit doors 1 1 2 2 2
Number of shelves (std./max.) 2/5 2/6 2/7 2/10 2/16
Interface RS 422 RS 422 RS 422 RS 422 RS 422
Internal Dimensions
Width [mm] 400 600 800 1000 1000
Height [mm] 400 480 600 800 1200
Depth [mm] 340 410 510 510 610
Outer dimensions
Width [mm] 635 835 1035 1235 1235
Height [mm] 780 865 985 1190 1690
Depth [mm] 575 645 745 795 865



Accesorii optionale
- Usa cu fereastra de vizualizare in interior cu lampa lumina rece
- Usa cu garnitura din VITON
- Lacket / chie pentru usa
- Alarma acoustica pentru limita setata de temperatura
- Dispozitiv independent pentru controlul temperaturii clasa 3.1 (DIN 12880) cu alarma optica
- Inregistrator continuu de temperatura cu dispozitiv achiziţie de date (Data Logger) in domeniu 0°C .. 350°C
- Iesire analogica pentru temp. 4 la 20mA. cu mufa tip DIN de 6-pin
- Porturi de acces cu garnitura siliconica pentru diferite instrumente de masura cu diametru de Ø 10, 30, 50 si 100 mm
- Masa suport cu/fara roti pentru etuve d elaborator
- Raft cromat sau din otel inox
- Raft perforat din otel inox
- Certificat de calibrare in centru la 150°C sau la o temperatura specificata. (documente de validare, protocol, GLP,..etc)
- Certificat de masurarea temperaturi in 27 de puncte conform DIN 12880


Etuva termostatata cu ventilatie fortata
Capacitate 30 lit. / 45 lit. / 65 lit. / 125 lit.
Domeniu de temperatura Amb.±5 .. 250°C
Seria AuxiLab 632-PLUS

Etuve economice de uz general cu convectie fortata

Lab Ovens with forced convection ventilation


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Sistem de incalzire si ventilatie controlate prin microprocesor
Setarea digitala temperaturii si a timpului de mentinere
Domeniu temperatura ambient .. +250°C
Fluctuatia temperaturii ±1°C
Timer 99h :: 59 min
Vizualizare temperatura setata/ temperatura curenta
Grad inalt de precizie
Ventilatie fortata
Interior din inox
Usa din sticla termorezistenta cu inchidere ermetica
2 rafturi incluse (optional rafturi aditionale)
Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Date tehnice

Model Auxilab 632/3 Plus 632/45 Plus 632/65 Plus 632/125 Plus
Capacitate 30 L 45 L 65 L 125 L
Domeniu temperatura +5 .. 250 °C +5 .. 250 °C +5 .. 250 °C +5 .. 250 °C
Rezolutie 0.1 °C 0.1 °C 0.1 °C 0.1 °C
Fluctuatie temperatura ± 1.0 °C ± 1.0 °C ± 1.0 °C ± 1.0 °C
Omogenitate temp. 2% 2% 2% 2%
Putere 300 W 300 W 400 W 400 W
Dimensiune inerna 31 x 31 x 31 cm 35 x 35 x 35 cm 40 x 36 x 45 cm 50 x 45 x 55 cm
Dimensiune externa 46 x 51 x 69 cm 50 x 55 x 73 cm 55 x 55 x 84 cm 64 x 68 x 91 cm
Greutate 39 Kg 42 Kg 53 Kg 58 Kg
Alimentare 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10%
Cod Produs 50632031 50632041 50632061 50632131

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
Are used in research laboratories, hospitals and industry for sample drying and disinfecting materials, among other applications
Exterior metal furniture covered with epoxy and interior of stainless steel
Door with double glazed window for external control, no temperature variations in the inner chamber
Supplied with shelves (2units, height adjustable)
Digital regulation of temperature and time
Air circulation system: By forced air the air flow is due to a fan that creates a better homogeneity in the working area.
Control panel with key board and digital display, with general on/off switch
Adjustable legs for easy installation and leveling.

Technical data

Model Auxilab 632/3 Plus 632/45 Plus 632/65 Plus 632/125 Plus
Capacity 30 L 45 L 65 L 125 L
Temperature range +5 .. 250 °C +5 .. 250 °C +5 .. 250 °C +5 .. 250 °C
Tmp. Resolution 0.1 °C 0.1 °C 0.1 °C 0.1 °C
Tempreture Fluctuation ± 1.0 °C ± 1.0 °C ± 1.0 °C ± 1.0 °C
Temp. Homogenity 2% 2% 2% 2%
Power 300 W 300 W 400 W 400 W
Inner Dimensiune 31 x 31 x 31 cm 35 x 35 x 35 cm 40 x 36 x 45 cm 50 x 45 x 55 cm
Outer Dimensiune 46 x 51 x 69 cm 50 x 55 x 73 cm 55 x 55 x 84 cm 64 x 68 x 91 cm
Weight 39 Kg 42 Kg 53 Kg 58 Kg
Power supply 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10%
Product code 50632031 50632041 50632061 50632131



Accesorii optionale

Articol Dimensiune :: Dimension Pt. etuve / For oven Cod prod.
Raft :: Shelf 28 x 28 cm volum 30 Lit. 90630901
Raft :: Shelf 32 x 32 cm Volum 45 Lit. 90630905
Raft :: Shelf 37 x 33 cm Volum 65 Lit. 90630906
Raft :: Shelf 47 x 42 cm Volum 125 Lit. 90630907




Etuva termostatata cu ventilatie fortata
Capacitate 52 lit. / 115 lit. / 240 lit. / 400 lit. / 720 lit.
Domeniu de temperatura Amb.±5 .. 300°C

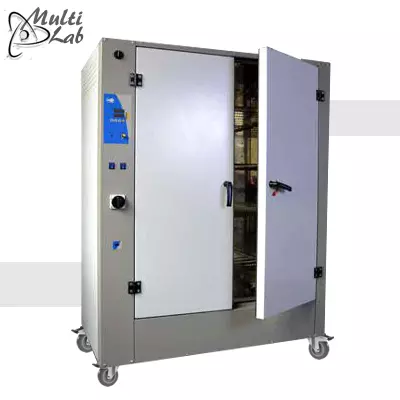

Seria FALC STF-FR

Etuve universale cu programarii ciclice si sistem de ventilatie fortata pentru calibrare instrumente si uscare controlata

Forced Vent. Ovens with Ramps


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Etuve cu 4 cicluri programabile cu circulatie fortata cu viteza de ventilatie controlata, viteza de schimbare a aerului cat si pozitia clapetei sunt controlate electronic.
Deschiderile Inlet si outlet duc la o schimbare mai mare a airului si reduc timpii de uscare.
Aplicatii variate ce recomanda sau chiar cer controlul temperaturii.
Abaterile de temperatura cauzate de aerul proaspat pot influenta specificatiile probei sau pot prelungi timpul de uscare.
In cazul etuvelor universale FALC, aerul proaspat este introdus mai intai intr-o camera cu pre-incalzire si apoi in camera de lucru.

Date tehnice

Model STF-FR 52 STF-FR 80 STF-FR 120 STF-FR 240 STF-FR 400 STF-FR 720
Capacitate 52 lit. 80 lit. 120 lit. 240 lit. 400 lit. 720 lit.
Domeniu de temperatura ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C
Precizie la 70°C ±1,5°C ±1,5°C ±2°C ±2,5°C ±3°C ±3°C
Acuratete de setare temp. 0,1°C 0,1°C 0,1°C 0,1°C 0,1°C 0,1°C
Putere 1200 W 1400 W 1600 W 2600 W 3400 W 2600+2600 W
Rafturi incluse 2 2 2 2 2 2
Rafturi aditionale max. 6 7 8 12 15 21
Dimens. int. / mm 390 x 350 x 390 450 x 400 x 450 500 x 470 x 520 600 x 500 x 800 700 x 580 x 1000 910 x 610 x 1320
Dimens. ext / mm 705 x 570 x 610 775 x 610 x 675 825 x 680 x 740 925 x 710 x 1030 1025 x 790 x 1230 1270 x 830 x 1710
Alimentare 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz
Greutate 65 60 68 80 100 120
Clasa de protectie IP 40 IP 40 IP 40 IP 40 IP 40 IP 40
Cod. Produs 720.2090.55 720.2090.58 720.2090.62 720.2090.74 720.2090.80 720.2090.45

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
Forced ventilation Oven
- Internal chamber in stainless steel
- External frame painted with acid reistant epoxy paint
- Microprocessor temperature control by PID action
- Digital Timer from 0 to 99:59 (hh:mm) + infinity
- Energy saving
- Switches to partially exclude resistances
- Safety Thermostat
- Adjustable chimney on the back side for extraction of exhaust fumes
- Height adjustable feet

Technical data

Model STF-FR 52 STF-FR 80 STF-FR 120 STF-FR 240 STF-FR 400 STF-FR 720
Capacity 52 lit. 80 lit. 120 lit. 240 lit. 400 lit. 720 lit.
Temperature range ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C
Tmp. precision @ 70°C ±1,5°C ±1,5°C ±2°C ±2,5°C ±3°C ±3°C
Temp. accuracy 0,1°C 0,1°C 0,1°C 0,1°C 0,1°C 0,1°C
Power 1200 W 1400 W 1600 W 2600 W 3400 W 2600+2600 W
Standard shelves 2 2 2 2 2 2
Additional shelves 6 7 8 12 15 21
Inner dimension / mm 390 x 350 x 390 450 x 400 x 450 500 x 470 x 520 600 x 500 x 800 700 x 580 x 1000 910 x 610 x 1320
Outer dimension / mm 705 x 570 x 610 775 x 610 x 675 825 x 680 x 740 925 x 710 x 1030 1025 x 790 x 1230 1270 x 830 x 1710
Power supply 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz
Weight 65 60 68 80 100 120
Protection Class IP 40 IP 40 IP 40 IP 40 IP 40 IP 40
Product code 720.2090.55 720.2090.58 720.2090.62 720.2090.74 720.2090.80 720.2090.45



Accesorii optionale
- Program software pentru inregistrare si prelucrarea datelor
- Masa suport cu/fara roti pentru etuve de laborator
- Raft aditional


multilab_team

Solutions for science, industry and safety systems

Suntem bucurosi sa te ajutam ... Fie ca vrei sa comanzi si nu esti sigur care este cea mai buna alegere, sau vrei sa afli mai multe despre serviciile noastre, consultantii nostri Iti raspund la orice intrebare
Pentru orice detalii suplimentare tehnice sau comerciale sintem la dispozitia Dvs.
direct Tel. +4 021 312 7144 / 45
sau

service_reparatie

Superior Service
MultiLab's aim is to differentiate ourselves and add value to our customers, by providing superior service throughout the sales and after-care processes :: Preventative Maintenance - Calibration - Repair - Validation .. more »
Centru service autorizat de producator
Service - Mentenantei preventive - Reparati - Consumabile - Piese de schimb pentru aparatura de laborator .. mai multe »

Localizare MultiLab

multilab_laboratories

*Important
acest site este unul de prezentare! date tehnice; poze afisate si preturile sunt cu titlu informativ se pot schimba fara notificare prealabila! detalii »
MultiLab© SRL reserve the right to change products and prices without notice.

All rights Reserved MultiLab© SRL Romania 2003 - 2017
