Cuptoare de topire mentinere si turnare

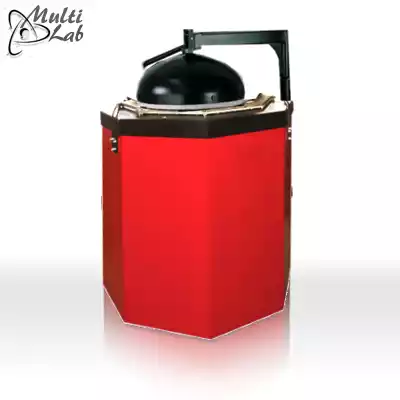

cuptor_topire_cupru

Cuptoare universale multifunctionale pentru procese metalurgice


Cuptor de topire metale si aliaje metalice
Tmp. maxima :: 1300 °C
Seria LAC - I

Cuptor de topire - turnare metale neferoase » Temperatura maxima 1300 °C

Induction Melting Furnace


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptor compact cu creuzet rabatabil pentru topire si turnare probe mici de metale neferoase (aur, argint, curpru, alama, etc.) la o temperatura max. 1300°C

Caracteristici tehnice
• Clasa Protectie A 25
• Compact usor de operat
• Creuzetul este realizat din grafit
• Incalzire rapida
• Consum foarte mic de apa (racire) si de energie electrica
• Creuzetul poate fi extras din cuptor sau turnata (rabatabil)
• Elementele de protectie HF
• Senzor de curgere
• Oprire/pornire cu pedala de picior

Aplicatii
utilizat pentru topirea si mentinerea temperaturii aliajelor neferoase.
Topirea metalului se produce prin conductie, energia termica a flacarii traversand peretii creuzetului.
Metalul topit este evacuat prin rabaterea (bascularea) cuptorului in jurul unei axe orizontale.

Date Tehnice

Model I 03/13
Capacitate de topire / ref. Cupru 2,5 Kg
Volum creuzet 0,3 lit
Temperatura maxima 1300 °C
Putere 7,5 kW
Dimensiune externe 350 x 300 x 400 mm
Inaltime la turnare 380 mm
Greutate 50 Kg
Dimensiune unitate sursa de control 350 x 410 x 520 mm

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
designed mainly for the melting of small amounts of non-ferrous metal (gold, silver, copper, brass).

Advantages
High energy efficiency
Extremely rapid melting with a minimum of burning
Low cooling water and electricity consumption while melting
Very compact design
Melt removal by tilting or removal of crucible
Simple user-friendly operation

Standard furnace accessories include:
HF source
Llow sensor
Foot pedal switch
Graphite crucible (1pc)
Protective ceramic insert (1pc)

Technical Data

Model I 03/13
Capacity / ref. Cu 2,5 Kg
Crucible volume 0,3 lit
Maximum Tempreture 1300 °C
Power 7,5 kW
Outer dimension 350 x 300 x 400 mm
Furnace height after tilting 380 mm
Weight 50 Kg
Source unit dimension 350 x 410 x 520 mm



Accesorii optionale
- Termocuplu pentru control supraincalzire
- Capac pentru izolare creuzet
- Debitmetru pentru a afisa cantitatea de apa consumata
- Circuit de racire integrat
- Cablu de alimentare
mai multe accesorii optionale»

Optional accessories
- Thermocouple to control overheating
- Gas burner for protective atmosphere
- Crucible insulating lid
- Water meter to show amount of water consumed
- Tongs for crucible manipulation
- Separate power switch
- Power cable
- Closed cooling circuit (by special request only)
Consumables
Graphite crucibles
Ceramic protective insert
Graphite mixer

Consumabile
- Creuzet grafit
- Insertie de protectie din ceramica
- Amestecator grafit

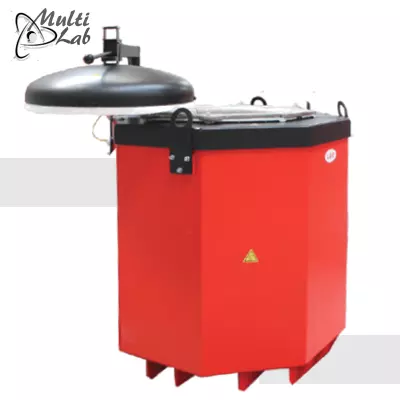

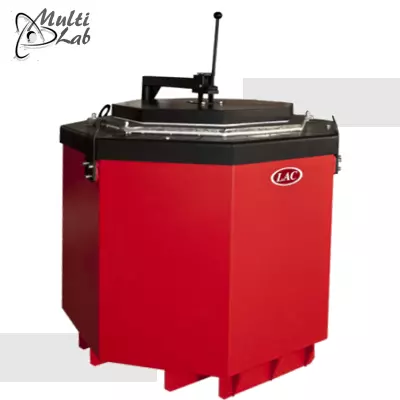

Cuptor de topire metale si aliaje metalice
Tmp. maxima :: intre 1100 °C si 1300 °C
Volum :: intre 12 lit. si 360 lit.
Seria LAC - PT

Cuptoare de topire si mentinere aliaje metalice » Temperatura maxima 1300 °C

Melting electric resistance stationary furnaces


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptor compact cu creuzet rabatabil pentru topire si turnare probe mici de metale neferoase max. 1300°C

Caracteristici tehnice

Aplicatii
utilizate pentru o serie mare de aplicatii

Date Tehnice

Modele cu temperatura pana la 1100 °C

Model Capacitate Al Capacitate de topire Temperatura max. Tip creuzet Volum creuzet Dimensiune ext. Putere Greutate Alimentare Protectie
PT 30/11 30 kg 35 Kg Al / Hour 1100 °C A 70 / Noltina 12 lit. 106 x 130 x 106 cm 18 kW 750 Kg 400 V 32/3 A
PT 60/11 60 kg 42 Kg Al / Hour 1100 °C A 150 / Noltina 24 lit. 110 x 140 x 110 cm 21 kW 850 Kg 400 V 40/3 A
PT 110/11 105 kg 58 Kg Al / Hour 1100 °C A 300 / Noltina 40 lit. 125 x 145 x125 cm 27 kW 1100 Kg 400 V 50/3 A
PT 210/11 185 kg 130 Kg Al / Hour 1100 °C BU 200 / Noltina 70 lit. 138 x 150 x 138 cm 53 kW 1400 Kg 400 V 100/31 A
PT 330/11 275 kg 140 Kg Al / Hour 1100 °C BU 300 / Noltina 110 lit. 138 x 165 x 138 cm 63 kW 1650 Kg 400 V 125/31 A
PT 400/11 320 kg 150 Kg Al / Hour 1100 °C BU 350 / Noltina 135 lit. 140 x 187 x 140 cm 68 kW 1750 Kg 400 V 125/31 A
PT 500/11 480 kg 170 Kg Al / Hour 1100 °C BU 500 / Noltina 180 lit. 160 x 185 x 160 cm 72 kW 2100 Kg 400 V 125/3 A
PT 650/11 590 kg 210 Kg Al / Hour 1100 °C BU 600 / Noltina 220 lit. 160 x 200 x 160 cm 82 kW 2500 Kg 400 V 160/32 A
PT 800/11 970 kg 290 Kg Al / Hour 1100 °C BU 800 / Noltina 360 lit. 160 x 220 x 160 cm 102 kW 2800 Kg 400 V 200/32 A

Modele cu temperatura pana la 1300 °C

Model PT 90/13 PT 180/13 PT 360/13 PT 710/13
Capacitate Al 30 kg 60 kg 105 kg 185 kg
Capacitate Cu 110 kg 205 kg 370 kg 640 kg
Capacitate de topire Cu 45 Kg Cu / ora 60 Kg Cu / ora 80 Kg Cu / ora 190 Kg Cu / ora
Temperatura max. 1300 °C 1300 °C 1300 °C 1300 °C
Tip creuzet A 70 / Noltina A 150 / Noltina A 300 / Noltina BU 200 / Noltina
Volum creuzet 12 lit. 24 lit. 40 lit. 70 lit.
Dimensiune externa 106 x 130 x 106 cm 110 x 140 x 110 cm 125 x 145 x 125 cm 138 x 150 x 138 cm
Putere 18 kW 21 kW 27 kW 53 kW
Greutate 750 Kg 850 Kg 1100 Kg 1400 Kg
Alimentare 400 V 400 V 400 V 400 V
Protectie 32/3 A 40/3 A 50/3 A 100/3 A

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Application
The furnace is for melting and holding alloys to max temperature 1300°C in the furnace chamber (i.e. over 1200°C in the furnace crucible - these values ​​we guarantee only when using no worn-crucible from producer Noltina of appropriate size) depending on type. (Tin, lead, zinc, aluminum, silver, gold, copper)

Advantages
Precise temperature regulation in the heating chamber
Top insulating materials and hinged lid to minimize heat losses
Cast iron collar to provide protection of the crucible from damage
Emergency drain in the furnace bottom to protect the furnace in case of crucible damage
Quick crucible change by dismantling the concrete furnace ruff

Standard furnace accessories include:
Ht40 T controller
Limit unit
Protective crucible collar
Residual current device
Ammeters to check status of heating elements
Connection between furnace and switchboard in metal hose with plastic protector

Technical Data

Furnaces with Temperatura up-to 1100 °C

Model Capacity Al Melting output T max Crucible type Crucible volume Outer dimensions Input Weight Voltage Protection
PT 30/11 30 kg 35 Kg Al / Hour 1100 °C A 70 / Noltina 12 lit. 106 x 130 x 106 cm 18 kW 750 Kg 400 V 32/3 A
PT 60/11 60 kg 42 Kg Al / Hour 1100 °C A 150 / Noltina 24 lit. 110 x 140 x 110 cm 21 kW 850 Kg 400 V 40/3 A
PT 110/11 105 kg 58 Kg Al / Hour 1100 °C A 300 / Noltina 40 lit. 125 x 145 x125 cm 27 kW 1100 Kg 400 V 50/3 A
PT 210/11 185 kg 130 Kg Al / Hour 1100 °C BU 200 / Noltina 70 lit. 138 x 150 x 138 cm 53 kW 1400 Kg 400 V 100/31 A
PT 330/11 275 kg 140 Kg Al / Hour 1100 °C BU 300 / Noltina 110 lit. 138 x 165 x 138 cm 63 kW 1650 Kg 400 V 125/31 A
PT 400/11 320 kg 150 Kg Al / Hour 1100 °C BU 350 / Noltina 135 lit. 140 x 187 x 140 cm 68 kW 1750 Kg 400 V 125/31 A
PT 500/11 480 kg 170 Kg Al / Hour 1100 °C BU 500 / Noltina 180 lit. 160 x 185 x 160 cm 72 kW 2100 Kg 400 V 125/3 A
PT 650/11 590 kg 210 Kg Al / Hour 1100 °C BU 600 / Noltina 220 lit. 160 x 200 x 160 cm 82 kW 2500 Kg 400 V 160/32 A
PT 800/11 970 kg 290 Kg Al / Hour 1100 °C BU 800 / Noltina 360 lit. 160 x 220 x 160 cm 102 kW 2800 Kg 400 V 200/32 A

Furnaces with Temperatura up-to 1300 °C

Model PT 90/13 PT 180/13 PT 360/13 PT 710/13
Capacity Al 30 kg 60 kg 105 kg 185 kg
Capacity Cu 110 kg 205 kg 370 kg 640 kg
Melting output Cu 45 Kg Cu / Hour 60 Kg Cu / Hour 80 Kg Cu / Hour 190 Kg Cu / Hour
T max 1300 °C 1300 °C 1300 °C 1300 °C
Crucible type A 70 / Noltina A 150 / Noltina A 300 / Noltina BU 200 / Noltina
Crucible volume 12 lit. 24 lit. 40 lit. 70 lit.
Outer dimensions 106 x 130 x 106 cm 110 x 140 x 110 cm 125 x 145 x 125 cm 138 x 150 x 138 cm
Input 18 kW 21 kW 27 kW 53 kW
Weight 750 Kg 850 Kg 1100 Kg 1400 Kg
Voltage 400 V 400 V 400 V 400 V
Protection 32/3 A 40/3 A 50/3 A 100/3 A



Optional accessories
- Charge thermocouple in protective tube
- Crucible wall pocket thermocouple
- INDUSTRY controller
- Crucible
- Crucible cracking control system
- Kanthal APM heating spirals (we recommend for temperatures over 1100 °C)
- Connection between the furnace and switchboard in metal hose with protective metal sheath
- Alsint tubes (we recommend for temperatures over 1100 °C)
- Calibration of the measuring system


Cuptoare de topire si turnare aliaje metalice
Tmp. maxima :: 1200 °C
Rata topire :: intre 20 Kg/Al si 860 Kg/Al
Seria LAC - PTS

Cuptoare electrice basculante de topire si mentinere » Temperatura maxima 1300 °C

Melting electric resistance tilting furnaces


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptoare electrice rabatabile pentru topire si turnare probe metalice neferoase max. 1200°C
Cuptoarele de turnătorii sunt utilizate in procesele de turnare aliaje (topire aluminiu, cupru, bronz, alama, zinc, zamac, antimoniu etc.), cat si pentru mentinerea temperaturii metalului/aliajului topit.
Toate cuptoarele sunt dotate cu microprocesor programabil de tip industrial cu protectie

Date Tehnice

Model Temp. max Capacitate de topire Tip creuzet Dimensiune externa Putere Rata topire Greutate Protectie Alimentare
PTS 30/12 1200°C 20 kg Al A 70 Noltina 1540 x 1850 x 1300 mm 18 kW 30 Kg Al/h 1250 kg 32/3 A 400 V
PTS 60/12 1200°C 40 kg Al A 150 Noltina 1600 x 1900 x 1200 mm 21 kW 40 Kg Al/h 1450 kg 40/3 A 400 V
PTS 110/12 1200°C 85 kg Al A 300 Noltina 1850 x 2000 x 1550 mm 27 kW 55 Kg Al/h 1500 kg 50/3 A 400 V
PTS 210/12 1200°C 145 kg Al TP 287 Noltina 1950 x 2000 x 1600 mm 53 kW 120 Kg Al/h 1790 kg 100/3 A 400 V
PTS 400/12 1200°C 350 kg Al TP 412 Noltina 2000 x 2100 x 1650 mm 63 kW 140 Kg Al/h 2180 kg 125/3 A 400 V
PTS 650/12 1200°C 540 kg Al TP 587 Noltina 2150 x 2450 x 1900 mm 82 kW 200 Kg Al/h 2820 kg 160/3 A 400 V
PTS 970/12 1200°C 860 kg Al TBN 800 Noltina 2250 x 2450 x 2000 mm 102 kW 250 Kg Al/h 3500 kg 200/3 A 400 V

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Application
The furnace is designed for melting, with tilt and pour option of alloys into a transporting pan or transporting holding furnace for transport to follow-up processes for temperatures into 1200°C (in furnace chamber, and around 1100°C in crucible).

Advantages
Precise temperature regulation in the heating chamber
Top insulating materials and hinged lid to minimize heat losses
Cast iron collar to provide protection of the crucible from damage
Emergency drain near the furnace bottom to protect the furnace in case of crucible damage
Quick crucible change by dismantling the concrete furnace ruff

Standard furnace accessories include:
Crucible
Hydraulic tilting system
Ht40 T controller
Ammeters for checking heating element conditions
Residual current device
Cast-iron protective collar
Manual lid
Connection between the furnace and switchboard in metal hose with protective metal sheath

Technical Data

Furnaces with Temperatura up-to 1200 °C

Model T max Capacity Crucible type External dimensions (W x H x D) Input Melting output Weight Protection Voltage
PTS 30/12 1200°C 20 kg Al A 70 Noltina 1540 x 1850 x 1300 mm 18 kW 30 Kg Al/h 1250 kg 32/3 A 400 V
PTS 60/12 1200°C 40 kg Al A 150 Noltina 1600 x 1900 x 1200 mm 21 kW 40 Kg Al/h 1450 kg 40/3 A 400 V
PTS 110/12 1200°C 85 kg Al A 300 Noltina 1850 x 2000 x 1550 mm 27 kW 55 Kg Al/h 1500 kg 50/3 A 400 V
PTS 210/12 1200°C 145 kg Al TP 287 Noltina 1950 x 2000 x 1600 mm 53 kW 120 Kg Al/h 1790 kg 100/3 A 400 V
PTS 400/12 1200°C 350 kg Al TP 412 Noltina 2000 x 2100 x 1650 mm 63 kW 140 Kg Al/h 2180 kg 125/3 A 400 V
PTS 650/12 1200°C 540 kg Al TP 587 Noltina 2150 x 2450 x 1900 mm 82 kW 200 Kg Al/h 2820 kg 160/3 A 400 V
PTS 970/12 1200°C 860 kg Al TBN 800 Noltina 2250 x 2450 x 2000 mm 102 kW 250 Kg Al/h 3500 kg 200/3 A 400 V



Optional accessories
- Charge thermocouple in protective tube
- Crucible wall pocket thermocouple
- INDUSTRY controller
- Crucible
- Crucible cracking control system
- Kanthal APM heating spirals (we recommend for temperatures over 1100 °C)
- Connection between the furnace and switchboard in metal hose with protective metal sheath
- Alsint tubes (we recommend for temperatures over 1100 °C)
- Calibration of the measuring system

multilab_team

Solutions for science, industry and safety systems

Suntem bucurosi sa te ajutam ... Fie ca vrei sa comanzi si nu esti sigur care este cea mai buna alegere, sau vrei sa afli mai multe despre serviciile noastre, consultantii nostri Iti raspund la orice intrebare
Pentru orice detalii suplimentare tehnice sau comerciale sintem la dispozitia Dvs.
direct Tel. +4 021 312 7144 / 45
sau

service_reparatie

Superior Service
MultiLab's aim is to differentiate ourselves and add value to our customers, by providing superior service throughout the sales and after-care processes :: Preventative Maintenance - Calibration - Repair - Validation .. more »
Centru service autorizat de producator
Service - Mentenantei preventive - Reparati - Consumabile - Piese de schimb pentru aparatura de laborator .. mai multe »

Localizare MultiLab

multilab_laboratories

*Important
acest site este unul de prezentare! date tehnice; poze afisate si preturile sunt cu titlu informativ se pot schimba fara notificare prealabila! detalii »
MultiLab© SRL reserve the right to change products and prices without notice.

All rights Reserved MultiLab© SRL Romania 2003 - 2017
