Etuva termostate cu ventilatie naturala

etuve_ventilatie_naturala

Etuve termostatate sunt dedicate aplicatiilor de incubare uscare sterilizare si tratarii termice care cer un proces controlat sau anumite procedeuri de tratament termic speciale, dar si pentru calibrare diverse instrumente sau incubarea anumitor produse.

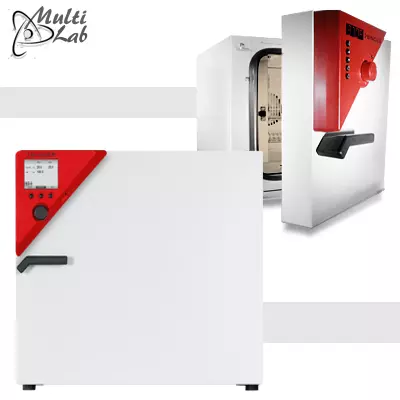

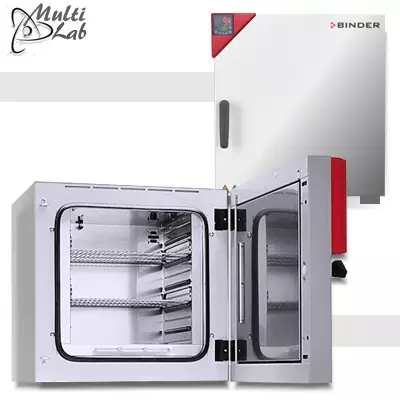

Etuva termostatata cu ventilatie naturala
Capacitate 23 lit. / 56 lit. / 115 lit. / 260 lit. / 400 lit./ 720 lit.
Domeniu de temperatura Amb.±5 .. 300°C
Seria Binder ED ED23, ED56, ED115, ED260, ED400, ED720

Etuve termoreglabile cu convectie / ventilatie gravitationala

Drying and heating ovens with natural convection


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
• Camera termostatata pentru procese de uscare si sterilizare
• Programare: timp si temperatura
• Controlul temperaturii si al sensibilitatii termice
• Setarea si programarea temperatura si timpului de operare: 0 ... 99/ore
• Volume disponibile lit. : 23; 53; 115; 240; 400 si 720 lit.
• Domeniu de temperatura: 5 .. 300°C
• Afisaj: digital
• Interfata de comunicare: RS 422
• Tehnologie: microprocesor de control PID si APT
• Garantie: 24 luni

Date tehnice

Model ED 23 ED 56 ED 115 ED 260 ED 400 ED 720
Cod produs 9010-0191 9010-0333 9010-0335 9010-0339 9010-0075 9010-0076
Domeniu de temperatura 5.. 300°C 5.. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C
Variatia temperaturii la 150°C 2,8 ± K 2,3 ± K 1,5 ± K 1,8 ± K 3 ± K 3,6 ± K
Fluctuatia temperaturii la 150°C 0.5 ± K 0.4 ± K 0.4 ± K 0.8 ± K 0.5 ± K 0.5 ± K
Timp necesar de incalzire pana 150 °C 28 min 50 min 45 min 50 min 71 min 84 min
Timp de revenire daca usa a fost deschisa 30 secunde la 150 °C 28 min 19 min 16min 20 min 31 min 34 min
Alimentare 230 V 230 V 230 V 230 V 400 V 400 V
Frecventa 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Faze 1 1 1 1 3 3
Putere nominala 1 kW 1 kW 1.25 kW 2.25 kW 3.4 kW 5 kW
Consum energetic la 150 °C 148 Wh/h 180 Wh/h 245 Wh/h 355 Wh/h 672 Wh/h 750 Wh/h
Volum interior / util 20 lt. 57 lt. 114 lt. 255 lt. 400 lt. 720 lt.
Greutate neta 27 Kg 39 Kg 54 Kg 85Kg 125 Kg 174 Kg
Incarcarea maxima 25 Kg 70 Kg 150 Kg 270 Kg 90 Kg 120 Kg
Incarcarea pe raft 12 Kg 30 Kg 30 Kg 40 Kg 35 Kg 45 Kg
Nr. usi 1 1 1 2 2 2
Numar de rafturi (incluse/optional) 2/4 2/4 2/5 2/8 2/10 2/16
Interfata RS 422 USB USB USB RS 422 RS 422
Dimensiuni interioare
latime / mm 222 360 510 610 1000 1000
Inaltime / mm 330 420 530 760 800 1200
Adancime / mm 300 380 425 550 520 620
Dimensiuni exterioare
latime / mm 435 560 710 810 1235 1235
Inaltime / mm 495 625 735 965 1025 1530
Adancime / mm 520 565 605 760 765 865

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
Temperature range: room temperature plus 5 °C to 300 °C
APT.line preheating chamber technology
Natural convection
Adjustable exhaust air flap
Controller with timer functions
2 chrome-plated racks
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

Performance & Advantages
Electronically controlled APT.line preheating chamber assuring temperature accuracy and reproducible results
Temperature range from 5 °C above ambient temperature to 300 °C
Digital temperature setting with an accuracy of one degree
DS control with integrated timer 0 to 99,59 hrs
Independent adjustable temperature safety device class 2 (DIN 12880), with visual temperature alarm
Adjustable ventilation by means of front ventilation flap slide and rear exhaust Ø 50 mm
Optional RS 422 Interface for APT-COM™ Data Control System communication software
Units up to 115 liters are stackable
2 chrome-plated racks included
ED 23 with space-saving door mechanism
BINDER test confirmation

Technical data

Model ED 23 ED 56 ED 115 ED 260 ED 400 ED 720
Product code 9010-0191 9010-0333 9010-0335 9010-0339 9010-0075 9010-0076
Temperature range 5.. 300°C 5.. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C 5 .. 300°C
Temperature variation at 150 °C 2,8 ± K 2,3 ± K 1,5 ± K 1,8 ± K 3 ± K 3,6 ± K
Temperature fluctuation at 150 °C 0.5 ± K 0.4 ± K 0.4 ± K 0.8 ± K 0.5 ± K 0.5 ± K
Heating-up time to 150 °C 28 min 50 min 45 min 50 min 71 min 84 min
Recovery time after 30 seconds door open at 150 °C 28 min 19 min 16min 20 min 31 min 34 min
Rated Voltage 230 V 230 V 230 V 230 V 400 V 400 V
Power frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Phase 1 1 1 1 3 3
Nominal power 1 kW 1 kW 1.25 kW 2.25 kW 3.4 kW 5 kW
Energy consumption at 150 °C 148 Wh/h 180 Wh/h 245 Wh/h 355 Wh/h 672 Wh/h 750 Wh/h
Interior volume 20 lt. 57 lt. 114 lt. 255 lt. 400 lt. 720 lt.
Net weight of the unit (empty) 27 Kg 39 Kg 54 Kg 85Kg 125 Kg 174 Kg
permitted load 25 Kg 70 Kg 150 Kg 270 Kg 90 Kg 120 Kg
Load per rack 12 Kg 30 Kg 30 Kg 40 Kg 35 Kg 45 Kg
Unit doors 1 1 1 2 2 2
Number of shelves (std./max.) 2/4 2/4 2/5 2/8 2/10 2/16
Interface RS 422 USB USB USB RS 422 RS 422
Internal Dimensions
Width [mm] 222 360 510 610 1000 1000
Height [mm] 330 420 530 760 800 1200
Depth [mm] 300 380 425 550 520 620
Outer dimensions
Width net [mm] 435 560 710 810 1235 1235
Height net [mm] 495 625 735 965 1025 1530
Depth net [mm] 520 565 605 760 765 865



Accesorii optionale
- Usa cu fereastra de vizualizare in interior cu lampa lumina rece
- Usa cu garnitura din VITON
- Lacket / chie pentru usa
- Alarma acoustica pentru limita setata de temperatura
- Dispozitiv independent pentru controlul temperaturii clasa 3.1 (DIN 12880) cu alarma optica
- Inregistrator continuu de temperatura cu dispozitiv achiziţie de date (Data Logger) in domeniu 0°C ... 350°C
- Iesire analogica pentru temp. 4 la 20mA. cu mufa tip DIN de 6-pin
- Porturi de acces cu garnitura siliconica pentru diferite instrumente de masura cu diametru de Ø 10, 30, 50 si 100 mm
- Masa suport cu/fara roti pentru etuve d elaborator
- Raft cromat sau din otel inox
- Raft perforat din otel inox
- Certificat de calibrare in centru la 150°C sau la o temperatura specificata. (documente de validare, protocol, GLP,..etc)
- Certificat de masurarea temperaturi in 27 de puncte conform DIN 12880


Etuva termostatata cu ventilatie naturala
Capacitate 58 lit. / 118 lit. / 230 lit.
Domeniu de temperatura Amb.±10 .. 250°C
Seria FroiLabo - Performance Modele AP 60 / AP 120 / AP 240

Etuve universale cu convectie naturala

Universal Drying Ovens


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Etuvele universale FroiLabo cu convectie naturala seria PERFORMANCE sau fortata seria EXPERT; special concepute pentru operatiuni de uscare si sterilizare de rutina cu aer cald a instrumentarului, a obiectelor din sticla, metal sau material termorezistent; procese de uscare in aer cald si/sau evaporare; menţinerea la temperatura constanta a probelor biologice, biochimice, chimice, etc.
Gama FROILABO cuprinde urmatoarele volume interioare: 58 L, 118 L si 230 L.

Caracteristici Tehnice
Domeniu de temperatura: +10°C to +250°C
- Izolatia termica de mare eficienta este realizata cu fibra minerala (sau, dupa caz, cu vata ceramica rezistenta la temperaturi ridicate).
- Etansarea usii este asigurata de o garnitura de cauciuc siliconic spongios cu sistem inchidere automata tip "Gentle Push"
- Afisaj digital de inalta rezolutie cu butoare tactile pentru selectarea functiilor si parametrii de control
- Sonda de temperatura PT 100 ohm clasa A DIN
- Regulator inteligent tip PID (fuffy logic regulator)
- Protectie multipla a temperaturii: protectia la supraincalziri accidentale asigurata de un dispozitiv electronic independent Clasa II conform norme europene NF EN61010-2-010 (echivalent DIN3.1)
- Timer digital cu programare in intervalul 99h::59min
- Panou de control usor de utilizat
- Ventilatie: ajustare libera a fluxul de aer de la 0 la100%
- Alarma vizuala (optional si sonora)
- Exterior si interior din otel inox cu colţuri rotunjite pentru o curaţare usoara
- Sistem de exhausatre cu mufla pana la 120 lit.
- Conforms to EN60068-3-11
- Garantie 24 luni (optional 36 luni)
- la solicitarea beneficiarului si la un pret competitiv sa poata fi echipate cu imprimante termice grafice care inregistreaza si tiparesc diagrama de temperatura/timp, data, ora inceperii si terminarii ciclului de sterilizare/termostatare (vezi accesorii optionale)

Date tehnice

Model Performance AP 60 Performance AP 120 Performance AP 240
Capacitate / Volum util 58 lit. 118 lit. 230 lit.
Domeniu de temperatura Amb +10°C la 250°C Amb +10°C la 250°C Amb +10°C la 250°C
Stabilitate temperatura 0.2°C 0.2°C 0.2°C
Uniformitate temperatura la 70°C :: 0,7°C
la 150°C :: 1,5°C
la 250°C :: 5°C
la 70°C :: 0,6°C
la 150°C :: 1,4°C
la 250°C :: 5°C
la 70°C :: 0,7°C
la 150°C :: 1,5°C
la 250°C :: 5°C
Timpul de incalzire la 70°C :: 8 minute
la 150°C :: 20minute
la 250°C :: 38 minute
la 70°C :: 9 minute
la 150°C :: 30 minute
la 250°C :: 50 minute
la 70°C :: 10 minute
la 150°C :: 24 minute
la 250°C :: 45 minute
Putere nominala 1000 W 1000 W 2000 W
Dimensiuni exterioare (LxIxA) 526 x 640 x 580 mm 626 x 750 x 680 mm 626 x 1230 x 680 mm
Dimensiuni interioare (LxIxA) 400 x 390 x 370 mm 500 x 500 x 470 mm 500 x 980 x 470 mm
Inaltime mufla de exhaustare 30 mm 30 mm 30 mm
Numar de rafturi incluse (standard) 2 2 2
Numar max de rafturi /max (optional) 6 10 18
Incarcarea pe raft 20 Kg 20 Kg 20 Kg
Incarcarea maxima 50 Kg 70 Kg 90 KG
Numar de usi (optional cu geam) 1 1 1
Dimensiune raft 380 x 320 mm 480 x 430 mm 480 x 430 mm
Clasa de protectie IP55 IP55 IP55
Alarma vizuala vizuala vizuala
Greutatea 39 Kg 53 Kg 79 Kg

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
The Performance oven range has been developed to comply with all applications requiring speed, precision and homogeneity. It is specifically well adapted for drying, thermal tests and sterilization. The high efficiency fan will allow you to save precious time.

Performance
Temperature range: +10°C to +250°C
Vented by a fan providing stability and excellent temperature homogeneity
Volumes of 60 to 240 Liter
PT 100 ohm probe
PID fluffy logic regulator
Timer: 99h 59min
Chamber heating by convection, no risk of conduction or radiation (air inlet at temperature set point)
Dual digital display of the oven set point temperature & actual temperature (0.1°precision)
Simplified control panel
Adjustable air entry (from 0 to 100%)
Visual alarm
Hands free easing closing door design
2 anti-tip stainless steel wire shelves included (BP60: 1)
EASYCLEANING stainless steel inner chamber (flat surface, removable shelf holders)
Stackable units (up to 120 liter)
Conforms to EN60068-3-11
Adjustable over temperature security device Class II as defined in the European norm
NF EN61010-2-010 (equivalent to DIN3.1)
Individual quality control certificate
24 month warranty

Technical data

Model Performance AP 60 Performance AP 120 Performance AP 240
Capacity / Volume 58 lit. 118 lit. 230 lit.
Tempreture range Amb +10°C la 250°C Amb +10°C la 250°C Amb +10°C la 250°C
Tempreture stability 0.2°C 0.2°C 0.2°C
Tempreture uniformity 70°C :: 0,7°C
150°C :: 1,5°C
250°C :: 5°C
70°C :: 0,6°C
150°C :: 1,4°C
250°C :: 5°C
70°C :: 0,7°C
150°C :: 1,5°C
250°C :: 5°C
Heating time 70°C :: 8 m
150°C :: 20 m
250°C :: 38 m
70°C :: 9 m
150°C :: 30 m
250°C :: 50 m
70°C :: 10 m
150°C :: 24 m
250°C :: 45 m
Nominal power 1000 W 1000 W 2000 W
Outer dimension (WxHxD) 526 x 640 x 580 mm 626 x 750 x 680 mm 626 x 1230 x 680 mm
Inner dimensions (WxHxD) 400 x 390 x 370 mm 500 x 500 x 470 mm 500 x 980 x 470 mm
Stack hight 30 mm 30 mm 30 mm
Shelves (standard delivery) 2 2 2
Additional Shelves (optional) 6 10 18
Max. Load / shelf 20 Kg 20 Kg 20 Kg
Maximum load 50 Kg 70 Kg 90 Kg
Nr. of doors (optional with window) 1 1 1
Shelf Dimension 380 x 320 mm 480 x 430 mm 480 x 430 mm
Protection Class IP55 IP55 IP55
Alarm vizuala vizuala vizuala
Weight 39 Kg 53 Kg 79 Kg



Accesorii optionale

Description Models Reference
Stainless steel wire shelves AP60 AP/RAY1
Stainless steel wire shelves AP120 / AP240 AP/RAY2
Additional stainless steel shelf AP60 AP/ETA1
Additional stainless steel shelf AP120 / AP240 AP/ETA2
Reinforced stainless steel shelf AP60 AP/ETAR1
Reinforced stainless steel shelf AP120 / AP240 AP/ETAR2
Stainless steel water tray 395 x 350 x 20 mm AP60 AP/BAC1
Stainless steel water tray 495 x 450 x 20 mm AP120 / AP240 AP/BAC2
Base with castors 150 mm high AP120 / AP240 AP/SOC1
Base with castors 250 mm high AP120 / AP240 AP/SOC2
Stacking kit AP120/AP240 AP/SUP



Dotarii optionale

Description Models Reference
Adjustable air exchange system AP60 / AP120 AP/OPT1
Adjustable air exchange system - double admission AP240 AP/OPT2
Locking door AP/OPT6 All 4 castors All AP/OPT3
Cable entry port diam. 50 mm All AP/OPT7
Pt 100 Ohms + DIN socket for the recorder link All AP/OPT8
3 points COFRAC certified Pt 100 Ohms + DIN socket certified for recorder link All AP/OPT9
Circular disc recorder 1 channel All AP/OPT10
Electronic recorder 1 channel continuous graph All AP/OPT11
6 channels data logger link to Ethernet with a software All AP/OPT12
12 channels data logger link to Ethernet with a software All AP/OPT13
9 points temperature monitoring performed by COFRAC All QUAL4
Additional setpoint All QUAL3




Etuve cu ventilatie naturala
Capacitate 52 lit. / 80 lit. / 120 lit. / 240 lit. / 400 lit.
Domeniu de temperatura Amb.±5 .. 300°C

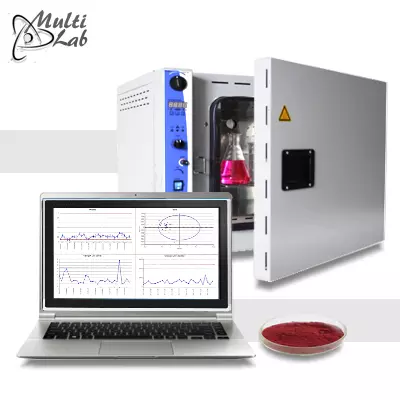

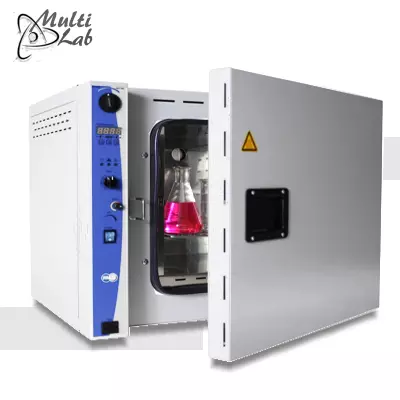

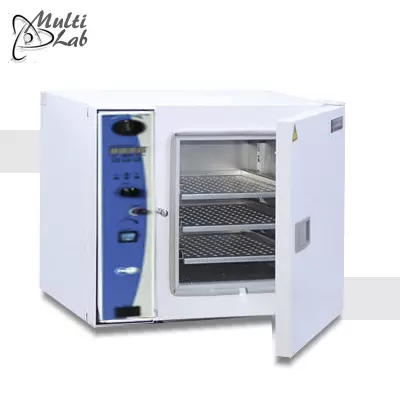

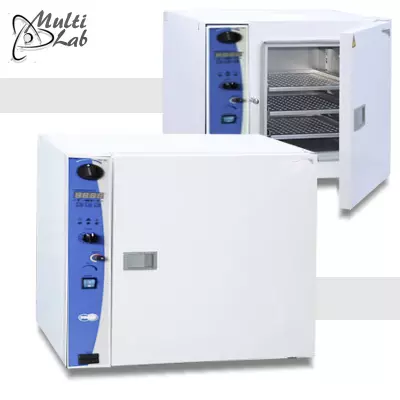

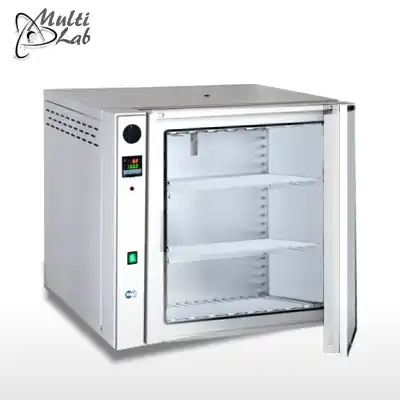

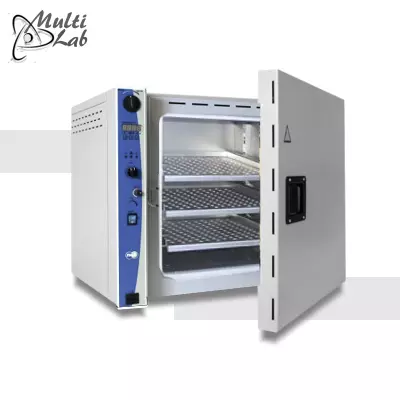

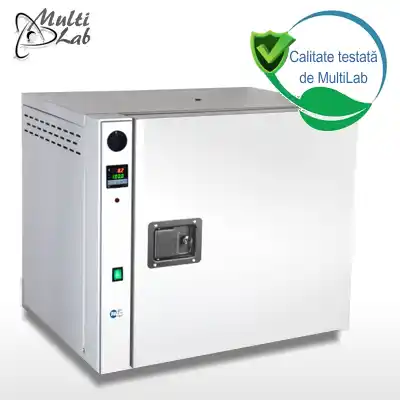

Seria FALC STF-NR

Etuve programabile pentru uscare controlata si calibrare instrumente

Controlled ventilation ovens with muffle


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Etuve programabile cu convectie naturala a aerului; pentru aplicatii industriale sau in laborator pentru etalonare si/sau calibrare termometre si pentru procese de uscarea cu aer fierbinte a granulatelor, pulberilor si materialelor poroase in industria farmaceutica.

Avantaje
Sistem integrat(Multi-Control) ce permite controlul temperaturii etuvei cu 4 programe configurabile; fiecare programa include 4 segmente de setari diferite
Interior si exterior din otel inox
Usa cu inchidere dubla ermetica pentru izolatie termica optima
Orificiu de ventilatie reglabil cu mufla pentru evacuare fumul si condens
Orificiu de 10 mm pentru calibrari termometre sau sonda de temperatura in interior
Timer de la 0 la 12 ore sau la infinie
Clasa de protectie 3.1

Date tehnice

Model STF-NR 52 STF-NR 80 STF-NR 120 STF-NR 240 STF-NR 400
Capacitate 52 lit. 80 lit. 120 lit. 240 lit. 400 lit.
Domeniu de temperatura ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C
Precizie la 70°C ±1,5°C ±1,5°C ±2°C ±2,5°C ±3°C
Acuratete de setare temp. 0,1°C 0,1°C 0,1°C 0,1°C 0,1°C
Putere 1200 W 1400 W 1600 W 2600 W 3400 W
Rafturi incluse 2 2 2 2 2
Rafturi aditionale max. 6 7 8 12 15
Dimensiuni interne 390 x 350 x 390 mm 450 x 400 x 450 mm 500 x 470 x 520 mm 600 x 500 x 800 mm 700 x 580 x 1000 mm
Dimensiuni externe 705 x 570 x 610 mm 775 x 610 x 675 mm 825 x680 x 740 mm 925 x710 x 1030 mm 1025 x 790 x 1230 mm
Alimentare 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz
Greutate 65 Kg 60 Kg 68 Kg 80 Kg 100 Kg
Cod. Produs 720.2080.55 720.2080.58 720.2080.62 720.2080.74 720.2080.80

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
Laboratory Ovens, Stoves forced ventilation, steel stoves, stoves, natural ventilation, temperature control, safety thermostat, digital timer stoves, heaters timer, microprocessor PID heaters, stoves, pid, ramps stoves, stoves serial interface RS232

Advantages
Modern and functional design destined to extract the maximum output to your equipment
Exterior metal furniture cover with epoxy and interior of stainless steel,highly resistant to acids and corrosives, very easy to clean.
Door with double glazed window for external control, no temperature va-riations.
Supplied with trays (2 units, height adjustable), which provides great fle-xibility of use allowing to introduce bottles and containers of different sizes.

Technical data

Model STF-NR 52 STF-NR 80 STF-NR 120 STF-NR 240 STF-NR 400
Capacity 52 lit. 80 lit. 120 lit. 240 lit. 400 lit.
Tempreture range ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C ±5 .. 300°C
Tempreture precision at 70°C ±1,5°C ±1,5°C ±2°C ±2,5°C ±3°C
Tempreture accuracy 0,1°C 0,1°C 0,1°C 0,1°C 0,1°C
Power 1200 W 1400 W 1600 W 2600 W 3400 W
Nr. of shelves (included) 2 2 2 2 2
Additional shelves (optional) 6 7 8 12 15
Inner dimension 390 x 350 x 390 mm 450 x 400 x 450 mm 500 x 470 x 520 mm 600 x 500 x 800 mm 700 x 580 x 1000 mm
Outer dimension 705 x 570 x 610 mm 775 x 610 x 675 mm 825 x680 x 740 mm 925 x710 x 1030 mm 1025 x 790 x 1230 mm
Power supply 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz
Weight 65 Kg 60 Kg 68 Kg 80 Kg 100 Kg
Product code 720.2080.55 720.2080.58 720.2080.62 720.2080.74 720.2080.80



Accesorii optionale
- Usa cu fereastra de vizualizare
- Masa suport cu/fara roti pentru etuve de laborator
- Raft aditional


Etuve cu ventilatie naturala
Capacitate 30 lit. / 45 lit. / 65 lit. / 125 lit.
Domeniu de temperatura Amb.±5 .. 250°C

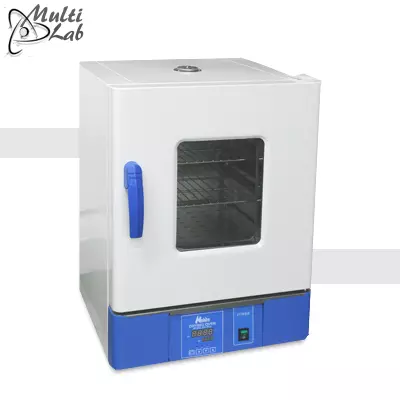

Seria AuxiLab 631-PLUS

Etuve termoreglabile de uz general

Universal Drying Ovens


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Etuve economice de laborator cu ventilatie naturala, potrivite orice proces de sterilizare si/sau uscare

Avantaje
Pret economic
Temperatura controlata prin microprocesor
Alarma vizuala
Setarea temperaturii si a timpului de mentinere
Timer 99h:59 min
Vizualizare temperatura setata/ temperatura curenta
Grad inalt de precizie
Usa cu inchidere ermetica cu sticla termorezistenta
2 rafturi incluse
Fabricatie UE, certificari CE si ISO

Date tehnice

Model 631/3 Plus 631/45 Plus 631/65 Plus 631/125 Plus
Capacitate 30 L 45 L 65 L 125 L
Domeniu temperatura +5 .. 250 °C +5 .. 250 °C +5 .. 250 °C +5 .. 250 °C
Rezolutie 0.1 °C 0.1 °C 0.1 °C 0.1 °C
Fluctuatie temperatura ± 1.0 °C ± 1.0 °C ± 1.0 °C ± 1.0 °C
Omogenitate temp. 3% 3% 3% 3%
Putere 300 W 300 W 400 W 400 W
Dimensiune inerna 31 x 31 x 31 cm 35 x 35 x 35 cm 40 x 36 x 45 cm 50 x 45 x 55 cm
Dimensiune externa 46 x 51 x 69 cm 50 x 55 x 73 cm 55 x 55 x 84 cm 64 x 68 x 91 cm
Greutate 39 Kg 42 Kg 53 Kg 58 Kg
Alimentare 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10%
Cod Produs 50631031 50631041 50631061 50631131

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
AuxiLab drying ovens are used in research laboratories, hospitals and industry for sample drying and disinfecting materials, andother applications. Made of painted steel and kiln-dried, have a stainless steel interior for an easy clean and a door with double glazed windowthat lets you control the evolution of the samples at any times. They have digital regulation of temperature and time so that allowa precise control of these processes.

Advantages
Modern and functional design destined to extract the maximum output to your equipment
Exterior metal furniture cover with epoxy and interior of stainless steel, highly resistant to acids and corrosives, very easy to clean.
Door with double glazed window for external control, no temperature va-riations.
Supplied with trays (2 units, height adjustable), which provides great fle-xibility of use allowing to introduce bottles and containers of different sizes.

Technical data

Model 631/3 Plus 631/45 Plus 631/65 Plus 631/125 Plus
Capacity 30 L 45 L 65 L 125 L
Tempreture range +5 .. 250 °C +5 .. 250 °C +5 .. 250 °C +5 .. 250 °C
Tempreture resolution 0.1 °C 0.1 °C 0.1 °C 0.1 °C
Tempreture fluctuation ± 1.0 °C ± 1.0 °C ± 1.0 °C ± 1.0 °C
Tempreture homogenity 3% 3% 3% 3%
Power 300 W 300 W 400 W 400 W
Inner dimension 31 x 31 x 31 cm 35 x 35 x 35 cm 40 x 36 x 45 cm 50 x 45 x 55 cm
Outer dimension 46 x 51 x 69 cm 50 x 55 x 73 cm 55 x 55 x 84 cm 64 x 68 x 91 cm
Weight 39 Kg 42 Kg 53 Kg 58 Kg
Power supply 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10% 220 V, 50 Hz ± 10%
Product code 50631031 50631041 50631061 50631131



Accesorii optionale
- Usa cu fereastra de vizualizare
- Masa suport cu/fara roti pentru etuve de laborator
- Raft aditional


Etuve cu ventilatie naturala
Capacitate 19 lit. / 36 lit. / 52 lit. / 80 lit. / 150 lit.
Domeniu de temperatura Amb.±5 .. 250°C

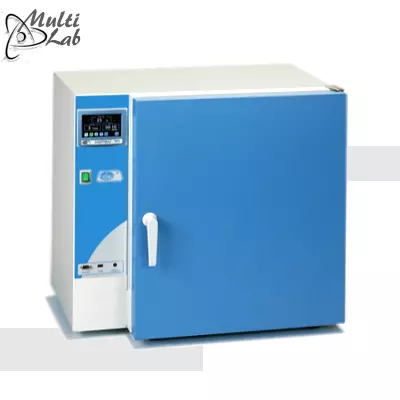

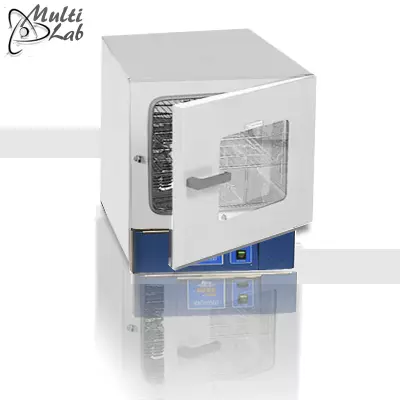

Seria JP-Selecta DigitHeat

Etuve medicale si de laborator programabile / ciclice

Drying and sterilization ovens


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Etuve digitale programabile temperatura/timp pentru procese de uscare si sterilizare
Sistem de ventilatie naturala
Panou control tactil TFT / Soft-Touch
Temperatura ajustabila intre +5 °C si 250 °C.
Stabilitate / Acuratete:±0.3 °C, pana la 150 °C.
Omogenitate: ±3,25 °C, pana la 150 °C;
Rezolutie: 1 °C.
Abateri / eroare: ±2 %

Caracteristici tehnice
Afisaj: 4.3" TFT touch screen.
Display: Alarma vizuala/sonora
Ceas / Calendar in timp real
10 Prograe ciclice fiecare prgram cu 6 segmente, fiecare segment poate fi setat de la 1 min. pana la 99 ore
Memorie de logare (evenimente si alarma)
Autodiagnosticare si detectie automata in caz de erori
Alarma usa deschisa
Alarma supra-temperatura sau sub temperatura setata
Detectie scadere de tensiune electrica
Protectie supra-incalzirii
Memorizare / data-logger timp si data inceput/sfarsit program de operare
Termostat automat de siguranta (TS) cu program software.
Termostat mecanic de siguranta (TM ).
Program software pentru prelucrarea datelor
Controlor de temperature tip auto-tuning (ajustare fina).
Parametrii configurabile: Date / time, temperature correction , data collection in-terval, language (English, Spanish and French) , °C / °F selection , over temperatu-re and low temperature limit.
Interfata de conectare: RS-232, USB si Ethernet pentru LAN

Date tehnice

Model Capacitate Dimens. inter. / cm Dimens. Ext. / cm nr. raft Putere Greutate Cod Produs
DH-19 19 30x25x25 50x60x44 5 600 24 2001251
DH-36 36 40x30x30 60x65x49 7 900 35 2001252
DH-52 52 33x47x33 53x82x52 5 1000 44 2001253
DH-80 80 50x40x40 70x74x59 8 1200 59 2001254
DH-150 150 50x60x50 70x95x68 8 2100 73 2001255

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
Natural convection microprocessor control with TFT touch screen.
Adjustable temperature from ambient +5 °C up to 250 °C.
Stability: ±0.3 °C, up to 150 °C.
Homogeneity: ±3,25 °C, up to 150 °C
Set error: ±2 % of the working temperature
Resolution: 1 °C.

Technical data

Model Capacity Inner Dimension / cm Outer Dimension / cm nr. shelves Power Weight Product Code
DH-19 19 30x25x25 50x60x44 5 600 24 2001251
DH-36 36 40x30x30 60x65x49 7 900 35 2001252
DH-52 52 33x47x33 53x82x52 5 1000 44 2001253
DH-80 80 50x40x40 70x74x59 8 1200 59 2001254
DH-150 150 50x60x50 70x95x68 8 2100 73 2001255



Accesorii optionale
- Usa cu fereastra de vizualizare
- Masa suport cu/fara roti pentru etuve de laborator
- Raft aditional

multilab_team

Solutions for science, industry and safety
Suntem bucurosi sa te ajutam ... Fie ca vrei sa comanzi si nu esti sigur care este cea mai buna alegere, sau vrei sa afli mai multe despre serviciile noastre, consultantii nostri Iti raspund la orice intrebare
Pentru orice detalii suplimentare tehnice sau comerciale sintem la dispozitia Dvs.
direct Tel. +4 021 312 7144 / 45
sau

service_reparatie

Superior Service MultiLab's aim is to differentiate ourselves and add value to our customers, by providing superior service throughout the sales and after-care processes :: Preventative Maintenance - Calibration - Repair - Validation .. more »
Centru service autorizat de producator Service - Mentenantei preventive - Reparati - Consumabile - Piese de schimb pentru aparatura de laborator .. mai multe »

multilab_laboratories

*Important acest site este unul de prezentare! date tehnice; poze afisate si preturile sunt cu titlu informativ se pot schimba fara notificare prealabila! detalii »

All rights Reserved MultiLab© SRL Romania 2003 - 2017
