Etuve de tratamente termice pentru procese industriale

Etuve si Cuptoare sunt dedicate aplicatiilor de uscare calire si tratarii termice care cer un proces controlat de uscare sau anumite procedeuri de tratament termic speciale, dar si pentru calibrare diverse instrumente sau pentru incubarea anumitor produse.

Pupinele si Etuve sunt dedicate aplicatiilor de sterilizare, dezinfectie diverse obiecte si instrumente



Etuve industriale
Capacitate volum intre 650 lit. si 71400 lit.
Domeniu de temperatura 250°C si 450°C

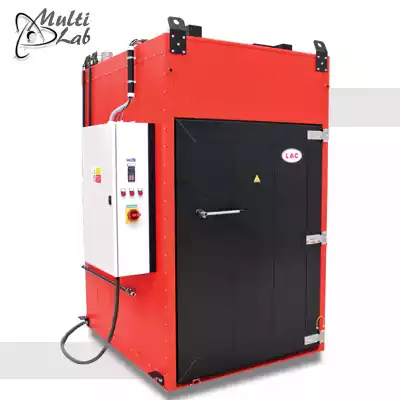

Seria LAC-SV

Etuve termostatate / Uscatoare industriale

Dyers and low-temperature furnaces


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Specificatii tehnice

Modele cu domeniu de temperatura pana la 400 °C

Model T max Volum *Dimensiuni Ext / mm *Dimensiuni Inter./ mm Putere Circulatie Greutate Alimentare
SV650/25 250 °C 650 lit. 1700 x 1350 x 1400 1000 x 800 x 800 6 kW 500 m3h 480 kg 400 V
SV1000/25 250 °C 1000 lit. 1700 x 1750 x 1400 1000 x 1200 x 800 9 kW 700 m3h 650 kg 400 V
SV1500/25 250 °C 1500 lit. 1800 x 2400 x 2100 1000 x 1800 x 800 18 kW 1000 m3h 790 kg 400 V
SV3300/25 250 °C 3300 lit. 2000 x 2500 x 2850 1100 x 2000 x 1500 24 kW 2000 m3h 1400 kg 400 V
SV4000/25 250 °C 4190 lit. 2100 x 2500 x 2950 1200 x 2000 x 1600 30 kW 2000 m3h 1550 kg 400 V
SV4500/25 250 °C 4560 lit. 2900 x 1700 x 3200 2000 x 1200 x 1900 36 kW 2000 m3h 1600 kg 400 V
SV6000/25 250 °C 6000 lit. 2850 x 2000 x 3700 2000 x 1500 x 2000 58 kW 3000 m3h 1750 kg 400 V
SV8000/25 250 °C 8000 lit. 2850 x 2500 x 2850 2000 x 2000 x 2000 75 kW 3000 m3h 1900 kg 400 V
SV18500/03L 250 °C 18500 lit. 3850 x 2600 x 4700 3000 x 2050 x 3000 50 kW 8000 m3h 2650 kg 400 V
SV 30000/25 250 °C 30000 lit. 3850 x 4400 x 4650 3000 x 2500 x 4000 180 kW 10000 m3h 5300 kg 400 V
SV 54000/25 250 °C 53800 lit. 3850 x 4700 x 7100 3000 x 2800 x 6400 200 kW 15000 m3h 7200 kg 400 V
SV 72000/25 250 °C 71400 lit. 3850 x 4700 x 9200 3000 x 2800 x 8500 230 kW 20000 m3h 8600 kg 400 V

*W x H x D

Modele cu domeniu de temperatura pana la 450 °C

Model T max Volum *Dimensiuni Ext / mm *Dimensiuni Inter./ mm Putere Circulatie Greutate Alimentare
SV650/45 450 °C 650 lit. 1700 x 1350 x 1400 1000 x 800 x 800 8 kW 500 m3h 480 kg 400 V
SV1000/45 450 °C 1000 lit. 1700 x 1750 x 1400 1000 x 1200 x 800 12 kW 700 m3h 650 kg 400 V
SV1500/45 450 °C 1500 lit. 1800 x 2400 x 2100 1000 x 1800 x 800 30 kW 1000 m3h 750 kg 400 V
SV3300/45 450 °C 3300 lit. 2000 x 2500 x 2850 1100 x 2000 x 1500 42 kW 2000 m3h 1400 kg 400 V
SV400/45 450 °C 4190 lit. 2100 x 2500 x 2950 1200 x 2000 x 1600 55 kW 2000 m3h 1550 kg 400 V
SV4500/45 450 °C 4560 lit. 2900 x 1700 x 3200 2000 x 1200 x 1900 60 kW 2000 m3h 1600 kg 400 V
SV6000/45 450 °C 6000 lit. 2850 x 2000 x 3700 2000 x 1500 x 2000 85 kW 3000 m3h 1750 kg 400 V
SV8000/45 450 °C 8000 2850 x 2500 x 3700 2000 x 2000 x 2000 105 kW 3000 m3h 1900 kg 400 V
SV18500/45L 450 °C 18500 3850 x 2600 x 4700 3000 x 2050 x 3000 80 kW 8000 m3h 2650 kg 400 V
SV 30000/45 450 °C 30000 lit. 3850 x 4400 x 4650 3000 x 2500 x 4000 200 kW 10000 m3h 5300 kg 400 V
SV 54000/45 450 °C 53800 lit. 3850 x 4700 x 7100 3000 x 2800 x 6400 230 kW 15000 m3h 7200 kg 400 V
SV 72000/45 450 °C 71400 lit. 3850 x 4700 x 9200 3000 x 2800 x 8500 260 kW 20000 m3h 8600 kg 400 V

*W x H x D

Main Features
Suitable for drying, vulcanization, curing of surface layers, granulate drying, burning-in of electrical components and preheating of various materials before additional processing. They are also suitable for the heat treatment of material, such as artificial ageing of aluminum and its alloys and other materials, primarily in the plastics, rubber, automotive, electrotechnical and foundry industries.

Advantages
The SV furnace chamber features a long working life, mechanical resistance and corrosion resistance
The horizontal circulation of the internal atmosphe-re ensures even distribution of the temperature in the inner furnace chamber
High-quality insulation materials result in low furnace operating costs
The SV has a simple modular design and a techni-cally simple, but also very effective and reliable system of heating and circulation of the internal atmosphere
The system utilises a central heating and fan unit to ensure both low service and maintenance costs, and also the option of custom-designed atypical modifications, such as increase of power when required
Smaller SV furnace models (SV 650 – SV 1000) have the ventilator and heating bodies built into the back of the furnace, resulting in reduced outer furnace dimensions while still ensuring the efficacy of the inner atmosphere circulation
Standard equipment of the line includes:
Ht INDUSTRY controller
- limit unit
- manually controlled ventilation flap
- ammeters for checking condition of heating elements (model SV 1500 and above)
- manually controlled suction inlet chute (model SV 1500 and above)
- sliders for air supply control
- one shelf (models SV 650 – SV 1000 only)

Technical specifications

Models with tempreture range up-to 250 °C

Model T max Volume *Outer Dimens. / mm *Inner Dimens./ mm Input Circulation Weight Voltage
SV650/25 250 °C 650 lit. 1700 x 1350 x 1400 1000 x 800 x 800 6 kW 500 m3h 480 kg 400 V
SV1000/25 250 °C 1000 lit. 1700 x 1750 x 1400 1000 x 1200 x 800 9 kW 700 m3h 650 kg 400 V
SV1500/25 250 °C 1500 lit. 1800 x 2400 x 2100 1000 x 1800 x 800 18 kW 1000 m3h 790 kg 400 V
SV3300/25 250 °C 3300 lit. 2000 x 2500 x 2850 1100 x 2000 x 1500 24 kW 2000 m3h 1400 kg 400 V
SV4000/25 250 °C 4190 lit. 2100 x 2500 x 2950 1200 x 2000 x 1600 30 kW 2000 m3h 1550 kg 400 V
SV4500/25 250 °C 4560 lit. 2900 x 1700 x 3200 2000 x 1200 x 1900 36 kW 2000 m3h 1600 kg 400 V
SV6000/25 250 °C 6000 lit. 2850 x 2000 x 3700 2000 x 1500 x 2000 58 kW 3000 m3h 1750 kg 400 V
SV8000/25 250 °C 8000 lit. 2850 x 2500 x 2850 2000 x 2000 x 2000 75 kW 3000 m3h 1900 kg 400 V
SV18500/03L 250 °C 18500 lit. 3850 x 2600 x 4700 3000 x 2050 x 3000 50 kW 8000 m3h 2650 kg 400 V
SV 30000/25 250 °C 30000 lit. 3850 x 4400 x 4650 3000 x 2500 x 4000 180 kW 10000 m3h 5300 kg 400 V
SV 54000/25 250 °C 53800 lit. 3850 x 4700 x 7100 3000 x 2800 x 6400 200 kW 15000 m3h 7200 kg 400 V
SV 72000/25 250 °C 71400 lit. 3850 x 4700 x 9200 3000 x 2800 x 8500 230 kW 20000 m3h 8600 kg 400 V

*W x H x D

Models with tempreture range up-to 450 °C

Model T max Volume *Outer Dimens. / mm *Inner Dimens./ mm Input Circulation Weight Voltage
SV650/45 450 °C 650 lit. 1700 x 1350 x 1400 1000 x 800 x 800 8 kW 500 m3h 480 kg 400 V
SV1000/45 450 °C 1000 lit. 1700 x 1750 x 1400 1000 x 1200 x 800 12 kW 700 m3h 650 kg 400 V
SV1500/45 450 °C 1500 lit. 1800 x 2400 x 2100 1000 x 1800 x 800 30 kW 1000 m3h 750 kg 400 V
SV3300/45 450 °C 3300 lit. 2000 x 2500 x 2850 1100 x 2000 x 1500 42 kW 2000 m3h 1400 kg 400 V
SV400/45 450 °C 4190 lit. 2100 x 2500 x 2950 1200 x 2000 x 1600 55 kW 2000 m3h 1550 kg 400 V
SV4500/45 450 °C 4560 lit. 2900 x 1700 x 3200 2000 x 1200 x 1900 60 kW 2000 m3h 1600 kg 400 V
SV6000/45 450 °C 6000 lit. 2850 x 2000 x 3700 2000 x 1500 x 2000 85 kW 3000 m3h 1750 kg 400 V
SV8000/45 450 °C 8000 2850 x 2500 x 3700 2000 x 2000 x 2000 105 kW 3000 m3h 1900 kg 400 V
SV18500/45L 450 °C 18500 3850 x 2600 x 4700 3000 x 2050 x 3000 80 kW 8000 m3h 2650 kg 400 V
SV 30000/45 450 °C 30000 lit. 3850 x 4400 x 4650 3000 x 2500 x 4000 200 kW 10000 m3h 5300 kg 400 V
SV 54000/45 450 °C 53800 lit. 3850 x 4700 x 7100 3000 x 2800 x 6400 230 kW 15000 m3h 7200 kg 400 V
SV 72000/45 450 °C 71400 lit. 3850 x 4700 x 9200 3000 x 2800 x 8500 260 kW 20000 m3h 8600 kg 400 V

*W x H x D

Optional accessories
Automatic ventilation flap (SV 650, SV 1000) and suction inlet chute (other models)
Exhaust fan
Shelves (models SV 650 – SV 1000 only)
Graphic temperature recorder
RS232 or EIA485 interface (for connection of the controller to a PC)
Set HtMonit (includes interface + software)
Calibration of the controller measuring entry
Optimization of the temperature field to meet DIN 17052-1 ΔT10°C in the inner space of the furnace (empty furnace at Tmax)

Atypical accessories
Door portal window with lighting
Loading frame with shelves (except models SV650- SV1000)
Charging trolley with shelves (except models SV650- SV1000)
Drive-up ramp
Floor modification for charging trolley
Overpressure ventilation
Door opening upwards (electro-hydraulic)
2nd door
Relative humidity measurement
METREX gas analyzer
Gas heating (except models SV650- SV1000)
