Cuptoare de temperaturi inalte


Cuptoare tip camera / Tempering Furnaces
Volum :: intre 20 si 540 lit.
Tmp. maxima :: 850 °C
Seria PP

Cuptoare de calire cu atmosfera protectoare circulare si ventilatie fortata

Tempering Chamber Furnaces with atmosphere circulation » Series PP


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptoare de calire cu atmosfera inerta, uniformitate in zona protejata a cuptorului conform norme DIN 17052-1 ΔT10°C, rezistenta si durabilitatea barelor si viteza mare de atingerea temperaturii maxime; ideale pentru curatare matrite, forjarii sau pentru uscarea si preincalzirea formelor

Caracteristici tehnice
• Elemente de incalzire pe ambele parti ale cuptorului
• Asigura o flexibilitate maxima, uniformitate in zona utilă a cuptorului de pină la 3°C,
• Rezistenta si durabilitatea barelor in uz periodic si viteza mare de atingerea temperaturii maxime.
• Timp de incalzire de 30 de minute in functie de modelul cuptorului cat si de conditiile de lucru
• Viteze mari de incălzire şi răcire,
• Arderi cit mai complete şi reducerea oxidării,
• Sistem de retinere a puterii pentru reducerea consumului de energie si siguranţei in exploatare
• Plaja de temperatura operationala programabila
• Incalzire accelerata cu elemente de incalzire fara radiatii
• Transfer uniform si maxim de temperatura
• Intrerupator pozitiv cu circuit integrat pentru oprirea automata completa a circuitului electric cind se incarca cuptorului
• Dispozitiv refractar pentru folosire optima de gaz atunci cind se lucreaza cu atmosfera modificata
• Controler pentru limitarea la supraincalzire cu resetare manual pentru clasa 2 de protectie termica conform cu EN 60519 -2 drept limitator de temperatura pentru protectia cuptorului si a incarcaturii
• Usa se deschide sistematic astfel incat utilizatorul este protejat
• inerfata de comunicare RS232 sau RS485 (optional)
• Orificiu pentru admisie de gaz
• Inregistrator grafic de temperatura
• clasa de protectie A 16/3

Date Tehnice

Model Controlor Volum nr. raft Tmp.max Putere Dimens.int Dimens.ext Voltaj Greut.
PP 20/45 Ht40 AL 20 lit x 450 °C 3 kW 300x200x350 700x650x1050 230 V 115 Kg
PP 40/45 Ht40 AL 35 lit 2 450 °C 6 kW 300x300x400 800x1450x1050 400 V 160 Kg
PP 70/45 Ht40 AL 70 lit 2 450 °C 8 kW 350x400x500 850x1550x1150 400 V 190 Kg
PP 140/45 Ht40 AL 135 lit 2 450 °C 12 kW 450x500x600 950x1650x1250 400 V 300 Kg
PP 270/45 Ht40 AL 270 lit 2 450 °C 20 kW 600x600x750 1150x1750x1650 400 V 580 Kg
PP 540/45 Ht40 AL 540 lit 2 450 °C 24 kW 750x800x900 1300x1950x1800 400 V 750 Kg
PP 20/65 Ht IND. 20 lit x 650 °C 3 kW 300x200x350 700x650x1050 230 V 130 Kg
PP 40/65 Ht IND. 35 lit 2 650 °C 6kW 300x300x400 800x1450x1050 400 V 200 Kg
PP 70/65 Ht IND. 70 lit 2 650 °C 8 kW 350x400x500 850x1550x1150 400 V 250 Kg
PP 140/65 Ht IND. 135 lit 2 650 °C 12 kW 450x500x600 950x1650x1250 400 V 350 Kg
PP 270/65 Ht IND. 270 lit 2 650 °C 20 kW 600x600x750 1150x1750x1650 400 V 720 Kg
PP 540/65 Ht IND. 540 lit 2 650 °C 24 kW 750x800x900 1300x1950x1800 400 V 850 Kg
PP 20/85 Ht IND. 20 lit x 850 °C 3 kW 300x200x350 850x650x1050 230 V 130 Kg
PP 40/85 Ht IND. 35 lit 2 850 °C 7 kW 300x300x400 850x1450x1050 400 V 200 Kg
PP 70/85 Ht IND. 70 lit 2 850 °C 9 kW 350x400x500 900x1550x1150 400 V 250 Kg
PP 140/85 Ht IND. 135 lit 2 850 °C 14 kW 450x500x600 1000x1650x1250 400 V 350 Kg
PP 270/85 Ht IND. 270 lit 2 850 °C 20 kW 600x600x750 1300x1750x1650 400 V 720 Kg
PP 540/85 Ht IND. 540 lit 2 850 °C 30 kW 750x800x900 1500x1950x1800 400 V 850 Kg

*inaltime cu stand de lucru

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
PP furnaces are used for steel tempering and other heat treatment of materials up to a maximum temperature of 450°C, 650°C or 850°C.
Standard equipment of the furnace covers:
- manually operated door opening to the side, HT40AL controller: furnaces for temperature 450°C
- INDUSTRY controller: furnaces for temperatures 650°C and 850°C
- shelves (according to the table below),
- manually controlled ventilation flap,
- stand
Advantages
stainless circulation insert with long lifetime and high mechanical and corrosion resistance
Horizontal circulation of the inner atmosphere ensures equal temperature distribution inside the inner furnace chamber
High-quality insulating materials secure low furnace operating costs.

Technical Data

Model Controlor Volume nr. shelves Tmp. max Heating input Int. Dimens. Ext. Dimens. Voltaje Weight
PP 20/45 Ht40 AL 20 lit x 450 °C 3 kW 300x200x350 700x650x1050 230 V 115 Kg
PP 40/45 Ht40 AL 35 lit 2 450 °C 6 kW 300x300x400 800x1450x1050 400 V 160 Kg
PP 70/45 Ht40 AL 70 lit 2 450 °C 8 kW 350x400x500 850x1550x1150 400 V 190 Kg
PP 140/45 Ht40 AL 135 lit 2 450 °C 12 kW 450x500x600 950x1650x1250 400 V 300 Kg
PP 270/45 Ht40 AL 270 lit 2 450 °C 20 kW 600x600x750 1150x1750x1650 400 V 580 Kg
PP 540/45 Ht40 AL 540 lit 2 450 °C 24 kW 750x800x900 1300x1950x1800 400 V 750 Kg
PP 20/65 Ht IND. 20 lit x 650 °C 3 kW 300x200x350 700x650x1050 230 V 130 Kg
PP 40/65 Ht IND. 35 lit 2 650 °C 6kW 300x300x400 800x1450x1050 400 V 200 Kg
PP 70/65 Ht IND. 70 lit 2 650 °C 8 kW 350x400x500 850x1550x1150 400 V 250 Kg
PP 140/65 Ht IND. 135 lit 2 650 °C 12 kW 450x500x600 950x1650x1250 400 V 350 Kg
PP 270/65 Ht IND. 270 lit 2 650 °C 20 kW 600x600x750 1150x1750x1650 400 V 720 Kg
PP 540/65 Ht IND. 540 lit 2 650 °C 24 kW 750x800x900 1300x1950x1800 400 V 850 Kg
PP 20/85 Ht IND. 20 lit x 850 °C 3 kW 300x200x350 850x650x1050 230 V 130 Kg
PP 40/85 Ht IND. 35 lit 2 850 °C 7 kW 300x300x400 850x1450x1050 400 V 200 Kg
PP 70/85 Ht IND. 70 lit 2 850 °C 9 kW 350x400x500 900x1550x1150 400 V 250 Kg
PP 140/85 Ht IND. 135 lit 2 850 °C 14 kW 450x500x600 1000x1650x1250 400 V 350 Kg
PP 270/85 Ht IND. 270 lit 2 850 °C 20 kW 600x600x750 1300x1750x1650 400 V 720 Kg
PP 540/85 Ht IND. 540 lit 2 850 °C 30 kW 750x800x900 1500x1950x1800 400 V 850 Kg



Optional accessories
inlet of protective atmosphere
semi-gastight furnace design (can not be combined with automatic ventilation flap)
graphic temperature recorder (the regulator and recorder are located in a small switchboard on the side of the furnace)
RS 232 or RS 485 interface
HT Monit set (includes interface and software)
automatic ventilation flap
optimization of the temperature field to meet DIN 17052-1 ΔT10°C in the inner chamber of the furnace (empty furnace at Tmax)
measuring loop calibration
Atypical accessories
atypical stand
door opening to the left and upwards (options of hydraulic or pneumatic, pantographic hinges)
additional shelves
single-handed manual opening (standard for models PP20 through PP140)
overpressure cooling


Cuptoare tip camera / Hardening furnaces
Volum :: intre 30 si 230 lit.
Tmp. maxima :: 950 °C / optional 1100 °C
Seria PKRC

Cuptoare cu retorta pentru atmosfera controlata cu recircularea aerului

Hardening furnaces with gastight retort and circulation » Series PKRC


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Utilizate pentru tratament termic a materialelor in atmosfera controlata (argon, azot, gaz formic etc) cu scurgere mica de gaz, la temperatura maxima de 950°C (1100 °C atunci cand este utilizata retorta Inconel) pentru sudura, sinterizare, lustruire termică, etc.
• 4 modele disponibile; de 30; 75; 110 si 230 lit. sunt dotate cu controler HtIND de 10 segmente si program software.

Specificatii tehnice
• Designul standard al cuptorului include:
• clapeta manuala de exhaustare
• usa cu deschidere manuala
• controler Ht Industry
• unitate limita
• masa suport
• orificiu de admisie operat manual in atmosfera de protectie pentru un singur gaz
• manometru standard pentru verificare suprapresiune in retorta
• inlet pentru conectare pompa (presiune maxima in retorta atunci cand pompa de vid este setata la 2 mbar)
• G½" adaptor pentru furtunul din cauciuc
• termistor pentru schimbarea temperaturii gulerului retortei si semnal de alarma pentru prezenta agentului de racire in gulerul retortei
• valva de siguranta la suprapresiune in atmosfera de protectie cu nivelul de presiune de 0,2 bar
• Ampermetru pentru a verifica conditia elementelor de incalzire (depinde de numarul de faze incluse la incalzire)

Date Tehnice

Model Volum Tmp.max Putere Dim. int. retorta Dimensiune interna Putere Greutate
PKRC 55/09 30 lit 950 °C 13 kW 320x135x370 1450x1450x1450 400V 600 Kg
PKRC 130/09 75 lit 950 °C 21 kW 450x200x620 1450x1450x1950 400V 980 Kg
PKRC 180/09 110 lit 950 °C 29 kW 500x235x620 1650x1650x2050 400V 1100 Kg
PKRC 350/09 230 lit 950 °C 50 kW 700x240x970 1800x1750x2350 400V 1380 Kg

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
PKRC gastight chamber furnaces with retort and internal atmosphere circulation are used especially for heat treatment of materials in contro-lled atmosphere (argon, nitrogen, forming gas etc.) with low gas drain, to the max. temperature 950°C (1100°C when using an Inconel retort) for bright annealing, tempering, soldering, steel powder sintering.

Standard equipment of the furnace covers
manually operated exhaust flap
manually operated door
INDUSTRY controller
limit unit
stand
automatically operated inlet of protective atmosphere for one type of gas (without vacuum pump)
circulation inside the oven atmosphere (can only be used to 900ºC) to achieve optimal
heat distribution in the furnace according to DIN 17052-1 to ΔT14 °C
standard manovacuometer to check for overpressure in the retort
inlet for connection of pump (maximum pressure in the retort when the vacuum pump is turned on is 2mbar)
G ½" adaptor to interface the rubber hose interface to the cooling collar
thermistor for retort collar temperature checking and signal alarm for presence of coolant in the retort collar
safety overpressure valve on output of protective atmosphere with pressure level 0.2 bar
ammeters to check the condition of the heating elements (number depends on the number of phases involved in heating)

Advantages
three-sided heating (heating elements inside the floor and on the two side walls) ensures equal distribution of the temperature in the interior of the furnace
low gas drain
defined working environment in the retort
space for control thermocouple in the retort

Technical Data

Model Volume Max Tmp. Input Input power Internal muffle dimension Internal chambre dimnsion Input Weight
PKRC 55/09 30 lit 950 °C 13 kW 320x135x370 1450x1450x1450 400V 600 Kg
PKRC 130/09 75 lit 950 °C 21 kW 450x200x620 1450x1450x1950 400V 980 Kg
PKRC 180/09 110 lit 950 °C 29 kW 500x235x620 1650x1650x2050 400V 1100 Kg
PKRC 350/09 230 lit 950 °C 50 kW 700x240x970 1800x1750x2350 400V 1380 Kg



Optional accessories
spare retort of refractory stainless steel
vacuum pump (vacuum pump R5 PB 0008 B 0.35 kW, 1 phase design) automatic ventilation flap
interface RS232 or EIA485
HtMonit - Monitoring Program (graphs, tables, data archiving, etc.)
charge thermocouple + temperature display HT40
optimization of the temperature field to fulfill DIN 17052-01 ∆T 20°C in inner space of the furnace (in empty furnace, at Tmax.)
calibration of the measuring system
automatically -operated inlet of protective atmosphere for one type of gas (with vacuum pump)
controlled forced cooling
cooling using automatically controlled suction and ventilation flaps (without fan)
graphic temperature recorder
Atypical accessories
retort made of Inconel material
system of monitoring optimal pressure in the retort (2-4 mbar)
other gas services based on customer specifications (more gas, more flow, etc.)
atypical stand
cast propeller


Cuptoare tip camera / Heat treatment Furnaces
Volum :: intre 24 si 230 lit.
Tmp. maxima :: 950 °C / optional 1100 °C
Seria PKR

Cuptoare cu retorta pentru atmosfera controlata cu recircularea aerului

Hardening & Heat treatment furnaces with gastight retort » Series PKR


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Utilizate pentru procesari termice a materialelor in atmosfera controlata (azot, argon, gaz formic etc.) cu scurge mica a gazului, la temperatura maxima de 1000°C (1100 °C atunci cand este utilizata retorta Inconel) pentru coacere, sinterizare, lustruire termică, etc.
• 5 modele disponibile; de 24; 30; 75; 110 si 250 lit. sunt dotate cu controler HtIND de 10 segmente si program software.

Specificatii tehnice
• Designul standard al cuptorului include:
• sistem ventilatie in usa cuptorului
• clapeta manuala de exhaustare
• usa cu deschidere manuala
• controler Ht Industry
• unitate limita
• masa suport
• orificiu de admisie operat manual in atmosfera de protectie pentru un singur gaz
• manometru standard pentru verificare suprapresiune in retorta
• inlet pentru conectare pompa (presiune maxima in retorta atunci cand pompa de vid este setata la 2 mbar)
• G½" adaptor pentru furtunul din cauciuc
• termistor pentru schimbarea temperaturii gulerului retortei si semnal de alarma pentru prezenta agentului de racire in gulerul retortei
• valva de siguranta la suprapresiune in atmosfera de protectie cu nivelul de presiune de 0,2 bar
• Ampermetru pentru a verifica conditia elementelor de incalzire (depinde de numarul de faze incluse la incalzire)

Date Tehnice

Model Volum Tmp. max Putere Dim. int. retorta Dimensiune interne Putere Greutate
PKR 35/10 24 lit 1000 °C 11 kW 220x200x450 1400x1450x1300 400V 400 Kg
PKR 55/10 30 lit 1000 °C 13 kW 320x135x450 1450x1450x1300 400V 570 Kg
PKR 130/10 75 lit 1000 °C 21 kW 450x200x700 1450x1450x1550 400V 950 Kg
PKR 180/10 110 lit 1000 °C 29 kW 550x235x700 1650x1650x1550 400V 1050 Kg
PKR 350/10 230 lit 1000 °C 50 kW 700x340x1050 1800x1750x1850 400V 1350 Kg

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
PKR gastight chamber furnaces with retort are used especially for heat treatment of materials in controlled atmosphere (argon, nitrogen, forming gas etc.) with low gas drain, to the max. temperature 950°C (1100°C when using an Inconel retort) for annealing, tempering, soldering, steel powder sintering.
Standard equipment of the furnace covers
manual exhaust flap
INDUSTRY controller
limit unit
stand
automatically-operated inlet of protective atmosphere for one gas (without vacuumpump), (two flow meters - one for purging and one for the process)
standard manovacuometer to check for overpressure in the retort
inlet for connection of pump (maximum pressure in the retort when the vacuum pump is turned on is 2 mbar)
G ½" adaptor to interface the rubber hose interface to the cooling collar
thermistor for retort collar temperature checking and signal alarm for presence of coolant in the retort collar
safety overpressure valve on output of protective atmosphere with pressure level 0.2 bar
ammeters to check the condition of the heating elements (number depends on the number of phases involved in heating)

Advantages
three-sided heating (heating elements inside the floor and on the two side walls) ensures equal distribution of the temperature in the interior of the furnace
low gas drain
defined working environment in the retort
space for control thermocouple in the retort

Technical Data

Model Volum Max. Tmp. Input Internal muffle dimension Internal Dimension Input power supply Weight
PKR 35/10 24 lit 1000 °C 11 kW 220x200x450 1400x1450x1300 400V 400 Kg
PKR 55/10 30 lit 1000 °C 13 kW 320x135x450 1450x1450x1300 400V 570 Kg
PKR 130/10 75 lit 1000 °C 21 kW 450x200x700 1450x1450x1550 400V 950 Kg
PKR 180/10 110 lit 1000 °C 29 kW 550x235x700 1650x1650x1550 400V 1050 Kg
PKR 350/10 230 lit 1000 °C 50 kW 700x340x1050 1800x1750x1850 400V 1350 Kg



Optional accessories
spare retort of refractory stainless steel
vacuum pump (vacuum pump R5 PB 0008 B 0.35 kW, 1 phase design)
automatic ventilation flap interface RS232 or EIA485
HtMonit - Monitoring Program (graphs, tables, data archiving, etc.)
charge thermocouple + temperature display HT 40
optimization of the temperature field to fulfill DIN 17052-01 ∆T 20°C in inner space of the furnace (in empty furnace, at Tmax.)
calibration of the measuring system
automatically operated inlet of protective atmosphere for one type of gas
controlled forced cooling (cooling after a preset cooling curve)
cooling using automatically controlled suction and ventilation flaps (without fan)
graphic temperature recorder
Atypical accessories
retort made of Inconel material
system of monitoring optimal pressure in the retort (2-4 mbar)
other gas services based on customer specifications (more gas, more flow, etc.)
atypical stand


Cuptoare tip camera/ Metal Testing Furnaces
Volum :: intre 5 si 15 lit.
Tmp. maxima :: 1100 °C
Seria LAC-LE

Cuptoare de laborator pentru testarea metalelor

Laboratory & Metal Testing Chamber Furnaces » Series LAC-LE


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptoare universale pentru procese termice, calcinarea materialelor organice si anorganice, pentru testari fizico-chimice ale materialelor in laboratoare medicale, de chimie alimentara, procese industriale, etc.

Specificatii tehnice
• controler multifunctional cu microprocesor PID, programarea temperaturii si a timpului
• controler multifunctional cu 10 segmente (optional)
• incalzire din ambele parti de la elementele de incalzire prevazute in tuburi din cuart
• rezistenta si durabilitatea barelor de SiC in uz periodic si viteza mare de atingerea temperaturii maxime
• usa deschidere frontala tip clapeta; utilizata si ca platforma de lucru
• elementele de incalzire incorporate in tuburi din sticla de cuart
• sonda de temperatura / termocuplu Tip “K”
• inlocuirea cu usurinta a elementelor de incalzire
• izolare cu straturi multiple cu placi din fibra in camera cuptorului
• carcasa cu strat dublu din placi de otel inoxidabil pentru temperaturi externe
• dispozitiv pentru exhaustare aer in peretele din spate
• relee solide pentru operare silentioasa
• interfata RS232 sau RS485 (optional)
• clasa de protectie A P16/1

Aplicatii
• Prelucrarea metalului
• Procesarea aliajelor feroase
• Testare a materiei prime si verificare a calitatii produselor finite
• Testarea rezistenta stratului de acoperire aplicat
• Tratament Termic metale feroase si neferoase
• Controlul calititii productiei
• aplicatii standerdelor BS/ISO si ASTM

Date Tehnice

Model Volum Tmp.max Putere Dimens. int Dimens. ext Alimentare Greutate
LE 05/11 5 lit 1100 °C 1,8 kW 170x130x230 470x330x455 230 V 18 Kg
LE 09/11 9,4 lit 1100 °C 2,3 kW 190x170x290 490x370x515 230 V 23 Kg
LE 15/11 14,4 lit 1100 °C 3 kW 250x170x340 550x370x565 230 V 30 Kg

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Laboratory furnaces are suitable for testing the technologies where the emphasis on the precision of the temeratures´s lay-out is plased, there is controlled start and drop of the temperature, controlled annealing if its needed and where is desired the heating elements are not in the internal place with the samples at once.
It is heating the material for the thermal proccess of the metals, various tests of the sintering, calcination, determination of the softening point or sintering of the materials, samples´s combustion, enamel´s firing especially.
The rustless covering guarantees long operating timelife furnaces, heating element are inserted in the pipes made from the silica glass and are partly protected against to the aggresive substance´s attack from the batch.
Programmable controller and master switch are placed on the front of the furnace.
Standard equipment of the furnace covers
Ht60B controller
manually operated door opening downwards with an end switch
heating elements in quartz glass tubes
airing chimney on the back part of the furnace
sliders for air inlet control
supply cable fitted with single-phase plug
thermocouple Type “K”
solid state relay

Advantages
Stainless shell safeguards provide long lifetime of the furnace.
Heating wire elements are positioned in tubes made of quartz glass.
Coils are thus partly protected against attacks of aggressive substances which can get released together with furnace charges.
Programmable controller and the main switch are located on the furnace front side
Easy exchange of heating elements and insulation.

Technical Data

Model Volum Tmp.max Putere Dimens. int Dimens. ext Greut.
LE 05/11 5 lit 1100 °C 1,8 kW 170x130x230 470x330x455 18 Kg
LE 09/11 9,4 lit 1100 °C 2,3 kW 190x170x290 490x370x515 23 Kg
LE 15/11 14,4 lit 1100 °C 3 kW 250x170x340 550x370x565 30 Kg



Accesorii optionale
• program software "HtMonit" pentru inregistrarea, stocarea si prelucrarea datelor
• Dispozitiv de protectie pentru atmosfera controlata
• Controler programabil Ht40-P cu 10 segmente
• interfata RS232 sau RS485

Optional accessories
Ht40P controller
injector with an exhaust fan and draft diverter
protection atmosphere inlet
calibration of the controller measuring entry
interface RS232 or RS485
set HtMonit (includes interface + software)


Cuptoare tip camera / Laboratory Furnaces
Volum :: intre 3 si 15 lit.
Tmp. maxima :: 1200 °C
Seria LAC-L

Cuptoare universale cu mufla pentru testari si tratamente termice

Laboratory & General use Furnaces » Series LAC-L


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptoare programabile cu control foarte riguros al temperaturii pentru testari de laborator si automatizari industriale
4 modele disponibile; volum intre 3 si 15 lit. sunt dotate cu controler standard model Ht40 AL; au controler programabil automatizat pentru aplicatii industriale cu 10 segmente

Specificatii tehnice
• Cuptoare tip camera prevazute cu ventilator puternic si sistem de ghidare a aerului in jurul probelor pentru uniformitatea temperaturii
• controler multifunctional cu microprocesor PID, programarea temperaturii si a timpului
• controler multifunctional cu 10 segmente (optional)
• incalzire din ambele parti de la elementele de incalzire prevazute in tuburi din cuart
• usa deschidere frontala tip clapeta; utilizata si ca platforma de lucru
• elementele de incalzire incorporate in tuburi din sticla de cuart
• sonda de temperatura / termocuplu Tip “S”
• inlocuirea cu usurinta a elementelor de incalzire
• izolare cu straturi multiple cu placi din fibra in camera cuptorului
• carcasa cu strat dublu din placi de otel inoxidabil pentru temperaturi externe
• dispozitiv pentru exhaustare aer in peretele din spate
• relee solide pentru operare silentioasa
• interfata RS232 sau RS485 (optional)
• clasa de protectie A P16/1

Avantaje
• Recirculare fluxul de aer preincalzit de 4-5 volume in fiecare minut asigura uniformitate de ardere optima si combustie rapida
• Fluxul de aer preincalzit tip multi-canal centralizeaza procesul de ardere si asigura uniformitate optima si un grad mare de acuratete
• Fluxul convectional de aer creat prin intermediul orificiului usii si cosul lung al cuptorului elimina fumul acumulat in interiorul incintei si opreste formarea carbonului in camera de ardere
• Echipate cu sistem de protectie impotriva supratemperaturii
• Balansorul vertical al usii asigura protectia operatorului impotriva radiatiilor de temperatura al usilor
• Intrerupator pozitiv pentru oprirea automata a circuitului electric cind se deschide usa cuptorului
• Stratul dublu al invelisului permite o convectie rapida al aerului pentru racirea corpul exterior al cuptorului conform clasa de protectie EN61010
• Cuptorul este prevazut cu display pentru afisarea datelor si taste pentru reglarea parametrilor.
• Izolatia interioara a incintei din fata usii si cea de la baza cuptorului este din caramida dura, ce asigura o arie de lucru mai rezistenta in timp (cand se folosesc materiale abrazive ce pot deteriora suprafata) de asemenea, poate fi usor inlocuita in cazul aparitiei scurgerilor
• Optional se poate adapta cu programe ciclice de operare de tip PID
cu 8 sau 20 secvente de program
• Reglarea temperaturii se poate face prin intermediul unui microprocessor digital, care permite setarea temperaturii REALE din interiorul camerei de calcinare a cuptorului
• Elementele de incalzire sunt termoceramice, cu rezistenta din aliaj Ni – Cr, care asigura operarea in deplina siguranta atat din punct de vedere a gazelor / fumurilor degajate, cat si din punct de vedere a electrosecuritatii.
• Termoreglare cu microprocesor de control cu sistem automat pentru compensarea temperaturii
• Cuptorul este echipat cu mufla din cuartz; recomndat cind este un risc de contaminare cu Al2O3, SiO2, H2SO4, HNO3 si HCL
• Procesul de incalzire la toate modelele este asigurat de elementele de disiliciu molibden, care sunt cunoscute drept "Kanthal Super Elements"
• Taote modele sint adaptate cu controller / regulator digital PID (proportional, integral si derivative)

Aplicatii
• Prelucrarea probe cu greutati si dimensiuni relativ mari
• Aplicatii in atmosfera modificata
• Prelucrarea metalului
• Procesarea aliajelor feroase
• Testare a materiei prime si verificare a calitatii produselor finite
• Testarea rezistenta stratului de acoperire aplicat
• Tratament Termic metale feroase si neferoase
• Controlul calitatii productiei
• aplicatii standerdelor BS/ISO si ASTM

Date Tehnice

Model Volum Tmp. max Putere Dimensiune int. Dimensiune ext. Greutate
LAC-L 03/12 3 lit 1200 °C 1,2 kW 180x100x140 380x440x400 21 Kg
LAC-L 05/12 5 lit 1200 °C 2,4 kW 230x130x170 430x470x430 26 Kg
LAC-L 09/12 9 lit 1200 °C 3 kW 230x170x240 430x505x500 32 Kg
LAC-L 15/12 15 lit 1200 °C 3.5 kW 250x170x340 450x505x600 39 Kg

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
These furnaces are suitable for all types of laboratory tests in medical, dental, hygienic, industry, ceramic, glassmaking, and other workplaces. They are suitable for technological testing where a very precise temperature distribution and a dynamic progress of the temperature curve are required. It is especially suitable for material heat treatments, all sorts of fritting tests, calcinations, softening or material sintering point setting, samples firing etc.

Description of the construction of the furnace All the types have a frameless construction. The shell is made of stainless bent metal plate
The door is made of bent metal plate shaped as a tank
The chamber is composed of insulating expanded boards of mineral grains
The door is filled by a plate of mineral grains
Airing chimney on the back part of the furnace
The heating elements placed in the ceramic heating boards
The door is equipped with a security limit switch
Supply cable fitted with single-phase plug

Standard design of furnace includes
Ht40 AL or Ht INDUSTRY controller
Manually operated door opening downwards with an end switch
Insulation from the mineral fibre insulation boards
Heating panels from the refractory ceramics in the bottom and in the ceiling
Ventilation chimney on the back part of the furnace
Supply cable fitted with single-phase plug
Thermocouple Type “S”
Solid state relay - SSR

Technical Data

Model Volume Max. Tmp. Input power Internal Dimension External Dimension Weight
LAC-L 03/12 3 lit 1200 °C 1,2 kW 180x100x140 380x440x400 21 Kg
LAC-L 05/12 5 lit 1200 °C 2,4 kW 230x130x170 430x470x430 26 Kg
LAC-L 09/12 9 lit 1200 °C 3 kW 230x170x240 430x505x500 32 Kg
LAC-L 15/12 15 lit 1200 °C 3.5 kW 250x170x340 450x505x600 39 Kg



Accesorii optionale
• program software "HtMonit" pentru inregistrarea, stocarea si prelucrarea datelor
• Dispozitiv de protectie pentru atmosfera controlata
• Controler programabil Ht40-P cu 10 segmente
• interfata RS232 sau RS485

Optional accessories
Injector with an exhaust fan and draft diverter (only with Ht INDUSTRY controller)
Plate for furnace bottom
Protective atmosphere inlet
Calibration of the controller measuring entry
Interface RS232 or EIA485
Set HtMonit (includes interface + software)


Cuptoare tip camera / Lab Muffle Furnaces
Volum :: intre 4 si 11 lit.
Tmp. maxima :: 1200 °C
Seria LMH

Cuptoare electrice programabile de incalzire rapida cu mufla cu sistem de control electronic termoreglabil pentru incalzire si racire

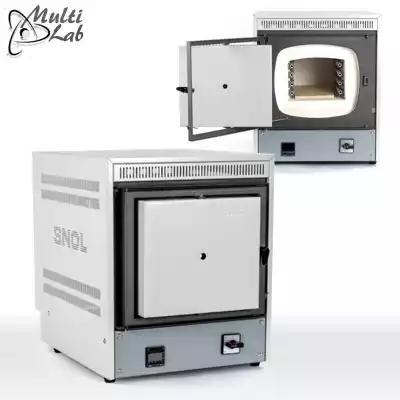

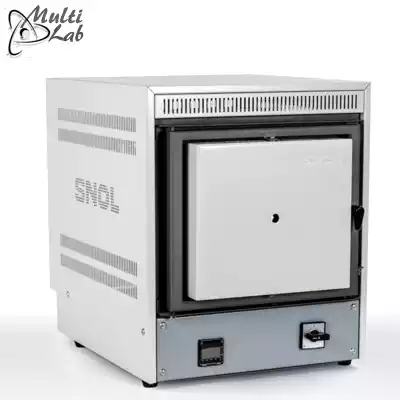

Laboratory & General use Muffle Furnaces » Series LMH


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptoare de convectie termica cu mufla, poate fi folosit ca si cuptor de incinerare a produselor, prelucrarea probelor metalurgice.
3 modele disponibile; dotate cu controler standard Ht40 AL; optional poate fi dotate cu controler multifunctional pentru uz industrial IND de 10 segmente si program software.

Specificatii tehnice
• Cuptoare tip camera prevazute cu ventilator puternic si sistem de ghidare a aerului in jurul probelor pentru uniformitatea temperaturii
• vatra cuptorului confectionata din placi impurificati din carbura de siliciu rezistente la atac chimic si depunere de carbune pentru eliminarea gazelor si a fumului in timpul procesului
• controler multifunctional cu microprocesor PID, programarea temperaturii si a timpului
• controler multifunctional cu 10 segmente (optional)
• incalzire din ambele parti de la elementele de incalzire prevazute in tuburi din cuart
• usa deschidere frontala tip clapeta; utilizata si ca platforma de lucru
• elementele de incalzire incorporate in tuburi din sticla de cuart
• sonda de temperatura / termocuplu Tip “S”
• inlocuirea cu usurinta a elementelor de incalzire
• izolare cu straturi multiple cu placi din fibra in camera cuptorului
• carcasa cu strat dublu din placi de otel inoxidabil pentru temperaturi externe
• dispozitiv pentru exhaustare aer in peretele din spate
• relee solide pentru operare silentioasa
• interfata RS232 sau RS485 (optional)
• clasa de protectie A P16/1

Aplicatii
• ideale pentru operatiile de uscare si incalzire.
• Aplicatii in care sunt implicate substante valoroase
• Prelucrarea si procese de ardere metalului
• Procesarea aliajelor feroase
• Testare a materiei prime si verificare a calitatii produselor finite
• Automatizari industriale
• Testarea rezistenta stratului de acoperire aplicat
• Tratament Termic metale feroase si neferoase
• Controlul calititii productiei
• aplicatii standerdelor BS/ISO si ASTM

Date Tehnice
Cuptoare programabile cu mufla cu sistem de control electronic termoreglabil Ht60B pentru incalzire si racire

Model Volum Tmp.max Putere Dimens. int Dimens. ext Greut.
LMH 04/12 4 lit 1200 °C 3 kW 170x90x275 490x540x720 43 Kg
LMH 07/12 7 lit 1200 °C 3 kW 170x170x275 490x540x720 46 Kg
LMH 11/12 11 lit 1200 °C 3.5 kW 255x165x25 570x540x720 53 Kg

Conformitate - Certificate - Service
• Conform standarde BS 1016-104.4:1998, ISO 1171:1997, ASTM D2361-02, & ASTM D3174-04 (modele de 3 si 7 Lit.)
• Certificat de conformitate
• Certificat ISO
• Certificat RoHS - Directive 2002/95/EC
• Certificat de declartie WEEE
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Standard equipment of the furnace covers
Ht40 AL controller
Manually operated door opening upwards with an end switch
The door portal made of refractory shapes
Inside of the peephole is protective clear glass
Muffle insulated with the matting of the mineral grain and encased in the insulation desks
Heating spiral on the muffle
Airing chimney on the back part of the furnace
Supply cable fitted with single-phase plug
Thermocouple Type “S”

Advantages
rustless fulfilment
attractive design
draught prevenes the devaporation of the vapours at firing and markedly opprobrious the temperature of the mantle
perfect lay of the temperature
top insulating materials (low power consumption, possibility of the fast start on the asked temperature)
programmable temperature adjustment with the high accuracy
solid state relay (more fluent and silent running,the minimum disturbance of the surrounding mechanism)
perfect workshop processing,the hardware and safety in service.

Technical Data

Model Volume Max. tempreture Input power Internal Dimension External Dimension Weight
LMH 04/12 4 lit 1200 °C 3 kW 170x90x275 490x540x720 43 Kg
LMH 07/12 7 lit 1200 °C 3 kW 170x170x275 490x540x720 46 Kg
LMH 11/12 11 lit 1200 °C 3.5 kW 255x165x25 570x540x720 53 Kg



Accesorii optionale
• program software "HtMonit" pentru inregistrarea, stocarea si prelucrarea datelor
• Dispozitiv de protectie pentru atmosfera controlata
• controller Ht40 P cu 10 programe
• interfata RS232 sau RS485

Optional accessories
INDUSTRY controller
Injector with an exhaust fan and draft diverter
Calibration of the controller measuring entry
Protection atmosphere inlet
Interface RS232 or RS485
Set HtMonit (includes interface + software)


Cuptoare tip camera Vertical Muffle Furnaces
Volum ::2 si 5 lit.
Tmp. maxima :: 1200 °C
Seria LMV

Cuptor vertical cu mufla ceramica

Vertical charging Furnaces with Ceramic Muffle. furnaces » Series LMV


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptoare termoreglabile programabile cu controler integrat pentru incalzire / racire; cu mufla ceramica verticala cu pozitie de operare verticala pentru protectie probe in urma procese de ardere; pot fi utilizate drept cuptoare universale in multe aplicatii.
2 modele disponibile de 2 lit. si 5 lit. sunt dotate cu controler standard Ht40 AL; optional poate fi dotate cu controler industrial IND de 10 segmente si program software

Specificatii tehnice
• controler multifunctional cu microprocesor PID, programarea temperaturii si a timpului
• controler multifunctional cu 10 segmente (optional)
• incalzire din ambele parti de la elementele de incalzire prevazute in tuburi din cuart
• clapeta pivotanta pentru incarcare verticala
• elementele de incalzire incorporate in tuburi din sticla de cuart
• sonda de temperatura / termocuplu Tip “S”
• inlocuirea cu usurinta a elementelor de incalzire
• izolare cu straturi multiple cu placi din fibra in camera cuptorului
• carcasa cu strat dublu din placi de otel inoxidabil pentru temperaturi externe
• dispozitiv pentru exhaustare aer in peretele din spate
• relee solide pentru operare silentioasa
• interfata RS232 sau RS485 (optional)
• clasa de protectie P16/1

Aplicatii
• Simularea productiei la scara mica/in laborator
• Prelucrarea si procese de ardere metalului
• Procesarea aliajelor feroase
• Analize fizico - mecanice si fizico-chimice
• Determinarea stresul termic si stres mecanic (deformare)
• Prelucrarii metalelor feroase si aliajele feroase
• Cercetare-Dezvoltare pentru metale
• Controlul calititii productiei
• Metalizare sau acoperire a suprafetelor
• Teste de rezistentei la uzuri, coroziune si temperaturi ridicate

Date Tehnice
Cuptoare programabile cu mufla cu sistem de control electronic termoreglabil Ht60B pentru incalzire si racire

Model Volum Tmp. max Putere Dimensiuni interne Dimensiuni externe Greutate
LMV 2/12 2 lit 1200 °C 1.8 kW Ø 110 x 160 300x470x300 30 Kg
LMV 5/12 5 lit 1200 °C 2.6 kW Ø 170 x 230 300x550x350 40 Kg

Conformitate - Certificate - Service
• Conform standarde BS 1016-104.4:1998, ISO 1171:1997, ASTM D2361-02, & ASTM D3174-04 (modele de 3 si 7 Lit.)
• Certificat de conformitate
• Certificat ISO
• Certificat RoHS - Directive 2002/95/EC
• Certificat de declartie WEEE
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
rameless conctruction created by the hooped rustless metal plate
portal of the door of the fireproof adapting pieces
muffle insulated by the sedge of the mineral grain and cased by the insulation desks
lid fulfilmed by the insulation desk
heating spiral winding-up on the muffle
feeder cables procurated by the uniphase bolts
controller HT40 enables controlling to standard value
thermocouple of the type S, placed on the back side

Aplication
Vertical charging (samples for testing) into the ceramic muffle.
This muffle prevents from acces of possible agresive fouling, forming at heat treatment into the heating elements.

Advantages
rustless fulfilment
attractive design
perfect lay of the temperature
top insulating materials ( low power consumption, possibility of the fast start on the asked temperature)
programmable temperature adjustment with the high accuracy
solid state relays (more fluent and silent running,the minimum disturbance of the surrounding mechanism)
perfect workshop processing, the hardware and safety in service

Standard equipment of the furnace covers
Ht40 AL controller
The lid is fulfilled by the sedge of mineral fibre, manually opened lid
Muffle insulated with the matting of the mineral grain
Heating spiral on the muffle
Supply cable fitted with single-phase plug
Circuit breaker on the back side of the furnace
All electro elements placed in the area below the muffle
Thermocouple Type “S”

Technical Data

Model Volume Maximum Tmp. Input power External dimension Internal dimension Weight
LMV 2/12 2 lit 1200 °C 1.8 kW Ø 110 x 160 300x470x300 30 Kg
LMV 5/12 5 lit 1200 °C 2.6 kW Ø 170 x 230 300x550x350 40 Kg



Accesorii optionale
• program software "HtMonit" pentru înregistrarea, stocarea si prelucrarea datelor
• Dispozitiv de protectie pentru atmosfera controlata
• controller Ht40 P cu 10 programe
• interfata RS232 sau RS485

Optional accessories
INDUSTRY controller
Protection atmosphere inlet
Calibration of the controller measuring entry
Interface RS232 or RS485
Set HtMonit (includes interface + software)

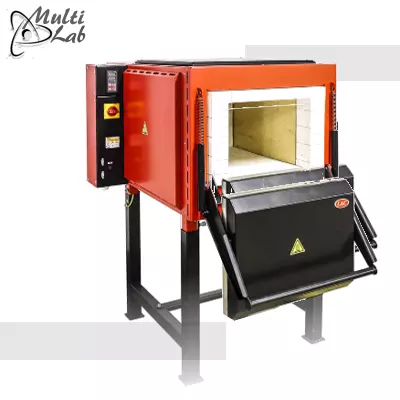

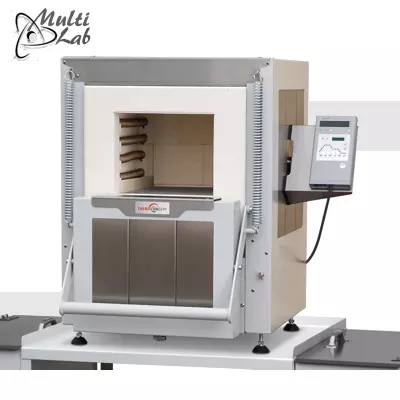

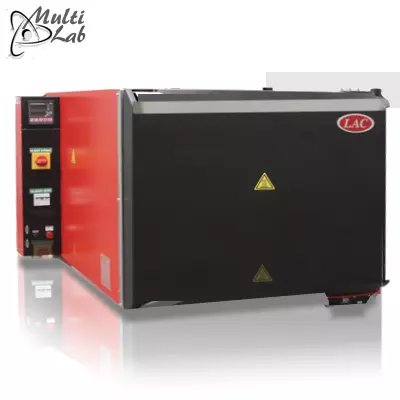

Cuptoare tip camera / Hardening Furnaces
Volum :: intre 12 si 80 lit.
Tmp. maxima :: 1280 °C
Seria PKE

Cuptoare multifunctionale programabile pt. tratament termic, rigidizare, calire si intarire

Multiporpose Hardening Furnaces » Series PKE


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptoare programabile de tratament termic cu sistem automat de circulatie fortata a aerului pentru procesare termică, asigura o flexibilitate maxima, uniformitate în zona utilă a cuptorului de pînă la 3°C, rezistenta si durabilitatea barelor si viteza mare de atingerea temperaturii maxime.

Specificatii tehnice
• Elemente de incalzire pe ambele parti ale cuptorului
• Asigura o flexibilitate maxima, uniformitate în zona utilă a cuptorului de pînă la 3°C,
• Rezistenta si durabilitatea barelor in uz periodic si viteza mare de atingerea temperaturii maxime.
• Timp de incalzire de 30 de minute in functie de modelul cuptorului cat si de conditiile de lucru
• Viteze mari de încălzire şi răcire,
• Arderi cît mai complete şi reducerea oxidării,
• Sistem de retinere a puterii pentru reducerea consumului de energie si siguranţei în exploatare
• Plaja de temperatura operationala programabila
• Incalzire accelerata cu elemente de incalzire fara radiatii
• Transfer uniform si maxim de temperatura
• Intrerupator pozitiv cu circuit integrat pentru oprirea automata completa a circuitului electric cind se incarca cuptorului
• Dispozitiv refractar pentru folosire optima de gaz atunci cind se lucreaza cu atmosfera modificata
• Controler pentru limitarea la supraincalzire cu resetare manual pentru clasa 2 de protectie termica conform cu EN 60519 -2 drept limitator de temperatura pentru protectia cuptorului si a incarcaturii
• Usa se deschide sistematic astfel incat utilizatorul este protejat
• inerfata de comunicare RS232 sau RS485 (optional)
• Orificiu pentru admisie de gaz
• Inregistrator grafic de temperatura
• clasa de protectie A 16/1

Aplicatii
• pentru procese de stingere, revenire, recoacere, calire, maleabilizare, reincalzire, otelire normailizare.
Aceste conditii pot fi indeplinite doar de un stand de testare realizat in conformitate cu normele in vigoare si anume SR EN 1363-1, 2, 3.
• Prelucrarea si procese de tratamente termice si de ardere metalului
• Procese de uscarea lor, arderea si sinterizarea
• Procesarea aliajelor feroase
• Analize fizico - mecanice si fizico-chimice
• Determinarea stresul termic si stres mecanic (deformare)
• Prelucrarii metalelor feroase si aliajele feroase
• Cercetare-Dezvoltare pentru metale
• Controlul calităţii producţiei
• Tratamente termice generale, topiri, maturari la cald
• Procese de sinterizari si testari de ceramica
• Procesari de materiale la soc termic
• Metalizare sau acoperire a suprafetelor
• Teste de rezistenţei la uzură, coroziune şi temperaturi ridicate

Date Tehnice
Cuptoare programabile cu mufla cu sistem de control electronic termoreglabil Ht60B pentru incalzire si racire

Model Volum Temperatura maxima Putere Dimensiuni interne Dimensiuni externe Alimentare Greutate
PKE 12/12 12,2 lit 1280 °C 3 kW 250 x 200 x 250 700 x 1400 x 850 230 V 95 Kg
PKE 18/12 17,5 lit 1280 °C 3,5 kW 250 x 200 x 350 700 x 1400 x 950 230 V 115 Kg
PKE 18/12R 17,5 lit 1280 °C 5,5 kW 250 x 200 x 350 700 x 1400 x 950 400 V 115 Kg
PKE 25/12 25 lit 1280 °C 7 kW 250 x 200 x 500 700 x 1400 x 1100 400 V 140 Kg
PKE 45/12 44 lit 1280 °C 13 kW 350 x 250 x 500 800 x 1350 x 1100 400 V 165 Kg
PKE 65/12 65 lit 1280 °C 16 kW 350 x 250 x 750 800 x 1350 x 1350 400 V 195 Kg
PKE 90/12 78 lit 1280 °C 18 kW 350 x 250 x 1000 800 x 1350 x 1600 400 V 225 Kg

Conformitate - Certificate - Service
• Conform standarde BS 1016-104.4:1998, ISO 1171:1997, ASTM D2361-02, & ASTM D3174-04 (modele de 3 si 7 Lit.)
• Certificat de conformitate
• Certificat ISO
• Certificat RoHS - Directive 2002/95/EC
• Certificat de declartie WEEE
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
hardening furnaces of the production line PKE with the capacity from 12 to 90 litres are designated especially for the processing of small charges or for laboratory using.
The cover of the furnace is made from bended sheet steal. The shape of the cover ensures automatic ventilation of the furnace and entails the reduction of the surface temperature; dimensions of the furnace will be still without change. Working processes are done on a laser saw machine with the guarantee of high quality and precision of the final workpiece.
This technology of assembling and working process, which is substituted by the old welding process, leads to final cost cutting. This is innovated not only in technique of the PKE production line but in the design of furnaces as well.
Door of the furnace is handled by an operating system and it is opened downwards. This system is easier than the old one. Doors could be regulated very precisely due to this new opening system. The door seal is ensured with spiral springs.
The operating panel is directed to service staff and integrated with all control units including controller.
The furnace is insulated with a board made from ceramic fibres, furthermore the back side is covered with a SiC board which is easy to change and it’s more resistant. Besides this, there is micro-porous insulation which is put just behind ceramic fibre boards. This insulation structure will give guarantee of the reduction of heating loss against the old insulation structure used in furnaces of PK line.
The difference of heating losses between them is about 30 %. Heating elements are situated on side walls.
The door of the furnace has the same insulation system and it’s equipped with a seal rope of four-square cross-sections to fit the door tightly.
The portal frame is made from hard and lightweight bricks.

Technical Data

Model Volume Max. tempreture Inlet power Interior dimension Exterior dimension Power supply Weight
PKE 12/12 12,2 lit 1280 °C 3 kW 250 x 200 x 250 700 x 1400 x 850 230 V 95 Kg
PKE 18/12 17,5 lit 1280 °C 3,5 kW 250 x 200 x 350 700 x 1400 x 950 230 V 115 Kg
PKE 18/12R 17,5 lit 1280 °C 5,5 kW 250 x 200 x 350 700 x 1400 x 950 400 V 115 Kg
PKE 25/12 25 lit 1280 °C 7 kW 250 x 200 x 500 700 x 1400 x 1100 400 V 140 Kg
PKE 45/12 44 lit 1280 °C 13 kW 350 x 250 x 500 800 x 1350 x 1100 400 V 165 Kg
PKE 65/12 65 lit 1280 °C 16 kW 350 x 250 x 750 800 x 1350 x 1350 400 V 195 Kg
PKE 90/12 78 lit 1280 °C 18 kW 350 x 250 x 1000 800 x 1350 x 1600 400 V 225 Kg



Accesorii optionale
• Sistem secundar de racire
• Stand (masa)
• Retorata pentru stingere in atmosfera protejata
• interfata RS232 sau RS485

Optional accessories
Protection atmosphere inlet
Metal panel for the bottom
Retort for quenching in protective atmosphere
Optimization of the temperature field to fulfill DIN 17052-1 ΔT 20°C in the internal usable space (in the empty furnace at Tmax)
Automatic ventilation flap
Calibration of the controller measuring entry
Interface RS232 or RS485
Set HtMonit (includes interface + software)


Cuptoare tip camera / Heat Treatment Furnaces
Volum :: intre 105 si 1400 lit.
Tmp. maxima :: 1280 °C
Seria KM 1280

Cuptoare de recoacere si de tratament termic pentru diferite metale

Universal Furnaces for heat treatment of metals » Series KM-1280


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptoare industriale de mare capacitate cu o temperatură maximă de operare de 1280°C.
Control digital si afisaj digital ce permite vizualizarea temperaturii instantanee din camera
Izolatie tripla asigura o incalzire rapida cu un consum redus de energie electrica.
Elementele de incalzire sunt dispuse pe 3 pereti interior asigurand un bun gradient de temperatura.
Usa cu deschidere verticala in sus, asigura un spatiu mare de acces in interior si o incarcare rapida a probelor

Specificatii tehnice
Volume de cameră de la 105 la 1400 litri
Strustura exterioara si usa din otel inox
Usa verticala cu deschidere hidraulica in sus (pt. modele KM 680/13, KM 1000/13 si KM 1400/13
Incalzire din 3 parti (dreapata, stanga si partea de jos)
Elemente de incalzire cu radiere liberă divizate pentru uniformitate optimă
Ușa verticala ține suprafața încălzită departe de operator
Controler multiparametric cu rampă unică la punctul de setare și temporizatorul procesului
Funcție temporizare start/proces întârziat standard
Protecție la supra-temperatură
Usa cu sistem de protectie
Acces ușor la elemente și controale simplifică operațiile de întreținere și service
Mufla; Orificiu de exhaustare a aerului situat in partea din spate a cuptorului

Aplicatii
Cuptoare pentru recoacere si tratarea termica a metalelor la temperaturi inalte si joase, ideale pentru multe aplicatii de laborator.

Date Tehnice
Cuptoare programabile cu sistem de control termoreglabil cu temperatura maxima de 1300°C

Model Tmp. max Volum Dimens. int Dimens. ext Putere Alimentare Greutate
KM 105/13 1280 °C 105 lit 500 x 600 x 350 1300 x 1900 x 1350 21 kW 400 3/N 660
KM 130/13 1280 °C 130 lit 500 x 750 x 350 1300 x 2000 x 1500 21 kW 400 3/N 750
KM 180/13 1280 °C 180 lit 550 x 800 x 400 1350 x 2000 x 1950 29 kW 400 3/N 830
KM 225/13 1280 °C 225 lit 600 x 750 x 500 1400 x 2050 x 2150 29 kW 400 3/N 920
KM 350/13 1280 °C 350 lit 700 x 1100 x 450 1500 x 2400 x 2150 50 kW 400 3/N 1100
KM 540/13 1280 °C 540 lit 600 x 1500 x 600 1500 x 3000 x 2450 50 kW 400 3/N 1540
KM 680/13 1280 °C 680 lit 900 x 1500 x 500 2200 x 2450 x 2600 70 kW 400 3/N 1620
KM 1000/13 1280 °C 970 lit 900 x 1800 x 600 2100 x 2850 x 2750 70 kW 400 3/N 1980
KM 1400/13 1280 °C 1400 lit 1100 x 2100 x 600 2300 x 3200 x 2750 85 kW 400 3/N 2500

Conformitate - Certificate - Service
• Conform standarde BS 1016-104.4:1998, ISO 1171:1997, ASTM D2361-02, & ASTM D3174-04 (modele de 3 si 7 Lit.)
• Certificat de conformitate
• Certificat ISO
• Certificat RoHS - Directive 2002/95/EC
• Certificat de declartie WEEE
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Rugged furnace housing made of construction steel, frame welded with steel profiles, covered by metal sheet profiles
Double lined housing with rear ventilation > Very low outer casing temperature
Vertical lifting door, from Model KM 680/13 incl. hydraulic drive
Door collar made from strong refractory concrete > Resistant to mechanical damages
Exhaust pipe in rear wall
Base included in standard supply
Multilayer insulation (fire bricks and rear insulation) > Low heat loss, very low energy consumption, low operating costs
Heated from 3-sides (left, right and bottom) > Excellent temperature uniformity in the chamber
High quality heating elements > Long service life
Side heating elements wound on ceramic tubes > Free heat radiation into the chamber, low energy consumption, longer service life for heating elements
Bottom heating elements covered by silicon carbide plates > High mechanical strength, protection for bottom heating elements
Furnaces offer sufficient power > Short heating-up time
Door safety switch

Technical Data

Model Tmp. max Volume Int. Dimens. Ext. Dimens. Power Voltage Weight
KM 105/13 1280 °C 105 lit 500 x 600 x 350 1300 x 1900 x 1350 21 kW 400 3/N 660
KM 130/13 1280 °C 130 lit 500 x 750 x 350 1300 x 2000 x 1500 21 kW 400 3/N 750
KM 180/13 1280 °C 180 lit 550 x 800 x 400 1350 x 2000 x 1950 29 kW 400 3/N 830
KM 225/13 1280 °C 225 lit 600 x 750 x 500 1400 x 2050 x 2150 29 kW 400 3/N 920
KM 350/13 1280 °C 350 lit 700 x 1100 x 450 1500 x 2400 x 2150 50 kW 400 3/N 1100
KM 540/13 1280 °C 540 lit 600 x 1500 x 600 1500 x 3000 x 2450 50 kW 400 3/N 1540
KM 680/13 1280 °C 680 lit 900 x 1500 x 500 2200 x 2450 x 2600 70 kW 400 3/N 1620
KM 1000/13 1280 °C 970 lit 900 x 1800 x 600 2100 x 2850 x 2750 70 kW 400 3/N 1980
KM 1400/13 1280 °C 1400 lit 1100 x 2100 x 600 2300 x 3200 x 2750 85 kW 400 3/N 2500



Accesorii optionale

Optional accessories
Charging plate: Extra protection for the furnace bottom
Silicon carbide protective tiles: Protect the side heating elements against mechanical damage
Lift door: With hydraulic drive, operated by foot or hand switch
Cooling fan: Provides forced cooling of the batch
Inert gas connection and sealing: Prepares furnace for semi-gastight operation


Cuptoare tip camera / High Temp. Furnaces
Volum :: intre 8 si 88 lit.
Tmp. maxima :: 1300 °C
Seria KM 1300

Cuptoare de tratament termic pentru diferite metale - maleabilizare, nitrurare, cocsificare, etc.

Universal Furnaces for heat treatment of metals » Series KM-1300


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptoare industriale si de laborator cu cameră sunt o gamă de furnale în scopuri universale furnizate în noua dimensiuni, fiecare fiind disponibilă cu o temperatură maximă de operare de 1300°C.
Desig compact cu control digital si afisaj digital ce permite vizualizarea temperaturii instantanee din camera
Izolatie tripla asigura o incalzire rapida cu un consum redus de energie electrica.
Elementele de incalzire sunt dispuse pe 3 pereti interior asigurand un bun gradient de temperatura.
Usa cu deschidere verticala in jos, asigura un spatiu mare de acces in interior si o incarcare rapida a probelor

Specificatii tehnice
Volume de cameră de la 8 la 88 litri
Strustura exterioara si usa din otel inox
Usa verticala cu deschidere in jos
Incalzire din 3 parti (dreapata, stanga si partea de jos)
Elemente de incalzire cu radiere liberă divizate pentru uniformitate optimă
Ușa verticala ține suprafața încălzită departe de operator
Controler multiparametric cu rampă unică la punctul de setare și temporizatorul procesului
Funcție temporizare start/proces întârziat standard
Protecție la supra-temperatură
Usa cu sistem de protectie
Acces ușor la elemente și controale simplifică operațiile de întreținere și service
Mufla; Orificiu de exhaustare a aerului situat in partea din spate a cuptorului

Aplicatii
Cuptoare pentru recoacere si tratarea termica a metalelor la temperaturi inalte si joase, ideale pentru multe aplicatii de laborator.

Date Tehnice
Cuptoare programabile cu sistem de control termoreglabil cu temperatura maxima de 1300°C

Model Tip Tmp. max Volum Dimens. int Dimens.ext Putere Alimentare Greutate
KM 10/13 de masa 1300 °C 8 lit 250 x 250 x 120 500 x 600 x 700 2.5 kW 230 1/N 75
KM 15/13 de masa 1300 °C 13 lit 250 x 250 x 200 500 x 700 x 700 3.6 kW 230 1/N 85
KM 20/13 de masa 1300 °C 18 lit 250 x 350 x 200 500 x 700 x 700 6 kW 400 3/N 85
KM 30/13 de masa 1300 °C 25 lit 250 x 500 x 200 500 x 850 x 700 7 kW 400 3/N 95
KM 50/13 pe stand 1300 °C 44 lit 350 x 500 x 250 1000 x 1300 x 1400 13 kW 400 3/N 250
KM 70/13 pe stand 1300 °C 66 lit 350 x 750 x 250 1000 x 1400 x 1400 20 kW 400 3/N 330
KM 90/13 pe stand 1300 °C 88 lit 350 x 1000 x 250 1000 x 2000 x 1400 22 kW 400 3/N 500

Conformitate - Certificate - Service
• Conform standarde BS 1016-104.4:1998, ISO 1171:1997, ASTM D2361-02, & ASTM D3174-04 (modele de 3 si 7 Lit.)
• Certificat de conformitate
• Certificat ISO
• Certificat RoHS - Directive 2002/95/EC
• Certificat de declartie WEEE
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Double lined housing with rear ventilation > Very low outer casing temperature
Outer casing side walls and door made of stainless steel > Corrosion resistant
Lintel of the door also made of stainless steel
Downwards moving door
Stainless steel charging support on the door frame
Exhaust pipe in rear wall
Base included in standard supply (from model KM 50/13)
Multilayer insulation (fire bricks and rear insulation) > Low heat loss, very low energy consumption, low operating costs
High quality heating elements, securely fixed on tubes
Heated from 3-sides (left, right and bottom) > Excellent temperature uniformity in the chamber
Heating elements wound on ceramic tubes (from model KM 50/13) > Free heat radiation into the chamber, low energy consumption, longer service life for heating elements
Bottom heating elements covered by silicon carbide plates > High mechanical strength, protection for bottom
heating elements
Furnaces offer sufficient power > Short heating-up times
Door safety switch

Technical Data

Model Type Max. Tmp. Volume Int. Dimens. Ext. Dimens. Power Voltage Weight
KM 10/13 bench 1300 °C 8 lit 250 x 250 x 120 500 x 600 x 700 2.5 kW 230 1/N 75
KM 15/13 bench 1300 °C 13 lit 250 x 250 x 200 500 x 700 x 700 3.6 kW 230 1/N 85
KM 20/13 bench 1300 °C 18 lit 250 x 350 x 200 500 x 700 x 700 6 kW 400 3/N 85
KM 30/13 bench 1300 °C 25 lit 250 x 500 x 200 500 x 850 x 700 7 kW 400 3/N 95
KM 50/13 stand 1300 °C 44 lit 350 x 500 x 250 1000 x 1300 x 1400 13 kW 400 3/N 250
KM 70/13 stand 1300 °C 66 lit 350 x 750 x 250 1000 x 1400 x 1400 20 kW 400 3/N 330
KM 90/13 stand 1300 °C 88 lit 350 x 1000 x 250 1000 x 2000 x 1400 22 kW 400 3/N 500



Accesorii optionale

Optional accessories
Charging plate: Extra protection for the furnace bottom
Silicon carbide protective tiles: Protect the side heating elements against mechanical damage
Lift door: With hydraulic drive, operated by foot or hand switch
Cooling fan: Provides forced cooling of the batch
Inert gas connection and sealing: Prepares furnace for semi-gastight operation


Cuptoare tip camera / HT testing Furnaces
Volum :: intre 6 si 30 lit.
Tmp. maxima :: 1340 °C
Seria LH

Cuptoare de recoacere si de tratament termic pentru diferite metale, sticla si ceramica

Furnaces for Heat treatment of metals, glass and ceramics » Series LH


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Cuptoare pentru laborator si industrie ideale pentru diferite procese de tratamente termice a metalelor sticla si ceramica, dotate cu controler standard; optional poate fi dotate cu controler de 10 segmente si program software

Specificatii tehnice
• controler multifuncţional cu microprocesor PID, programarea temperaturii şi a timpului
• controler multifuncţional cu 10 segmente (optional)
• incalzire din ambele parti de la elementele de incalzire prevazute in tuburi din cuart
• usa deschidere frontala tip clapeta; utilizata si ca platforma de lucru
• elementele de incalzire incorporate in tuburi din sticla de cuart
• sonda de temperatura / termocuplu Tip “S”
• inlocuirea cu usurinta a elementelor de incalzire
• izolare cu straturi multiple cu placi din fibra in camera cuptorului
• carcasa cu strat dublu din placi de otel inoxidabil pentru temperaturi externe
• dispozitiv pentru exhaustare aer in peretele din spate
• relee solide pentru operare silentioasa
• interfata RS232 sau RS485 (optional)
• clasa de protectie A P16/1

Aplicatii
• in industria alimentara includ calcinarea probei materialelor naturale cum ar fi fibre naturale si ale cerealeor, soia, lapte praf, faina,..etc.
• in general includ incinerarea tipari de ceara dentara, curatarea componente metalice, prelucrarea complexa a sticlei,..etc.
• in controlul calitatii, calcinare probe de carbun, chimie industriala, metalurgie, analiza si teste fizice, petrochimie, etc.
• Prelucrarea probe cu dimensiuni relativ mari
• Aplicatii in atmosfera modificata (inconel NiCr)
• Prelucrarea metalului
• Procesarea aliajelor feroase
• Testare a materiei prime si verificare a calitatii produselor finite
• Testarea rezistenţa stratului de acoperire aplicat
• Tratament Termic metale feroase si neferoase
• Controlul calităţii producţiei
• aplicatii standerdelor BS/ISO si ASTM

Date Tehnice
Cuptoare programabile cu sistem de control termoreglabil cu temperatura maxima de 1300°C

Model Volum Tmp. max Putere Dimens. int Dimens. ext Greutate
H 06/13 6 lit 1340 °C 1.5 kW 200 x 150 x 230 600 x 590 x 715 72 Kg
H 09/13 9 lit 1340 °C 2 kW 230 x 170 x 230 600 x 590 x 715 73 Kg
H 15/13 15 lit 1340 °C 2.4 kW 250 x 250 x 250 620 x 670 x 715 82 Kg
H 30/13 30 lit 1340 °C 3.2 kW 310 x 310 x 310 680 x 770 x 800 120 Kg

Conformitate - Certificate - Service
• Conform standarde BS 1016-104.4:1998, ISO 1171:1997, ASTM D2361-02, & ASTM D3174-04 (modele de 3 si 7 Lit.)
• Certificat de conformitate
• Certificat ISO
• Certificat RoHS - Directive 2002/95/EC
• Certificat de declartie WEEE
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
frameless conctruction created by the hooped rustless metal plate
portal of the door of the fireproof adapting pieces
in the peep-hole of the door the protective blue glass
door of the hooped rustless metal plate tank shaped
thrust is extrapolated by the ductile springs
muffle insulated by the sedge of the mineral fibre and cased by the insulation desks
door fulfilmed by the insulation desk
heating spiral winding-up on the muffle
door equiped by the security limit switch
feeder cables procurated by the uniphase bolts
furnace equiped by the cooling fan
controller HT 40AL enables controlling to standard value
thermocouple of the type S, placed on the back side

Standard equipment of the furnace covers
Ht40 AL controller
manually operated door opening upwards with an end switch
heating coils inserted in the lining grooves
airing chimney on the back part of the furnace
chamber composed of lightweight bricks
supply cable fitted with single-phase plug
thermocouple Type “S”
solid state relay

Application
This set of the furnace can be flexibly used in laboratories for testing the different materials by the heat processing, where is no slagging any incursive matters from the charge, which can attack the coils or the brick lining.
It can be used for the heat processing of the metal materials, glass firing or ceramics.

Technical Data

Model Volume Max. Tmp. Power Inter. Dimens. Ext. Dimens. Weight
H 06/13 6 lit 1340 °C 1.5 kW 200 x 150 x 230 600 x 590 x 715 72 Kg
H 09/13 9 lit 1340 °C 2 kW 230 x 170 x 230 600 x 590 x 715 73 Kg
H 15/13 15 lit 1340 °C 2.4 kW 250 x 250 x 250 620 x 670 x 715 82 Kg
H 30/13 30 lit 1340 °C 3.2 kW 310 x 310 x 310 680 x 770 x 800 120 Kg



Accesorii optionale

Optional accessories
INDUSTRY controller
injector with an exhaust fan and draft diverter
protection atmosphere inlet
calibration of the controller measuring entry
interface RS232 or RS485
set HtMonit (includes interface + software)
