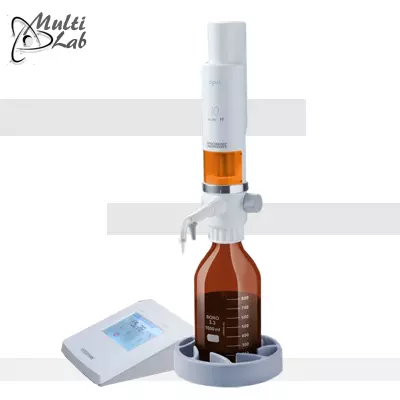

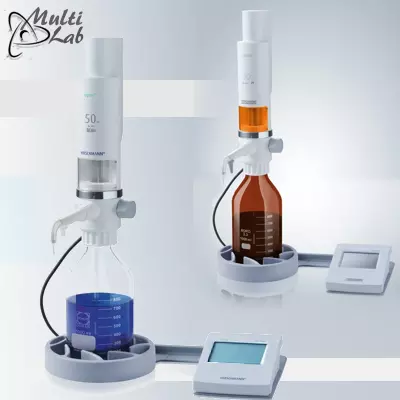

Biureta digitala de precizie OPUS

Model	Volum	Alimentare	Code-No.
Opus 10	10 ml	100-240 Volt	9581010
Opus 20	20 ml	100-240 Volt	9581020
Opus 50	50 ml	100-240 Volt	9581050

Titrator / Biureta digitala de precizie

- Model disponibil cu 3 volume de 10, 20 sau 50 ml cu
- Sistem de recirculare integrat pentru prevenirea pierderii de reactiv
- Control electronic si dispensarea volumului
- Ecran touch screen TFT cu meniu simplu de utilizat
- Memorare a pana la 9 proceduri de titrare
- Distribuire in serie pana la 9999 ori
- O rotatie libera
- Interfata USB si RS232 pentru conectarea la un PC

Biureta este livrata cu:

• Unitate de baza Opus cu filet interior de A 45,
• Adaptoare filete A 32 si A 38 S 40
• Set complet de furtune si adaptoare, certificat de calitate, manual de operare in limba romana

Date tehnice / Unitate de baza

Model		OPUS-10	OPUS-20	OPUS-50
Control	Module type	External control module incl. touch screen control
Panou de comenzi	Touchscreen	3.5“ with 320 X 240 pixel, most important functions directly accessible from main screen
Selectie volum	Titration volume preselection	Up to 10 ml	Up to 20 ml	Up to 50 ml
Titrare rapida	Rapid titration	For rapid medium dispensing at beginning of titration process
Titrare picaturi	Droplet titration	With 1 droplet per button push, accelerating if button is pressed
Calibrare rapida	Quick-Cal	Calibration of other temperature or medium possible
Memorie	Method memory	Up to 9 different unit configurations can be saved
Interfete	PC interface	USB or RS232
Remot control	Remote control	Unit can be remotely controlled via an additional cable-connected device
Dimensiuni	Dimensions (H x D x W)	55 mm x 130 mm x 110 mm
Greutate	Weight	230 g

Date tehnice / Unitate de control

Model	OPUS-10	OPUS-20	OPUS-50
Volum	10 ml	20 ml	50 ml
Tip control	Microprocessor-controlled, motorised piston lift system with recirculation
Capacitate	0.01 ml - 10.00 ml and 0.010 ml - 10.000 ml max.piston lift 10 ml, automatic addition up to 99.99/99.999 ml, resolution: 1 µl	0.1 ml - 20 ml max. piston lift 20 ml, automatic addition up to 99.99 ml, resolution: 10 µl	1.00 ml - 50 ml max. piston lift 50 ml, automatic addition up to 99.99 ml, resolution: 10 µl
Acuratete	R = 0.2%, CV = 0.07%	R = 0.2%, CV = 0.07%	R = 0.2%, CV = 0.05%
Viteza	in 16 stages from 0.01 ml/s to 2 ml/s independently adjustable for suctioning and dispensing speed	in 10 stages from 0.1 ml/s to 4 ml/s independently adjustable for suctioning and dispensing speed	in 10 stages from 1 ml/s to 10 ml/s independently adjustable for suctioning and dispensing speed
Domeniu temp.	+4 °C to +40 °C	+4 °C to +40 °C	+4 °C to +40 °C
Alimentare	Plug-in mains unit 15V, 850 mA (optional via battery in control unit)
Alimentare cu baterie (optional)	Battery charge for an average of 2.5 to 3 h continuous operation. Battery capacity indicated on TFT display, charging time 6.5 h, intelligent electronics prevent overloading and deep discharging
Material	Housing made of PA6 reinforced glass fibre, all parts in contact with liquid are made of chemically inert material
Sterilizare si curatare	Motorised rinsing function, can be disconnected without tools, media conveying components are suitable for steam sterilisation (121 °C)
Aerare	Automatic at the push of a button
Dimensiuni	320 mm x 80 mm x 63 mm (H x D x W)
Greutate	660 g	660 g	660 g
Conformitate	in compliance with DIN EN ISO 8655
Validare	DIN EN ISO 9001 compliant certification through unit protocol with serial number

Accesorii optionale

Adaptoare filet / Threaded adapters
PP A 45 to A 28	931 35 23
PP A 45 to A 38/43	931 35 24
ETFE A 45 to A 32	0931 36 21
ETFE A 45 to A 2	931 36 23
ETFE A 45 to A 38/430	8931 36 24
ETFE A 45 to A 38	931 36 25
ETFE A 45 to S 40	931 36 27
Supape / Valves
Discharge valve, valve seat/ball made of high purity aluminium oxide ceramic (Al2O3 99,7%), spring made of platin-iridium (HF)	931 60 28
Discharge valve, valve seat/ball made of high purity aluminium oxide ceramic (Al2O3 99,7%), spring made of Hastelloy	931 60 15
Suction valve, valve seat/ball made of high purity aluminium oxide ceramic (Al2O3 99,7%), spring made of platin-iridium (HF)	931 65 28
Suction valve, valve seat/ball made of high purity aluminium oxide ceramic (Al2O3 99,7%), spring made of Hastelloy	931 65 15
Recirculation valve, valve seat/ball made of high purity aluminium oxide ceramic (Al2O3 99,7%), spring made of platin-iridium (HF)	931 66 26
Recirculation valve, valve seat/ball made of high purity aluminium oxide ceramic (Al2O3 99,7%), spring made of Hastelloy	931 66 15
Unitati de evacuare / Ejection unit
Ejection units	931 30 25
Ejection unit, titration, variable, with hose clip, 400 mm, FEP	956 30 04
Ejection unit, flexible, spiral shaped	931 30 26
Ejection unit, flexible, spiral shaped	931 30 27
Ejection unit, with Luer lock connector931 30 29Ejection unit, with Luer lock connector	931 30 28

Suction / Recirculation hoses
Suction hose with screw fitting	931 50 07
Control
RS232 connection cable	956 40 05
USB connection cable	956 40 06
Pedal switch for triggering dispensing	956 40 02
Control cable for external actuation of dispensing (e.g. for integration in automatic processes)	956 40 03
Mouse for extremely sensitive medium dispensing.	956 40 04
Diverse / Miscellaneous
Round filter set (with plug connection on one side)	990 37 04
opus system platform, grey	958 60 01
opus data power cable, connection cable between basic unit and control unit, 2 m	958 70 02
opus data power cable, connection cable between basic unit and control unit, 5 m	958 70 03
opus battery pack, for opus operation without mains power	958 71 00
opus touchscreen film, protective film for the display	958 72 00
Light protection window, brown	958 60 60
