Instalatie de producere apa pura Tip II cu osmoza inversa (RO)
Purificatoare si Ultrapurificatoare de apa » Generator de apa pura cu osmoza inversa integrata (RO)
Ultrapure water purification systems » Pure Water System Generator
Generator de apa Tip II
Model Micromatic
Capacitate: 2,5 lit/ora
Solicit oferta personalizata »
⧉ Produsul poate fi achizitionat si prin SEAP / SICAP
Sistem de purificare apa de robinet direct la apa Tip II
Caracteristici generale
Produce apa grad analitic pentru uz general conform ASTM D1193 si ISO 3696
• Meniu tactil - touch screen
• Control electronic pentru monitorizarea continua a apei pure
• Tehnologie cu flux ridicat, film subtire, membrane fara celuloza pentru maximizarea eficientei sistemului
• Indicator de schimbare a cartusului
• Alarme audio si vizuale
• Regim simplu de sanitatie
• Inregistrare si colectare de date prin intefata Ethernet (RJ45) pentru conformitate GLP
• Ciclu automat de curatare si de autoclatire pentru mentinerea duratei de viata a membranei RO
Date tehnice
| Specificaţiile apei pura | |
|---|---|
| Calitatea apa | grad 2 apa pura |
| Conductivitate la 20°C | <1 µS/cm |
| Cantitate apa produsa | 2,5 lit/ora |
| Cantitate recomandata pe zi | 15-20 lit/zi |
| Dispensare | Manuala |
| Panou control / Afisaj | Touch/ keyboard |
| Mesaje de avertizare | alarma vizuala / sonora |
| Masurarea conductivite apa generata | afisat in µS/cm |
| Timer de proces | programabil |
| Compensare temperatura | automat |
| Avertizarii afisate | Out of range parameters Pretreatment cartridge exchange DI cartridge exchange Feed water supply failure |
| Proces de purificare | automat pornire /oprire |
| Protectie | opreste in caz de apa |
| Dimensiune (HxWxD) | 45x25x48cm |
| Greutate | 12 Kg |
| Alimentare | 110-220VAC/50-60 Hz |
| Specificaţii ale apei de alimentare | |
| Presiune apa intrare/ min. | 3 bar min. |
| Presiune apa iesire/ max. | 6 bar |
| Duritate maxima | 300 ppm (CaCO3) |
| SDI (Silt Density Index) | <5 |
| Conductivitate max. | 800 µS/cm |
| Clor liber | < 1 ppm |
| Turbiditate | < 1 NTU |
| Cod produs | M25DA25 |
*Sistemul este livrat cu o canistra din HDPE volum de 25 lit. adaptat cu sistem de umplere automat
Certificate: certificat de conformitate ASTM D1193, ISO 3696, garantie si post garantie
Accesorii si Consumabile
- PCK200 Pretreatment Pack :: consum estimat 900 liters
- PCK201 Pack DI Resin Cartridges (qx4) :: consum estimat *1,000 liters with 400 µS/cm inlet water conductivity
- ROB3002 Osmosis Membrane :: consum estimat 3 ani
*Depinde de conductivitatea apa de sursa
Water purifier system for analytical Grade Water
Main Features
Micromatic: Purifies tap water to Type II Analytical Grade Water* for general laboratory use.
According to ASTM D1193 and ISO 3696
Designed for customers looking for a simple, reliable and competitive price equipment for production of Type II water, for low consumption of Purified Water, as an alternative to the classical water distillation system.
Production capacity 2,5 liters per hour

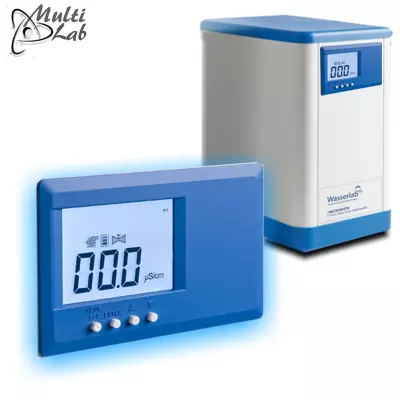

The purification is permanently monitored by a Microprocessor that controls the entire process and informs the user through a 3- inch digital display of:
- The quality of the final water produced (continuous monitoring)
- State of the device at any time (in production, full tank..)
- When consumable change is needed.

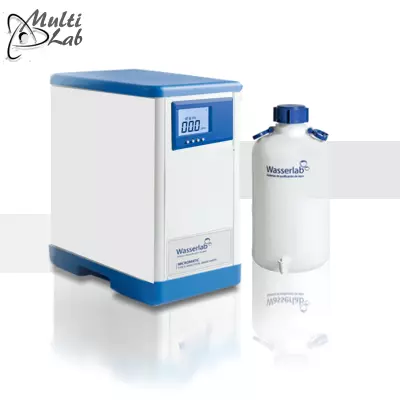

The Equipment includes one HDPE tank with 25 liters capacity with automatic fill control system.
Technical Data
| Model | Micromatic |
|---|---|
| Final Water Quality | Type II |
| Water Conductivity | <1 µS/cm |
| Flow Rate | 2,5 LPH |
| Max. Flow rate Recommended | 15-20 LPD |
| RO Pressurized Tank (L) | ✔ |
| Dispensing | Manual |
| Control pannel | Screen Touch/ keyboard |
| Monitoring | ✔ |
| Final Water Conductivity (µS/cm) | ✔ |
| Work Time counter | ✔ |
| Temperature compensation | ✔ |
| Messages | ✔ |
| Out of range parameters | ✔ |
| Pretreatment cartridge exchange | ✔ |
| DI cartridge exchange | ✔ |
| Feed water supply failure | ✔ |
| Automatic Start/Stop | ✔ |
| Automatic Stop/water supply failure | ✔ |
| DI increasable | x |
| Feed Water Requirements | |
| Min. Inlet Pressure | 3 bar |
| Max. Inlet Pressure | 6 bar |
| Max. Water Temperature | 30 ºC |
| Max. Hardness (CaCO3) | 300 ppm |
| SDI (Silt Density Index) | <5 |
| Max. Feed Water conductivity | 800 µS/cm |
| Free Chlorine | < 1 ppm |
| Turbidity | < 1 NTU |
| General specifications | |
| Dimensions | 45x25x48 cm |
| Power supply | 110-220VAC/50-60 Hz |
| Product ref. | M25DA25 |
Consumabales
- PCK200 Pretreatment Pack :: Expectancy for change 900 liters
- PCK201 Pack DI Resin Cartridges (qx4) :: Expectancy for change *1000 liters with 400 µS/cm inlet water conductivity
- ROB3002 Osmosis Membrane :: Expectancy for change 3 years
*It depends on the conductivity of the inlet water
