Hote de laborator cu flux orizontal
Seria ML-FLO

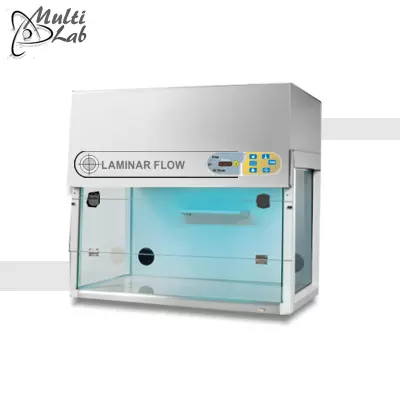

Hota cu flux laminar orizontal

Horizontal Laminar folw cabinets ::


Pret : la cerere


Livrare: 7 - 10 zile lucratoare


Certificat de conformitate


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Camera pentru protecţie produsul si spatiu de lucru (atmosfera interna al hotei) filtreaza aerul nesterilizat care pătrunde din exterior peste suprafaţa de lucru prin, hota cu flux orizontal asigură numai protecţia produsului.

Caracteristicile tehnice
Hota cu flux laminar orizontal cu carcasa construita din otel si acoperita cu strat de vopseaua rezistenta la substante corozive si dotata cu filtru HEPA (High Efficiency Particulate Air).
Filtru HEPA este fabricat din fibre de sticla.
Eficienta acestui tip de filtru este calculata ca fiind mai mare de 99.999% la particule de 0.3 µm (penetrare 0.001%) cu testul DOP si asigura o performanta superioara fata de cea ceruta de US Federal standard 209/E.
Curentul de aer generat de ventilator este unidirectional si are aceeasi viteza in toate punctele, acest curent de aer se produce omogen fara nici o turbulenta, obtinandu-se in acest fel un mediu steril.

Domenii de aplicatii
Laboratoare chimie alimentara, productie de microcipuri electronice si componete senzoriale, laboratoare optice, preparare produse farmaceutice si medicamete.. unde trebuie o protectie asupra produsului in mediu steril.

Conformitate - Certificate - Standarde
• marcaj de certificare CE - TUV/GS - EMC/Europa - ISO
• CEE – 73/23, 89/392 89/336, 91/368, 92/31, 93/44, 93/68 the following Rules: CEI EN 61010- 1 (IEC 1010-1/CEI 66-5) - the following National Laws: D.P.R. N. 547 27/4/1955 Law N. 186 1/3/1968
• Certificat de conformitate
• Certificat de garantie 3 ani (pentru hota) si 10 ani post garantie

Modele Seria ML-FLO

Model FLO 900 FLO 1200 FLO 1500 FLO 1800
Panou de control digital digital digital digital
Contor operare digital 9999 ore 9999 ore 9999 ore 9999 ore
Functii / Timer programabile 96 ore 96 ore 96 ore 96 ore
Dimensiuni utile mm 880x450x610 1200x500x600 1480x500x600 1780x5600x600
Dimensiuni externe mm 960x790x940 1320x800x1040 1620x800x1040 1860x800x1040
Suprafata de lucru Otel Inox AISI 304 Otel Inox AISI 304 Otel Inox AISI 304 Otel Inox AISI 304
Viteza aerului in zona filtranta 300 m3/h 300 m3/h 500 m3/h 700 m3/h
Viteza frontala 0.45 m/sec 0.45 m/sec 0.45 m/sec 0.45 m/sec
Lampa germacida UV optional optional optional optional
Iluminare / lampa florescenta 1x30W 1x30W 2x18W 2x18W
Ventilatoare pt. medii corozive
optional anti explozie ATEX
2 x Centrifugal 1 x Centrifugal 2 x Centrifugal 3 x Centrifugal
nr. Ventilatore cu viteza reglabila 2 ventilator 3 ventilator 4 ventilator 5 ventilator
Alimentare 230V 50Hz 230V 50Hz 230V 50Hz 230V 50Hz
putere 610W 620W 1000W 1200W
Greutate 90 Kg 115 Kg 150 Kg 200 Kg
Garantie (hota) 3 ani 3 ani 3 ani 3 ani
Protectie
mediul de lucru (interiorul hotei) Da Da Da Da
produsului manipulat Da Da Da Da
Operatorul Nu Nu Nu Nu
mediul înconjurator (laboratorul) Nu Nu Nu Nu
mediul în exterior Nu Nu Nu Nu
Filtrare
Prefiltre sintetic / eficienta:75% sintetic / eficienta:75% sintetic / eficienta:75% sintetic / eficienta:75%
Filtru HEPA eficienta: 99,999% 1 1 1 1
Prize electrice cu protectie 2 2 2 2
Robinet aer/vidare 1 1 1 1

Date tehnice

Componenta tehnica si dotari
• sistem de ventilatie “intelligent” ce va mentine debitul de aer pe masura ce filtrul devine incarcat, pentru o eficienta optima si o protectie completa
• suprafata de lucru este din otel inoxidabil AISI 304;
• panourile laterale pentru FLO1200; 1500 si 1800 sunt din sticla securizata asigurand o buna vizualizare laterala; pentru model FLO900 din otel inox AISI 304
• tabloul de control este din policarbonat cu taste usor de accesat; numarator digital al orelor de funcitonare;
• iluminare interioara cu lampa florescenta;
• filtru HEPA cu eficienta de retinere de 99.99%;
• nivel scazut de zgomot al ventilatorului;
• posibilitate de setare a vitezei de ventilare;
• alimentare la 230V 50/60Hz;
• dotare cu prefiltru din material sintetic cu eficienta de retinere >75%

Fluxul de air
flux_laminar_orizontal

The horizontal laminar flow hood mod. 900-1200-1500-1800 FLO has been designed and built to allow the processing of controlled contamination products in a sterile environment (sterile preparation, microbiology soils), creating circumscribed area within the limits of class 100 (or ISO 5).
The hood is not suitable for micro-organisms and particles which represent a risk for the operator and the environment.
The laminar flow it is an unidirectional air flow formed by parallel sterile thin thread of air which move at the same speed in every point, so an homogeneous current of air is produced without any turbulence.
In a sterile environment obtained in this way, every contaminator set free in the working area is dragged for away by a sterile source of air.
The air flow is cleaned by an absolute hepa filter class H14.
In this cabinet the sterile air flow coming from hepa filter, which is placed in front of operator and flows parallel to the work surface up to disperse in the environment.
The horizontal laminar flow hood is designed to guarantee the maximum protection degree of the manipulated materials.
Don’t use it if the material can represents a potential danger (pathogen materials), because personnel is directly invested by the airflow coming from the work area.

Main Features
Casing released in powdered painted steel acids resistant.
Work surface in stainless steel Aisi 304 2B glazed.
Lateral panels in tempered glass thickness 5 mm.
Polycarbonate membrane control panel with microprocessor.
Grey air/vacuum cock.
Stand-by command, minimum air flow speed that allows to maintain the cabinet in sterile condition, when not in use.
Digital hour counter of Hepa filter and UV germicide lamp (accessory on request) utilization, max 9999 hours.
30 W germicide UV lamp with PVC frontal screen (accessory by request). Possibility to program the hours use, by a timer, max 99 hours. In case of lack of tension if the germicide lamp is “ON“, at the return
of tension the germicide UV lamp switch on again and the display start to blink.
N° 2 Electric service outlets IP55, inside the work room.
Lighting lamp: 30 W for 900 FLO - 1200 FLO - 900 Lux
Lighting lamp: 36 W per 1500-1800 FLO - 900 Lux
Prefilter in synthetic material class G3 (82% efficiency) in accordance with EN 779.
Hepa absolute filter - tested M.P.P.S in accordance with C.E.N. 1822 global efficiency 99.995% class H14, that produce a vertical laminar flow in class 100 at 0.3 micron, in accordance with Fed Std 209E (Laser Test Royco 256), or class ISO 5 in accordance with ISO 14644.1. On request hoods can be equipped with ULPA filter.
Low background noise, electric fan that meets the requirements of the directives EN 60335-1, EN 50178, EN 60950, approvals by VDE, CE, UL. Possibility to regulate air flow.
Alarm signal (AIR on display and acoustic alarm) for laminar flow interruption.
Noise ≤60 dB.

Accesorii optionale
• Panou frontal din PVC cu lampa germacida
• Robinet de gaz cu valva de siguranta
• Robinet aer comprimat
• Robinet azot
• prize electrice aditionale
• Masa suport pentru hota din otel inox
• Masa suport pentru hota din HPP
• Dulap mobil pentru reactivi si chimicale (sub masa de lucru)
• Scaun ergonomic sterilizabil de laborator pentru hota
• Termometru sau termohigrometru cu sonda de temperatura / umiditate detasabil
