Foto-Colorimetre portabile

ro Fotocolorimetre » Aparate portabile fotocolorimetrice / Colorimetre spectrale

uk Photocolorimeters » Portable Photocolorimeters / Spectral Colorimeters


Fotometre portabile multiparametru profesional

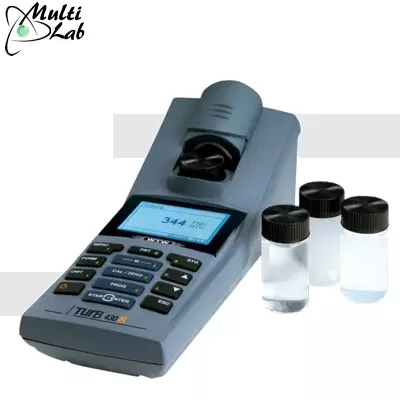

Modele pHotoFlex STD - pHotoFlex pH - pHotoFlex TURB

Fotocolorimetre portabile multiparametrice de inalta performanta de teren si laborator / parametri pH/ORP :: turbiditate :: Tmp.

Professional Portable & Benchtop Photometers


Pret : la cerere


Certificat de conformitate si validare


Made in EU


solicit oferta personalizata »

Fotometre portabile seria pHotoFlex ofera performanta, precizie si rezistenta pentru utilizare pe teren si in laborator; configurate cu 6 lungimi de unda, adaptate pt. diferite tipuri de cuve.
Masurare a pH-ului cu compensare automata a temperaturii, masurare a turbiditatii (sursa IR) conform cu DIN 27027/ISO 7027; 150 programe pre-instalate si alte 100 pentru masuratori definite de utilizator.

Date tehnice

model pHotoFlex STD pHotoFlex pH pHotoFlex TURB
Masurarea fotometrica Transmisie (%T), Absorptie, Concentratie
Masurarea pH / Redox x pH/ORP pH 0-16 cu control automat de temperatura (ATC) pH 0-16 cu control automat de temperatura, (ATC)
Turbiditate x x 0-1100 NTU/FNU, nephelometric, DIN ISO conform
Acuratete fotometru < 2 nm wavelength accuracy, 0.005 abs. reproducibility fotometru : < 2 nm lungimi de unda acuratete, 0.005 abs. reproducibilitate pH: ±0.01 pH fotometru: < 2 nm lungimi de unda acuratete, 0,005 Abs reproducibilitate pH: ±0.01 pH Turbiditate (NTU / FNU):0.01 NTU/FNU sau ±2% din valoare masurata
Sursa lumina LED LED LED
Lungimi de unde nm 436, 517, 557, 594, 610, 690 nm 436, 517, 557, 594, 610, 690 nm 436, 517, 557, 594, 610, 690
Masurarea turbiditate x x IR conform DIN /ISO
Intervalul de calibrare / protocol / inregistrare x
Programe 150 150 150
Programe metode speciale cu pH si temperatura x NH3, CO2 NH3, CO2
Programe definite de utilizator cu ajutorul softwar LSdata 50 100 100
Inregistrari de date cu nr. de identificare ID 100 1000 1000
Seturi pentru laborator mobil optional optional optional
Optica LED + filtre optice: 436, 517, 557, 594, 610, 690 nm; reproduceabilitate 0.005 Abs, acuratete lung. de unde < 2 nm
Cuve Cuve rotunde de 16 mm ( H:91-104 mm); 28 mm Cuve rotunde de 16 mm ( H:91-104 mm); 28 mm Cuve rotunde de 16 mm ( H:91-104 mm); 28 mm
Alimentare Baterii reincarcabile + priza universala
Tip baterii / durata 4 AA aprox. 3000 masur. 4 AA aprox. 3000 masur. 4 AA aprox. 3000 masur.
Alimentare optionala x baterii reincarcabile baterii reincarcabile
Interfata, Updatete prin Internet RS232 + cable AK 540 B (Accessories) RS232 + cable AK 540 B (Accessories) RS232 + cable AK 540 B (Accessories)
Software LSdata PC inclus in seturi sau se comanda separat inclus in seturi sau se comanda separat inclus in seturi sau se comanda separat
Statie laborator optional statie LabStation cu scanner de barcod, incl. baterii reincarcabile, program software LSdata si cabluri
Certificate CE/ETLus/cETL CE/ETLus/cETL CE/ETLus/cETL
Cod produs 251105 251100 251110

Ghid Comanda

Model Descriere Cod produs
pHotoFlex STD Fotometru portable LED cu 6 lungimi de unda pentru cuvete de 16 si 28 mm 251105
pHotoFlex STD/SET Fotometru portable LED cu 6 lungimi de unda pentru cuvete de 16 si 28 mm, cu geanta de transpot si tava de teste, PC software LSdata, cablu si accesori 251205
pHotoFlex pH Fotometru portable LED cu 6 lungimi de unda pentru cuvete de 16 si 28 mm, cu geanta de transpot si tava de teste, PC software LSdata, cablu si accesori 251100
pHotoFlex pH/SET Fotometru portable LED cu 6 lungimi de unda pentru cuvete de 16 si 28 mm, PC software LSdata, cablu si accesori 251200
pHotoFlex Turb Fotometru portable LED cu 6 lungimi de unda pentru cuvete de 16 si 28 mm, in combinatie cu sonde electro-chimice de pH si de turbiditate DIN/ISO (IR) 251110
pHotoFlex Turb/SET Fotometru portable LED cu 6 lungimi de unda pentru cuvete de 16 si 28 mm, in combinatie cu sonde electro-chimice de pH SenTix 41 si de turbiditate DIN/ISO (IR), geanta de transpart si tava de teste, set solutii standard de turbiditate, software LSdata, cablu and accesori 251210

Conformitate & Certificate
• Certificat de conformitate
• Marcat CE
• Certificat de garantie si post garantie MultiLab Romania
• Centru de service autorizat MultiLab Romania

Main Features
More than 150 programs for routine analysis
Test kits for every demand: from high precisely to easy, fast and economic
Storage with Identification Number (ID)
Datafilter for easy selection of data sets
pHotoFlex STD, plus
• Electrochemical pH-measurement from pH 0–16.00 (± 0.01) for Standard DIN pH-electrodes
• Automatic Temperature Compensation (ATC)
• Redox Measurement
• 1-3 point calibration with calibration interval setting and calibration protocol
pHotoFlex pH and pHotoFlex plus
• IR light source acc. to DIN 27027/ISO 7027
• Turbidity measurement range from 0.01-1100 NTU/FNU providing drinking water accuracy
• Longterm stable AMCO Clear Standards with ±1% manufacturing accuracy
• The most versatile colorimeter for field and lab

Technical Data

model pHotoFlex STD pHotoFlex pH pHotoFlex TURB
Photometric Measurement Transmission (%T), Absorption, Concentration
pH-Measurement / Redox x pH/ORP pH 0-16 with automatic temperature control (ATC) pH 0-16 with automatic temperature control (ATC)
Turbidity x x 0-1100 NTU/FNU, nephelometric, DIN ISO conform
Accuracy Photometry <2 nm wavelength accuracy, 0.005 abs. reproducibility Photometry: <2 nm wavelength accuracy, 0.005 abs. reproducibility pH: ±0.01 pH Photometry: <2 nm wavelength accuracy, 0,005 Abs reproducibility pH: ±0.01 pH Turbidity (NTU / FNU):0.01 NTU/FNU or ±2% of the measured value
Light source LED LED LED
Wavelength nm 436, 517, 557, 594, 610, 690 nm 436, 517, 557, 594, 610, 690 nm 436, 517, 557, 594, 610, 690
Turbidity Measurement IR acc. DIN /ISO x x
Calibration Intervall /-protocol x
Programs 150 150 150
Special programs with pH and Temperature x NH3, CO2 NH3, CO2
User-defined programs via LSdata Software 50 100 100
Data Sets (with Identification number ID) 100 1000 1000
Field Sets with Accessories optional optional optional
Optics power saving LED + optical Filters: 436, 517, 557, 594, 610, 690 nm0.005 Abs reproduceability, < 2 nm wavelength accuracy
Cell sizes 16 mm round ( H:91-104 mm); 28 mm 16 mm round ( H:91-104 mm); 28 mm 16 mm round ( H:91-104 mm); 28 mm
Batteries 4 AA for approx. 3000 measurements 4 AA for approx. 3000 measurements 4 AA for approx. 3000 measurements
Interface, Update via Internet RS232 + cable AK 540 B (Accessories) RS232 + cable AK 540 B (Accessories) RS232 + cable AK 540 B (Accessories)
LSdata PC Software included in Sets or indivudal package optional included in Sets or indivudal package optional included in Sets or indivudal package optional
Lab use: optional Accessories LabStation with barcode option via Scanner, incl. recharg. batteries and PC software LSdata, cable
Power supply Optional Recharg. batteries + universal power supply
Certificates CE/ETLus/cETL CE/ETLus/cETL CE/ETLus/cETL
Order Nr. 251105 251100 251110

Order Information

Model Description Order no.
pHotoFlex STD Portable LED photometer with 6 wavelengths for 16 and 28 mm cuvettes 251105
pHotoFlex STD/SET Like the single unit, but in the field case with table insert, PC software LSdata, cable and accessories 251205
pHotoFlex pH Portable LED photometer with 6 wavelengths for 16 and 28 mm cuvettes 251100
pHotoFlex pH/SET Like the single unit, but in the field case with table insert, PC software LSdata, cable and accessories 251200
pHotoFlex Turb Portable LED photometer with 6 wavelengths for 16 and 28 mm cuvettes in combination with electro-chemical pH and DIN/ISO-compatible turbidity measurement (IR) 251110
pHotoFlex Turb/SET Like the single unit, but in a field case with tabel insert, pH probe SenTix 41, turbidity standard set, PC software LSdata, cable and accessories 251210



Accesorii si consumabile

Model Descriere Cod produs
LSdata Flex/430 PC software for GLP-compliant data management and programming of you own methods 902762
LSFlex/430 LabStation for the easy operation and evaluation in the lab, with PC software LSdata for GLP-compliant data evaluation, zero modem cable, battery and universal power supply, RS232 interface for the use of a barcode reader 251301
FC pHotoFlex/Turb 430 Field case with table insert for device, tripod and cuvettes for convenient work in the field. Additionally: Pipette holder and storage compartment for utensils, empty 251304
LK28-Set 12 spare cuvettes, round, 28 x 60 mm 251302
RK 14/25 25 round cuvettes 16 outer diameter, empty 250621
RB Flex/430 Battery with universal power plug 251300
Kal.Kit.Turb 430 IR Calibration set for Turb 430 / photoFlex Turb 600560



tester_brom_in_apa

Colorimetru portabil multiparametru Model HI 96101

Fotocolorimetru multiparametru pentru brom, clor, acid cianuric, fier, iod si pH

Portable Photometer Bromine, Chlorine, Cyanuric Acid, Iodide, Iron, and pH


Pret : la cerere


Certificat de conformitate si validare


solicit oferta personalizata »

Instrument multi-fotometric pentru masurare celor mai importanti parametrii ai apei, in special pentru apa piscinelor si a bazinelor cu apa termala

Date tehnice

Domeniu de masura
Brom 0.00 la 8.00 mg/l
Clor liber 0.00 la 5.00 mg/l
Clor total 0.00 la 5.00 mg/l
Acid cianuric 0 la 80 mg/l
Fier 0 la 1.60 mg/l
Iod 0.0 la 12.5 mg/l
pH 6.5 la 8.5 pH
Rezolutie
Brom 0.01 mg/l
Clor 0.01 mg/l
Acid cianuric 1 mg/l
Fier 0.01 mg/l
Acuratete
Iod 0.1 mg/l
pH 0.1 pH
Brom ±0.08 mg/l ±3%
Clor ±0.03 mg/l ±3%
Acid cianuric ±1 mg/l ±15%
Fier ±0.01 mg/l ±8% din citire
Iod ±0.1 mg/l ±5% din citire pH ±0.1
Metoda
Brom DPD
Clor metoda standard 4500-Cl G
Acid cianuric turbidimetrica
Fier TPTZ Iod DPD
pH rosu fenol
Specificatii generale
Sursa de lumina lampa tungsten
Detector de lumina fotocelula siliconica cu filtru de interferenta pentru banda ingusta la 525 nm
Tip baterie 1 x 9V
Inchidere automata dupa 10 minute de inactivitate, in mod de masurare; dupa 1 ora de inactivitate, in mod de calibrare; cu memorarea ultimei citiri.
Conditii de mediu 0 la 50°C; UR max 95% fara condens
Dimensiuni 192 x 104 x 69 mm
Greutate 360 g

Continut pachet: HI 96101 este livrat cu 2 cuve, baterie si instructiuni de utilizare.

Conformitate & Certificate
• Certificat de conformitate
• Marcat CE
• Certificat de garantie si post garantie MultiLab Romania
• Centru de service autorizat MultiLab Romania

Main Features
Portable Photometer combines accuracy and ease of use in an ergonomic, portable design. A user can accurately determine these six common water quality parameters using ready made reagents. The HI96101 offers many advanced features including the exclusive CAL Check function used for performance verification and calibration of the meter.

Technical Data

pH Specifications
pH Range 6.5 to 8.5 pH
pH Resolution 0.1 pH
pH Accuracy ±0.1 pH pH
Method phenol red method
Free Chlorine and Total Chlorine Specifications
Chlorine Range 0.00 to 5.00 mg/L (ppm) Cl2
Chlorine Resolution 0.01 mg/L under 3.50 mg/L; 0.10 mg/L over 3.50 mg/L
Chlorine Accuracy ±0.03 mg/L ±3% of reading
Chlorine Method adaptation of the USEPA method and Standard Method 4500-Cl G
Cyanuric Acid Specifications
Cyanuric Acid Range 0 to 80 mg/L (ppm) cyanuric acid
Cyanuric Acid Resolution 1 mg/L
Cyanuric Acid Accuracy ±1 mg/L ±15% of reading
Cyanuric Acid Method adaptation of the turbidimetric method
Iodine Specifications
Iodine Range 0.0 to 12.5 mg/L (ppm) iodine
Iodine Resolution 0.1 mg/L
Iodine Accuracy ±0.1 mg/L ±5% of reading Iodine
Method adaptation of the EPA, DPD method
Bromine Specifications
Bromine Range 0.00 to 10.00 mg/L (ppm) bromine
Bromine Resolution 0.01 mg/L
Bromine Accuracy ±0.08 mg/L ±3% of reading
Bromine Method adaptation of the EPA, DPD method
Iron Specifications
Iron Range 0.00 to 1.60 mg/L (ppm)
Iron Resolution 0.01 mg/L
Iron Accuracy ±0.01 mg/L ±8% or reading
Iron Method adaptation of the TPTZ method
General Specifications
Light Source tungsten lamp
Light Detector silicon photocell with narrow band interference filter @ 525 nm
Auto-off after ten minutes of non-use in measurement mode; after one hour of non-use in calibration mode; with last reading reminder
Environment 0 to 50°C; RH max 95% non-condensing
  Weight 360g
Battery Type 9V battery
Dimensions 193 x 104 x 69 mm
Ordering Information HI96101 is supplied with sample cuvettes (2) with caps, 9V battery, instrument quality certificate and instruction manual.



Accesorii si consumabile

Reactivi / pH Photometer Reagents (100 tests) HI93710-01
Reactivi clor liber / Free Chlorine Reagents (100 tests) HI93701-01
Reactivi clor total / Total Chlorine Reagents (100 tests) HI93711-01
Reactivi acid cianuric / Cyanuric Acid Reagents (100 tests) HI93722-01
Reactivi iod / Iodine Reagents (100 tests) HI93718-01
Reactivi brom / Bromine Reagents (100 tests) HI93716-01
Reactivi fier / Iron Low Range Reagents (50 tests) HI93746-01
Standard calibrare / pH CAL Check Standards HI96710-11
Solutie curatare cuvete / Cuvette Cleaning Solution (230 mL) HI93703-50
Standard calibrare clor liber / Free Chlorine CAL Check Standards HI96701-11
Standard calibrare clor total / Total Chlorine CAL Check Standards HI96711-11
Standard calibrare acid cianuric / Cyanuric Acid CAL Check Standards HI96722-11
Microfiber Cloth for Wiping Cuvettes (4) HI731318
Standard calibrare Iod / Iodine CAL Check Standards HI96718-11
Standard calibrare Brom / Bromine CAL Check Standards HI96716-11
Standard calibrare Fier / Iron Low Range CAL Check Standards HI96746-11
Cuvete din sticla / Glass Cuvettes for Portable Photometers and Turbidity Meters (4 pcs) HI731331
Capace pentru cuvete / Caps for Glass Cuvette Used with HI96 Series Portable Photometers (4 pcs) HI731335



tester_clor_apa

Colorimetru portabil multiparametru Model HI 96710

Fotocolorimetru portabile multiparametru / parametri: clor liber, clor total si pH

Total Chlorine and pH Photometer Kit


Pret : la cerere


Certificat de conformitate si validare


solicit oferta personalizata »

Instrumentul portabil pentru masuratorilor de pH, clor liber si clor total, trei parametri critici pentru asigurarea calitatii apelor.
In piscine, bazine cu apa termala, mai ales atunci cand acestea se afla in lumina directa a soarelui, si in alte aplicatii similare, acidul cianuric ajuta la stabilizarea clorului.
In plus fata de apa potabila, in apele de suprafata, boilere si turnuri de racire, in apa conditionata si in apele reziduale este masurata si cantitatea de zinc.

Date tehnice

Domeniu Clor liber 0.00 la 5.00 mg/l
Domeniu Clor total 0.00 la 5.00 mg/l
Domeniu pH 6.5 la 8.5 pH
Rezolutie Clor 0.01 mg/l
Rezolutie pH 0.1 pH
Acuratete Clor ±0.03 mg/l ±3% din citire
Acuratete pH ±0.1 pH Sursa de lumina lampa tungsten
Detector de lumina fotocelula siliconica cu filtru de interferenta pentru banda ingusta la 525 nm
Metoda Clor adaptare a metodei DPD 330.5 recomandata de EPA
Metoda pH rosu fenol Tip baterie 1 x 9V
Inchidere automata dupa 10 minute de inactivitate, in mod de masurare; dupa 1 ora de de inactivitate, in mod de calibrare; cu memorarea ulitimei citiri.
Conditii de mediu 0 la 50°C; UR max 95% fara condens
Dimensiuni 192 x 104 x 69 mm
Greutate 360 g

Continut pachet: HI 96710 este livrat cu 2 cuve pentru probe, baterie si instructiuni de utilizare. Adaugati "C" la sfarsitul codului de produs pentru setul care cuprinde reactivi si geanta pentru transport.

Conformitate & Certificate
• Certificat de conformitate
• Marcat CE
• Certificat de garantie si post garantie MultiLab Romania
• Centru de service autorizat MultiLab Romania

Main Features
Free Chlorine, and Total Chlorine Portable Photometer combines accuracy and ease of use in an ergonomic, portable design. A user can accurately determine the pH, free chlorine, and total chlorine concentration of water samples using ready made reagents. The HI96710 offers many advanced features including the exclusive CAL Check function used for performance verification and calibration of the meter.
Kit including HI 96710 photometer, hard carrying case, 2 sample cuvettes, scissors, cuvette cleaning cloth, battery, instruction manual and CAL CHECK standards for total chlorine and pH. Testing reagents sold separately.

Technical Data

Range pH (P1): 6.5 to 8.5 pH;
Free & Total Chlorine (P2 & P3): 0.00 to 5.00 mg/L (ppm)
Resolution pH (P1): 0.1 pH;
Free & Total Chlorine (P2 & P3): 0.01 mg/L under 3.50 mg/L; 0.10 mg/L above 3.50 mg/L
Accuracy @ 25°C pH (P1): ±0.1 pH;
Free & Total Chlorine (P2 & P3): ±0.03 mg/L (ppm) ±3% of reading
Method pH (P1): phenol red method;
Free & Total Chlorine (P2 & P3): adaptation of the USEPA method 330.5
Auto-off after ten minutes of non-use in measurement mode; after one hour of non-use in calibration mode; with last reading reminder
Environment 0 to 50°C; RH max 95% non-condensing
Weight 360g
Battery Type 9V battery
Dimensions 193 x 104 x 69 mm (7.6 x 4.1 x 2.7”)
Ordering Information HI96710 is supplied with sample cuvettes (2) with caps, 9V battery, instrument quality certificate and instruction manual.



Accesorii si consumabile

Reactivi clor liber / Free Chlorine Reagents (300 tests) HI93701-03
Reactivi clor liber / Free Chlorine Reagents (100 tests) HI93701-01
Reactivi clor total / Total Chlorine Reagents (300 tests) HI93711-03
Reactivi clor total / Total Chlorine Reagents (100 tests) HI93711-01
Reactivi / pH Photometer Reagents (300 tests) HI93710-03
Reactivi / pH Photometer Reagents (100 tests) HI93710-01
Solutie curatare cuvete / Cuvette Cleaning Solution (230 mL) HI93703-50
Standard calibrare clor liber / Free Chlorine CAL Check Standards HI96701-11
Standard calibrare clor total / Total Chlorine CAL Check Standards HI96711-11
Microfiber Cloth for Wiping Cuvettes (4) HI731318
Cuvete din sticla / Glass Cuvettes for Portable Photometers and Turbidity Meters (4 pcs) HI731331
Capace pentru cuvete / Caps for Glass Cuvette Used with HI96 Series Portable Photometers (4 pcs) HI731335



tester_clor_instalati_tratare_apa

Colorimetru portabil multiparametru Model HI 96724 & HI 96724C

Fotocolorimetre portabile de teren si de laborator / parametri clorului liber si total

Free and Total Chlorine Meter Low Range


Pret : la cerere


Certificat de conformitate si validare


solicit oferta personalizata »

este un fotocolorimetru portabil cu functie de auto-diagnosticare proiectat pentru masurarea cu precizie a clorului liber si total. Sistemul optic avansat al aparatului este compus dintr-o lampa tungsten speciala si un filtru de interferenta pentru banda ingusta, care asigura citiri exacte pe un domeniu de la 0.00 la 5.00 mg/l. Instrumentul este echipat cu functie Cal Check de validare a calibrarii pentru garantarea performantelor maxime ale acestuia in orice moment.
Standarde utilizate conforme normelor NIST pentru verificarea performantelor aparatelor si pentru recalibrarea acestora, atunci cand este necesar. Cuvele sunt construite din sticla optica, speciala, pentru a asigura rezultatele cele mai bune si mai coerente. Sistemul de blocare a cuvelor face ca fiecare cuva sa fie pusa in aceeasi pozitie de fiecare data cand este plasata in celula de masurare. Cuva cu esantion este proiectat cu gat larg pentru a face mai usoara adaugarea probelor si a reactivilor
In timpul operatiilor de rutina, operatorul este ghidat cu ajutorul unor mesaje afisate pe display iar functia de inchidere automata va opri aparatul dupa 10 minute de inactivitate, in mod de masurare, sau dupa o ora, in mod de calibrare. HI 96724 utilizeaza o adaptare a metodei USEPA 330.5 si a metodei standard 4500-Cl G prin care reactia dintre clor si reactivi provoaca o colorare in roz a esantionului.
Ideal pentru aplicatii de teren, aceste aparate sunt impermeabile iar lampa si elementele de filtrare sunt protejate de praf sau murdarie cu o bariera transparenta.

Date tehnice

Domeniu de masura Cl2 liber: 0.00 la 5.00 mg/l; Cl2 total: 0.00 la 5.00 mg/l
Acuratete ±0.03 mg/l la 1.00 mg/l
Filtru banda ingusta de 525 nm
Metoda Adaptare a metodei USEPA 330.5 si a metodei standard 4500-Cl G. Reactia dintre clor si reactivi cauzeaza colorarea probei in roz.
Conditii de mediu de la 0 la 50°C; UR max 95% fara condens
Tip baterie / Durata 1 x 9V/circa 200 ore de utilizare continua
Inchidere automata dupa 10 minute de inactivitate in mod de masurare
Dimensiuni 192 x 102 x 67 mm
Greutate 290 g

Continut pachet:
HI 96724 este livrat cu 2 cuve cu capac pentru esantioane, baterie 9V si instructiuni de utilizare.
HI 96724C este livrat cu 2 cuve cu capac pentru esantioane, cuve standard CAL CHECK, baterie 9V, material textil pentru curatarea cuvelor, foarfeca si instructiuni de utilizare, toate intr-o geanta pentru transport.

Conformitate & Certificate
• Certificat de conformitate
• Marcat CE
• Certificat de garantie si post garantie MultiLab Romania
• Centru de service autorizat MultiLab Romania

Main Features
HI 96724 is an auto-diagnostic portable photometer for accurately measuring free and total chlorine. The advanced optical system employs a specialized tungsten lamp and a narrow band interference filter, assuring accurate readings between 0.00 to 5.00 mg/L.
This instrument is equipped with Cal Check validation function and standards to validate good performance at any time. Taking just a few short steps, the validation procedure is user-friendly and ensures that the meter is properly calibrated wherever you go. Hanna photometers use the exclusive ready-made, NiST traceable standards to verify the performance of the instrument and recalibrate if necessary.
Cuvets are constructed from specialized optical glass to ensure the best and most consistent results. The positive locking system ensures that the cuvet is in the same position every time it is placed into the measuring cell. Our sample cell is designed to fit a cuvet with a wide neck to make it easier to add both sample and reagents.

Technical Data

Range Free Cl2: 0.00 to 5.00 mg/L;
Total Cl2: 0.00 to 5.00 mg/L
Accuracy ±0.03 mg/L @ 1.00 mg/L
Filter narow band @ 525 nm
Method Adaptation of the USEPA method 330.5 and Standard Method 4500-Cl G. The reaction between chlorine and the reagents causes a pink tint in the sample.
Environment 0 to 50°C; Max 95% RH non-condensing
Battery Type / Life (1) 9V/approx. 200 hours continuous use
Auto Shut-off After 10 min. of non-use in measurement mode
Dimensions 192 x 102 x 67 mm
Weight 290 g

Order Information
There are two options to buy. The meter only, or the meter complete with the Cal Check standards and carrying case:
HI96724 is supplied with 2 cuvets, battery and instruction manual
HI96724C is supplied with Cal Check standards, 2 sample cuvettes, cuvette cleaning cloth, battery and instruction manual all housed in a robust carrying case.

Accesorii si consumabile

CalCheck standards for Free & Total Chlorine (liquid), 0.0 and 1 :: Cod produs HI-96724-11
Chlorine (Free) Liquid Reagents for 300 tests :: Cod produs HI-93701-F

aparat_duritate_apa

Colorimetru portabil multiparametru Model HI 96745

Fotocolorimetre portabile de teren si de laborator / parametri clor liber, clor total, duritate totala, fier si pH

Free & Total Chlorine, Total Hardness Iron and pH Photometer


Pret : la cerere


Certificat de conformitate si validare


solicit oferta personalizata »

Clorul si pH-ul sunt doi dintre parametrii cei mai atent monitorizati in testele de calitate a apei.
Duritatea este, de asemenea, un parametru important, atent controlat pentru a asigura buna functionare a echipamentelor.
Fierul, pe de alta parte, poate provoca un gust neplacut in apa si poate conduce la patarea rufelor si a vaselor de bucatarie.
HI 96745 este un instrument ideal pentru a pastra sub control toti acesti parametri.

Date tehnice

Domeniu Clor liber 0.00 la 2.50 mg/l
Domeniu Clor total 0.00 la 3.50 mg/l
Domeniu Duritate totala 0.00 la 4.70 mg/l
Domeniu Fier 0 la 400 µg/l
Domeniu pH 5.9 la 8.5 pH
Rezolutie Clor 0.01 mg/l
Rezolutie Duritate totala 0.01 mg/l
Rezolutie Fier 1 µg/l
Rezolutie pH 0.1 pH
Acuratete Clor ±0.03 mg/l ±3% din citire
Acuratete Duritate totala ±0.11 mg/l ±5% din citire
Acuratete Fier ±10 µg/l ±8% din citire
Acuratete pH ±0.1 pH
Metoda Clor Adaptare a metodei DPD 330.5 recomandata de EPA
Metoda Duritate totala Adaptare a metodei colorimetrice cu calmagit din Standard Methods for the Examination of Water and Wastewater, ed. 18.
Metoda Fier Adaptare a metodei TPTZ
Metoda pH Rosu fenol
Sursa de lumina LED 555 nm
Detector de lumina fotocelula siliconica
Tip baterie 1 x 9V Inchidere automata dupa 10 minute de inactivitate
Conditii de mediu 0 la 50°C; UR max 95% fara condens
Dimensiuni 192 x 102 x 67 mm
Greutate 290 g

Continut pachet: HI 96745 este livrat cu cuve, baterie si instructiuni de utilizare.

Conformitate & Certificate
• Certificat de conformitate
• Marcat CE
• Certificat de garantie si post garantie MultiLab Romania
• Centru de service autorizat MultiLab Romania

Main Features
Clear display messages make the instrument quick and easy to operate
The powerful Cal Check calibration function means that there is no need to return the instrument to the laboratory to check its efficiency.
Samples can be checked and validation confirmed at the press of a button
Positive locking system ensures the cuvette is located in the same position each and every time is it placed in the measurement cell
Auto shut off feature turns meter off after 10 minutes of non-use to save battery life
Fully water resistant
Clear easy to use function buttons
Direct readout of parameter measured
Calibration check solution available - HI 96702-11

Technical Data

Range Free Chlorine: 0.00 to 5.00 mg/L (ppm);
Total Chlorine: 0.00 to 5.00 mg/L (ppm);
Total Hardness: 0.00 to 2.00 mg/L (ppm);
Iron: 0.00 to 1.60 mg/L (ppm);
pH: 6.5 to 8.5 pH
Resolution Chlorine: 0.01 mg/L (ppm);
Total Hardness: 0.01 mg/L (ppm);
Iron: 0.02 mg/L (ppm);
pH: 0.1 pH
Precision Chlorine: ±0.03 mg/L (ppm) ±3% of reading;
Total Hardness: ±0.11 mg/L (ppm) ±5% of reading;
Iron: ±0.01 mg/L (ppm) ±8% of reading;
pH: ±0.1 pH
Method Chlorine: Adaptation of the EPA 330.5 Method, DPD;
Total Hardness: Adaptation of the Standard Methods for the Examination of Water and Wastewater;
Iron: Adaptation of TPTZ method; pH: Phenol red method
Light Source Tungsten lamp
Light Detector Silicon photocell with narrow band interference filter @ 525 nm
Environment 0 to 50°C; RH max 95% non-condensing
Power Supply (1) 9V battery
Auto-off After 10 minutes of non-use in measuring mode; after 1 hour of non-use in calibration mode
Dimensions 192 x 102 x 67 mm
Weight 290 g

NB: reagents ordered separately

Accesorii si consumabile
Iron Low Range Reagents for HI-93746 150 Tests :: Cod produs HI-93746-03
Free Chlorine Reagent, DPD Method, 300 Tests :: Cod produs HI-93701-03

fotocolorimetru_magneziu_calciu

Colorimetru portabil multiparametru Model HI 96752

Fotocolorimetre portabile de teren si de laborator / parametri calciu si magneziu

Calcium and Magnesium Photometer High Range


Pret : la cerere


Certificat de conformitate si validare


solicit oferta personalizata »

instrument cu microprocesor proiectat pentru masurarea concentratiei de calciu si magneziu, doi parametri importanti in agricultura si hidrocultura.
Aparatul masoara concentratia de calciu pe un domeniu de la 0 la 400 mg/l si cea de magneziu de la 0 la 150 mg/l, iar valorile sunt afisate direct pe ecranul LCD de mari dimensiuni.
Acest fotocolorimetru portabil este calibrat in fabrica si este foarte usor de utilizat atat in laborator cat si pe teren, oferind rezultate foarte precise.

Date tehnice

Domeniu Ca 0 la 400 mg/l
Domeniu Mg 0 la 150 mg/l
Rezolutie 1 mg/l
Acuratete Ca ±10 mg/l ±5% din citire
Acuratete Mg ±3 mg/l ±3% din citire
Metoda Ca Adaptare a metodei cu oxalat
Metoda Mg Adaptare a metodei cu calmagit
Detector de lumina fotocelula siliconica
Sursa de lumina LED la 470 nm
Tip baterie 1 x 9V
Inchidere automata dupa 10 minute de inactivitate
Conditii de mediu 0 la 50°C; UR max 95% fara condens
Dimensiuni 192 x 102 x 67 mm
Greutate 290 g

Continut pachet: HI 96752 este livrat cu 2 cuve, baterie si instructiuni de utilizare.

Conformitate & Certificate
• Certificat de conformitate
• Marcat CE
• Certificat de garantie si post garantie MultiLab Romania
• Centru de service autorizat MultiLab Romania

Main Features
The HI 96752 measures two important parameters in agricultural and hydroponic applications. It measures calcium concentrations from 0 to 400 mg/L and magnesium from 0 to 150 mg/L and the values are displayed directly on the large LCD to eliminate the need for conversion tables.
Advantages
Clear display messages make the instrument quick and easy to operate.
The powerful Cal Check calibration function means that there is no need to return the instrument to the laboratory to check its efficiency. Samples can be checked and validation confirmed at the press of a button.
Positive locking system ensures the cuvette is located in the same position each and every time is it placed in the measurement cell. Auto shut off feature turns meter off after 10 minutes of non-use to save battery life.
Fully water resistant
Clear easy to use function buttons
Direct readout of parameter measured
Calibration check solution available - HI 96752-11

Technical Data

Range Ca 0 to 400 mg/L
RangeMg 0 to 150 mg/L
Resolution 1 mg/L
Accuracy Ca ±10 mg/L ±5% of reading
Accuracy Mg ±3 mg/L ±3% of reading
Method Ca Adaptation of Oxalate method
Method Mg Adaptation of the Calmagite method
Light Source LED 470 nm
Light Detection Silicon Photocell
Battery Type / Life 1 x 9V / approx. 40 hours of continuous use; auto-off after 10 minutes of non use
Environment 0 to 50°C; RH max 95% non-condensing
Dimensions 180 x 83 x 46 mm
Weight 290 g

NB: reagents ordered separately

Accesorii si consumabile
Cuvette Cleaning Solution :: Cod produs HI-93703-50
Glass Cuvettes for Photometers :: Cod produs HI-731331

multilab_team

Solutions for science, industry and safety
Suntem bucurosi sa te ajutam ... Fie ca vrei sa comanzi si nu esti sigur care este cea mai buna alegere, sau vrei sa afli mai multe despre serviciile noastre, consultantii nostri Iti raspund la orice intrebare
Pentru orice detalii suplimentare tehnice sau comerciale sintem la dispozitia Dvs.
direct Tel. +4 021 312 7144 / 45
sau

service_reparatie

Superior Service MultiLab's aim is to differentiate ourselves and add value to our customers, by providing superior service throughout the sales and after-care processes :: Preventative Maintenance - Calibration - Repair - Validation .. more »
Centru service autorizat de producator Service - Mentenantei preventive - Reparati - Consumabile - Piese de schimb, pentru pentru produse WTW, Hanna, SI Analytics .. mai multe »

multilab_laboratories

*Important acest site este unul de prezentare! date tehnice; poze afisate si preturile sunt cu titlu informativ se pot schimba fara notificare prealabila! detalii »

All rights Reserved MultiLab© SRL Romania 2003 - 2016
