Tester zaharificare berii pentru analiza fermentatie maltului si mustul primitiv


Tester zaharificare procesul de fabricare al berii
Seria LB

Tester zaharificare berii si analiza maltului must primitiv

Beer Mashing Testing Bath


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale

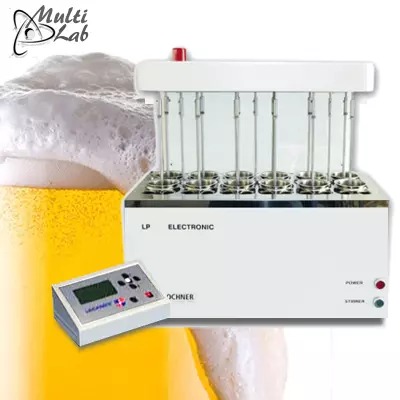

Aparat automat pentru determinarea procesul de zaharificare a berii cat si procesul de fermentatie in 3 ore (conform metoda modificata Horst Lochner)
6 programe de testare preinstalate
Se pot calibra si memora 6 programe cu factori parametrice diferite (gradiente, timp si temperatura pana la 92&°;C)
Versiune de model cu Pc permite introducere programe de testare fara limita de stocare
Rezultatele sunt afisate pe ecranul aparatului cat si pe monitorul Pc-ul; salvate si tiperite cu rezultatul

Caracteristici tehnice
• conexiune apa: durun 1/2“
• racord scurgere 1,5“(DN 40) – cu ventil de inchidere
• Carcasa din aliaj otel/aluminiu, acoperita cu vopsea
• cuva, tevi, capac realizate din otel inox
• Cupe gradate pentru reumlerea cu apa
• Afisaj cu taste functionale

Specificatii tehnice

Seria Masher LB Model Masher LB-N Model Masher LB-PC
Programe preinstalate Kongress
Hartong 20 °C
Hartong 45 °C
Hartong 65 °C
Hartong 80 °C
Kongress
Hartong 20 °C
Hartong 45 °C
Hartong 65 °C
Hartong 80 °C
Nr. de teste pre-programate 6 programe fara limita
Domeniu de temperatura 20 - ca. 92 °C 20 - ca. 92 °C
Faze de program 10 faze 10 faze
Timp pentru fiecare faza 0-990 minute 0-990 minute
Crestere de temperatura / minut 0,5 - 2,0 °C 0,5 - 2,0 °C
Acuratete / Precizie +/- 0,1 °C +/- 0,1 °C
Viteza agitatorul setarii variabile
de la 50 pana 200 rpm
setarii variabile
de la 50 pana 200 rpm
Nivel de zgomot fara zgomot (laser precision gear) fara zgomot (laser precision gear)
Pornire / analize direct START direct START

Variante de model

Seria Masher LB Model Masher LB-N Model Masher LB-PC
Nr. posturi de teste / cuve cu proba fiecare model este disponibil optional :
Model Masher LP-N4 (cu 4 cuve de testare)
Model Masher LP-N8 (cu 8 cuve de testare)
Model Masher LP-N4 (cu 12 cuve de testare)
Model Masher LP-N16 (cu 16 cuve de testare)
Model Masher LP-N20 (cu 20 cuve de testare)
fiecare model este disponibil optional :
Model Masher LP-PC4 (cu 4 cuve de testare)
Model Masher LP-PC8 (cu 8 cuve de testare)
Model Masher LP-PC4 (cu 12 cuve de testare)
Model Masher LP-PC16 (cu 16 cuve de testare)
Model Masher LP-PC20 (cu 20 cuve de testare)



Main features
With up to 6 further mashing programs of your choice, you can experiment with temperature, time and temperature gradient and this till around 92°C.
These 6 programs can be saved and adapted individually.
The PC version offers an unlimited number of user-selectable programs.
For all sequences the time and temperature characteristics of the analysis are shown in the display as well in the PC.
Additionally the analysis sequence can optional be displayed, stored and printed.
The device is especially well suited for determining the final fermentation of the wort or beer within 3 hours, modified according to Horst Lochner.
Computer controlled mashing device Normal- and PC-Version

Technical Data
Model Variants
- LB 4 with 4 beakers
– LB 8 with 8 beakers
– LB 12 with 12 beakers
– LB 16 with 16 beakers
– LB 20 with 20 beakers

Technical Data

Electronic Mashing Device LB Normal-Version LB PC-Version
Fixed program Kongress
Hartong 20°C
Hartong 45°C
Hartong 65°C
Hartong 80°C
Kongress
Hartong 20°C
Hartong 45°C
Hartong 65°C
Hartong 80°C
Selectable programs six unlimited
Temperature range 20°C – ca. 92°C 20°C – ca. 92°C
Max. program steps per selectable program 10 10
Max. time unit per program step 0-990 minutes 0-990 minutes
Temperature increase per minute 0,5 – 1,5°C 0,5 – 1,5°C
Setting accuracy ± 0,1°C ± 0,1°C
Agitator speed variable setting from 50 to 200 rpm variable setting from 50 to 200 rpm
Operational noise laser precision gear laser precision gear
Analysis start immediately with START button immediately with START button or by date and time
Water intake 1/2" hose 1/2" hose
Water outflow 1,5" pipe connection (DN 40) – with shut-off-valve 1,5" pipe connection (DN 40) – with shut-off-valve
Housing steel / aliuminium, powder-coated steel / aliuminium, powder-coated
Basin, pipes and mashing tumblers stainless steel stainless steel
Basin cover polished stainless steel polished stainless steel
Measurement glasses for water refill with ring markings for water refill with ring markings
Display with function keys with function keys
Power source for LB 4 .. LB 12 220/230 Volt, 50/60 Hertz 220/230 Volt, 50/60 Hertz
Power source for LB 16 .. LB 20 400 Volt, 50/60 Hertz 400 Volt, 50/60 Hertz



Accesorii optionale
• Agitator pentru analiza Hartong
• Capace pentru pahare
• Numaratoare pahare
• Soft pentru PC pentru tranferul datelor, stocare afisare si printare (pentru versiunea Normal)
• Reactivi necesari pentru analiza de malt
• posibilitate de personalizare, in finctie de cerinte (de ex. Pahare de 5 itri)

Optional Accesories
- Stirrer for Hartong analysis
- Lids for beaker
- Numbering of beaker
- PC-Software for data transfer, display, storage and printing (for Normal-Version)
- Plastic funnel and fluted filter
