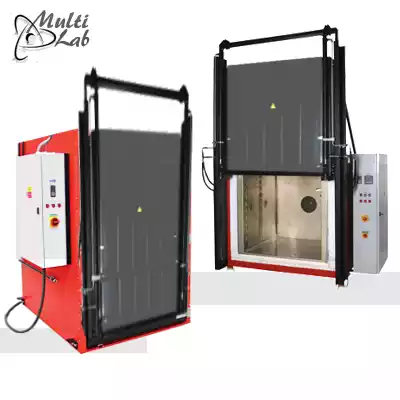

Etuva industriala cu ventilatie fortata

Etuve termostate si cuptoare pentru laborator si industrie » Cuptoare si Etuve de mare capacitate 850°C » Etuve / Cuptoare Universale Seria KNC/H

Laboratory & Industrial Thermostatic Ovens and Furnaces » High Volume Tempering Furnaces and Ovens » Universal Oven and Furnaces KNC/H Series

Etuve si Cuptoare de volum mare :: Temperatura reglabila pana la 850 °C

Caracteristici generale

• Etuve de uscare si tratamente termice speciale cu ventilatie fortata
• Unitate d econtrol "Ht205 controller" cu 30 de programe; 15 segmnete fiecare program
• Incalzire cu rezistenta (meanders)
• Izolare cu placi din fibre minerale si caramizi refractare
• Termocuplu tip “K”
• Relee de comutare a terminalelor pentru protectie
• Limita de unitate
• Usa hidraulica cu controlor de deschidere/inchidere
• Garantie: 24 luni (optional 3 ani)

Aplicatii

- Recuperare si normalizare
- Recoacere cu solutii de metalelor neferoase
- Recoacere metalelor neferoase
- Recristalizare
- Imbatranirea artificiala
- Calirea la temperaturi joase si inalte
- Conservare
- Uscare matrite

Date tehnice

Model	T° max.	Volum	Dim. externa / mm	Dim. interna / mm	Putere	Greutate	Alimentare	Protectie	Sarcina max.
KNC/H 1000/85	850 °C	1000 lt.	2300x3200x2200	1000x1000x1000	42 Kg	1500 Kg	400 V	80/3	800 Kg
KNC/H 1500/85	850 °C	1500 lt.	2800x3200x2200	1500x1000x1000	54 Kg	1600 Kg	400 V	100/3	1000 Kg
KNC/H 2000/85	850 °C	2000 lt.	3500x3300x2200	2000x1000x1000	80 Kg	2000 Kg	400 V	160/3	1500 Kg

Accesorii Optionale

- Ht200 controller (30 programmes with 25 steps each, USB interface)
- Automatic suction and ventilation flap
- Automatic ventilation flap
- Manually controlled suction and ventilation flap
- Manually controlled ventilation flap
- Optimisation of the temperature field to meet the DIN 17052-1 ΔT 10 °C standard in the internal usable space (in an empty furnace at Tmax) including a report from measuring
- Measuring loop calibration (thermocouple + controller)
- Grommet for the TUS test measuring thermocouple
- RS232 or EIA485 interface
- HtMonit set (contains software + interface)
- Three-channel digital temperature recorder
- Ammeters for checking the status of the heating elements
- Foot-operated switch for door opening

*Pretul si Termenul de livrare este comunicat clientilor prin e-mail!

Solicit oferta personalizata »

*produsele poate fi achizitionate si prin SEAP / SICAP

Certificate

- Certificat de Conformitate
- Certificat MultiLab ISO 9001 si ISO 14001
- Certificat de garantie si post garantie
