pH/mV Metru portabil robust de precizie
pH Metre » pH-Metre Portabile » pH/mV Metru uz tehnic industrial
pH Meters » Portable pH Meters » Industrial Portable pH/mV Meter

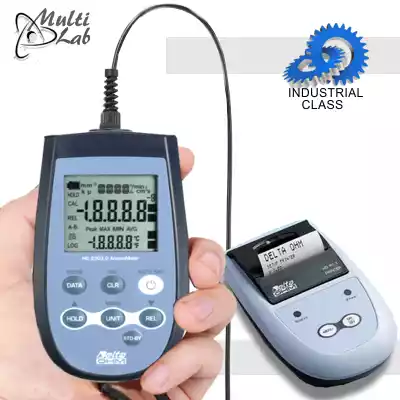

pH-metru pentru conditii industriale dure :: Model HD2305
Caracteristici generale
- pH-metru-termometru portabil cu un ecran LCD mare care masoara pH-ul, mV-ul si temperatura
- Stocarea valorii maxime, minime, medii.
- Functii: REL, HOLD si oprire automata care pot fi dezactivate, grad de protectie IP 67.
- Masoara pH-ul si potentialul redox (ORP) in mV.
- Masoara temperatura folosind sonde de imersiune, penetrare, contact sau aer Pt100 sau Pt1000.
- Calibrarea electrozilor se poate efectua pe unul, doua sau trei puncte la 4.01pH, 6.86pH si 9.18pH.
- Sondele de temperatura sunt echipate cu modulul de recunoastere automata SICRAM care contine datele de calibrare din fabrica stocate in interior.
- Functiile Max, Min si Avg calculeaza valorile maxime, minime sau medii.
- Alte functii includ: masurarea relativa REL, functia Auto-HOLD si oprirea automata care poate fi, de asemenea, exclusa
Date tehnice
- Display LCD: ecran 52 x 42 mm
- Masurare pH
- Domeniu pH: -2.000 .. +19.999
- Rezolutie pH: 0.01
- Acuratete pH: ±0.01pH ±1 digit
- Impedententa pH: >1012Ω
- Erori de calibrare la @25°C: Offset .. >20mV
- Panta: <50mV/pH sau Panta>63mV/pH
- Sensitivitate: <85% sau Sensitivitate >106.5%
- Masurare mV
- Domeniu mV: -1999.9 .. +1,999.9mV
- Rezolutie mV : 0.1mV
- Acuratete mV : ±0.1mV
- Deviere mV dupa 1 an: 0.5mV/an
- Measurare temperatura
- cu Sonda de temperatura Pt100: -200 .. +650°C
- cu Sonda de temperatura Pt1000: -200 .. +650°C
- Rezolutie temperatura: 0.1°C
- Acuratete temperatura: ±0.1°C
- Deviere tempratura dupa 1 an: 0.1°C/an
- Stocare de date: maxim, minim, valoarea medie
- Functii: REL, HOLD si oprire automata care poate fi dezactivata
- Conectare / Interfata
- Modul de conectare pentru sonde de temperatura: 8-pole male DIN45326 connector
- Conectare sonde de pH/mV: input Female BNC
- Clasa de protectie: IP 67
- Dimensiune: 40 x 88 x 38 mm
- Greutate: 160g (cu baterii)
- Material carcasa: ABS
- Alimentare
- Baterie: 3 1.5V tip AA
- Autonomie 200 ore cu bateri alcaline: 1800mAh
Continut pachet
HD2305 este livrat cu electrozi, geanta pentru transport, instructiuni de utilizare si 3 baterii
(elctrozii, sonde de temperatura, modul SICRAM, solutii de calibrare si curatare se comanda separat)
Ghid comanda si Accesorii optionale
- SET HD2305.0: *Kitul este furnizat cu instrumentul HD2305.0, 3 baterii alcaline de 1.5V, manual de utilizare, carcasă.

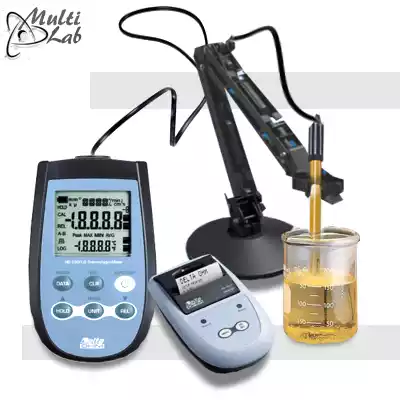

- SET HD22.2: suport pentru electrod compus din placă de bază cu agitator magnetic încorporat, dispozitive de prindere, potrivit pentru electrozi cu diametrul de 12 mm.
- SET HD22.3: suport electrod de laborator compus din placă de bază, braț flexibil pentru poziționare liberă, potrivit pentru electrozi cu diametrul de 12 mm.
- Imprimanta termica
*Electrozii, soluțiile de calibrare și sondele trebuie comandate separat.
Sonde de temperatura Pt100 pentru modul SICRAM
| Model | Tip sonda | Aplicatii | Acuratete |
|---|---|---|---|
| TP472I | Imersie | -196°C…+500°C | ±0.25°C (-196°C…+300°C) |
| ±0.5°C (+300°C…+500°C) | |||
| TP472I.0 1/3 DIN Film subtire |
Imersie | -50°C…+300°C | ±0.25°C (-50°C…+300°C) |
| TP473P.I | Penetrare | -50°C…+400°C | ±0.25°C (-50°C…+300°C) |
| ±0.5°C (+300°C…+400°C) | |||
| TP473P.0 1/3 DIN Film subtire |
Penetrare | -50°C…+300°C | ±0.25°C (-50°C…+300°C) |
| TP474C.I | Contact | -50°C…+400°C | ±0.3°C (-50°C…+300°C) |
| ±0.5°C (+300°C…+400°C) | |||
| TP474C.0 1/3 DIN Film subtire |
Contact | -50°C…+300°C | ±0.3°C (-50°C…+300°C) |
| TP475A.0 1/3 DIN Film subtire |
Air | -50°C…+250°C | ±0.3°C (-50°C…+250°C) |
| TP472I.5 | Penetrare | -50°C…+400°C | ±0.3°C (-50°C…+300°C) |
| ±0.6°C (+300°C…+400°C) | |||
| TP472I.10 | Penetrare | -50°C…+400°C | ±0.30°C (-50°C…+300°C) |
| ±0.6°C (+300°C…+400°C) | |||
| TP49A.0 Class A Film subtire | Imersie | -70°C…+250°C | ±0.3°C (-70°C…-50°C) |
| ±0.25°C (-50°C…+250°C) | |||
| TP49AC.0 Class A Film subtire | Contact | -70°C…+250°C | ±0.3°C (-70°C…-50°C) |
| ±0.25°C (-50°C…+250°C) | |||
| TP49AP.0 Class A Film subtire | Penetrare | -70°C…+250°C | ±0.3°C (-70°C…-50°C) |
| ±0.25°C (-50°C…+250°C) | |||
| TP875.I | Globe-thermometer Ø150mm | -30°C…+120°C | ±0.25°C |
| TP876.I | Globe-thermometer Ø50mm | -30°C…+120°C | ±0.25°C |
| TP87.0 1/3 DIN Film subtire | Imersie | -50°C…+200°C | ±0.25°C |
| TP878.0 1/3 DIN Film subtire | Fotovoltaic | +4°C…+85°C | ±0.25°C |
| TP878.1.0 1/3 DIN Film subtire | Fotovoltaic | +4°C…+85°C | ±0.25°C |
| TP879.0 1/3 DIN Film subtire | Compost | -20°C…+120°C | ±0.25°C |
Sonde de temperatura Pt100 cu 2 sau 4 fire
| Model | Tip sonda | Aplicatii | Acuratete |
|---|---|---|---|
| TP47.100.0 1/3 DIN Film subtire | Pt100 cu 4 fire | -50…+250°C | 1/3 DIN |
| TP47.1000.0 1/3 DIN Film subtire | Pt1000 cu 2 fire | -50…+250°C | 1/3 DIN |
| TP87.100.0 1/3 DIN Film subtire | Pt100 cu 4 fire | -50…+200°C | 1/3 DIN |
| TP87.1000.0 1/3 DIN Film subtire | Pt1000 cu 2 fire | -50…+200°C | 1/3 DIN |
Electrozi de pH
| Model | Descrier |
|---|---|
| KP 20 | Gel pH filled combined electrode for general use, with S7 screw connector, EPOXY body. |
| KP 30 | Gel pH combined electrode for general use, 1m cable with BNC, EPOXY body . |
| KP 50 | Gel pH combined electrode, porous Tefl on ring junction, suitable for emulsions, demineralised water, waste water with S7 screw connector, glass body. |
| KP 61 | 3 diaphragm liquid filled pH combined electrode for wine, milk, cream, etc., S7 screw connector, liquid reference fi lling, glass body. |
| KP 62 | 1 diaphragm gel pH combined electrode for general use, pure water, varnishes, gel filled, S7 screw connector, glass body. |
| KP 63 | liquid filled pH combined electrode for general use, varnishes, 1m cable with BNC, glass body. |
| KP 64 | Liquid filled pH combined electrode,Tefl on ring diaphragm, for wine, varnishes, emulsions, S7 screw connector, glass body. |
| KP 70 | Pointed gel combined pH microelectrode diam. 6 x L=70 mm., with S7 screw connector, EPOXY body, glass tip, open junction for meat and cheese. |
| KP 80 | Pointed gel pH combined electrode, with S7 screw connector, glass body, for cream, milk, viscous material, open junction. |
| KP100 | Flat membrane gel combined pH electrode with S7 screw connector, glass body, for skin, leather, paper. |
Electrozi ORP
| Model | Descrier |
|---|---|
| KP 90 | REDOX PLATINUM liquid fi lled electrode with S7 screw connector, glass body. |
| KP 91 | Gel REDOX PLATINUM electrode, 1m cable with BNC, EPOXY body for general purpose light duty. |
Consumabile
| Cod produs | Soluții tampon pH Buffer solutions | Cantitate |
|---|---|---|
| HD8642 | Buffer solution 4.01pH | 200cc. |
| HD8672 | Buffer solution 6.86pH | 200cc. |
| HD8692 | Buffer solution 9.18pH | 200cc. |
| Soluții tampon Redox Buffer solutions | ||
| HDR220 | Redox buffer solution 220mV | 0.5 l. |
| HDR468 | Redox buffer solution 468mV | 0.5 l. |
| Soluții electrolitice / Electrolyte solutions | ||
| KCL3M | Ready to use solution for electrode refi lling | 100 cc |
| Soluții de curatare / Cleaning and maintenance | ||
| HD62PT | Diaphragm cleaning (tiourea in HCl) | 500ml. |
| HD62PP | Protein cleaning (pepsin in HCl) | 500ml. |
| HD62RF | Regeneration (fl uorhydric acid) | 100ml. |
| HD62SC | Solution for electrode preservation | 500ml. |
*Pret informativ 400,00 €+TVA / *ExW (numai instrument)
*NB. Preţul cu titlu informativ nu include electrozi si sondele, exprimat in EURO, fara TVA / ExW franco fabrică.
Solicit oferta personalizata »
*produsele poate fi achizitionate si prin SEAP / SICAP
