Spectrofotometru pentru analiza culoare si spectrul de culoare
Instrumente Masurarea aspectul si Culorii » Spectrofotometre culorilor » Spectrofotometru portabil multifunctional de culori
Color & Appearance Measurement » Color Spectrometers » Portable Grating Spectrophotometer

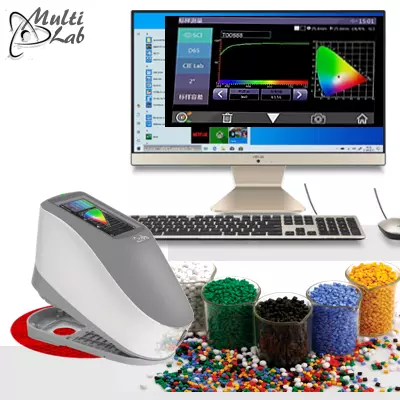

Analizor portabil pentru masurarea culorii :: Model ML-YS45
Caracteristic generale
- Spectrofotometre portabil de performanta permite analiza preciza al culori pentru corelari precise si relevante
- Conform cu standarde: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893 GB/T 18833
- Surse de lumină LED combinate de mare durată și putere redusă, inclusiv UV/excluzând UV
- Diafragma 4.Φ20mm se adaptează la mostre mai mari sau probe inegale
- Pot fi utilizate pentru potrivirea culorilor și transmiterea exactă a culorii
- Configurație hardware electronică avansata: ecran TFT color adevărat de 3,5 inchi, ecran tactil capacitiv, grătar concav, detector CMOS dual-array de 256 de pixeli etc.
- Interfete de comunicare USB/Bluetooth 4.0 (compatibil cu 2.1) mod de comunicare dual, mai adaptabil
- Placă de calibrare albă standard super rezistentă la pete și stabilă
- Capacitate de stocare datelor de mare capacitate, poate stoca mai mult de 30.000 de date de testare
- Doi observatori standard, moduri multiple de surse de lumină, sisteme de culori multiple și o varietate de indicatori colorimetrici standard pentru a satisface nevoile diferiților clienți pentru măsurarea culorii
- Program Software cu extensii de funcții puternice
- Setare standard încorporată de toleranță la poligon și gamă specifică de semne de trafic, potrivite în special pentru factorul de luminozitate al semnalizării de trafic și judecata de performanță a cromaticității.
*NB. Preţul cu titlu informativ in functie de model, exprimat in EURO, fara TVA / ExW franco fabrică.
Solicit oferta personalizata »
⧉ Produsul poate fi achizitionat si prin SEAP / SICAP
Date tehnice / Technical Data
| Model | ML-YS4560 | ML-YS4580 | |
|---|---|---|---|
| Sfera integrata | Integrating Sphere Size | Φ48 mm | Φ48 mm |
| Sursa de lumina | Light Source | Combined LED UV Light | Combined LED UV Light |
| Mod spectrofotometric | Spectrophotometric Mode | Concave Grating | Concave Grating |
| Snzor | Sensor | 256 Image Element Double Array CMOS Image Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Domeniu Spectral / Lungime de unda | Wavelength Range | 400-700 nm | 400-700 nm |
| Interval Spectral: | Wavelength Interval | 10 nm | 10 nm |
| Latime semi-banda | Semiband Width | 10 nm | 10 nm |
| Domeniu masurare reflectanta | Measured Reflectance Range | 0-200% | 0-200% |
| Area masurata / Apertura | Measuring Aperture | MAV: Φ8mm/Φ10 mm SAV: Φ4mm/Φ5 mm |
Φ20mm |
| Spatiu / area de culoare | Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB, βxy | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB, βxy |
| Formula diferenta de culoare | Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE (Hunter) | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE (Hunter) |
| Alte indicele colorimetrice | Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI Metamerism Index , Staining Fastness, Color Fastness, Color Strength, Opacity, Supporting Colorimetric Polygon Tolerance |
WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), MI Metamerism Index , Staining Fastness, Color Fastness, Color Strength, Opacity, Supporting Colorimetric Polygon Tolerance |
| Unghiul de observare | Observer Angle | 2°/10° | 2°/10° |
| Sursa luminoasa | Illuminant | D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8,F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) | D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8,F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) |
| Date afisate | Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Timp de masurare | Measuring Time | 1.5 s | 1.5 s |
| Repetabilitate | Repeatability | Spectral reflectance: MAV, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) |
Spectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) |
| Chromaticity value: within ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: within ΔE*ab 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | ||
| Eroare Inter-instrument | Inter-instrument Error | Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles) | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Mod de masurare | Measurement Mode | Single and Average | Single and Average |
| Metoda de localizare | Locating Method | Camera View Finder | Camera View Finder |
| Alimentare | Battery Li-ion battery | 5000 measurements / 8 hours | 5000 measurements / 8 hours |
| Dimensiune | Dimension (LxWxH) | 184 x 77 x 105 mm | 184 x 77 x 105 mm |
| Greutate | Weight | 600g | 600g |
| Viata lampa | Illuminant Life Span | 5 years > 3 million times measurements | 5 years > 3 million times measurements |
| Display | Display | 3.5" TFT color LCD, Capacitive Touch Screen |
3.5" TFT color LCD, Capacitive Touch Screen |
| Interfata | Data Port | USB, Bluetooth 4.0 | USB, Bluetooth 4.0 |
| Stocare de date | Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
Standard 2000 Pcs, Sample 20000 Pcs |
| Conditii de operare | Operating Environment | 0~40°C, 0~85%RH (no condensing), Altitude < 2000m | 0~40°C, 0~85%RH (no condensing), Altitude < 2000m |

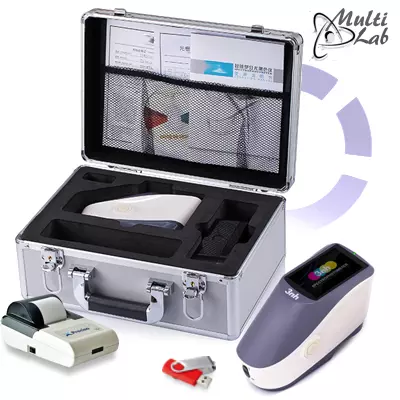

| Accesorii standard | Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software (download from the website) White and Black Calibration Board, Protective Cover. | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software (download from the website) White and Black Calibration Board, Protective Cover. |
| Accesorii optionale | Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
