Mantale de incalzire cu agitare

Sisteme profesionale de incalzire » Mantale de laborator » Cuiburi de incalzire cu agitare pentru vase de reactie pahare Berzelius si baloane

Professional Heating Systems » Heating mantles » Heating mantle for reaction vessels beakers and round flasks

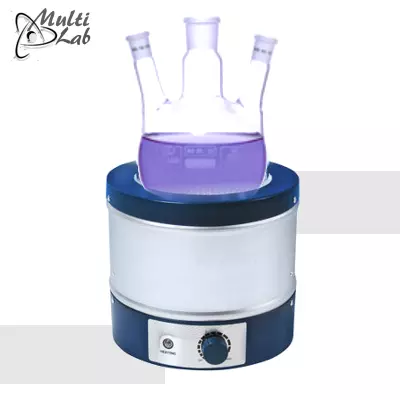

Mantale termoreglabile :: Model WITEG DH.WHM

Caracteristic generale

- Cuiburi de laborator cu agitator si controlor integrat
- Tip recipient: baloane cu fund rotund si pahare berzelius
- Temperatura maxima: 450°C
- Agitare: 50 .. 750 rpm
- Control electronic integrat: pentru agitare si incalzire
- Carcasa: aluminiu
- Alimentara: 230V

Date tehnice

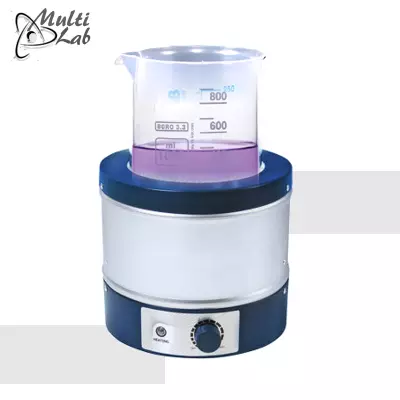

Cuiburi / Mantale pentru pahare berzelius

Capacitate	Adancime	Diam. int.	Pahar Berzelius	Cod produs
100 ml	40 mm	Ø150 mm	Ø50 - 52 mm	DH.WHM12141
250 ml	65 mm	Ø150 mm	Ø68 - 70 mm	DH.WHM12142
400 ml	70 mm	Ø150 mm	Ø79 - 81 mm	DH.WHM12143
400 ml	75 mm	Ø150 mm	Ø76 - 78 mm	DH.WHM121431
600 ml	75 mm	Ø150 mm	Ø88 - 90 mm	DH.WHM12144
800 ml	90 mm	Ø175 mm	Ø98 - 100 mm	DH.WHM12145
1000 ml	90 mm	Ø175 mm	Ø105 - 108 mm	DH.WHM12146
2000 ml	125 mm	Ø195 mm	Ø130 - 132 mm	DH.WHM12147
3000 ml	160 mm	Ø235 mm	Ø151 - 153 mm	DH.WHM12148
4000 ml	160 mm	Ø235 mm	Ø160 - 162 mm	DH.WHM121481
5000 ml	160 mm	Ø235 mm	Ø169 - 171 mm	DH.WHM12149
100 ml	45 mm	Ø150 mm	Ø50 - 52 mm	DH.WHM121601
250 ml	70 mm	Ø150 mm	Ø68 - 70 mm	DH.WHM121602
400 ml	70 mm	Ø180 mm	Ø79 - 81 mm	DH.WHM121603
400 ml	70 mm	Ø180 mm	Ø76 - 78 mm	DH.WHM121604
600 ml	72 mm	Ø180 mm	Ø88 - 90 mm	DH.WHM121605
1000 ml	105 mm	Ø195 mm	Ø105 - 108 mm	DH.WHM121606
2000 ml	140 mm	Ø195 mm	Ø130 - 132 mm	DH.WHM121607
3000 ml	140 mm	Ø235 mm	Ø151 - 153 mm	DH.WHM121608
4000 ml	170 mm	Ø270 mm	Ø160 - 162 mm	DH.WHM121609
5000 ml	170 mm	Ø270 mm	Ø169 - 171 mm	DH.WHM121610

Date tehnice

Cuiburi / Mantale pentru baloane cu fund rotund

Capacitate	Adancime	Diam. int.	Cod produs
50 ml	40 mm	Ø49 - 52 mm	DH.WHM12030
100 ml	40 mm	Ø63 - 66 mm	DH.WHM12031
250 ml	50 mm	Ø83 - 86 mm	DH.WHM12032
500 ml	65 mm	Ø102 - 105 mm	DH.WHM12033
1000 ml	75 mm	Ø130 - 133 mm	DH.WHM12034
2000 ml	100 mm	Ø165 - 169 mm	DH.WHM12035
2000 ml	100 mm	Ø161 - 164 mm	DH.WHM120351
3000 ml	105 mm	Ø184 - 187 mm	DH.WHM12036
5000 ml	131 mm	Ø221 - 224 mm	DH.WHM12037
6000 ml	131 mm	Ø234 - 237 mm	DH.WHM12038

Accesosii optionale

Suport pentru bara si dispozitivde prindere :: Code 180.4300.56
- Dispozitiv de prindere :: Code 146.2900.05
- Bara otel inox Ø10 x 500 mm :: Code 262.7450.05
- magneti
