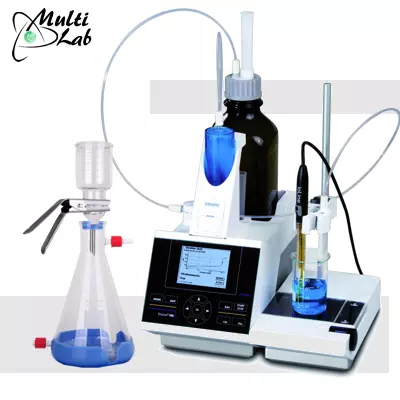

Titrator digital multifunctional pentru dozare si titrare manuala

Model Titronic 500

Aplicatii: titrare + dozare

Titrator / Biureta digitala multifunctionala

Avantaje
Biureta digitala compacta cu piston Titronic 500 este perfecta pentru titrari manuale, perfecta pentru dozarii precise cat si pentru preparea solutiilor.
Daca este utilizata cu programul de soft "TitriSoft 3.0" se comporta ca o biureta de titrare; daca este cuplata cu titratorul "TitroLine 7000" si "TitriSoft 3.0, devine o unitate de dozare automata pentru pre-dozarea titrantului.

Caracteristici generale
Sistem Inteligent interschimbabil cu uniti cu diferite volume de 5, 10, 20 si 50 ml
Conectarea la o balant analitica si imprimanta
Operare de la distanta prin remote control prinprin interfetele RS232 si USB-B
Posibilitate de conecatre simultana pana la 16 dispozitive prin RS232 or USB port at ones
Display grafic color mare
Porturi de comunicare 2 USB + 2 RS232
Rezultate sunt salvate si exportate la un PC sau stick de memorie USB, in format PDF si CSV

Date tehnice
Display: Color online grafic 3.5" :: 1/4 VGA TFT 320 x 240 pixel
Material carcasa: polipropilena
Dimensiuni ext.: 15.3 x 45 x 29.6 cm (cu unitatea interschimbabila)
Intrari de masurare pH/mV cu electrod de referinta:
- traducator pH/mV de 24 bit
- mufa electrod conform DIN 19
- 262 sau cu mufa aditionala BNC tip insertie
Interfete: 2 x USB-A, 1 x USB-B / 2 x RS232
Connectare la o balanta: RS232
Concatre la imprimanta (USB-A): HP PCL, Seiko DPU S445, PDF
Modul inteligent de interschimb: volume de 5, 10, 20 si 50 ml
Solutie biureta (in pasi): 10,000
Titrare manuala: da
Acuratetea de dozare: 0.15 % conform cu DIN EN ISO 8655 partea 3:
Precizie: 0.05 .. 0.07 % in functie de unitatea interschimbabila utilizata
Aplicatii de dozare: da
Preparare solutie: manual sau automat daca este conectata la o balanta
Titrare automata: poate fi utilizata ca un titrator si ca o biureta de dozare daca este cuplata la un sistem automat de titrare
Metode aplicabile: standard
Metode personalizate: 15 configurabile
Control via PC: cu program de soft TitriSoft 3.0 (optional)
Tastatura: acoperita cu poliester
Greutate: 2.2 kg unitatea de baza / 3.5 kg unitate completa fara un agitator magnetic
Conditiile mediului ambiant pentru operare si depozitare: +10 .. +40°C
Material:
- Valva din PTFE/ETFE
- Cilindru din sticla borosilicat 3.3 (DURN)
- Tuburi din FEP de culoare albastra.


Solicit oferta de pret »

Multifunction digital titrator / piston burette for simple and accurate dosing for preparing solutions
A piston burette for manual titrations, accurate dosing of small and large volumes and the preparation of solutions; can also be used as automatic dosing

Main Features
Intelligent exchangeable units with 5, 10, 20 and 50 ml volume
Connection of printer and analytical balances
Complete remote control via RS232 or USB-B interface
Possible to connect up to 16 devices on one RS232 or USB port at ones
Full color display, including graphic curves easily viewed from a distance and at wide angles
Includes two USB and two RS232 ports for expansion and connection of devices such as USB keyboard, USB-storage device, balance, PC andadditional SI Analytics peripherals
Exports the results as PDF and CSV to a memory stick/USB device
Transfer of methods via USB device Standard methods
Daisy-chain capability

Technical specifications
Display: Color online graphic 3.5 inches :: 1/4 VGA TFT display with 320 x 240 pixels
Housing material: Polypropylene
Housing dimensions: 15.3 x 45 x 29.6 cm (W x H x D), height with interchangeable unit
Measuring input pH/mV with reference electrode input:
- pH/mV-input with 24 bit transducer
- Electrode socket according to DIN 19
- 262 or additional with BNC socket insert
Interface: 2 x USB-A, 1 x USB-B / 2 x RS232
Balance connection: RS232
Printer (USB-A): HP PCL, Seiko DPU S445, PDF
Intelligent interchangeable modules (5, 10, 20 and 50 ml): Excellent application suitability
Burette solution (steps): 10,000
Manual titration: Excellent application suitability
Dosing applications: Excellent application suitability
Solution preparation (manual or automatic when connected to balance: Excellent application suitability
Automatic Titration: Independent without external software; can be used as titration and dosing burette in automatic titration systems
Standard methods: Excellent application suitability
Number of user methods: 15
Can be controlled with TitriSoft 3.0: Excellent application suitability


RFQ »



Cod comanda / Ordering information

Model Descriere / Description Cod.produs
T 500 TITRONIC 500 basic unit without magnetic stirrer, with stand rod and titration clamp Z 305, controller TZ 3880, power supply 100-240V 285220200
Unitate de baza TITRONIC 500 fara agitator magnetic, stand cu tija TZ1510, clema pentru electrod Z 305, controler manual TZ3880, alimentare electrica 100-240 V
T 500-M1 TITRONIC 500 basic unit with magnetic stirrer TM 235, with stand rod TZ 1510, electrode clamp Z 305, hand controller TZ 3880, power supply 100-240 V3880, power supply 100-240 V 285220210
Unitate de baza TITRONIC 500 cu agitator magnetic TM235, stand cu tija TZ1510, clema pentru electrod Z 305, controler manual TZ3880, alimentare electrica 100-240 V
T 500-M2/20 TITRONIC 500 basic unit with magnetic stirrer TM 235 and 20 ml exchange unit WA 20, with stand rod TZ 1510, electrode clamp Z 305, hand controller TZ 285220220
Unitate de baza TITRONIC 500 cu agitator magnetic TM235, unitate interschimbabila WA 20 de 20 ml, stand cu tija TZ1510, clema pentru electrod Z 305, controler manual TZ3880, alimentare electrica 100-240 V





Accesorii optionale / Optional accesories

Model Descriere / Description Cod.produs
WA 05 5 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220300
Unitate interschimbabila de 5 ml cu chip integrat pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, varf de titrare si tuburi de picurare
WA 10 10 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220310
  Unitate interschimbabila de 10 ml cu chip pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, tub de picurare si varf de titrare
WA 20 20 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220320
Unitate interschimbabila de 20 ml cu chip pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, tub de picurare si varf de titrare
WA 50 50 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220350
Unitate interschimbabila de 50 ml cu chip pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, tub de picurare si varf de titrare
TM 235 Magnetic stirrer for vessels up to 500 ml, agitator speed infinitely adjustable from 500 - 2000 r/min, for the connection to TitroLine 6000/7000 and TITRONIC 500 285220400
Agitator magnetic pentru capacitate de 500 ml / viteza reglabila 500 - 2000 r/min, pentru TitroLine 6000/7000 si TITRONIC 500
TM 235 KF 115-230 V Titriation stand with pump; Scope of delivery: Basic unit with 1 l DURAN ®-reagent bottle TZ 1791, 1 l DURAN®-waste bottle TZ 1792, moisture bottle, tubes and screw threads, power supply TZ 1855 (110 to 240 V) 285220900
TZ 1052 KF-drying stove, 230 V 285214721
TZ 1060 Accessories set for KF drying stove TZ 1052/TZ1055 285218115
TZ 1065 Flowmeter with valve and hose connectors for gas volumes (air, nitrogen) from 50 - 500 ml/min. 285201973
Debitmetru cu supapasi furtuni, dispozitive de conectare connectors pentru volum de gaze (aer, nitrogen) de la 50 - 500 ml/min.
KF 1100 Micro double platinum electrode for Karl Fischer titrations, with fixed cable, double platinum pin and tapper NS 7.5 for TZ 1770 and TZ 1772 285102030
TZ 1748 Stand rod stainless steel Ø 10 mm 285216560
TZ 1770 Karl Fischer titration vessel. DURAN® glass vessel TZ 1775 (approx. 30...150 ml), removable head made of polypropylene/PTFE, 1 drilling NS 19, NS 14,5, NS 7,5 and 3 drillings with screw threads, titration tip, moisture trap and weighing funnel 285216677
TZ 1789 Starter kit KF consisting of molecular sieve, needles with syringes and glass wool 285221120
TZ 3863 USB-thermo printer, 112 mm for TitroLine 6000/7000/7500 KF/7500 KF trace/7750 and TITRONIC 500 285220480
Imprimanta termica 112 mm cu interfata USB
TZ 3864 Thermal paper for TZ 3863 with very high durability (5 rolls) 285220710
TZ 3865 DIN A4 standard printer, HP PCL-compatible, with USB-connection cable, 230 V 285220440
