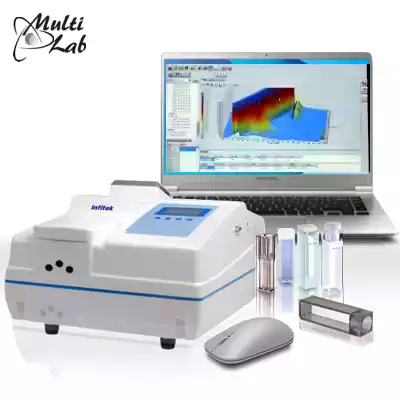

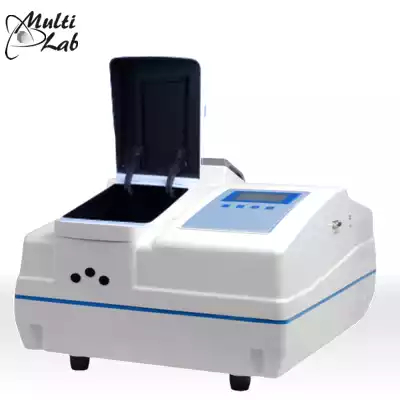

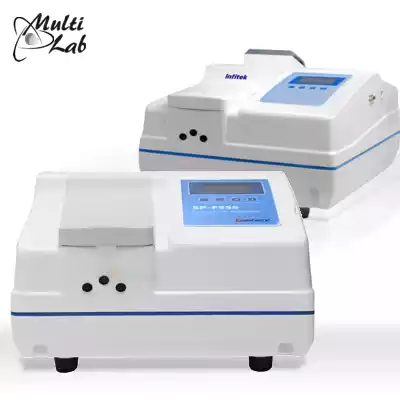

Spectrofotometru de fluorescenta atomica

Spectrofotometru de emisie şi de fluorescenţă atomică :: Spectrofotometru de absorbtie atomica :: Spectrofotometru de absorbtie moleculara :: Spectrometru de emisie atomică în flacără



spectrometru fluorescenta

Spectrofotometru preconfigurat pentru analiza prin spectrometrie de fluorescenţă
Specificatii tehnice
Dimensiuni: 89.1 mm x 63.3 mm x 34. 4 mm (spectrometru); 89.1 mm x 120.3 mm x 34.4 mm (spectrometer cu / LED)
Greutate: 190 g (spectrometeru); 310 g (spectrometer cu / LED)

Detector

Detector: Toshiba TCD1304AP Linear CCD array
Detector range: 200-1100 nm Pixels: 3648 pixels
Pixel: 8 μm x 200 μm
Pixel well depth: 100,000 electrons
Sensitivitate: 130 photons/count at 400 nm; 60 photons/count at 600 nm

Optice
Design: f/4, Asymmetrical crossed Czerny-Turner
Focal length: 42 mm (input); 68 mm (output)
Entrance aperture: 200 μm wide slit
Grating: Grating #3 -- groove density 600 l/mm, set to 360-1000 nm, 500 nm blaze
Detector collection lens: Yes, L4
Fiber optic connector: SMA 905 to 0.22 numerical aperture single-strand optical fibe

Spectroscopic
Wavelength range: 360-1000 nm
Optical resolution: ~10.0 nm FWHM
Signal-to-noise ratio: 300:1 (at full signal)
A/D resolution: 16 bit
Dark noise: 50 RMS counts
Dynamic range: 3.4 x 106 (system), 1300:1 for a single acquisition
Integration time: 3.8 ms-10 seconds
Stray light: <0.05% at 600 nm; 0.10% at 435 nm
Corrected linearity: >99%

Electronice
Power consumption: 250 mA @ 5 VDC
Data transfer speed: Full scans to memory every 1 ms with USB 2.0 or 1.1 port, 300 ms with serial port
Trigger modes: 4 modes
Strobe functions: Yes
Gated delay feature: Yes
Connector: 22-pin connector
