aparat_numarator_boabe

Cel mai bine vandut umidometru de cereale din Europa

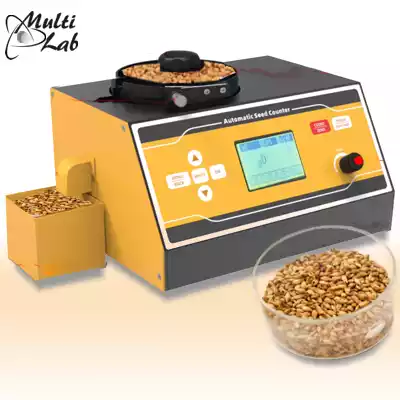

Contor de granule

Model ML-C1

Numarator de boabe si de seminte

Universal counting machine for small and irregularly shaped parts


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Aparat folosit pentru selectia semintelor si determinarea masei de cereale; masa aproximativa a 1000 sau 100,000 boabe.
Masa rezultata se cantareste obtinand masa in grame / 1000 boabe.
Aplicatii
• determinarea numarului de seminte
• determinarea puritatii
• separarea probelor pe baza dimensiunilor

Avantaje:
• Controlat integrat microprocesor
• Viteza mare de numarare
• Un singur cap necesar pentru toate marimi

Performanta de numarare: depinde de marime si caracterul probei
Valori tipice:
• granule cu diametru de 0.5 Ømm » 100,000 de boabe / ora
• granule cu diametru de 2.0 Ømm » 35,000 de boabe / ora
• granule cu diametru de 5.0 Ømm » 10,000 de boabe / ora

Date tehnice
• Marimea diametru granulei: 0.2 Ømm pana la18 Ømm.
• Acuratete: granule cu diametru de 2 mm mai putin de 1/1000 erori posibile
• Precizie: sub 0,1 % erori posibile
• Domeniu de masurare: 0 la 99,999 boabe
• Viteza de numarare, selectabila: 100,000 de boabe / ora
• Cuva de aspirare: ajustabila
• Afisaj / Contor digital
• Alimentare: 230V/50Hz
• Dimensiuni : 240 x 330 x 180mm mm
• Greutate: approx. 10 kg

Main features
A universal counting machine for any small and irregularly shaped parts, such as:
Finest plant seeds
Vegetable seeds
Cereals, Maize, Rice, Canola
Insects, Pupae, Eggs
Pharmaceuticals, pills, casules
Gems, diamonds and precious stones
Bulk semiconductor chips
Small mechanical parts
Implants
All these products have in common is that they are either irregularly shaped, lightweigt or very small. Therefore these parts are difficult to handle manually. Dosing these parts with scales is often flawed or impossible.
The seed counter ML-C1 is specialized for exactly counting of such parts in small to medium quantities. Important applications of the C1 seed counter are the repetitive, precise counting of a preselected number of parts or the conventional determination of the 1000 grain weight according to ISO 520:2010.
Parts with diameters from 0.2mm to about 18mm can all be processed with the same adjustable conveyor bowl. For fast counting of large amounts the 650 multi-channel counting machine can be used.
The seed counter ML-C1 is characterized by a robust construction, a fool-proof operation and a large, bright display that is easy to read even in daylight. The count signal is processed by a microprocessor which allows also the detection of parts with particularly difficult shapes. The parts counter C1 is equipped with terminals for remote control so that it can be combined, for example with packaging and filling machines.

Technical data
Counter for small parts from 0.2 to 18 mm in diameter (*)
Cylindrical parts can have a length of up to 20 mm (*)
Only one adjustable conveyor bowl is used for the whole size range
Conveyor bowl: anodised Aluminium, sorting element FS-0. Other bowls and sorting elements available on request
Display and preset range of the counter: 0 to 99’999
Modes of operation: Preset counter, Totaliser
The conveyor speed is reduced shortly before reaching the desired quantity to achieve a high dosing accuracy
External connections allow the combination of the seed counter C1 with other devices, e.g. packaging machines
Typical performance data for spherical parts of 2mm diameter:
Counting speed: about 50’000 parts per hour
Counting error: 1/10’000 for clean, easy to separate parts
Modes of operation:
Totaliser
Preset counter

Conveyor bowls for specific tasks
Counter with dual product outlet
Automatic seed weight sorter
Filling carousel for bags and/or vials
Filling adapter for containers
Dust cover
Ionizer
Receipt printer
Feeder / hopper with a few litres storage volume
