Balante Ultra-Micro :: Micro :: Semi-Micro

microbalanta
masa_balanta_antivibratie

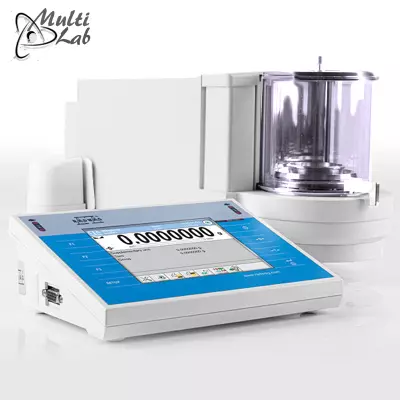

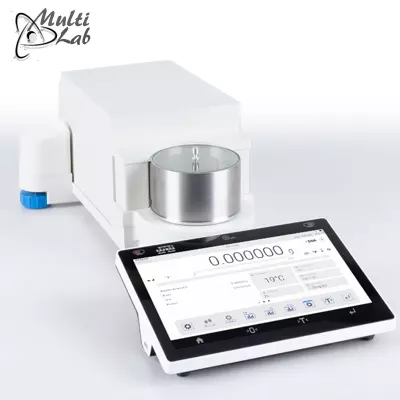

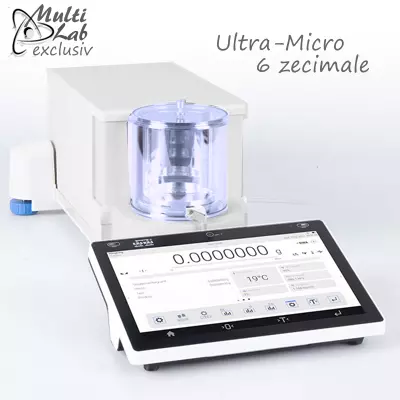

Ultra-Microbalanta
Diviziuni 0,1 microgram (0,0001 mg)
Capacitate :: 2,1 g
Seria UYA 2.4Y

Ultra Microbalante analitice

Analytical Ultra-Microbalances


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Noua generație de ultra-microbalante a fost conceputa pentru a raspunde celor mai înalte exigente in procesele de masurare a maselor.
Sistemul de calibrare interna automata menține o precizie si o acuratete excelentă in toata plaja de masurare.
Dispozitivul este alcătuit din două componente principale separate: un indicator electronic cu touch-screen color și un dispozitiv de măsurare mecanic. Astfel, separarea celor doua componente elimină influența caldurii generate de componentele indicatorului electronic asupra dispozitivului mecanic.
In plus aceasta solutie ajuta la eliminarea șocurilor și vibrațiilor cauzate de către utilizatorii care operează asupra indicatorului balantei.
Toate elementele microbalanței sint realizate din sticlă și metal pentru a se elimina influenta campurilor electrostatice asupra procesului de cântărire.

Date Tehnice

Model UYA 2.4Y UYA 2.4Y.F
Capacitate 2,1 g 2,1 g
Precizie 0,1 µg 0,1 µg
Tarare -2,1 g -2,1 g
Repetabilitate 0,3 µg 0,3 µg
Linaritate ±1,5 µg ±1,5 µg
Posibila deviere 1,5 µg 1,5 µg
Stabilitate sensibilitate 1×10-6/Year x Rt 1×10-6/Year x Rt
Sensibilitate compensată 1,5×10-6 x Rt 1,5×10-6 x Rt
Sensibilitate deriva de temperatura 1×10-6/°C×Rt 1×10-6/°C×Rt
Sarcina minima 0,6 mg 0,6 mg
Greutate minima 0,06 mg 0,06 mg
Timp de stabilizare 10-20 s 10-20 s
Calibrare internal internal
Afisaj 5,7'' (touch screen) 5,7'' (touch screen)
Procesor 2 × 1 GHz 2 × 1 GHz
Alimentare 13,5 ÷ 16 V DC 13,5 ÷ 16 V DC
Putere 700mA (wireless terminal - 1A) 700mA (wireless terminal - 1A)
Temperatura de lucru +10 ÷ +30 °C +10 ÷ +30 °C
Umiditate 40% ÷ 80% 40% ÷ 80%
Diametru platan Ø 16 mm Ø 50 mm
Dimensiune camera de cantarire Ø 90×90 mm Ø 118×35 mm
Interfata 2×USB host, 2×RS 232, Ethernet 10/100 Mbit, Wireless Module, 4 in / 4 out (digital)

*Balantele detine aprobare de model si certificat CE/ OIML si va fi livrata cu verificare metrologica initiala valabila timp de un an.

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
New generation of ultra-microbalances UYA 4Y is designed to meet the highest requirements for determination of mass. Its built-in system of automatic internal adjustment/calibration maintains excellent measurement reliability and accuracy. The device comprises two major components (an indicator and a precise mechanical measuring system which are enclosed separately). Such design eliminates an influence of heat sourcing from instrument's electronics on its mechanical components and additionally protects it from shocks and vibrations caused by users operating the instrument. All the elements of a microbalance are made of glass and steel which eliminates an impact of electrostatics on weighing process.

Technical Specifications

Model UYA 2.4Y UYA 2.4Y.F
Max capacity [Max] 2,1 g 2,1 g
Readability [d] 0,1 µg 0,1 µg
Tare range -2,1 g -2,1 g
Repeatability 0,3 µg 0,3 µg
Linearity ±1,5 µg ±1,5 µg
Eccentric load deviation 1,5 µg 1,5 µg
Sensitivity stability 1×10-6/Year x Rt 1×10-6/Year x Rt
Sensitivity offset 1,5×10-6 x Rt 1,5×10-6 x Rt
Sensitivity temperature drift 1×10-6/°C×Rt 1×10-6/°C×Rt
Minimum weight (USP) 0,6 mg 0,6 mg
Minimum weight (U=1%,k=2) 0,06 mg 0,06 mg
Stabilization time 10-20 s 10-20 s
Calibration internal internal
Display 5,7'' (touch screen) 5,7'' (touch screen)
Processor 2 × 1 GHz 2 × 1 GHz
Power supply 13,5 ÷ 16 V DC 13,5 ÷ 16 V DC
Power consumption 700mA (wireless terminal - 1A) 700mA (wireless terminal - 1A)
Working temperature +10 ÷ +30 °C +10 ÷ +30 °C
Atmospheric humidity 40% ÷ 80% 40% ÷ 80%
Pan Size Ø 16 mm Ø 50 mm
Weighing chamber dimensions Ø 90×90 mm Ø 118×35 mm
Interface 2×USB host, 2×RS 232, Ethernet 10/100 Mbit, Wireless Module, 4 in / 4 out (digital)





Accesorii optionale Optional Accesories
- Imprimanta termica
- Imprimanta etichete
- Scaner cod de bare
- Display aditional detasabil
- Cabluri de conectare RS 232 (imprimanta Epson,Citizen)
- Masa anti vibratii
- Mini tavi de cantarire din aluminiu
- Program software
- Incarcator cu baterie (in lipsa sursa de curent electric)
- Thermal printers
- Label printer - Additional display
- Software
- Rs 232 cables (scale - epson/citizen printer)
- Rs 232 cables (scale - computer)
- Power adapters
- Antivibration tables

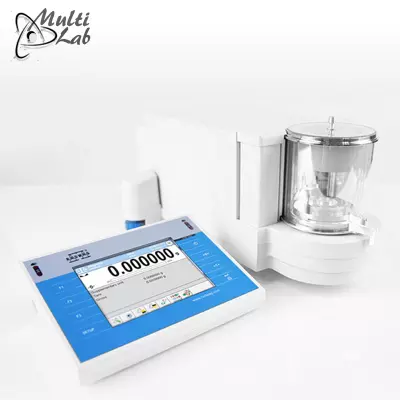

Microbalanta
Diviziuni 1/10 µg
Capacitate :: intre 0,8g si 21 g
Seria MYA 4Y

Microbalante analitice

Analytical Microbalances


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Noua generație de microbalante a fost conceputa pentru a raspunde celor mai înalte exigente in procesele de masurare a maselor.
Sistemul de calibrare interna automata menține o precizie si o acuratete excelentă in toata plaja de masurare.
Dispozitivul este alcătuit din două componente principale separate: un indicator electronic cu touch-screen color și un dispozitiv de măsurare mecanic.
Astfel, separarea celor doua componente elimină influența caldurii generate de componentele indicatorului electronic asupra dispozitivului mecanic.
In plus aceasta solutie ajuta la eliminarea șocurilor și vibrațiilor cauzate de către utilizatorii care operează asupra indicatorului microbalantei.
Toate componentele sint realizate din sticlă și metal pentru a se elimina influenta campurilor electrostatice asupra procesului de cântărire.

Date Tehnice

Model MYA 2.4Y MYA 0,8/3.4Y MYA 5.4Y MYA 11.4Y MYA 21.4Y
Capacitate 2,1 g 0,8 g / 3 g 5,1 g 11 g 21 g
Precizie 1 µg 1 µg / 10 µg 1 µg 1 µg 1 µg
Tarare -5,1 g -5,1 g -5,1 g -11 g -21 g
Repetabilitate 0,7 µg
1 µg (0,2g < Rt ≤ 2g)
1 µg (Rt ≤ 0,8g)
4,1 µg (0,8g < Rt ≤ 3g)
1 µg (Rt ≤ 2g)
1,6 µg (2g < Rt ≤ 5,1g
1,5 µg (Rt ≤ 2g)
2,0 µg (2g < Rt ≤ 5g)
2,5 µg (5g < Rt ≤ 11g)
1,5 µg (Rt ≤ 2g)
2,0 µg (2g < Rt ≤ 5g)
2,5 µg (5g < Rt ≤ 11g)
3,0 µg (11g < Rt ≤ 21g)
Linaritate ±3 µg ±3 µg / ±10 µg ±5µg ±6µg ±7µg
Posibila deviere 3 µg 3 µg / 10 µg 5 µg 6 µg 7 µg
Stabilitate sensibilitate 1×10-6/an x Rt 1×10-6/an x Rt 1×10-6/an x Rt 1×10-6/an x Rt 1×10-6/an x Rt
Sensibilitate compensată 1,5×10-6 x Rt 1,5×10-6 x Rt 1,5×10-6 x Rt 3×10-6 x Rt 4×10-6 x Rt
Sensibilitate deriva de temperatura 1×10-6/°C×Rt 1×10-6/°C×Rt 1×10-6/°C×Rt 1×10-6/°C×Rt 1×10-6/°C×Rt
Sarcina minima 1,4 mg 2 mg 2 mg 2,4 mg 2,4 mg
Greutate minima 0,14 mg 0,2 mg 0,2 mg 0,24 mg 0,24 mg
Timp de stabilizare 5 s 5 s 5 s 5 s 5 s
Calibrare interna interna interna interna interna
Afisaj 5,7" (touch screen) 5,7" (touch screen) 5,7" (touch screen) 5,7" (touch screen) 5,7" (touch screen)
Procesor 2 × 1 GHz 2 × 1 GHz 2 × 1 GHz 2 × 1 GHz 2 × 1 GHz
Memorie RAM: 256 MB DDR2, memory card: 8 GB microSD RAM: 256 MB DDR2, memory card: 8 GB microSD RAM: 256 MB DDR2, memory card: 8 GB microSD RAM: 256 MB DDR2, memory card: 8 GB microSD RAM: 256 MB DDR2, memory card: 8 GB microSD
Alimentare 13,5 ÷ 16 V DC 13,5 ÷ 16 V DC 13,5 ÷ 16 V DC 13,5 ÷ 16 V DC 13,5 ÷ 16 V DC
Putere 700mA (wireless terminal - 1A) 700mA (wireless terminal - 1A) 700mA (wireless terminal - 1A) 700mA (wireless terminal - 1A) 700mA (wireless terminal - 1A)
Temperatura de lucru +10 ÷ +30 °C +10 ÷ +30 °C +10 ÷ +30 °C +10 ÷ +30 °C +10 ÷ +30 °C
Umiditate 40% ÷ 80% 40% ÷ 80% 40% ÷ 80% 40% ÷ 80% 40% ÷ 80%
Diametru platan Ø 16 mm Ø 16 mm

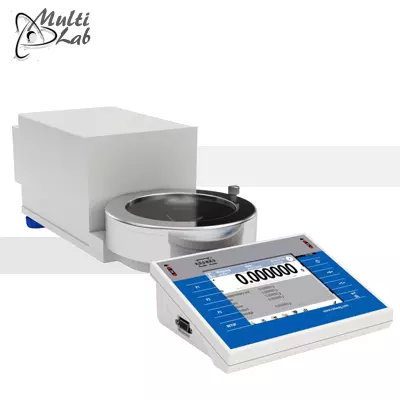

Ø 60 mm (pentru filtre)
Ø 26 mm Ø 26 mm Ø 26 mm
Dimensiune camera de cantarire Ø 90×90 mm Ø 90×90 mm Ø 90×90 mm Ø 90×90 mm Ø 90×90 mm
Greutate 10 Kg 10 Kg 10 Kg 10 Kg 10 Kg
Interfata 2×USB host, 2×RS 232, Ethernet 10/100 Mbit, Wireless Module, 4 in / 4 out (digital)

*Balantele detine aprobare de model si certificat CE/ OIML si va fi livrata cu verificare metrologica initiala valabila timp de un an.

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Innovative 2-point adjustment system Brand new adjustment system guarantees the highest measurement accuracy. It minimizes linearity errors simultaneously providing reliable indications for the whole weighing range.
Faster measurement with the new CPU
4Y balances feature Dual Core 2 x 1 GB processor which delivers noticeable performance improvements including faster operation and shorter stabilization time retaining high repeatability values.
Monitoring and elimination of electrostatics Installation of an additional deionizer module in a weighing chamber facilitates automatic detection and elimination of electrostatics effect to which both, sample and container intended for measurement may be subjected.
8 GB RAM – more data management possibilities
8 GB RAM offers possibility of recording data in a form of complex reports. Time and statistic data diagrams on series of weighments are another useful option.
The best possible repeatability and USP regulations conformity
The best weighing accuracy and repeatability – with sd ≤ 1d combined with USP regulations conformity (Section 41 and 1251) make 4Y balances a new standard for mass measurement quality.
Ergonomics and safety Wireless communication between balance terminal and a weighing unit make it possible to comfortably operate 4Y series balances in laminar air flow cabinets and fume cupboards.
Remote control operation Wireless Connection module offers wireless transfer of data recorded by 4Y balance to any portable device powered by iOS or Android systems using special applications intended for data management.
Data safety Every single 4Y balance features ALIBI memory designed to provide protection and automatic recording of your measurements. Options such as data preview, copying and archiving are also available to users.

Technical Specifications

Model MYA 2.4Y MYA 0,8/3.4Y MYA 5.4Y MYA 11.4Y MYA 21.4Y
Max capacity [Max] 2,1 g 0,8 g / 3 g 5,1 g 11 g 21 g
Readability [d] 1 µg 1 µg / 10 µg 1 µg 1 µg 1 µg
Tare range -5,1 g -5,1 g -5,1 g -11 g -21 g
Repeatability 0,7 µg
1 µg (0,2g < Rt ≤ 2g)
1 µg (Rt ≤ 0,8g)
4,1 µg (0,8g < Rt ≤ 3g)
1 µg (Rt ≤ 2g)
1,6 µg (2g < Rt ≤ 5,1g
1,5 µg (Rt ≤ 2g)
2,0 µg (2g < Rt ≤ 5g)
2,5 µg (5g < Rt ≤ 11g)
1,5 µg (Rt ≤ 2g)
2,0 µg (2g < Rt ≤ 5g)
2,5 µg (5g < Rt ≤ 11g)
3,0 µg (11g < Rt ≤ 21g)
Linearity ±3 µg ±3 µg / ±10 µg ±5µg ±6µg ±7µg
Eccentricity 3 µg 3 µg / 10 µg 5 µg 6 µg 7 µg
Sensitivity stability 1×10-6/Year x Rt 1×10-6/Year x Rt 1×10-6/Year x Rt 1×10-6/Year x Rt 1×10-6/Year x Rt
Sensitivity offset 1,5×10-6 x Rt 1,5×10-6 x Rt 1,5×10-6 x Rt 3×10-6 x Rt 4×10-6 x Rt
Sensitivity temperature drift 1×10-6/°C×Rt 1×10-6/°C×Rt 1×10-6/°C×Rt 1×10-6/°C×Rt 1×10-6/°C×Rt
Minimum weight (USP) 1,4 mg 2 mg 2 mg 2,4 mg 2,4 mg
Minimum weight (U=1%,k=2) 0,14 mg 0,2 mg 0,2 mg 0,24 mg 0,24 mg
Stabilization time 5 s 5 s 5 s 5 s 5 s
Calibration internal internal internal internal internal
Display 5,7" (touch screen) 5,7" (touch screen) 5,7" (touch screen) 5,7" (touch screen) 5,7" (touch screen)
Processor 2 × 1 GHz 2 × 1 GHz 2 × 1 GHz 2 × 1 GHz 2 × 1 GHz
Memory RAM: 256 MB DDR2, memory card: 8 GB microSD RAM: 256 MB DDR2, memory card: 8 GB microSD RAM: 256 MB DDR2, memory card: 8 GB microSD RAM: 256 MB DDR2, memory card: 8 GB microSD RAM: 256 MB DDR2, memory card: 8 GB microSD
Power supply 13,5 ÷ 16 V DC 13,5 ÷ 16 V DC 13,5 ÷ 16 V DC 13,5 ÷ 16 V DC 13,5 ÷ 16 V DC
Power consumption 700mA (wireless terminal - 1A) 700mA (wireless terminal - 1A) 700mA (wireless terminal - 1A) 700mA (wireless terminal - 1A) 700mA (wireless terminal - 1A)
Working temperature +10 ÷ +30 °C +10 ÷ +30 °C +10 ÷ +30 °C +10 ÷ +30 °C +10 ÷ +30 °C
Atmospheric humidity 40% ÷ 80% 40% ÷ 80% 40% ÷ 80% 40% ÷ 80% 40% ÷ 80%
Pan Size Ø 16 mm Ø 16 mm
Ø 60 mm (pentru filtre)
Ø 26 mm Ø 26 mm Ø 26 mm
Weighing chamber dimensions Ø 90×90 mm Ø 90×90 mm Ø 90×90 mm Ø 90×90 mm Ø 90×90 mm
Weight 10 Kg 10 Kg 10 Kg 10 Kg 10 Kg
Interface 2×USB host, 2×RS 232, Ethernet 10/100 Mbit, Wireless Module, 4 in / 4 out (digital)





Accesorii optionale Optional Accesories
- Imprimanta termica
- Imprimanta etichete
- Scaner cod de bare
- Display aditional detasabil
- Cabluri de conectare RS 232 (imprimanta Epson,Citizen)
- Masa anti vibratii
- Mini tavi de cantarire din aluminiu
- Program software
- Incarcator cu baterie (in lipsa sursa de curent electric)
- Thermal printers
- Label printer - Additional display
- Software
- Rs 232 cables (scale - epson/citizen printer)
- Rs 232 cables (scale - computer)
- Power adapters
- Antivibration tables




Balante Semi-micro
Diviziuni 0,01
Capacitate :: intre 125g si 225 g
Seria Precisa EP SM-DR

Microbalante analitice

Semi-micro Balances 0.01 mg


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale

Date Tehnice

Model Semi-micro EP 125SM Semi-micro EP 225SM Semi-micro EP 225DR
Capacitate 125 g 102 g 225 g
Precizie 0.01 mg 0.01 mg 0.1 mg
Repetabilitate 0.02 mg ≤40 g
0.05 mg > 40 g
0.02 mg ≤40 g
0.05 mg > 40 g
0.02 mg ≤40 g
0.05 mg > 40 g
Linaritate 0.03 mg 0.03 0.1 mg
Abatere la 10...30°C 1.5 ppm / °C 1.5 ppm / °C 1.5 ppm / °C
Afisaj LCD LCD LCD
Diametru platan Ø 80 Ø 80 Ø 80
Timp de raspuns 8 s 8 s 3 s
Interfata RS232 si PS/2 RS232 si PS/2 RS232 si PS/2
Dimensiune (WxLxH) 240 x 360 x 345 mm 240 x 360 x 345 mm 240 x 360 x 345 mm
Dimensiune camera de cantarire Ø140 x 230 mm Ø140 x 230 mm Ø140 x 230 mm
Greutate 6.6 kg 6.6 kg 6.6 kg

*Balantele detine aprobare de model si certificat CE/ OIML si va fi livrata cu verificare metrologica initiala valabila timp de un an.

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features

Technical Specifications

Model Semi-micro EP 125SM Semi-micro EP 225SM Semi-micro EP 225DR
Capacity 125 g 102 g 225 g
Readability 0.01 mg 0.01 mg 0.1 mg
Repeatability 0.02 mg ≤40 g
0.05 mg > 40 g
0.02 mg ≤40 g
0.05 mg > 40 g
0.02 mg ≤40 g
0.05 mg > 40 g
Linearity 0.03 mg 0.03 0.1 mg
Sensitivity drift @10...30°C 1.5 ppm / °C 1.5 ppm / °C 1.5 ppm / °C
Pan Size Ø 80 Ø 80 Ø 80
Reponse time 8 s 8 s 3 s
Dimensions (WxLxH) 240 x 360 x 345 mm 240 x 360 x 345 mm 240 x 360 x 345 mm
Draft shield inside dimensions Ø140 x 230 mm Ø140 x 230 mm Ø140 x 230 mm
Weight 6.6 kg 6.6 kg 6.6 kg





Accesorii optionale Optional Accesories
- Imprimanta termica
- Imprimanta etichete
- Scaner cod de bare
- Display aditional detasabil
- Cabluri de conectare RS 232 (imprimanta Epson,Citizen)
- Masa anti vibratii
- Mini tavi de cantarire din aluminiu
- Program software
- Incarcator cu baterie (in lipsa sursa de curent electric)
- Thermal printers
- Label printer - Additional display
- Software
- Rs 232 cables (scale - epson/citizen printer)
- Rs 232 cables (scale - computer)
- Power adapters
- Antivibration tables
