Vascozimtre universale
Seria Brookfield DVE

Solicit oferta de pret »

RFQ »

Vascozimetre rotative - seria DVE

Low Cost and Easy-to-Use viscosity measurement

Viscozimetre rotative automate se foloseste pentru determinarea vascozitatea si proprietati ale produselor alimentare, farmaceutice, chimice, uleiurilor, lubrifiante, etc.

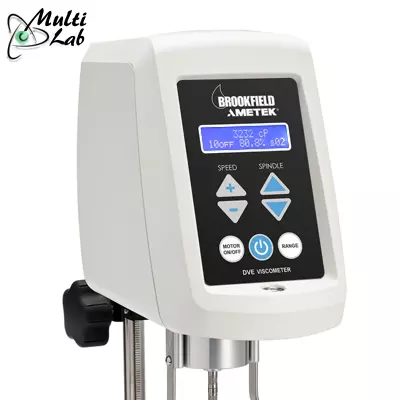

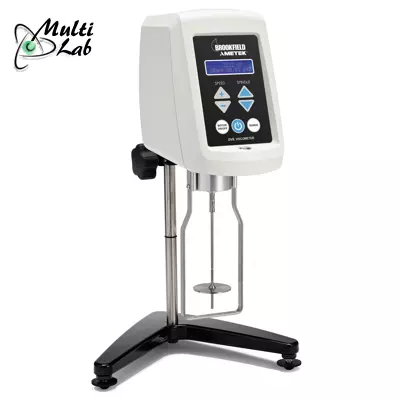

Vascozimetrele digitale din seria "DVE" cu afisaj LCD cu domeniu de masurare intre: 1* ... 104.000.000 cP in 4 variante pe domenii diferite (rpm intre 0.3 si 100); imbina acuratetea si reproductibilitatea specifice instrumentelor Brookfield cu avantajele oferite de afisarea si iesirea digitala a datelor.

Caracteristici si Avantaje
• are 18 viteze presetate care acopera intreg domeniul de viscozitati
• Afisare directa in: cP sau mPa·s; cuplu de torsiune "% Torque"; raportul efort de forfecare / forta, % efort de torsiune; axele rotative si viteza
• modul de comanda este foarte simplu prin intermediul tastaturii
• exista o tasta speciala care indica automat domeniul de viscozitate in functie de paletele si viteza folosite
• citire a rezultatelor in mod continuu
• se indica daca viscozitatea este mai mica sau mai mare decat domeniul existent
• precizie ±1.0% din domeniu setat
• repetabilitate ±0.2%
• se livreaza complet cu set de palete, suport de sustinere si carcasa speciala.

Domeniul de aplicatii pentru modelul DVE:
adezivi (pe baza de solvent), fluide biologice, chimicale, cosmetice, produse lactate, ceara lichida, cerneluri, sucuri, latex, uleiuri, vopsele, produse farmaceutice, solventi, solutii de cauciuc si de polimeri.

Variante de model

Model Domenii de vascozitate Aplicatii
LVDV-E 1* >> 2 000 000 cP vascozitate mica / medie cerneluri, uleiuri, solventi, fluide biologice, cosmetice, produse lactate, ceara fierbinte, sucuri, vopsele, farmaceutice, solutii de polimeri, solutii de cauciuc, etc.
RVDV-E 100 >> 13 000 000 cP vascozitate medie creme, adezivi, produse lactate, gume, pasta de dinti, organosoli, vopsele, pasta de hartie, etc.
HADV-E 200 >> 26 000 000 cP Vascozitate mare

geluri, ciocolata, unt, melasa, paste, asfalt, vopsele, gudroane, etc.

HBDV-E 800 >> 104 000 000 cP

*Pentru viscozitati intre 200 si 26 000 000 cP se foloseste un adaptor tip SSA (Small Sample Adapter) care se comanda separat.

The DVE combines economy and ease of operation with traditional Brookfield excellence to provide reliable viscosity readings. Easy to use interface allows operators to change test parameters easily and test like a pro no time! The digital display ensures easy and accurate readout of test results for simultaneous measurement of viscosity and torque. Quality of manufacture guarantees reliable performance and long life.

FEATURES & BENEFITS
Low cost and easy to use
Direct display in: cP or maps, % Torque, Spindle, and Speed
Torque measurement accuracy: 1% of full scale range
Repeatability: 0.2% of full scale range
Compatible with all Brookfield accessories
NIST traceable viscosity standards available
18 speeds for greater range capability (0.3 to 100 rpm)

TORQUE EXPLANATIONS
LV is for low viscosity materials and can measure the thinnest materials. Typical examples include inks, oils, and solvents
RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams, food, and paints
HA is for higher viscosity materials than those measured with an RV torque. Typical examples include gels, chocolate and epoxies
HB is for even higher viscosity materials than those measured with an HA torque spring. Typical examples include asphalt, caulking compounds, and molasses

Accesorii optionale:
SSA: Adaptor pentru volume mici de proba, domeniu de vascozitate 3...10000 cP, cu sonda de temperatura incorporata in incinta probei ... detalii »

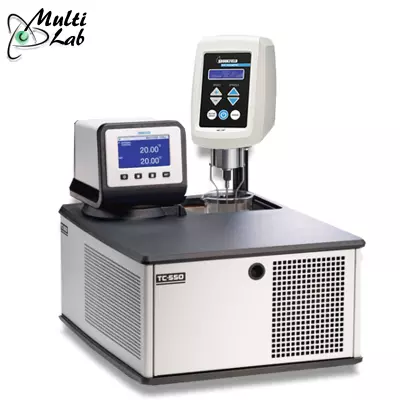

TC-150SD: Baie termostatata de recirculare, volum 6L, domeniu de temperaturi ambient...150°C. ... detalii »
Fluid tehnic ML-cP: Solutie siliconica cu vascozitate standard de 5cP, 10cP, 50cP, 100cP, 500cP, 1000cP, 5000cP, 12500cP, 30000cP, 60000cP, 100000cP
Baie de apa termostatata programabila ... detalii »
