Axe vascozitate

Modele: Brookfield

Solicit oferta de pret »

RFQ »

Palete axiale rotative vascozimetrice Arbore axiale LV si Arbore axiale RV/HA/HB
Vascozimetrele Brookfiled se livreaza impreuna cu palete / tije standard din otel inox, optional din otel inox sau din teflon pentru rezistenta mai mare la coreziune

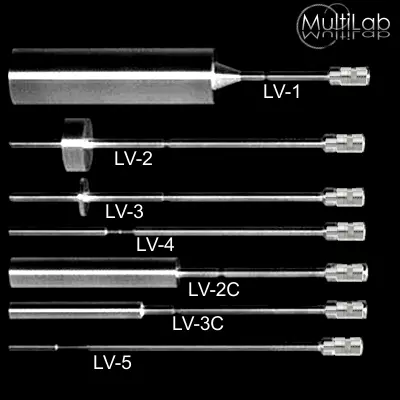

Standard Spindles LV, RV, HA or HB
All standard LV torque Brookfield Viscometers/Rheometers are supplied with a standard spindle set (LV-1 through LV-4) constructed of #302 stainless steel.
Additional spindle options are available in #316 stainless steel or Teflon coating for increased corrosion resistance.

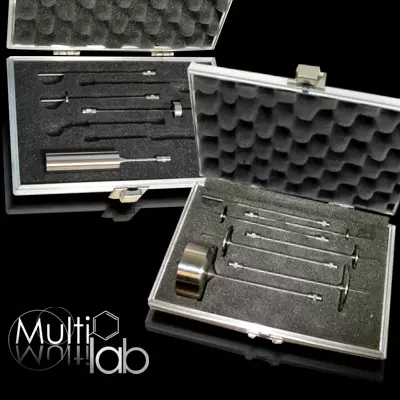

An optional spindle rack makes a convenient storage "bench" and allows easy and quick access to all spindles
Spindle LV-5 is an optional spindle designed to increase measuring range.
Spindles LV-2C and LV-3C are optional "cylindrical spindles" offering geometry for calculating shear rates.

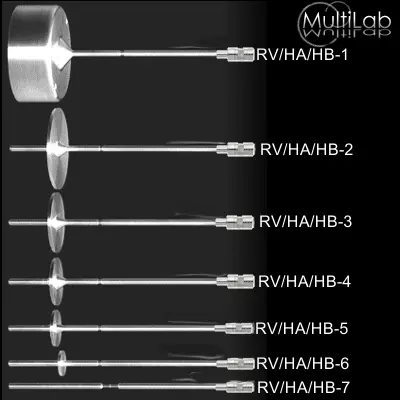

All standard RV, HA or HB torque Brookfield Viscometers/Rheometers are supplied with a standard spindle set (RV-2 through RV-7) constructed of #302 stainless steel.
Additional spindle options are available in #316 stainless steel or Teflon coating for increased corrosion resistance.
An optional spindle rack makes a convenient storage "bench" and allows easy and quick access to all spindles.

Palete tije-arbore de cuplare vascozimetrice cP(mPa·s)

cod. produs Domeniu viteza de rotatie
LV-1 (61) 15-20k 3...60 rpm
LV-2 (62) 50-100k 3...60 rpm
LV-3 (63) 200-400k 3...60 rpm
LV-4 (64) 1K-2M 3...60 rpm
LV-5 (65) 2K-4M 3...60 rpm
LV-2C 50-100k 3...60 rpm
LV-3C 200-400k 3...60 rpm

*Vitezele de rotatie RV/HA/HB 5-100 rpm
M=1000,000 | K=1000

Palete tije-arbore de cuplare vascozimetrice cP(mPa·s)

cod. produs Domeniu* :: Seria RV Domeniu* :: Seria HA Domeniu* :: Seria HB
RV-1** 100-20k 200-40k 800-160k
HA/HB-1** 100-20k 200-40k 800-160k
RV-2 100-80k 200-160k 800-640k
HA/HB-2 100-80k 200-160k 800-640k
RV/HA/HB-3 100-200k 200-400k 800-1.60M
RV/HA/HB-4 200-400k 200-800k 1.6K-3.2M
RV/HA/HB-5 400-800k 800-1.6M 3.2K-6.4M
RV/HA/HB-6 1K-2M 2K-4M 8K-16M
RV/HA/HB-7 4K-8M 8K-16M 32K-64M

*Vitezele de rotatie RV/HA/HB 5-100 rpm
M=1000,000 | K=1000
