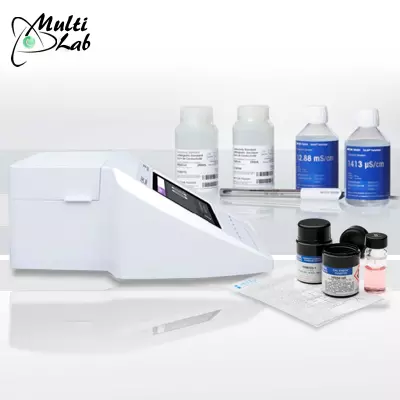

Turbidimetre de laborator

ro Turbidimetre » Aparate de laborator pentru determinarea turbiditate

uk Turbidity Analyzers » Laboratory benchtop tubidity measurement for high-end applications


Instrumente de masurare a turbiditații
Seria WTW Turb Modele de masa Turb-550 / Turb-550IR / Turb-555 / Turb-555IR

Aparate de laborator pentru masuratori precise a turbiditatii

Professional Benchtop Turbidity Meters


Pret : la cerere


Certificat de conformitate si validare


Made in EU


solicit oferta personalizata »

Modele: Turb 550 si Turb 550 IR
• Sursa de lumiuna: lampa Tungsten / IR LED
• Dispozitiv "flow-through" pentru masurare in flux continuu
• Calibrae: Automat in 1-3 puncte
• Conformitate: DIN EN 27 027, ISO 7027 (EN ISO 7027)
• Validare: Monitorizarea intervalului de calibrare si Protocol calibrare

Modele: Turb 555 si Turb 555 IR
• Sursa de lumiuna: lampa Tungsten / IR LED
• Dispozitiv "flow-through" pentru masurare in flux continuu
• Calibrae: Automat in 1-5 puncte
• Conformitate: DIN/ISO (EN ISO 7027)
• Validare, GPL, AQA, Monitorizarea intervalului de calibrare, Protocol calibrare, Parola de protectie pentru accesul la calibrare si configuratie controlul timpului pentru transmiterea datelor

Date tehnice

Model Turb 550 Turb 550 IR Turb 555 Turb 555 IR
Domeniu de masura
NTU 0 ... 1000 0 ... 1000 0 ... 10000 0 ... 10000
FNU x 0 ... 1000 x 0 ... 10000
EBC x x 0 ... 2450 0 ... 2450
Nefelos x x 0 ... 67000 x
FAU x x x 0 ... 10000
Rezolutie
0.0001 NTU x 0.0001 ... 9.9999 NTU
0.001 NTU   10.000 ... 99.999 NTU
0.01 NTU 0.00 ... 9.99 100.00 ... 999.99 NTU
0.1 NTU 10.0 ... 99.9 1000.0 ... 9999.9 NTU
1 NTU 100 ... 1000 x
Acuratete ± 2% din valoare sau ± 0.01 NTU 0 .. 1000 NTU: ± 2% din valoare sau ± 0.01 NTU
1000 .. 4000 NTU: ± 5% din valoare
4000 .. 10000 NTU: ± 10% din valoare
Principiul de masurare Nefelometric Nefelometric /Raport /Transmisie
Sursa de lumina lampa Tungsten IR-LED lampa Tungsten IR-LED
Reproductibilitate ± 1% din valoare sau ± 0.01 NTU ± 1% din valoare sau ± 0.01 NTU
Calibrare Automata 1 .. 3 puncte Automata 1 .. 5 puncte
Timpul de raspuns 3 secunde 6 secunde
Cuvele rotunde 28 x 70 mm / Volumul probei de 25 ml 28 x 70 mm / Volumul probei de 25 ml
Functii speciale / AQA • Monitorizarea intervalului de calibrare
• Protocol calibrare
• Monitorizarea intervalului de calibrare
• Protocol calibrare
• Parola de protectie pentru accesul la calibrare si configuratie controlul timpului pentru transmiterea datelor
Temperatura de lucru 0°C pana la + 40°C 0°C pana la + 50°C
Alimentare 100 - 240 VAC ±10% / 47 - 63 Hz 100 - 240 VAC ±10% / 47 - 63 Hz
Continut pachet Turbidimetru de laborator + 3 standarde de calibrare 0.02 – 10 – 1000 NTU + 2 cuve goale Turbidimetru de laborator DIN EN 27 027, ISO 7027 (EN ISO 7027) + 3 standarde de calibrare 0.02 – 10 – 1000 NTU + 2 cuve goale Turbidimetru de laborator conform US EPA + 4 standarde de calibrare 0.02 – 10.0 – 100 – 1750 NTU + 3 cuve goale Turbidimetru de laborator conform DIN/ISO (EN ISO 7027) + 4 standarde de calibrare 0.02 – 10.0 – 100 – 1750 NTU + 3 cuve goale
Cod Produs 600 100 600 110 600 200 600 210

Conformitate & Certificate
• Certificat de conformitate
• Marcat CE
• Certificat de garantie si post garantie MultiLab Romania
• Centru de service autorizat MultiLab Romania

Main Features
Turb 550 Turbidity meters for all nephelometric measurements in the lab and in drinking water analytics of 0.01 - 1000 NTU according to DIN ISO 27027 / US EPA 180.1
The lab turbidity meters of the Turb 550 series with IR lamp as per DIN ISO or Tungsten-halogen lamp as per US EPA for nephelometric measurements with automatic 1-3 point calibration and calibration interval monitoring with protocol for the AQS. User guidance and quick instructions on the meter ensure user-friendly measurements and calibration. The calibration is conducted with highly precise AMCO Clear polymer standards, called a secondary standard for drinking water as per DIN ISO 27027, EN ISO 7027 or approved as primary standards as per US EPA (0.02 – 10.0 – 1000 NTU). The analytical quality assurance (AQA) takes place via an adjustable calibration interval and a calibration protocol.

Turb 555 Professional turbidity meters for the lab from 0.01 – 10.000 NTU according to drinking water standard, for quality, goods receiving and production inspections
Turb 555 offers highly precise optics with several detectors and therefore allows nephelometric (90° stray light) measurement for drinking water as per DIN ISO 27027/ EN ISO 7027 / US EPA 180.1, transmission and ration measurements (ratio method).
Ratio procedures reduce the influence of sample colorations and interference effects of stray light with high turbidity. Comprehensive AQA functions such calibration interval monitoring with protocol, password protection for calibration and setup access fulfill the quality assurance requirements. The calibration up to 4000 NTU takes place with highly precise AMCO Clear polymer standards (0.02 – 10.0 - 100 – 1750 NTU) that are called secondary standard for drinking water as per DIN ISO 27027, EN ISO 7027 or approved as primary standards as per US EPA. As an option, the measuring range can be expanded by a 10,000 NTU standard.

AMCO Clear Standards Compared to Formazine, polymer calibration standards offer a much higher accuracy and stability without drifting, which increases the measuring accuracy even more:
Manufacturing tolerance of only ±1% for highest result accuracy
Long-term stable particle distribution and size
No health hazard
Easy to dispose of
N.I.S.T. traceability
For continuous measurements, there is an attachment for flow-through available. The measurement data can be sent to a PC or a printer timer-controlled via the RS232 interface.

Technical Data

Model Turb 550 Turb 550 IR Turb 555 Turb 555 IR
Measuring principles Nephelometric Nephelometric Nephelometric ratio method transmission Nephelometric ratio method transmission
Measuring range
NTU 0 ... 1000 0 ... 1000 0 ... 10000 0 ... 10000
FNU x 0 ... 1000 x 0 ... 10000
EBC x x 0 ... 2450 0 ... 2450
Nephelos x x 0 ... 67000 x
FAU x x x 0 ... 10000
Resolution
0.0001 NTU x 0.0001 ... 9.9999 NTU
0.001 NTU   10.000 ... 99.999 NTU
0.01 NTU 0.00 ... 9.99 100.00 ... 999.99 NTU
0.1 NTU 10.0 ... 99.9 1000.0 ... 9999.9 NTU
1 NTU 100 ... 1000 x
Accuracy ± 2% of value or ± 0.01 NTU 0 .. 1000 NTU: ± 2% of value or ± 0.01 NTU
1000 .. 4000 NTU: ± 5% of value
4000 .. 10000 NTU: ± 10% of value
Light source Tungsten lamp IR-LED Tungsten lamp IR-LED
Reproductibility ± 1% of value or ± 0.01 NTU ± 1% of value or ± 0.01 NTU
Calibration Automatic 1 .. 3 point calibration Automatic 1 .. 5 point calibration
Response time 3 sec. 6 sec.
Cuvettes 28 x 70 mm / round cuvette, 25 ml sample volume 28 x 70 mm / round cuvette, 25 ml sample volume
AQA Functions Calibration interval monitoring
Calibration protocol
Calbration interval monitoring
Calibration protocol
Password-protected access to calibration and configuration
time-controlled data transmission
Operating temperature 0°C ... + 40°C 0°C... + 50°C
Power supply 100 - 240 VAC ±10% / 47 - 63 Hz 100 - 240 VAC ±10% / 47 - 63 Hz
Ordering Information Laboratory turbidity meter with universal power supply 90 ... 250 V, 3 calibration standards 0.02 – 10.0 – 1000 NTU, 2 empty cuvettes Laboratory turbidity meter for measurements according to DIN EN 27 027, ISO 7027 (EN ISO 7027) universal power supply 90 ... 250 V, 3 calibration standards 0.02 – 10.0 – 1000 NTU, 2 empty cuvettes High-end laboratory turbidity meter according to US EPA with universalpower supply 90 ... 250 V, 4 calibration standards 0.02 – 10.0 – 100 – 1750 NTU, 3 empty cuvettes High-end laboratory turbidity meter according to DIN/ISO (EN ISO 7027) with universal power supply 90 ... 250 V, 4 calibration standards 0.02 – 10.0 – 100 – 1750 NTU, 3 empty cuvettes
Product Code 600 100 600 110 600 200 600 210





Modell Description Order no.
Accesorii si piese de schimb / Accesories & Spare parts
Cal.Kit P Turb 555 IR Calibration set for Turb 555 IR (0.02-10.0-100-1750 NTU) incl. marking rings 600543
Cal.Std P 10000 NTU IR Turbidity standard 10,000 NTU for Turb 555 IR 600544
Cal.Kit P Turb 555 Calibration set for Turb 555 T (0.02-10.0-100-1750 NTU) incl. marking rings 600545
Cal.Std P 10000 NTU WL Turbidity standard 10,000 NTU for Turb 555 T/white light 600546
Cell Turb/SET Empty cuvette set 3 ea. for Turb 550/555 meters 600601
Lamp Turb 555 IR Preadjusted replacement lamp IR for Turb 555 IR 600608
Lamp Turb 550/555-WL Preadjusted replacement lamp tungsten-halogen for Turb 550 und Turb 555 (white light/T) 600603
D-Turb Flow vessel for Turb 550/555 meters, pressure-free 600600
Flow-Turb Flowmeter for low pressure applications (4 bar) with Turb 555 meters 600605
Cuvele
RK 14/25 25 round cuvettes 16 mm outer diameter, empty for photoLab and photoFlex 250621
REK 10 2 rectangular cuvettes, optical glass, layer thickness 10 mm 250605
REK 10 Quartz 1 rectangular cuvettes, quartz, layer thickness 10 mm 250606
REC 10 PMMA Disposable cuvette, PMMA, layer thickness 10 mm, 100 ea. 250607
REK 20 2 rectangular cuvettes, optical glass, layer thickness 20 mm 250600
REK 20 Quartz 1 rectangular cuvettes, quartz, layer thickness 20 mm 250601
REK 50 1 rectangular cuvettes, optical glass, layer thickness 50 mm 250614
REK 50 Quartz 1 rectangular cuvettes, quartz, layer thickness 50 mm 250615
REC 50/2 Half micro cuvette, optical glass, layer thickness 50 mm 250607
LK28-Set 12 replacement cuvettes round 28 x 60 mm for photoFlex / Turb 430 series 251302
Cell Turb /Set 3 empty cuvettes for lab turbidity meters Turb 550, Turb 550 IR, Turb 555 and Turb 555 IR 600601
Cell Turb 350/Set 3 empty cuvettes for portable turbidity meters Turb 350/355 IR und T 600606
Standarde calibrare de turbiditate / Turbidity standards
Cal.Kit P Turb 555 IR Calibration for Turb 555 IR (0.02-10.0-100-1750 NTU) incl. marking rings 600543
Cal.Std P 10000 NTU IR Turbidity standard 10.000 NTU for Turb 555 IR 600544
Cal.Kit P Turb 555 Calibration set for Turb 555 T (0,02-10,0-100-1750 NTU) incl. marking rings 600545
Cal.Std P 10000 NTU WL Turbidity standard 10.000 NTU for Turb 555 T/white light 600546
Cal.Kit P Turb 550 IR/T Calibration set for Turb 550 IR/T (0,02-10-1000 NTU) incl. marking rings 600542
Cal.Kit Turb 430 IR Calibration set for Turb 430 IR (0.02-10.0-1000 NTU) 600560
Cal.Kit Turb430 T Calibration set for Turb 430 T (0.02-10.0-1000 NTU) 600561
Cal.Kit P Turb 355 IR/T Calibration set for Turb 355 IR/T (0.02-10.0-1000 NTU) incl. marking rings 600547
Cal.Kit P Turb 350 IR Calibration set for Turb 350 IR (0.02-10.0-1000 NTU) incl. marking rings 600541
Cal-Kit VT 900 Calibration kit, AMCO Clear Standards 124 FNU, 1010 FNU 600702
Standard 1000 FNU Test standard with 1000 FNU for VisoTurb 700 IQ (Formazine) 600014
Standard 4000 FNU Test standard with 4000 FNU for ViSolid 700 IQ (Formazine) 600015
Standard 124 FNU Calibration standard for turbidity sensor EXO Turb TI of the EXO probes 599214
Standard 1010 FNU Calibration standard for turbidity sensor EXO Turb TI of the EXO probes 599215
Cal Kit Turb/DW Calibration kit for turbidity meters (except for TURB 2110): Standards 0.02, 10.0 and 1000 NTU, traceable to Formazine according to EN ISO 7027 and US EPA 600052
Cal Kit Turb 2110/DW Calibration kit for turbidity meters TURB 2110: Standards 0.02, 1.0 and 10,0 NTU, traceable to Formazine according to EN ISO 7027 600056



turbidimetru_WTW_Turb_550

Instrument de masurare a turbiditații
Model HANNA HI 88713

Turbidimetru de laborator pentru analiza calitatii apei conform metoda ISO 7072

Precision Benchtop Turbidity Meter


Pret : la cerere


Certificat de conformitate si validare


solicit oferta personalizata »

Avantaje
Turbidimetru stationar de mare precizie indeplineste cerintele specificate de standardul ISO 7027, special proiectat pentru analiza calitatii apei, furnizand citiri exacte pentru valori scazute ale turbiditatii.
Sistemul optic avansat al instrumentului garanteaza rezultate de mare acuratete, o mare stabilitate masuratorilor si reduce la minimum interferentele de culoare sau lumina sporadica. Sistemul optic permite de asemenea compensarea intensitatii fluctuatiilor LED-ului, reducand astfel nevoia unei calibrari frecvente.
Cuvele de 25 mm sunt facute din sticla optica, garantand astfel repetabilitatea si consistenta masuratorilor.
Instrumentul poate masura turbiditatea in patru moduri*: pe un domeniu de la 0.00 la 1000 FNU in mod FNU, de la 10 la 4000 FAU in mod FAU, de la 0.00 la 4000 NTU in mod NTU cu raport si de la 0.00 la 1000 NTU in mod NTU fara raport. In mod NTU sunt disponibile alternativ unitati de masura EBC. In functie de proba de analizat si de nivelul de acuratete cerut, se poate selecta pentru modul de masurare una dintre variantele: normal, continuu sau semnal mediu.
Pentru turbiditate se poate realiza o calibrare in 2, 3, 4 sau 5 puncte cu standardele furnizate (0.1, 15, 100, 750 FNU si 2000 NTU). In cazul in care sunt utilizate standarde preparate de utilizator, punctele de calibrare pot fi modificate.
HI 88713 dispune de functia GLP (Good Laboratory Practice) care permite urmarirea conditiilor de calibrare. In mod GLP, pot fi verificate ultimele puncte de calibrare, data si ora ultimei calibrari.
Interfata simpla, usor de utilizat, datorita ecranului LCD. Toate mesajele afisate sunt textuale, usor de citit si inteles; prin simpla apasare a unei taste, sunt disponibile mesaje de ajutor contextual, in mai multe limbi. Confirmarea actiunilor prin semnale acustice ajuta, de asemenea, utilizatorul in timpul operarii; acesta are la dispozitie si un tutorial al modurilor de operare pentru ghidarea pas cu pas in procesul de analiza.
Functia de memorare permite inregistrarea in memoria interna si consultarea datelor pentru circa 200 de masuratori. Pentru prelucrari ulterioare, datele pot fi transferate catre un PC folosind interfata USB si aplicatia software HI 92000 compatibila Windows.
*FNU - Formazin Nephelometric Units; FAU - Formazin Attenuation Units; NTU - Nephelometric Turbidity Units.

Date tehnice

Domeniu de masurare
Mod FNU 0.00 la 9.99; 10.0 la 99.9; 100 la 1000 FNU
Mod FAU 10.0 la 99.9; 100 la 4000 FAU
Mod NTU cu raport 0.00 la 9.99; 10.0 la 99.9; 100 la 4000 NTU 0.00 la 9.99; 10.0 la 99.9; 100 la 980 EBC
Mod NTU fara raport 0.00 la 9.99; 10.0 la 99.9; 100 la 1000 NTU 0.00 la 9.99; 10.0 la 99.9; 100 la 245 EBC
Selectare domeniu automata
Rezolutie
Mod FNU 0.01; 0.1; 1 FNU
Mod FAU 0.1; 1 FAU
Mod NTU cu raport 0.01; 0.1; 1 NTU / 0.01; 0.1; 1 EBC
Mod NTU fara raport 0.01; 0.1; 1 NTU / 0.01; 0.1; 1 EBC
Acuratete
Mod FNU ±2% din citire plus lumina sporadica
Mod FAU ±10% din citire
Mod NTU cu raport ±2% din citire plus lumina sporadica / ±5% din citire peste 1000 NTU
Mod NTU fara raport ±2% din citire plus lumina sporadica
Repetabilitate ±1% din citire sau lumina sporadica, oricare dintre acestea este mai mare
Lumina sporadica < 0.1 NTU (0.05 EBC)
Detector de lumina fotocelula siliconica
Sursa de lumina LED IR
Metoda aplicata ISO 7027
Mod de masurare normal, mediu, continuu
Standarde de turbiditate < 0.1, 15, 100, 750 FNU si 2000 NTU
Calibrare 2, 3, 4 sau 5 puncte de calibrare
Inregistrare date 200 inregistrari
Interfata PC USB
Conditii de operare de la 0 la 50°C; UR max 95% fara condens
Alimentare adaptor 12 Vdc
Dimensiuni 230 x 200 x 145 mm
Greutate 2.5 Kg

Conformitate & Certificate
• Certificat de conformitate
• Marcat CE
• Certificat de garantie si post garantie MultiLab Romania
• Centru de service autorizat MultiLab Romania

Continut pachet HI 88713 este livrat cu 6 cuve cu capac pentru esantioane, cuve pentru calibrare, ulei siliconic, material textil pentru curatarea cuvelor, adaptor si instructiuni de utilizare.

Main Features
The HI 88713 is a high accuracy bench top turbidity meter designed to meet and exceed the requirements of ISO 7027 standard and is ideal for water quality testing.
Using an infra-red light source it guarantees measurement repeatability and consistency. Variations in the intensity of the LED are also compensated for - limiting the need for frequent calibration.
Advantages
Store up to 200 measurements in internal memory via LOG key
Access on-screen support via HELP key
Clear tutorial messaging
Step by step guide through the analysis process
Range of calibration options
Perform 2,3,4 or 5 point calibration using Hanna standards
Calibration points can be modified when user prepared standards are used
Complete Good Laboratory Practice (GLP) functions allow traceability of the calibration conditions
Wide bench top format with easy clean casing and user-friendly interface
Four turbidity measurement modes
Graphic backlit LCD display
Main Benefits
Calibration at 2,3,4 or 5 points
Choice of four turbidity measurement modes
Choice of 3 measuring modes - select between normal, continuous or signal averaging measurement
User-friendly display with guidance codes
Log up to 200 samples
Data transfer to PC available as optional using USB cable and HI 92000 Windows compatible software

Technical Data

Measuring range
FNU Mode 0.00 to 9.99; 10.0 to 99.9; 100 to 1000 FNU
FAU Mode 10.0 to 99.9; 100 to 4000 FAU
NTU Ratio Mode 0.00 to 9.99; 10.0 to 99.9; 100 to 4000 NTU 0.00 to 9.99; 10.0 to 99.9; 100 to 980 EBC
NTU Non-Ratio Mode 0.00 to 9.99; 10.0 to 99.9; 100 to 1000 NTU 0.00 to 9.99; 10.0 to 99.9; 100 to 245 EBC
Resolution
FNU Mode 0.01; 0.1; 1 FNU
FAU Mode 0.1; 1 FAU
NTU Ratio Mode 0.01; 0.1; 1 NTU / 0.01; 0.1; 1 EBC
NTU Non-Ratio Mode 0.01; 0.1; 1 NTU / 0.01; 0.1; 1 EBC
Accuracy @ 25°C
FNU Mode ±2% of reading plus stray light
FAU Mode ±10% of reading
NTU Ratio Mode ±2% of reading plus stray light / ±5% of reading above 1000 NTU
NTU Non-Ratio Mode ±2% of reading plus stray light
Range Selection automatic
Repeatability ±1% of reading or stray light, whichever is greater
Stray Light < 0.1 NTU (0.05 EBC)
Light Detector silicon photocell
Light Source IR LED
Method ISO 7027 Method
Measuring Mode normal, average, continuous.
Turbidity Standards < 0.1, 15, 100, 750 FNU and 2000 NTU
Calibration two, three, four or five-point calibration
Log Memory 200 records
PC Connectivity USB
Environment 0°C to 50°C ; max 95% RH non-condensing
Power Supply 12 Vdc power input
Dimensions 230 x 200 x 145 mm
Weight 2.5 Kg



Solutie de curatare cuvete / Cuvette Cleaning Solution :: cod produs HI-93703-50
Set standard de calibrare / Calibration set for HI-88713-02 :: cod produs HI-88713-11

turbidimetru_WTW_Turb_550

Instrumente de masurare a turbiditații si clor
Model HANNA HI 83414

Aparat de masura pentru turbiditate si clor liber / total

EPA Compliant Benchtop Turbidity and Chlorine Meter


Pret : la cerere


Certificat de conformitate si validare


solicit oferta personalizata »

Un aparat de mare precizie, impermeabil, care combina cu succes masuratorile de turbiditate si colorimetrie ale celor mai importanti parametri ai apei potabile: turbiditate, clor liber si clor total. Instrumentul este special proiectat pentru analiza calitatii apei, furnizand citiri exacte pentru valori scazute ale turbiditatii si ale clorului liber/total.
Instrumentul intruneste cerintele USEPA si Standard Methods pentru masurarea turbiditatii si a clorului. Sistemul optic este format dintr-o sursa de lumina, detector si filtru de interferenta pentru banda ingusta la 525 nm, care asigura stabilitate pe termen lung si reduce la minim interferenta probelor cu lumina directa; calibrarea frecventa a instrumentului nu mai este necesara deoarece acest filtru compenseaza variatiile de intensitate ale lampii. Cuvele de 25 mm sunt confectionate din sticla optica, garantand astfel consistenta masuratorilor
Masurarea turbiditatii se poate realiza pe un domeniu de la 0.00 la 4000 NTU, cu raport, sau de la 0.00 la 40.0 NTU, fara raport. In functie de proba ce urmeaza a fi analizata si de acuratetea dorita, se poate selecta unul din modurile urmatoare de masurare: normal, continuu sau cu semnal mediu. Masurarea clorului liber si total se poate realiza pe un domeniu de la 0.00 la 5.00 mg/l (ppm). Datorita functiei CAL CHECK, performantele instrumentului pot fi verificate in orice moment folosind standardele NIST furnizate de HANNA.
Calibrarea se poate realiza in orice moment, atat pentru turbiditate cat si pentru domeniul colorimetric. Pentru turbiditate, calibrarea se poate realiza in 2, 3, 4 sau 5 puncte cu standardele furnizate (< 0.1, 15, 100, 750 si 1000 NTU) sau cu standarde personalizate. Pentru fotocolorimetru, calibrarea se poate efectua intr-un singur punct.
HI 83414 dispune de functie GLP(Good Laboratory Practice) care permite urmarirea conditiilor de calibrare. Prin apasarea unei singure taste, pot fi aflate ultimele puncte de calibrare, data si ora ultimei calibrari. Display LCD, usor de citit. Codurile afisate pe ecran ghideaza utilizatorul pas cu pas in cadrul operatiilor de rutina si pe tot parcursul calibrarii.
Dotat si cu functie de memorare, aparatul poate inregistra pana la 200 de masuratori in memoria interna, datele putand fi in orice moment disponibile pentru consultarea. Pentru o analiza detaliata a datelor memorate, acestea pot fi descarcate pe un calculator folosind o interfata USB.

Date tehnice

Turbiditate
Domeniu fara raport 0.00 la 9.99; 10.0 la 40.0 NTU; 0.0 la 99.9; 100 la 268 Nephelos; 0.00 la 9.80 EBC
Rezolutie fara raport 0.01; 0.1 NTU; 0.1; 1 Nephelos; 0.01 EBC
Domeniu cu raport 0.00 la 9.99; 10.0 la 99.9; 100 la 4000 NTU; 0.0 la 99.9; 100 la 26800 Nephelos; 0.00 la 9.99; 10.0 la 99.9; 100 la 980 EBC
Rezolutie cu raport 0.01; 0.1; 1 NTU; 0.1; 1 Nephelos; 0.01; 0.1, 1 EBC
Selectare domeniu automat
Acuratete ±2% din citire plus 0.02 NTU (0.15 Nephelos; 0.01 EBC); ±5% din citire peste 1000 NTU (6700 Nephelos; 245 EBC)
Repeatabilitate ±1% din citire sau 0.02 NTU (0.15 Nephelos; 0.01 EBC) oricare dintre acestea este mai mare
Lumina sporadica < 0.02 NTU (0.15 Nephelos; 0.01 EBC)
Detector de lumina fotocelula siliconica
Metoda Metoda nephelometric (90°) sau Metoda nephelometric cu raport (90° & 180°), Adaptare a metodei USEPA 180.1 si a metodei standard 2130 B
Mod de masurare normal, mediu si continuu.
Standarde de turbiditate < 0.1, 15, 100, 750 si 2000 NTU
Calibrare in 2, 3, 4 sau 5 puncte de calibrare
Clor liber si clor total
Domeniu Clor liber 0.00 la 5.00 mg/L (ppm)
Domeniu Clor total 0.01 mg/L (ppm) from 0.00 la 3.50 mg/L (ppm); 0.10 peste 3.50 mg/L (ppm)
Rezolutie 0.01 mg/l de la 0.00 la 3.50 mg/l; 0.10 peste 3.50 mg/l
Acuratete ±0.02 mg/L la 1.00 mg/L
Detector de lumina fotocelula siliconica cu filtru de interferenta cu banda ingusta de 525 nm
Metoda Adaptare a metodei USEPA 330.5 si a metodei standard 4500-Cl G. Reactia dintre clor si reactivul DPD cauzeaza colorarea probei in roz.
Standarde 1.00 mg/L (ppm) clor liber; 1.00 mg/L (ppm) clor total
Raport de calibrare intr-un punct
Specificatiii generale
Sursa de lumina lampa cu filament tungsten
Afisaj 40 x 70 mm grafic LCD (64 x 128 pixels) cu iluminare
Inchidere automata dupa 15 minute de inactivitate
Inregistrare date 200 inregistrari
Intefata PC USB
Conditii de operare 0 la 50°C, RH max 95% fara condens
Alimenatre 230 V/50 Hz
Dimensiune 230 x 200 x 145 mm
Greutate 2.5 kg
Continut pachet HI 83414 este livrat cu 5 cuve cu capac pentru esantioane, cuve de calibrare pentru turbidimetre si colorimetre HI 83414-11, ulei siliconic HI 93703-58, material textil pentru curatarea cuvelor, foarfeca, cablu de alimentare, instructiuni de utilizare si certificat de calitate.

Conformitate & Certificate
• Certificat de conformitate
• Marcat CE
• Certificat de garantie si post garantie MultiLab Romania
• Centru de service autorizat MultiLab Romania

The HI83414 is a multi parameter benchtop meter that measures the most important parameters in drinking water: turbidity and chlorine. The instrument is based on a state-of-the-art optical system which provides accurate results by minimizing stray light and color interferences. Periodic calibration with the supplied standards compensates for any variations in intensity of the tungsten lamp. The colorimeter portion of the meter uses a 525 nm narrow band interference filter for maintaining the proper wavelength in the measurement of free and total chlorine. All measurements are performed with 25 mm round cuvettes composed of special optical glass to ensure maximum repeatability of turbidity and chlorine measurements.
Main Features
Four Measurement Modes The HI83414 features four measurement modes including ratio or non-ratio mode for turbidity, free chlorine, and total chlorine. In ratio mode the turbidity is 0.00 to 4000 NTU (Nephelometric Turbidity Units) while in the non-ratio mode the range is 0.00 to 40.0 NTU. The range for free or total chlorine measurements is 0.00 to 5.00 mg/L (ppm) range.
Multiple Turbidity Units of Measure Turbidity can be displayed as nephelometric turbidity units (NTU), European Brewing Convention units (EBC) or Nephelos units.
EPA Compliant The HI83414 meets and exceeds the requirements of EPA and Standard Methods both for turbidity and colorimetric chlorine measurements. When the meter is in EPA mode all turbidity readings are rounded accordingly to meet reporting requirements.
Calibration A two, three, four, or five-point turbidity calibration can be performed by using the supplied ( 0.1, 15, 100, 750, and 2000 NTU) standards.Calibration points can be modified if user-prepared standards are used. For free and total chlorine, the CAL Check™ standard can be used for calibration to 1.00 mg/L (ppm).
AMCO AEPA-1 Primary Turbidity Standard - The AMCO AEPA-1 supplied standards are recognized as a primary standard by the USEPA. These non-toxic standards are made of styrene divinylbenzene polymer spheres that are uniform in size and density. The standards are stable and reusable with a long shelf life.
CAL Check With the powerful CAL Check function, reliable performance of the chlorine colorimeter can be validated at any moment by using the exclusive HANNA ready-made, NIST traceable standards. All standards are supplied with a Certificate of Analysis (COA) for traceability.
GLP Data The HI83414 features complete GLP (Good Laboratory Practice) functions that allow traceability of the calibration conditions. Data includes calibration points, date, and time.
Data Logging Up to 200 measurements can be stored in the internal memory and recalled at any time.
Data Transfer For further storage or analysis options, logged data can be downloaded to a Windows compatible PC using the USB port and the HI92000 software.
Tutorial Mode The unique tutorial mode provides additional information to help the user during measurements. When enabled, the instrument displays explanations and a confirmation button when a preparation or other operation has to be performed.
Contextual Help Contextual help is always available through a dedicated HELP button. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration. The help information displayed is relative to the setting/option being viewed.
Backlit Graphic LCD Display A graphic LCD display provides an easy to understand, user-friendly interface. All messages are in plain text making them easy to read.

Technical Data

Turbidity Specifications
Non-Ratio Mode Range 0.00 to 9.99; 10.0 to 40.0 NTU; 0.0 to 99.9; 100 to 268 Nephelos; 0.00 to 9.80 EBC
Non-Ratio Mode Resolution 0.01; 0.1 NTU; 0.1; 1 Nephelos; 0.01 EBC
Ratio Mode Range 0.00 to 9.99; 10.0 to 99.9; 100 to 4000 NTU; 0.0 to 99.9; 100 to 26800 Nephelos; 0.00 to 9.99; 10.0 to 99.9; 100 to 980 EBC
Ratio Mode Resolution 0.01; 0.1; 1 NTU; 0.1; 1 Nephelos; 0.01; 0.1, 1 EBC
Range Selection automatic
Accuracy ±2% of reading plus 0.02 NTU (0.15 Nephelos; 0.01 EBC); ±5% of reading above 1000 NTU (6700 Nephelos; 245 EBC)
Repeatability ±1% of reading or 0.02 NTU (0.15 Nephelos; 0.01 EBC) whichever is greater
Stray Light < 0.02 NTU (0.15 Nephelos; 0.01 EBC)
Light Detector silicon photocell
Method nephelometric method (90°) or ratio nephelometric method (90° & 180°), adaptation of the USEPA Method 180.1 and Standard Method 2130 B
Measuring Mode normal, average, continuous
Turbidity Standards < 0.1, 15, 100, 750 and 2000 NTU
Calibration two, three, four, or five-point calibration
Free and Total Chlorine Specifications
Free and Total Chlorine Range 0.00 to 5.00 mg/L (ppm)
Free and Total Chlorine Resolution 0.01 mg/L (ppm) from 0.00 to 3.50 mg/L (ppm); 0.10 above 3.50 mg/L (ppm)
Free and Total Chlorine Accuracy ±0.02 mg/L @ 1.00 mg/L
Light Detector silicon photocell with 525 nm narrow band interference filter
Method adaptation of the USEPA Method 330.5 and Standard Method 4500-Cl G.
Standards 1.00 mg/L (ppm) free chlorine; 1.00 mg/L (ppm) total chlorine
Calibration one-point calibration
General Specifications
Light Source tungsten filament lamp / greater than 100,000 readings
Display 40 x 70 mm graphic LCD (64 x 128 pixels) with backlight
Log Memory 200 records
Connectivity USB
Environment 0 to 50°C, RH max 95% non-condensing
Power Supply 115/130 VAC; 50/60 Hz
Dimensions 230 x 200 x 145 mm
Weight 2.5 kg
Ordering Information HI83414 is supplied with sample cuvettes (5) with caps, calibration cuvettes for turbidity and chlorine, silicone oil, cuvette wiping cloth, scissors, power cord, and instruction manual.



Solutie de curatare cuvete / Cuvette Cleaning Solution :: cod produs HI-93703-50
Set standard de calibrare / Calibration set for HI-88713-02 :: cod produs HI-88713-11

multilab_team

Solutions for science, industry and safety
Suntem bucurosi sa te ajutam ... Fie ca vrei sa comanzi si nu esti sigur care este cea mai buna alegere, sau vrei sa afli mai multe despre serviciile noastre, consultantii nostri Iti raspund la orice intrebare
Pentru orice detalii suplimentare tehnice sau comerciale sintem la dispozitia Dvs.
direct Tel. +4 021 312 7144 / 45
sau

service_reparatie

Superior Service MultiLab's aim is to differentiate ourselves and add value to our customers, by providing superior service throughout the sales and after-care processes :: Preventative Maintenance - Calibration - Repair - Validation .. more »
Centru service autorizat de producator Service - Mentenantei preventive - Reparati - Consumabile - Piese de schimb, pentru pentru produse WTW, Hanna, SI Analytics .. mai multe »

multilab_laboratories

*Important acest site este unul de prezentare! date tehnice; poze afisate si preturile sunt cu titlu informativ se pot schimba fara notificare prealabila! detalii »

All rights Reserved MultiLab© SRL Romania 2003 - 2016
