Termoreactoare - Termoblocuri - Reactoare de digestie termica

Termoreactor pentru digestie chimica - termica

Termoreactor digestie chimica :: Termoreactor digestie termica :: Termoreactor - digestor chimic pentru COD consum chimic de oxigen :: Termoreactor - digestor pentru metale grele

Termoreactoare / Reactoare de digestie termica sunt aparate folosite pentru:
- Digestie termica
- Determinari metale si metale grele
- Digestie chimica necesare pentru efectuarea digestiilor chimice
- COD consum organic total
- Consum chimic de oxigen
- Azot total
- Fosfor total
- Determinari care necesita temperaturi de reactie ridicate pentru o perioada de timp definita
- Digestia umeda a probelor pentru evaluarea elementelor metalice si nemetalice din materiale organice



termoractor_digestor_apa

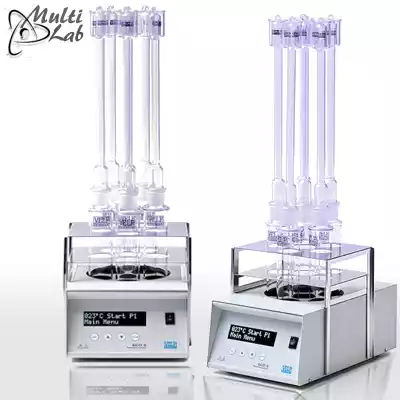

Termoreactor digital automat pentru COD

Capacitate 6 probe
Model VELP ECO 6

Termoreactor termoreglabil pentru 6 probe de 20 ml cu timer

6-position thermoreactor for Chemical Oxygen Demand (COD)


produsul poate fi achizitionat si prin SEAP


Tabel de selectie / comparatie


solicit oferta personalizata »

Termoreactor pentru analizele de determinare a COD si pentru digestia umeda a probelor pentru evaluarea elementelor metalice si nemetalice din materiale organice sau anorganice (minereuri, aliaje, mancare pentru animale, soluri, sedimente, tesuturi etc.)

Caracteristici tehnice
• Structura metalica vopsita epoxi, rezistenta la atacul agentilor chimici si mecanici si la coroziune in general
• Prevazut cu microprocesor pentru setarea timpului si a temperaturii cu mare precizie si reproductivitate
• Display digital
• Permite operarea functionala a 6 probe de 20 ml
• Pentru o buna utilizare se recomanda si achizitionarea accesoriilor complementare
Optional poate fi echipat cu adaptor cu trei locuri, ce permite operarea a 18 eprubete simultan

Date tehnice
• Setarea temperaturii: de la temperatura camerei la 200°C, / rezolutie 1°C
• Setarea timpului de incalzire: 1 la 199 minute
• Stabilitate, precizie si omogenitate termica: + 0,5°C • Blocul de incalzire:
- Stabilitatea temperaturii: ±0.5°C
- Omogenitatea temperaturii: ±0.5°C
- precizie temperaturii: ±1°C
- Numarul de gauri: 6 de Ø22mm (standard); 18 de Ø16mm sau 6 de Ø 42mm
• Performanta:
- Precizie temperatura: ± 0.5°C
- Protectie la supraincalzire la nivelul blocului
- Vizualizarea temperaturii si timpului ramas
- Functionare continua
- Alarma acustica si vizuala la sfarsitul ciclului cu inchidere automata
• Semnale de Avertizare:
- Atingerea temperatura setata » Semnal vizual
- Numarare inversa » Semnal vizual
- Final ciclu » Semnal acustic si vizual
- Intreruperea sondei » Semnal acustic si vizual
- Sonda defecta » Semnal acustic si vizual
- Depasirea temperatura setata » Semnal acustic si vizual
• Putere: 700 W
• Alimentare: 230 V, 50-60 Hz
• Dimensiuni: 198 x 132 x 319mm
• Greutate: 6 Kg
Cod produs: F10100120

6-position thermoreactor for Chemical Oxygen Demand (COD) with settable temperature (up to 200 °C) and operating time (up to 199 minutes).

Main Features
Precise Control
Electronic temperature control
Temperature regulation from ambient to 200 °C
Analysis time can be set from 1 to 199 minutes or continuous
High Versatility
Processes up to 6 x 200 ml test tubes, Ø 42 mm
Or 6 x 22 mm test tubes or 18 Ø 16 mm test tubes
LCD countdown display shows the temperature and remaining time
Fast & Economical
COD analysis in only 30 minutes at 160 °C
16 mm diameter tubes minimize reagent consumption
LCD display for immediate understanding
Optimized Selection
Automatic shut-down at run end
Acoustic signals, e.g., at shut-down
Antisplash bells protect the user and other sample

Technical specifications

GENERAL FEATURES
Construction material: Epoxy painted metal structure
Holes number and diameter: 6 positions (Ø 42 mm)
Set temperature: display visualization
Countdown: display visualization
End of the cycle: acoustic signal with automatic switch-off
Power: 700 W
Weight: 5.6 Kg
Dimensions uncrated (WxHxD): 198 x 132 x 319 mm
Dimensions crated (WxHxD): 400x280x270 mm
PERFORMANCE
Selectable working temperatures: from room temperature to 200 °C, resolution 1 °C
Selectable working times: from 0 to199 minutes or continuous operation
HEATING BLOCK TECHNICAL DATA
Temperature stability: ± 0.5 °C
Temperature homogeneity: ± 0.5 °C
Temperature precision: ± 1 °C
Overtemperature safety integrated
SIGNALS
Reaching of set temperature: visual signal
Countdown: visual signal End of cycle / acoustic and visual signal
Probe interruption: acoustic and visual signal
Broken probe: acoustic and visual signal
Exceed temperature range: acoustic and visual signal
Order number F10100120



VELP ECO 6 Accessories

Accesorii necesare Required accesories Cod. prod.
Set de 3 eprubete COD Ø 42 x 200mm, 200ml cu con SN 29/32 COD test tubes Ø 42 x 200 mm, 200 ml with cone NS 29/32, 3 pcs/box A00000145
Refrigerent de aer cu con Air refrigerator with ground cone A00001041
Clopotei antistropire Antisplash bell A00001045
Mansoane PFTE pentru conuri 29/32 PTFE sheaths for 29/32 cones A00001042
Suport de otel inox pentru manipularea simultana a celor 6 eprubete Stainless steel handle for moving 6 test tubes Ø 42 mm simultaneously A00001043
Reductor de Ø 42 cu 3 gauri de Ø16 mm Anticorodal reducer Ø 42 mm with 3 holes Ø16 mm A00001044
Reductor de Ø 42 cu 1 gaura de Ø16 mm Articorodal reducer Ø 42 mm with 1 hole Ø22 mm A00001046

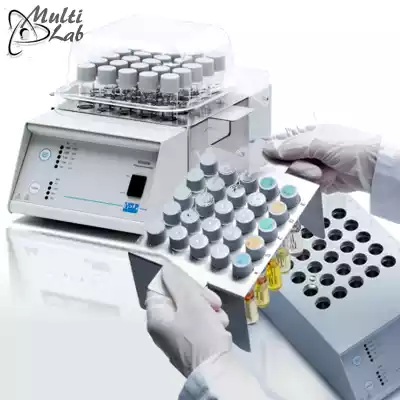

Termoreactoare pentru COD

Capacitate 8 si 25 de probe
Modele VELP ECO 8 si ECO 25

Termoreactoare programabile pentru 8 sau 25 de eprubete

8 and 25 position thermoreactors for COD detrmination


produsul poate fi achizitionat si prin SEAP


Tabel de selectie / comparatie


solicit oferta personalizata »

Aparate pentru determinari de fosfor total, azot total si alte descompuneri analitice pentru probe de apa si reziduuri lichide, namoluri
• Structura metalica vopsita epoxi, rezistenta la atacul agentilor chimici si mecanici si la coroziune in general
• Temperatura si timp pefixate
• Utilizabile pentru analize colorimetrice
• Modelul ECO 8 poate utiliza 8 eprubete cu O.D. de 16 mm si 1 cu O.D. de 22 mm.

Date tehnice

Caracteristici generale
Model ECO 8 ECO 25
Structura metalica vopsita epoxi
Numarul de gauri / diametre 8 poz. (Ø16 mm) + 1 poz. (Ø22 mm) 25 poz. (Ø16 mm)
Vizualizarea temperaturii display
Vizualizarea timpului ramas display
La sfarsitul ciclului acustic cu inchidere automata
Putere: 140 W 400 W
Alimentare 115 .. 230 V 115 .. 230 V
Greutate 2 Kg 4 Kg
Dimensiune (WxHxD): 135 x 95 x 230 mm 155 x 95 x 275
Performanta
Temperatura programabila 70, 100, 120, 150 and 160 °C
Timp de reactie programabil 30, 60, 120 minute sau continuu
Blocul de incalzire
Stabilitatea temperaturii ± 0.5 °C ± 0.5 °C
Omogenitatea temperaturii ± 0.5 °C ± 0.5 °C
Precizie temperatura ± 1 °C ± 1 °C
Protectie la supraincalzire integrat integrat
Semnale
Atingerea temperaturii acustic + vizual
Procesare / timpul temporizarii vizual
Sfarsitul ciclului acustic + vizual
Intrerupere acustic + vizual
Proba / tub spart acustic + vizual
Depasire temperatura setata acustic + vizual
Cod produs F101A0127 F101A0125



ECO 8 for 8 samples in Ø 16 mm test tubes plus 1 sample in Ø 22 mm
ECO 25 can process 25 samples in Ø 16 mm test tubes simultaneously

Main Features
5 preset temperatures - 70, 100, 120, 150 and 160 °C
4 analysis times - 30 , 60, 120 minutes or continuous
LED indicator of operation
COD analysis in only 30 minutes at 160 °C
16 mm diameter tubes minimize reagent consumption
Automatic shut-down at run end
Acoustic signals, e.g., at shut-down
Antisplash cover protects the user
For ECO 25, test tube extractor removes all tubes without user contact
Rapid ID through alphanumeric labelling

Technical specifications

GENERAL FEATURES
Model ECO 8 ECO 25
Construction material: Epoxy painted metal structure
Holes number and diameter: 8 pos. (Ø16 mm) + 1 pos. (Ø22 mm) 25 pos. (Ø16 mm)
Set temperature display visualization
Countdown: display visualization
End of the cycle: acoustic signal with automatic switch-off
Power: 140 W 400 W
Weight: 2 Kg 4 Kg
Dimensions uncrated (WxHxD): 135x95x230 mm 155x95x275
PERFORMANCE
Selectable working temperatures: 70, 100, 120, 150 and 160 °C
Selectable working times: 30, 60, 120 or continuous
HEATING BLOCK TECHNICAL DATA
Temperature stability: ± 0.5 °C ± 0.5 °C
Temperature homogeneity: ± 0.5 °C ± 0.5 °C
Temperature precision: ± 1 °C ± 1 °C
Overtemperature safety integrated integrated
SIGNALS
Reaching of set temperature: acoustic and visual signal
Countdown: visual signal
End of cycle: acoustic and visual signal
Probe interruption: acoustic and visual signal
Broken probe: acoustic and visual signal
Exceed temperature range: acoustic and visual signal
Order number F101A0127 F101A0125



VELP ECO8 & ECO25 Accessories

Descriere Description Cod produs
Eprubeta din sticla pentru probe Set of 20 glass test tubes with internal Ø 14 mm and external Ø 16 mm CM0091680
Suport pentru 12 eprubete Holder for 12 round glass cells CA0091636
Extractor pentru eprubete ECO 25 Test tube extractor A00001039
Eprubeta pentru probe ECO 8 only - Test tube for sample decomposition Ø 22mm, NS 19/26 cone with glass cap for sludge analysis CA0091666
Condensator tip KS cu tub polietilena de 3 m ECO 8 only - Condenser 200 mm type KS with 3-meter polythylene tube for sludge analysis CA0091667
  ECO 8 only - Absorption attachment for condenser NS 29/32 for sludge analysis 10000002



Thermoreactor COD Velp ECO25

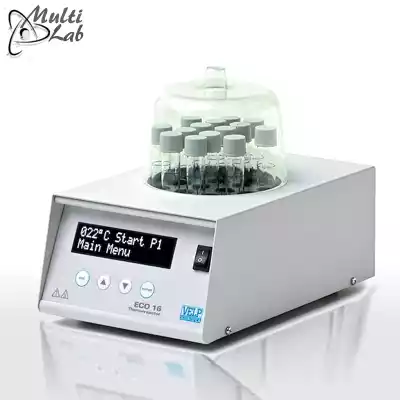

Termoreactor digital automat pentru COD

Capacitate 16 probe
Model VELP ECO 16

Termoreactor automat cu 16 locuri

16 positions Thermoreactors for Chemical Oxygen Demand COD analysis


produsul poate fi achizitionat si prin SEAP


Tabel de selectie / comparatie


solicit oferta personalizata »

Termoreactor pentru analizele de determinare a COD si pentru digestia umeda a probelor pentru evaluarea elementelor metalice si nemetalice din materiale organice sau anorganice (minereuri, aliaje, mancare pentru animale, soluri, sedimente, tesuturi etc.)

Caracteristici tehnice
• Structura metalica vopsita epoxi, rezistenta la atacul agentilor chimici si mecanici si la coroziune in general
• Prevazut cu microprocesor pentru setarea timpului si a temperaturii cu mare precizie si reproductivitate
• Display digital
• Permite operarea functionala a 6 probe de 20 ml
• Pentru o buna utilizare se recomanda si achizitionarea accesoriilor complementare
Optional poate fi echipat cu adaptor cu trei locuri, ce permite operarea a 18 eprubete simultan

Date tehnice
• Programarea temperaturii: 1°C la 160°C
• Timp de reactie programabil: 1 la 199 minute sau continuu
• Stabilitate, precizie si omogenitate termica: + 0,5°C • Blocul de incalzire:
- Stabilitatea temperaturii: ±0.5°C
- Omogenitatea temperaturii: ±0.5°C
- precizie temperaturii: ± 1°C
- Numarul de gauri: 14 de Ø16mm + 2 pozitie de Ø22mm
• Performanta:
- Precizie temperatura: ± 0.5°C
- Protectie la supraincalzire la nivelul blocului
- Vizualizarea temperaturii si timpului ramas
- Functionare continua
- Alarma acustica si vizuala la sfarsitul ciclului cu inchidere automata
• Semnale de Avertizare:
- Atingerea temperatura setata » Semnal vizual
- Numarare inversa » Semnal vizual
- Final ciclu » Semnal acustic si vizual
- Intreruperea sondei » Semnal acustic si vizual
- Sonda defecta » Semnal acustic si vizual
- Depasirea temperatura setata » Semnal acustic si vizual
• Putere: 140 W
• Alimentare: 230 V, 50-60 Hz
• Dimensiuni: 168x110x269 mm
• Greutate: 4 Kg
Cod produs: F10100126

16-position thermoreactor for Chemical Oxygen Demand (COD) with settable temperature (up to 160 °C) and operating time (up to 199 minutes).

Main Features
Electronic temperature control
Temperature regulation from ambient to 200 °C
Analysis time can be set from 1 to 199 minutes or continuous
Processes up to 14 x Ø 16 mm ml test tubes
Plus 2 x Ø 22 mm test tubes simultaneously
LCD countdown display shows the temperature and remaining time
COD analysis in only 30 minutes at 160 °C
16 mm diameter tubes minimize reagent consumption
Automatic shut-down at run end
Acoustic signals, e.g., at shut-down
Antisplash cover protects the user

Technical specifications

GENERAL FEATURES
Construction material Epoxy painted metal structure
Holes number and diameter: 14 pos. (Ø 16 mm) and 2 pos. (Ø 22 mm)
Set temperature display visualization
Countdown: display visualization
End of the cycle acoustic signal with automatic switch-off
Power 550 W
Weight 4 Kg
Dimensions (WxHxD) 168x110x269 mm
PERFORMANCE
Selectable working temperatures from room temperature to160 °C, resolution 1 °C
Selectable working times: from 0 to199 minutes or continuous operation
HEATING BLOCK TECHNICAL DATA
Temperature stability: ± 0.5 °C
Temperature homogeneity: ± 0.5 °C
Temperature precision ± 1 °C
Overtemperature safety integrated
SIGNALS
Reaching of set temperature visual signal
Countdown visual signal
End of cycle acoustic and visual signal
Probe interruption acoustic and visual signal
Broken probe: acoustic and visual signal
Exceed temperature range: acoustic and visual signal
Product code F10100126



VELP ECO 16 Accessories

Accesorii Required accesories Cod. prod.
Set eprubete de testare Set of 20 glass test tubes with internal Ø 14 mm and external Ø 16 mm CM0091680
Suport pt. 12 eprubete Holder for 12 round glass cells CA0091636
Capac de protectie Safety shield A00001051
Tuburi de testare Test tube for sample decomposition Ø 22mm, NS 19/26 cone with glass cap for sludge analysis CA0091666
Condensator tip KS Condenser 200 mm type KS with 3-meter polythylene tube for sludge analysis CA0091667
  Absorption attachment for condenser NS 29/32 for sludge analysis 10000002




Termoreactoare pentru COD

Capacitate 12 si 24 de probe
Seria WTW CR modele CR-2200 CR-3200 CR-4200

Termoreactoare programabile de performanta pentru COD si digestie termica

Thermoreactors for the disintegration of COD, total nitrogen and total phosphorus, including brief and self-programmed high temperature disintegration up to 170°C


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Termoreactoare WTW sunt configurate pentru determinari COD, azot total si fosfor total; mentinind temperatura de reactie constanta la 170°C, pe intreaga durata de digestie; 8 proceduri / programe standard stocate in memoria interna a aparatului (cu durata si temperatura)

Avantaje
• Functioneaza cu cuve de reactie cu diam 16 mm, la temperaturi de 100°C, 120°C 148°C si 150°C
• Timp scurt de incalzire
• 8 programe de incalzire:
program 1: 148 °C pentru 120 minute
program 2: 120 °C pentru 30 minute
program 3: 120 °C pentru 60 minute
program 4: 120 °C pentru 120 minute
program 5: 100 °C pentru 60 minute
program 6: 148 °C pentru 20 minute
program 7: 150 °C pentru 120 minute
program 8: 100 °C pentru 30 minute
• Programul de digestie incepe atunci cand s-a atins temperatura setata sau cand a fost inserata cuva.
• Inchidere automata dupa terminarea programului ales
• Hota cu capac pentru protectie blocului de incalzire
• Display pentru afisarea temperaturii actuale
• LED-uri pentru indicarea statusului temperaturii

Date tehnice

Model CR 2200 CR 3200 CR 4200
Placa pentru cuve 12 cuve cu diamteru exterior de 16 ±0,2 mm 2x12 cuve cu diamteru exterior de 16 ±0.2 mm 2x12 cuve cu diamteru exterior de 16 ±0.2 mm
Selectarea timpul de reactii 20 min, 30 min, 60 min, 120 min (programe fixe) 20 min, 30 min, 60 min, 120 min (programe fixe) 20 min, 30 min, 60 min, 120 min (programe fixe)
Setarea temperaturii 100 °C, 120 °C, 148 °C, 150 °C programe fixe 25 - 170°C programabile 100 °C, 120 °C, 148 °C, 150 °C programe fixe 25 - 170°C programabile 100 °C, 120 °C, 148 °C, 150 °C programe fixe
Protectie la supra-incalzirii   190 °C ± 5 °C 190 °C ± 5 °C
Acuratetea controlului ± 1 °C ± 1 digit ± 1 °C ± 1 digit ± 1 °C ± 1 digit
Stabilitate temperaturii ± 0.5 K ± 0.5 K ± 0.5 K
Alimentare 230 VAC 50 Hz 230 VAC 50 Hz 230 VAC 50 Hz



The high reaction temperature over a defined period of time ensures a complete degradation of the sample. The required temperatures and degradation times for the standard parameters are stored in every WTW thermoreactor. In addition, there are different options for self programming and cuvette numbers available.

Model Variations

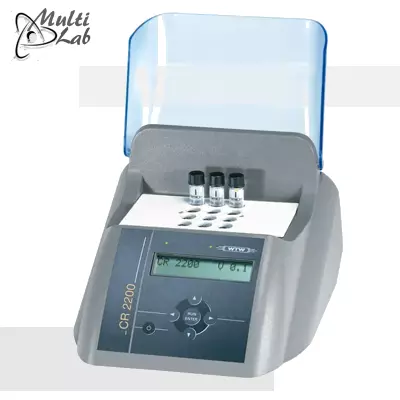

- WTW CR 2200 Standardized digestion with programs for the standard parameters CSB, brief digestion COD (148°C, 20 min.), total nitrogen, total phosphorus, TOC and heavy metals of galvanizing with automatic heating and switch-off.
- WTW CR 3200 Standardized digestion with programs for the standard parameters COD, quick COD (148°C, 20 min.), total nitrogen, total phosphorus, TOC and heavy metals of galvanizing with automatic heating and switch-off. 8 user-defined digestion programs at temperatures between 25-170°C can be programmed for special degradations and therefore also allow high temperature digestions. The very same program can be run for all cuvettes at the same time; to perform two parallel digestion programs, the CR 4200 is the suitable choice. For the analytical quality assurance (AQA), the external temperature sensor TFK CR can be connected to the PC/printer instead of a vial.
- WTW CR 2200 Standardized digestion programs for the standard parameters COD, quick COD (148°C, 20 min.), total nitrogen, total phosphorus, TOC and heavy metals of galvanizing with automatic heating and switch-off. 8 user-defined digestions at temperatures between 25-170°C can be programmed for special degradations and therefore also allow high temperature digestions. Two different programs for 12 cuvettes each can be run at the same time. You can use an external temperature sensor instead of a vial with data output to the PC/printer for analytical quality assurance (AQA).

Performance

Model CR 2200 CR 3200 CR 4200
Determination: COD, total nitrogen and total phosphorus, including brief and self-programmed high temperature disintegration up to 170°C Thermoreactor for thermal degradations of 12 cuvettes with fixed programs Thermoreactor for thermal digestions of up to 170°, 2x12 cuvettes for one programs, AQA Thermoreactor for thermal digestion of up to 170°, 2x12 cuvettes for two programs at the same time, fixed and user-defined programs, AQA
8 standard programs
8 user-defined programs up to 170°
Short degradation COD
Temperature log for AQA
2 heating blocks for 2x12 cuvettes
Different programs in parallel
Product code 1P21-1 1P22-1 1P23-1

Main Features
8 fixed programs for standard parameters
program 1: 148 °C for 120 minutes
program 2: 120 °C for 30 minutes
program 3: 120 °C for 60 minutes
program 4: 120 °C for 120 minutes
program 5: 100 °C for 60 minutes
program 6: 148 °C for 20 minutes
program 7: 150 °C for 120 minutes
program 8: 100 °C for 30 minutes

Technical specifications

Model CR 2200 CR 3200 CR 4200
Cuvette shafts 12 cuvette shafts for round cuvettes, 16 ± 0,2 mm outer diameter 2x12 cuvette shafts for round cuvettes, 16 ± 0.2 mm outer diameter 2x12 cuvette shafts for round cuvettes, 16 ± 0.2 mm outer diameter
Reaction time setting 20 min, 30 min, 60 min, 120 min (via fixed programs) 20 min, 30 min, 60 min, 120 min (via fixed programs) 20 min, 30 min, 60 min, 120 min (via fixed programs)
Temperature setting 100 °C, 120 °C, 148 °C, 150 °C via fixed programs 25 - 170°C freely programmable 100 °C, 120 °C, 148 °C, 150 °C via fixed programs 25 - 170°C freely programmable 100 °C, 120 °C, 148 °C, 150 °C via fixed programs
Overtemperature protection   190 °C ± 5 °C 190 °C ± 5 °C
Control precision and Regulating accuracy ± 1 °C ± 1 digit ± 1 °C ± 1 digit ± 1 °C ± 1 digit
Temperature stability ± 0.5 K ± 0.5 K ± 0.5 K
Energy supply 230 VAC 50 Hz 230 VAC 50 Hz 230 VAC 50 Hz



Accessories

Model Description CR2200 CR3200 CR4200 Order no.
P 3001 Thermal matrix printer for devices with RS232 interface 250045
TFK CR External temperature sensor X 250100
AK CR/P Connecting cable to connect thermoreactor to a printer 250101
AK CR/PC Connecting cable to connect thermoreactor to a printer 250102
Crack-SET 10-C 14688 Crackset heavy metal degradation, 25 cuvettes 252033
Crack-SET 10 14687 Crackset for heavy metal degradation (reagents for 100 degradations in 16 mm empty cuvettes) 250496
Crack-SET 20 14963 Crackset for nitrate degradation for the total nitrogen determination (test sets 14563, 14542, 14733), (90 degradations in 16 mm empty cuvettes) 250497
RK 14/25 25 round cuvettes, empty (16 mm) 250 621




echipa_multilab

Solutions for science, industry and safety systems

Suntem bucurosi sa te ajutam ... Fie ca vrei sa comanzi si nu esti sigur care este cea mai buna alegere, sau vrei sa afli mai multe despre serviciile noastre, consultantii nostri Iti raspund la orice intrebare
Pentru orice detalii suplimentare tehnice sau comerciale sintem la dispozitia Dvs.
direct Tel. +4 021 312 7144 / 45
sau

service_reparatie_aparatura_laborator

Superior Service
MultiLab's aim is to differentiate ourselves and add value to our customers, by providing superior service throughout the sales and after-care processes :: Preventative Maintenance - Calibration - Repair - Validation .. more »
Centru service autorizat de producator
Service - Mentenantei preventive - Reparati - Consumabile - Piese de schimb, pentru aparatura si instrumente de analioza detectie si control .. mai multe »

Localizare MultiLab

multilab_laboratories

*Important
acest site este unul de prezentare! date tehnice; poze afisate si preturile sunt cu titlu informativ se pot schimba fara notificare prealabila! detalii »
MultiLab© SRL reserve the right to change products and prices without notice.

All rights Reserved MultiLab© SRL Romania 2003 - 2017
