Refractometru ABBE

ro Refractometre Optice » Refractometre tip ABBE digitale si analogice

uk Refractometers » ABBE Refractometers / Analogic and Digitals

Refractometre tip ABBE
Optime pentru masurarea cu precizie a lichidelor, solidelor, semilichidelor si pulberilor.
Sistemul de citire indica atat indicele optice de refractie cat si gradele Brix.
Fabricate din material rezistent la actiunea agentilor chimici si la socuri mecanice.

Alegeti » Refractometru ABBE digital / automat :: Refractometru ABBE analogic semiautomat :: Refractometru ABBE analogic economic


refractometru_abbe

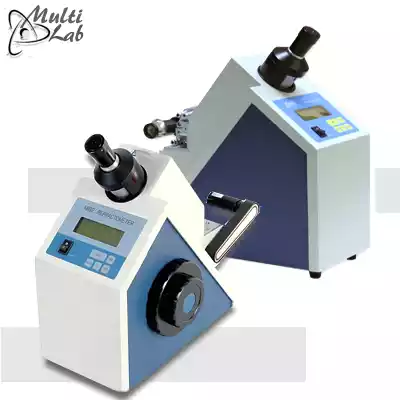

Refractometru ABBE
Model KRUSS AR2008

solicit oferta personalizata »

Refractometru ABBE digital complet automat :: 1.3000–1.7200 nD :: 0–95 %Brix

Automatic Digital ABBE Refractometer with an electronic data processing system

Avantaje tehnice:
determinarii simple fara citirea unei gradatii; Valoarea Brix, a indicelui de refractie si a temperatura este afisata direct pe display.
Indica direct pe display valoarea masurata in I.R. sau Brix %, odata cu temperatura
Se poate conecta la o imprimanta sau computer; masuratorile individuale, precum si valorile medii si valorile de temperatura pot fi tiparite sau transmise catre computer.

Date tehnice
Domeniu de masura: 1.3000–1.7200 nD0–95 %Brix
Acuratete: ±0.0002 nD±0.1 % :: Brix
Rezolutie: 0.0001nD :: 0.1 %Brix
Domeniu Tmp.: 0–99 °C
Rezolutie Tmp.: 0.1 °C
Compensare automata Tmp.: 0–90 °C
Display: LCD
Interfata: serial RS-232 9600 Baud :: serial RS-422 9600 Baud
Alimentare: 110/230 V, 50/60 Hz, 40 W
Dimensiuni: 12 x 29 x 25 cm
Greutate: 5 kg

Pret: la cerere


Livrare: in limita stocului disponibil! sau 7 - 10 zile lucratoare

produsul poate fi achizitionat si prin SEAP

Main Features
Integrated electronic data processing system.
The refractive index or Brix value is shown on an LCD display together with the temperature.
Values with date and time may be transferred directly to the PC or printer.

Technical Data
Measurement range: 1.3000–1.7200 nD0–95 %Brix
Accuracy: ±0.0002 nD±0.1 % :: Brix
Resolution: 0.0001nD :: 0.1 %Brix
Temperature Range: 0–99 °C
Temperature resolution: 0.1 °C
Autom. Temperature compensation: 0–90 °C
Display: LCD direct reading and via ocular
Interfaces: serial RS-232 9600 Baud :: serial RS-422 9600 Baud
Power supply: 110/230 V, 50/60 Hz, 40 W
Dimensions in 12 x 29 x 25 cm
Weight: 5 kg

refractometru_solide

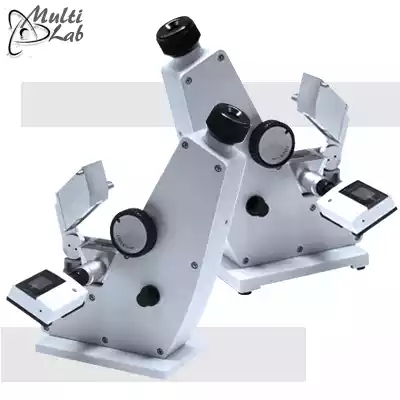

Refractometru ABBE
Model AuxiLab 315RS

solicit oferta personalizata »

Refractometru ABBE digital automat

Automatic Digital ABBE Refractometer

Aplicatii:
Folosit pentru masurarea cu precizie a lichidelor, semilichidelor, solidelor si pulberilor

Date tehnice
Domeniu de masura: 1,3000-1,7000 nD :: 0-95 %Brix
Acuratete: ±0,0002 nD :: ±0.1 %Brix
Compensare automata de temperatura: ATC 15/45 ºC
Iluminare: scara iluminata, LED (590 nm) pentru prisma
Display LCD: valorile afisate direct pe LCD sau citire via ocular
Alimentare: 110/220 V,
Dimensiune: 330 x 180 x 380 mm
Greutate: 10 kg

Pret: la cerere


Livrare: in limita stocului disponibil! sau 7 - 10 zile lucratoare

produsul poate fi achizitionat si prin SEAP

Main Features
The model 315RS Abbe refractometers is equipped with a dioptre correction system
Idle for measuring the refractive index (nD) os transparent or translucid and solids as well as sugar concentration (ºBx)
Possibility of connection of a circulating thermostatization system
Observation system composed of a telescopic unit with dispersioncorrection
Automatic temperature compensation (ATC) on the Brix scale
LCD for an easy and direct Reading of results
With RS232 output

Technical Data
Measurement range: 1,3000-1,7000 nD :: 0-95 %Brix
Accuracy: ±0,0002 nD :: ±0.1 %Brix
Automatic tempreture compensation: ATC 15/45 ºC
Display: LCD direct reading and via ocular
Power supply: 110/220 V,
Dimensions: 330 x 180 x 380 mm
Weight: 10 kg

refractometru_abbe_automat

Refractometru ABBE
Model KRUSS AR4

solicit oferta personalizata »

Refractometru ABBE analogic pentru uz general conform standard ASTM D1218

Analogic ABBE Refractometer for general use

Aplicatii:
recomandat pentru aplicatii cu probe lichide (transparente sau opace), vascoase si solide; citirea se face prin ocular are scala si prisma iluminate, are un termometru digital cu LED incorporat
Date tehnice
Domeniu de masura: 1.3000–1.7200 nD :: 0-95 %Brix
Acuratete: ±0.0002 nD :: ±0.1 %Brix
Scala: 0.0005 nD :: 0.25 %Brix
Termometru digital: -40–120 °C
Iluminare: scara iluminata, LED (590 nm) pentru prisma
Display: citire via ocular
Alimentare: 110/220 V,
Dimensiune: 10.0 x 27.0 x 19.0 cm
Greutate: 2.5 kg

Pret: la cerere


Livrare: in limita stocului disponibil! sau 7 - 10 zile lucratoare

produsul poate fi achizitionat si prin SEAP

Main Features
The AR4 offers readings via ocular. It has an adjustable scale, temperature controlled prisms, and thermostat connections for prisms.
The refractive index of a sample depends on the wavelength of the light used in measurement. That is why we supply our AR4 with LED illumination for the measuring prism. This has the standard wavelengthof 589 nm and has a very long service life (>100.000 h).Refractometers also have scale illumination.Since the refractive index is also temperature-dependent, KRUSS's Abbe refractometers feature thermostat points on both the lighting and the measurement prisms.
Special features: Adjustable scale, prisms can be temperature-controlled, thermostat connections for prisms

Technical Data
Measurement range: 1.3000–1.7200 nD :: 0-95 %Brix
Accuracy: ±0.0002 nD :: ±0.1 %Brix
Scale division: 0.0005 nD :: 0.25 %Brix
Digital thermometer: -40–120 °C
Illumination: Scale illumination, LED-illumination(590 nm) for prism
Display: Readings via ocular
Power supply: 110/220 V,
Dimensions: 10.0 x 27.0 x 19.0 cm
Weight: 2.5 kg

refractometru_abbe_digital

Refractometru ABBE
Model AuxiLab 325

solicit oferta personalizata »

Refractometru ABBE optic cu sistem de marire 30x integrat

Optical ABBE Refractometer with integrated Maganification system

Avantaje
Refractometrul ABBE 325 este ideal pentru masurarea indicelor de refractie (nD) ale lichidelor transparente sau translucide si solide
optional posibilitate conectare directa a unui termometru digital

Date tehnice
Domeniu de masurare: 1,3000-1,7000 nD :: 0-95% Brix
Acuratete: ±0,0005 nD :: 0.25% Brix
Sistem de marire 30x integrat
Marire optica: 2x
Dimensiune: 100 x 200 x 240 mm
Greutate: 2.6 kg

Pret: la cerere


Livrare: in limita stocului disponibil! sau 7 - 10 zile lucratoare

produsul poate fi achizitionat si prin SEAP

Main Features
Idle to measure refractive index and sugar concentratio (Brix)
Made of epoxy-coated metal
Possibility of connection of a circulating thermostatization system; with digital thermometer
Readings can be performed with incident or transmitted light; illumination of the scale is by natural light.
Magnifications of the optical system: 2x :: 30x

Technical Data
Measurement range: 1,3000-1,7000 nD :: 0-95% Brix
Accuracy: ±0,0005 nD :: 0.25% Brix
Dimension: 100 x 200 x 240 mm
Weight: 2.6 kg

pret_refractometru_ABBE

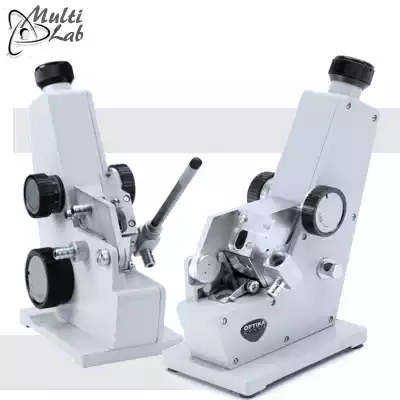

Refractometru ABBE
Model Optika 2WAJ

solicit oferta personalizata »

Refractometru ABBE economic :: 0-95%Brix

Economic ABBE Refractometer with integrated Maganification system

Avantaje
Refractometrul ABBE 325 este ideal pentru masurarea indicelor de refractie (nD) ale lichidelor transparente sau translucide si solide
optional posibilitate conectare directa a unui termometru digital

Date tehnice
Prisma principala: horizontal
Prisma secundara: fitted on a hinge
Scala indice de refractie: Nd 1.300 – 1.700
Precizie: Nd ± 0.0003
Diviziune: Nd 0.0005
Scala zaharimetrica: 0-95% from Nd 1.300 – 1.530
Precizie: 0-50% = 0.2%; 51-95% = 0.1%
Diviziune: 0,25%
Scala termometrului: 0°C - 70°C, div. 1°C
Greutate: 4 Kg
Dimensiuni: 140 x 100 x 235 mm

Pret: la cerere


Livrare: in limita stocului disponibil! sau 7 - 10 zile lucratoare

produsul poate fi achizitionat si prin SEAP

Main Features
Idle to measure refractive index and sugar concentratio (Brix)
Made of epoxy-coated metal
Possibility of connection of a circulating thermostatization system; with digital thermometer
Readings can be performed with incident or transmitted light; illumination of the scale is by natural light.
Magnifications of the optical system: 2x :: 30x

Technical Data
Main prism: horizontal
Secondary prism: fitted on a hinge
Refraction index scale: Nd 1.300 – 1.700
Precision: Nd ± 0.0003
Division: Nd 0.0005
Sugars scale: 0-95% from Nd 1.300 – 1.530
Precision: 0-50% = 0.2%; 51-95% = 0.1%
Division: 0,25%
Thermometer scale: 0°C - 70°C, div. 1°C
Weight: 4 Kg
Size: 140 x 100 x 235 mm
