Plita de incalzire multifunctionla cu incalzire 350 °C

Plite electrice de incalzire

ro Aparatura si dispozitive de incalzire » Plite electrice » Plite de incalzire multifunctionale :: Model FALC Jolly-1 si Jolly-2

uk Heating Equipments » Electrical Hotplates » Multipurpose hotplates :: Model FALC Jolly-1 si Jolly-2




Plite de incalzire pentru laborator si industrie

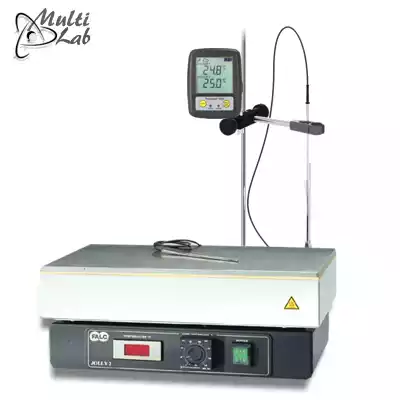

Model Jolly-1 si Jolly-2 :: Falc Instruments

Plite multifunctionale

Caracteristici generale
Plitele electrice seria JOLLY sunt construite la exterior din otel inox acoperit cu rasina epoxidica rezistenta la actiunea acizilor
Placa de incalzire este fabricata din aluminiu cu o grosime de 8 mm cu incalzire rapida pana la temperatura de 500°C
Rezistente electrice de incalzire sunt inglobate astfel incat se obtine o uniformizare a temperaturii pe toata suprafata platanului
Plitele electrice JOLLY se pot utiliza pentru mai multe operatii: ca plita electrica, iar daca se utilizeaza o tava din otel inox 18/8 se poate folosi ca termostat sau ca baie de nisip
La plita electrica JOLLY 1 reglarea temperaturii se face prin intermediul unui termoregulator gradat, in timp ce la JOLLY 2 reglarea temperaturii se face prin intermediul unui termoregulator PB cu afisaj digital LED cu senzor de temperatura Pt 100 si cu termocuplu de tip „J”. Panoul de control este complet separat de unitate de incalzire, pentru siguranta si protectie
Senzorul extern PT100 permite controlul temperturii atat pe plita cat si in lichid.

Date tehnice

Model Jolly 1 Jolly 2
Control electronic analogic digital
Temperatura reglabila +50 .. 350°C +50 .. 350°C
Precizie ± 5 ± 5
Putere 1200 W 1200 W
Dimensiune plita 410 x 270 mm 410 x 270 mm
Clasa protecties IP32 IP32
Clasa securitate 0 0
Dimensiuni externe 410 x 290 x 190 mm 410 x 290 x 190 mm
Greutate 25 Kg 25 Kg
Alimentare 230 V/50-60 HZ 230 V/50-60 HZ
cod produs 623.0427.01 623.0427.02

Accesorii optionale
Tava din otel inox 18/8 cu manere 300 x 450 x 80 mm :: cod produs 623.0427.10


Solicit oferta de pret »

Multipurpose Hotplates
heating up to 350°C

Main Features
Housing in steel, oven coated with acidproof epoxy paint
Heating plate in aluminium 8 mm thick with rapid heating up to 350°C
Position of the heating resistance allows uniform heating of the whole surface; a solid structure renders the plate heater efficient and multipurpose; it can be used as thermostate by putting a steel tank on the plate, but as thermostatic or sand bath too
Controls are completely separeted from the heating device, so highest safety of all electronic controls is guaranteed
Temperature adjustment and setting for Jolly 1 obtained through a thermoregulator with graduated, fluid – expansion probe
Jolly 2 feautures the same characteristics but temperature control is different, that is, the item is provided with an electronic, PB thermoregulator with built – in “J” thermocouple and red LED digital thermometer with outer PT 100 temperature probe, which allows temperature control on the plate or in the fluid
N.B. The max indicated temperatures refer to plate.

Technical specifications

Model Jolly 1 Jolly 2
Electronic control analogic digital
Plate Temperature +50 .. 350°C +50 .. 350°C
Precision on the plate ± 5 ± 5
Heating power 1200 W 1200 W
Heating plate diameter 410 x 270 mm 410 x 270 mm
Protection class IP32 IP32
Security class 0 0
External dimension 410 x 290 x 190 mm 410 x 290 x 190 mm
Weight 25 Kg 25 Kg
Power 230 V/50-60 HZ 230 V/50-60 HZ
Item 623.0427.01 623.0427.02

*NB The max indicated temperatures refer to plate

Optional accesories
Stainless steel 18/8 Tank with handles :: product code 623.0427.10


RFQ »
