Plita electrica digitala cu 3 plite circulare de incalzire 300°C

Plite digitale de incalzire

ro Aparatura si dispozitive de incalzire » Plite electrice » Plita de incalzire de 3 locuri cu control digital :: Model MH30E

uk Heating Equipments » Electrical Hotplates » Digital 3 places circular hotplate :: Model MH30E

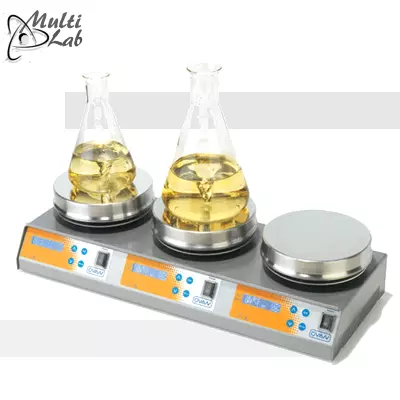

Banc cu plite de incalzire cu control digital

Model MH30E

Aplicatii: laborator si industrie

Plita digitala de precizie
3 locuri de incalzire separata pana la 300 °C

Caracteristici generale
Plite de incalzire de precizie, temperatura termostatata reglabila pana la 300°C
Sistem algoritmic integrat ARA-V2 fuzzy logic; permite ajustarea temperaturii cu o precizie de 0,5°C folosind sonda externa de temperatura Pt100 (sonda este optionala)
Control electronic integrat al temperaturii de la 0 la 100% pentru fiecare plita
Controlul temperaturii separat pentru fiecare plita prin intermediul sonda de tip Pt100
Elementele de incalzire inserate in placa de incalzire mentinand o distributie uniforma si optima a incalzirii
Display digital LCD pentru fiecare plita
Fiecare plita este prevazuta cu panou de control tactil pentru setarea temperatura si timp
Memorarea valorilor setate de temperatura si timp cu alarma sonora
Executia comenzile programate se reia in mod automat dupa eventualele pene de curent electric sau alte incidente
Protectie la supraincalzire / indicator pe display
Indicator arata daca exista probleme de functionare
Exteriorul este din otel inoxidabil AISI 304 acoperit cu rasina epoxidica
Material suprafata de incalzire aluminiu rezistenta inalta la temperatura si substante corozive
Interfata pentru conectare la o sonda externa Pt100

Date tehnice
Nr. locuri: 3 plite cu functionare separata
Domeniu temperatura: 20-300°C
Rezolutie: 0.5°C
Acuratete: ±1°C
Putere: 3 x 500 W (total 1500W)
Interfata T2: senzor Pt100
Timer: 0 .. 120 min
Clasa de protectie: IP32
Material plita: aluminiu
Diametru plita: Ø154 mm
Dimensioni: 525 x 205 x 120 mm
Greutate: 7 kg
Cod produs: 10000-01047


Solicit oferta de pret »

Precision digital Hotplate
Module with 3 independent heating plates up to 300°C

Main Features
Module consisting of 3 heating units in a single platform, with a single electrical connection
Each place works independently
Temperature adjustable controlled by microprocessor, by means of an integrated PT100 sensor
“ARA V2” fuzzy logic algorithm for high precision control of the temperature, to be used with external sensor without surpassing reference temperature (even at 30° C)
Digital display LCD backlighted indicating the selected and actual temperature, and timer (with audible alarm)
Indicator on the display of high temperature on the plate, that provides protection against burns
Membrane push-button control
Automatic restart after unexpected shut down keeping the same parameters as before the incident
An incident sign appears on the display
Removable plate, to replace itself in case of deterioration.

Technical specifications
No. places: 3 independent places
Tempreture range: 20-300°C
Resolution: 0.5°C
Accuracy: ±1°C
Heating power: 3 x 500 W (total 1500W)
Connection to external T2 sensor: Pt100
Timer: 0 .. 120 min
Protection class: IP32
Plate material: Polished Aluminium
Plate diameter: Ø154 mm
Dimensions: 525 x 205 x 120 mm
Weight: 7 kg
Reference: 10000-01047


RFQ »
