Incubatoare termostate universale

incubatoare_termostate_universale
service incubatoare de laborator

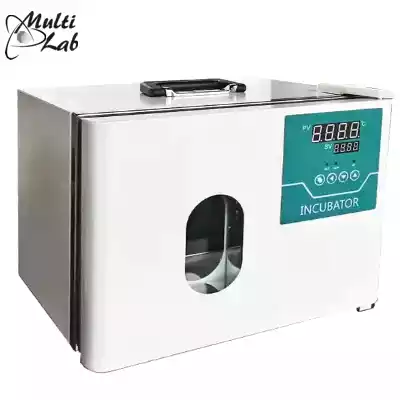

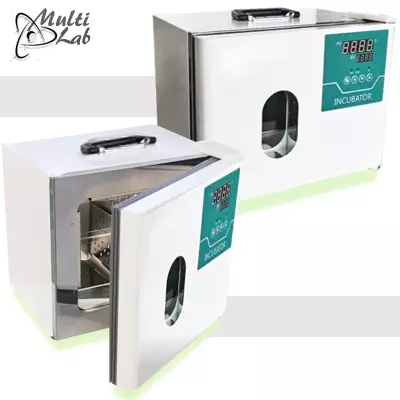

Mini Incubatoare portabile si mobile
Capacitate :: 5 lit. / 18 lit. / 28 lit.
Temperatura +5°C to +80°C
Seria FALC ICT / M (4 modele)

Termostate / Incubatore mobile cu ventilatie naturala

Conventional ventilated Mini Incubators » Series ICT / M


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Control electronic al temperaturii cu microprocesor tip PID cu sonda PT100
Convectie naturala a aerului
Clasa de protectie P 3.1

Date Tehnice

Model ICT P ICT 5.4 ICT 18 ICT 28
Capacitate 18 lit 5,4 lit 18 lit 28 lit
Domeniu de temperatura + 10 .. +65°C + 5 .. +80°C + 5 .. +80°C + 5 .. +80°C
Precizie la 37°C ±0,2 °C ±0,5 °C ±0,5 °C ±0,5°C
Acuratete °C 0,1°C 0,1°C 0,1 °C 0,1°C
Timer cronometric 10000 ore x x x
Rezolutie timer 1 s x x x
Putere de incalzire 60 W 350 W 400 W 650 W
Nr. de rafturi (satndard/optional) x 2 / 4 2 / 5 2 / 5
Dimensiuni interne 275x185x335 mm 190x150x190 mm 300x300x200 mm 400x250x300 mm
Dimensiuni externe 295x350x465 mm 380x240x300 mm 500x390x320 mm 620x360x440 mm
Greutate 6 kg 4 kg 5 kg 5 kg
Alimentare 100 la 240 V 50-60 Hz
si 12 V (beterie auto)
230 V 50-60 Hz 230 V 50-60 Hz 230 V 50-60 Hz
Cod produs 720.2070.00 20.2070.10 720.2070.12 720.2070.14

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Transparent Plexiglass for easy chamber inspection door.
Natural air circulation.
Microprocessor temperature control PID with PT100 probe.

Technical Data

Model ICT P ICT 5.4 ICT 18 ICT 28
Capacity / Volume 18 lit 5,4 lit 18 lit 28 lit
Temperature + 10 .. +65°C + 5 .. +80°C + 5 .. +80°C + 5 .. +80°C
Precision at 37°C ±0,2 °C ±0,5 °C ±0,5 °C ±0,5°C
Setting accuracy °C 0,1°C 0,1°C 0,1 °C 0,1°C
Timer 10000 h x x x
Timer rezolution 1 s x x x
Heating power 60 W 350 W 400 W 650 W
Nr. of shelves (satndard/optional) x 2 / 4 2 / 5 2 / 5
Internal dimension 275x185x335 mm 190x150x190 mm 300x300x200 mm 400x250x300 mm
External dimension 295x350x465 mm 380x240x300 mm 500x390x320 mm 620x360x440 mm
Weight 6 kg 4 kg 5 kg 5 kg
Power supply 100 to 240 V 50-60 Hz
and 12 V
230 V 50-60 Hz 230 V 50-60 Hz 230 V 50-60 Hz
Prod. code 720.2070.00 20.2070.10 720.2070.12 720.2070.14



Accesorii optionale
• Raft cromat
• Raft perforat O.Inox
• Inregistrator data-logger
• Termohigrometru cu senzor extern
• Termometru cu senzor extern
• Pungi sterile

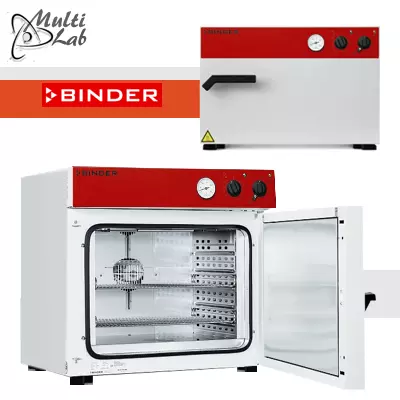

Termostate cu convectie naturala
Capacitate :: 28 lit.
Temperatura setabila +30°C .. +70°C
Model Binder B28

Termostat / Incubator analogic cu ventilatie naturala

Analogic incubator with mechanical adjustment


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Incubator analogic cu termostat hidro-mecanic
Livrare standard cu 2 rafturi cromat

Date Tehnice

Incubator analogic cu control mecanic
Model B 28
Cod produs 9010-0002
Domeniu de temperatura 30 °C .. 70°C
Variatie de temperatura la 37 °C 1,2 ± K
Fluctuatie de temperatura 1 ± K
Timpul necesar de incalzire pana la 37 °C 95 min
Caracteristici generale
Alimentare 230 V
Frecventa 50/60Hz
Putere nominala 0.25 kW
Faza 1 ph
General data
Interior volume 28 L
Greutate 23 kg
Sarcina maxima 25 kg
Sarcina max. / raft 10 kg
Nr. de rafturi (std./max.) 2/4
Usa interioara din sticla 1
Nr. de usi 1
Dimensiuni interne
latime 400 mm
Inaltime 280 mm
Adancime 250 mm
Dimensiuni exterioare
Latime 580 mm
Inaltime 405 mm
Adancime 425 mm

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Temperature range: 30 °C to 70 °C
Hydro-mechanical thermostat
Inner door made of tempered safety glass
2 chrome-plated racks

Technical Data

Analogic incubator with mechanical adjustment
Model B 28
Order number 9010-0002
Temperature range 30 °C .. 70°C
Temperature variation at 37 °C 1,2 ± K
Temperature fluctuation 1 ± K
Heating-up time to 37 °C 95 min
Electrical data
Rated Voltage 230 V
Power frequency 50/60Hz
Nominal power 0.25 kW
Phase (Nominal voltage) 1 ph
General data
Interior volume 28 L
Net weight of the unit (empty) 23 kg
permitted load 25 kg
Load per rack 10 kg
Number of shelves (std./max.) 2/4
Inner doors 1
Unit doors 1
Measures - Internal Dimensions
Width 400 mm
Height 280 mm
Depth 250 mm
Measures - Outer dimensions
Width 580 mm
Height 405 mm
Depth 425 mm



Accesorii optionale
• Raft cromat
• Raft perforat O.Inox

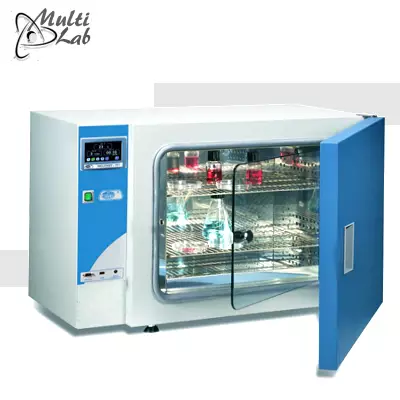

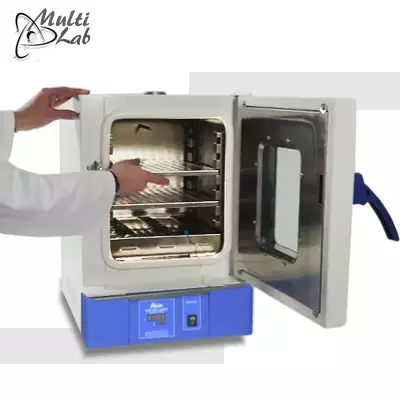

Incubatoare de laborator
Capacitate :: 30lit. / 45lit. / 65lit. / 125lit.
Temperatura setabila +5°C .. +80°C
Seria AuxiLab 636 PLUS (4 modele)

Termostat / Incubator cu ventilatie naturala

Conventional ventilated incubators » Series ICT


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Incubatorul termostat seria 636 PLUS poate fi utilizat in aplicatii de laborator din urmatoarele domenii: microbiologie,industia alimentara, industria cosmetica, biotehnologie,botanica,biochimie, medicina, pentru conservarea sau incubarea probelor de ser si plasma, culturi celulare, microorganisme.
Interiorul este fabricat din otel inox rezistent la substante corozive, foarte usor de curatat
Exteriorul este fabricat din tabla de otel acoperita cu vopsea epoxi rezistenta la coroziune
Usa dubla cu geam transparent care permite vizualizarea fara a modifica echilibrul termic
Control electronic al temperaturii cu microprocesor
Convectie naturala a aerului
Timer cronometric
Sistem de protectie la supraincalzire cu alarma vizuala si acustica

Date Tehnice

Model 636/30 Plus 636/45 Plus 636/75 Plus 636/125 Plus
Volum util 30 L 45 L 65 L 125 L
Afisaj digital LED LED LED LED
Domeniu de temperatura + 5 .. +80°C + 5 .. +80°C + 5 .. +80°C + 5 .. +80°C
Precizie la 37°C ±0,5 °C ±0,5 °C ±0,5 °C ±0,5°C
Acuratete 1°C 1°C 1 °C 1°C
Putere de incalzire 0.3 Kw 0.3 Kw 0.4 Kw 0.5 Kw
Alarma depasire temperatura setata automat automat automat automat
Nr. de rafturi (satndard/optional) 2 / 6 2 / 7 2 / 8 2 / 12
Dimensiune interne 46x51x69 cm 50x55x73 cm 55x55x84 cm 64x68x91 cm
Dimensiune externe 31x31x31 cm 35x35x35 cm 40x36x45 cm 50x45x55 cm
Greutate 39 kg 42 kg 53 kg 58 kg
Alimentare 220 V, 50 Hz 220 V, 50 Hz 220 V, 50 Hz 220 V, 50 Hz
Cod produs 50636031 50636041 50636061 50636131

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

The Series 636 plus incubatorsare are used in a lot of process in laboratories of cosmetics, microbiology, food analysis, biotechnology, botany and biochemistry, also is used in some applications in serum and plasma test, conservation or incubation of samples and the maintenance of cell cultures and microorganisms.
Made of painted steel and kiln-dried, have a stainless steel interior for an easy clean and a door with double glazed window that lets you control the evolution of the samples at any times.
They have digital regulation of temperature and time so that allow a precise control of these processes.
Main features
Exterior metal furniture cover with epoxy and interior of stainless steel,
Highly resistant to acids and corrosives, very easy to clean
Door with double glazed window for external control, no temperature variations
Supplied with trays (2 units, height adjustable), which provides great flexibility of use allowing to introduce bottles and containers of different sizes.

Technical Data

Model 636/30 Plus 636/45 Plus 636/75 Plus 636/125 Plus
Volume 30 L 45 L 65 L 125 L
Digital display LED LED LED LED
Temperature range + 5 .. +80°C + 5 .. +80°C + 5 .. +80°C + 5 .. +80°C
Tmp. Precision ±0,5 °C ±0,5 °C ±0,5 °C ±0,5 °C
Tmp resolution °C 1°C 1°C 1 °C 1°C
Power 0.3 Kw 0.3 Kw 0.4 Kw 0.5 Kw
Protection system overheat with visual and audible alarm. automatic automatic automatic automatic
Nr. of shelves (satndard/optional) 2 / 6 2 / 7 2 / 8 2 / 12
Int. Dimensions 46x51x69 cm 50x55x73 cm 55x55x84 cm 64x68x91 cm
Ext. Dimensions 31x31x31 cm 35x35x35 cm 40x36x45 cm 50x45x55 cm
Weight 39 kg 42 kg 53 kg 58 kg
Power supply 220 V, 50 Hz 220 V, 50 Hz 220 V, 50 Hz 220 V, 50 Hz
Prod. Code 50636031 50636041 50636061 50636131



Accesorii optionale
• Raft cromat
• Raft perforat O.Inox
• Inregistrator data-logger
• Sonda aditionala de temperatura PT 100
• System achizitii de date si de inregistrare in continuu • Termohigrometru cu senzor extern
• Termometru cu senzor extern
• Pungi sterile

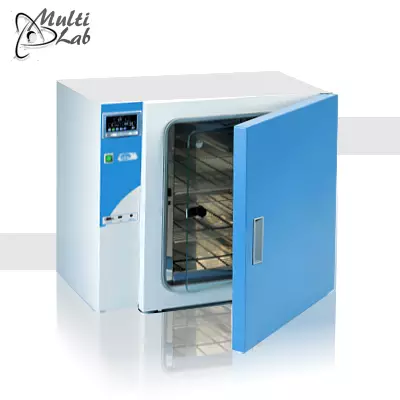

Incubatoare bacteriologice
Capacitate :: 19lit. / 36lit. / 52lit. / 80lit. / 150lit.
Temperatura setabila +5°C .. +80°C
Seria JPSelecta INCUBAT (5 modele)

Termostate / Incubatore bacteriologice analogice cu ventilatie naturala

Analogic Natural Convention Bacteriological Incubators » Series INCUBAT


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Incubatorul termostat seria INCUBAT poate fi utilizat in aplicatii de laborator din urmatoarele domenii: microbiologie,industia alimentara, industria cosmetica, biotehnologie,botanica,biochimie, medicina, pentru conservarea sau incubarea probelor de ser si plasma, culturi celulare, microorganisme.
Interiorul este fabricat din otel inox rezistent la substante corozive, foarte usor de curatat
Exteriorul este fabricat din tabla de otel acoperita cu vopsea epoxi rezistenta la coroziune
Usa dubla cu geam transparent care permite vizualizarea fara a modifica echilibrul termic
Control electronic al temperaturii cu microprocesor
Convectie naturala a aerului
Timer cronometric (optional)
Sistem de protectie la supraincalzire cu alarma vizuala si acustica

Date Tehnice

Incubatoare bacteriologice Seria INCUBAT
Model Incubat 19 Incubat 36 Incubat 52 Incubat 80 Incubat 150
Capacitate 19 lit. 36 lit. 52 lit. 80 lit. 150 lit.
Domeniu de temperatura +5 .. +80°C +5 .. +80°C +5 .. +80°C +5 .. +80°C +5 .. +80°C
Precizie ±0.1°C ±0.1°C ±0.1°C ±0.1°C ±0.1°C
Acuratete ±5°C ±5°C ±5°C ±5°C ±5°C
Afisaj analogic analogic analogic analogic analogic
Timer (optional) 0 .. 12 h 0 .. 12 h 0 .. 12 h 0 .. 12 h 0 .. 12 h
Timer programabil (optional) 24 h / 15 min. cycle 24 h / 15 min. cycle 24 h / 15 min. cycle 24 h / 15 min. cycle 24 h / 15 min. cycle
Nr. de rafturi (satandard/optional) 2/5 2/7 2/5 2/8 2/8
Dimensiuni int. HxWxD / cm 30x25x25 40x30x30 33x47x33 50x40x40 50x60x50
Dimensiuni ext. HxWxD / cm 51x57x49 60x62x54 53x79x57 70x72x64 70x92x74
Putere 165 W 245 W 275 W 315 W 535 W
Greutate 26 36 46 54 78
Cod produs 2000205 2000206 2001615 2000207 2000994

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Temperature thermostat control with analogue thermometer.
Adjustable temperatures from ambient +5 °C up to 80 °C.
Stability: ±0.1 °C, up to 37 °C.
Homogeneity: ±0.5 °C, up to 37 °C
Internal glass door.

Technical Data

Bacteriological incubators Seria INCUBAT
Model Incubat 19 Incubat 36 Incubat 52 Incubat 80 Incubat 150
Capacity 19 lit. 36 lit. 52 lit. 80 lit. 150 lit.
Tempreture range +5 .. +80°C +5 .. +80°C +5 .. +80°C +5 .. +80°C +5 .. +80°C
Stability ±0.1°C ±0.1°C ±0.1°C ±0.1°C ±0.1°C
Homogeniety ±5°C ±5°C ±5°C ±5°C ±5°C
Display analogic analogic analogic analogic analogic
Timer (optional) 0 .. 12 h 0 .. 12 h 0 .. 12 h 0 .. 12 h 0 .. 12 h
Programmer Timer (optional) 24 h / 15 min. cycle 24 h / 15 min. cycle 24 h / 15 min. cycle 24 h / 15 min. cycle 24 h / 15 min. cycle
Nr. of shelves (satandard/optional) 2/5 2/7 2/5 2/8 2/8
Inter. dimension HxWxD / cm 30x25x25 40x30x30 33x47x33 50x40x40 50x60x50
Ext. dimension HxWxD / cm 51x57x49 60x62x54 53x79x57 70x72x64 70x92x74
Power 165 W 245 W 275 W 315 W 535 W
Weight 26 36 46 54 78
Prod. Code 2000205 2000206 2001615 2000207 2000994



Accesorii optionale
• Raft aditional
• Timer cronometri
• Inregistrator data-logger (extern)
• Termohigrometru cu senzor extern
• Termometru cu senzor extern
• Pungi sterile



Incubatoare bacteriologice digitale
Capacitate :: 19lit. / 36lit. / 52lit. / 80lit. / 150lit.
Temperatura setabila +5°C .. +80°C
Seria JPSelecta INCUDIGIT-TFT (5 modele)

Termostate / Incubatore bacteriologice digitale cu ventilatie naturala

Digital Natural Convention Bacteriological Incubators » Series INCUDIGIT-TFT


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Incubatorul termostat seria INCUDIGIT-TFT poate fi utilizat in aplicatii de laborator din urmatoarele domenii: microbiologie,industia alimentara, industria cosmetica, biotehnologie,botanica,biochimie, medicina, pentru conservarea sau incubarea probelor de ser si plasma, culturi celulare, microorganisme.
Interiorul este fabricat din otel inox rezistent la substante corozive, foarte usor de curatat
Exteriorul este fabricat din tabla de otel acoperita cu vopsea epoxi rezistenta la coroziune
Usa dubla cu geam transparent care permite vizualizarea fara a modifica echilibrul termic
Control electronic programabil al temperaturii si timp cu microprocesor
Convectie naturala a aerului
Timer programabil digital
Sistem de protectie la supraincalzire cu alarma vizuala si acustica

Date Tehnice

Incubatoare bacteriologice Seria Incudigit-TFT
Model INC-D 19 INC-D 36 INC-D 52 INC-D 80 INC-D 150
Capacitate 19 lit. 36 lit. 52 lit. 80 lit. 150 lit.
Domeniu de temperatura +5 .. +80°C +5 .. +80°C +5 .. +80°C +5 .. +80°C +5 .. +80°C
Precizie ±0.1°C ±0.1°C ±0.1°C ±0.1°C ±0.1°C
Rezolutie 0.1°C 0.1°C 0.1°C 0.1°C 0.1°C
Afisaj TFT digital digital digital digital digital
Timer digital programabil programabil programabil programabil programabil
Imprimanta incorporata (optional) temperatura + timp temperatura + timp temperatura + timp temperatura + timp temperatura + timp
Nr. de rafturi (satandard/optional) 2/5 2/7 2/5 2/8 2/8
Dimensiuni int. HxWxD / cm 30x25x25 40x30x30 33x47x33 50x40x40 50x60x50
Dimensiuni ext. HxWxD / cm 51x57x49 60x62x54 53x79x57 70x72x64 70x92x74
Putere 150 W 225 W 250 W 300 W 525 W
Greutate 26 36 46 54 75
Cod produs 2001256 2001257 2001258 2001259 2001260

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Digital control and display of temperature and time.
Adjustable temperature from ambient +5 °C up to 80 °C.
Stability: ±0.1 °C, up to 37 °C.
Homogeneity: ±0.5 °c, up to 37 °C.
Set error: ±2% of the working temperature, resolution 0.1 °C
Internal tempered glass door.
Double chamber, minimum risk of sample contamination.
Inside without openings and with rounded corners; easy to clean.

Technical Data

Bacteriological incubators Incudigit-TFT Series
Model INC-D 19 INC-D 36 INC-D 52 INC-D 80 INC-D 150
Capacity 19 lit. 36 lit. 52 lit. 80 lit. 150 lit.
Tempreture range +5 .. +80°C +5 .. +80°C +5 .. +80°C +5 .. +80°C +5 .. +80°C
Stability ±0.1°C ±0.1°C ±0.1°C ±0.1°C ±0.1°C
Resolution 0.1°C 0.1°C 0.1°C 0.1°C 0.1°C
Display TFT digital digital digital digital digital
Digital timer settable settable settable settable settable
Integrated Printer (optional) tempreture + time tempreture + time tempreture + time tempreture + time tempreture + time
Nr. of shelves (satandard/optional) 2/5 2/7 2/5 2/8 2/8
Inter. dimension HxWxD / cm 30x25x25 40x30x30 33x47x33 50x40x40 50x60x50
Ext. dimension HxWxD / cm 51x57x49 60x62x54 53x79x57 70x72x64 70x92x74
Power 150 W 225 W 250 W 300 W 525 W
Weight 26 36 46 54 75
Prod. Code 2001256 2001257 2001258 2001259 2001260



Accesorii optionale
• Imprimanta integrata
• Raft aditional
• Inregistrator data-logger (extern)
• Termohigrometru cu senzor extern
• Termometru cu senzor extern
• Pungi sterile



Incubatoare de laborator
Capacitate :: 52lit. / 80lit. / 120lit. / 240lit.
Temperatura setabila +5°C .. +80°C
Seria FALC ICT (4 modele)

Termostat / Incubator cu ventilatie naturala

Conventional ventilated incubators » Series ICT


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Interiorul este fabricat din otel inox
Exteriorul este fabricat din tabla de otel acoperita cu vopsea epoxi rezistenta la coroziune
Usa cu geam transparent care permite vizualizarea fara a modifica echilibrul termic
Control electronic al temperaturii cu microprocesor
Convectie naturala a aerului
Lacket dublu
Timer cronometric 0 la 12 ore + infinit
Cos pentru evacuarea fumului Ø45mm
Orificiu de acces / Porthole Ø10mm pentru masurarea temperatura interioara
Clasa de protectie P 3.1

Date Tehnice

Model ICT 52 ICT 80 ICT 120 ICT 240
Domeniu de temperature + 5 .. +80°C + 5 .. +80°C + 5 .. +80°C + 5 .. +80°C
Precizie la 37°C ±0,4 °C ±0,4 °C ±0,8 °C ±0,8 °C
Acuratete°C 0,1°C 0,1°C 0,1 °C 0,1°C
Putere de incalzire 300 W 350 W 400 W 650 W
Nr. de rafturi (satndard/optional) 2 / 6 2 / 7 2 / 8 2 / 12
Dimensiune interne 390x350x390 mm 450x400x450 mm 500x470x520 mm 600x500x800 mm
Dimensiune externe 705x570x610 mm 775x610x675 mm 825x680x740 mm 925x710x1030 mm
Greutate 55 kg 60 kg 68 kg 80 kg
Cod produs 720.2070.16 720.2070.18 720.2070.20 720.2070.22

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
External frame painted with acid resistant epoxy paint
Internal chamber in stainless steel
Tempered glass inner door
Double door lock for better temperature thermal insulation
Chimney of 45 mm on the back side for extraction exhaust fumes; including device for opening/closing regulation to allow the probe or cable passage
Hole of 10 mm on the top to allow the passage of thermometer
Microprocessor temperature control
Timer from 0 to 12 hours + infinite
Security class 3.1

Technical Data

Model ICT 52 ICT 80 ICT 120 ICT 240
Temperature + 5 .. +80°C + 5 .. +80°C + 5 .. +80°C + 5 .. +80°C
Precision at 37°C ±0,4 °C ±0,4 °C ±0,8 °C ±0,8 °C
Setting accuracy °C 0,1°C 0,1°C 0,1 °C 0,1°C
Heating power 300 W 350 W 400 W 650 W
Nr. of shelves (satndard/optional) 2 / 6 2 / 7 2 / 8 2 / 12
Internal dimension 390x350x390 mm 450x400x450 mm 500x470x520 mm 600x500x800 mm
External dimension 705x570x610 mm 775x610x675 mm 825x680x740 mm 925x710x1030 mm
Weight 55 kg 60 kg 68 kg 80 kg
Prod. code 720.2070.16 720.2070.18 720.2070.20 720.2070.22



Accesorii optionale
• Raft cromat
• Raft perforat O.Inox
• Inregistrator data-logger
• Sonda aditionala de temperatura PT 100
• System achizitii de date si de inregistrare in continuu • Termohigrometru cu senzor extern
• Termometru cu senzor extern
• Pungi sterile



Termostate cu convectie naturala
Capacitate :: 23 lit. / 400 lit. / 720 lit.
Temperatura setabila :: +5 .. 100°C

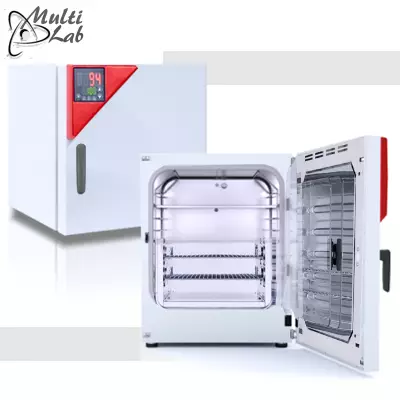

Seria Binder BD

Termostat / Incubator cu ventilatie naturala

Natural Convection Incubators


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Incubatoarele din seria BD sunt ideale pentru reactiile care decurg in conditii temperatura bine determinata, cum sunt reactiile de chimice si biochimice de incubare, fermentare, omogenizare, studiul enzimelor si al tesuturilor, controlul microbiologic de producţie, etc.
Sistem optic cu alarma pentru temperatura si ventilatie
Microprocesor PID cu afisaj cu leduri si temporizator 0 – 99 h
Clasa de protectie 3.1 (controlul preia functia de control a temperaturii in cazul in care temperatura presetata este depasita cu 1 .. 3 °C) Usa interioara de sticla

Date Tehnice

Incubators with natural convection Series BD
Model BD23 BD400 BD720
Cod produs 9010-0187 9010-0073 9010-0074
Domeniu de temperatura +5 °C .. 100°C +5 °C .. 100°C +5 °C .. 100°C
Variatie de temperatura la 37 °C 0,5 ± K 0,5 ± K 0,5 ± K
Fluctuatie de temperatura la 37 °C 0.2 ± K 0.1 ± K 0.1 ± K
Timp necesar de incalzire pana la 37 °C 59 min 120 min 110 min
Timp de revenire daca usa a fost deschisa 30 secunde 20 min 10 min 15 min
Caracteristici generale
Alimentare 230 V 230 V 230 V
Frecventa 50/60Hz 50/60Hz 50/60Hz
Putere nominal 0.2 kW 0.85 kW 0.85 kW
Faza 1 ph 1 ph 1 ph
Consum energetic la 37 °C 11 Wh/h 56 Wh/h 80 Wh/h
Volum util 20 L 400 L 720 L
Greutate 27 kg 135 kg 191 kg
Sarcina maxima 25 kg 90 kg 120 kg
Sarcina max. / raft 12 kg 35 kg 45 kg
Nr de rafturi (std./max.) 2/4 2/9 2/9
Nr. usi interioare (sticla) 1 1 2
Nr. de usi 1 1 2
Interfata RS 422 RS 422 RS 422
Dimensiuni interne
Latime 222 mm 1000 mm 1000 mm
Inaltime 330 mm 800 mm 1200 mm
Adancime 277 mm 500 mm 600 mm
Dimensiuni exterioare
Latime 435 mm 1235 mm 1235 mm
Inaltime 495 mm 1025 mm 1530 mm
Adancime 520 mm 765 mm 865 mm

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Temperature range: room temperature plus 5 °C to 100 °C
APT.line preheating chamber technology
natural convection
Adjustable exhaust air flap
Controller with timer functions
Inner door made of tempered safety glass
2 chrome-plated racks
Class 3.1 independent temperature safety device (DIN 12880) with visual temperature alarm
Computer interface: RS 422

Technical Data

Incubators with natural convection Series BD
Model BD23 BD400 BD720
Order number 9010-0187 9010-0073 9010-0074
Temperature range +5 °C .. 100°C +5 °C .. 100°C +5 °C .. 100°C
Temperature variation at 37 °C 0,5 ± K 0,5 ± K 0,5 ± K
Temperature fluctuation at 37 °C 0.2 ± K 0.1 ± K 0.1 ± K
Heating-up time to 37 °C 59 min 120 min 110 min
Recovery time after 30 seconds door open at 37 °C [min] 20 min 10 min 15 min
Electrical data
Rated Voltage 230 V 230 V 230 V
Power frequency 50/60Hz 50/60Hz 50/60Hz
Nominal power 0.2 kW 0.85 kW 0.85 kW
Phase (Nominal voltage) 1 ph 1 ph 1 ph
Energy consumption at 37 °C 11 Wh/h 56 Wh/h 80 Wh/h
General data
Interior volume 20 L 400 L 720 L
Net weight of the unit (empty) 27 kg 135 kg 191 kg
permitted load 25 kg 90 kg 120 kg
Load per rack 12 kg 35 kg 45 kg
Number of shelves (std./max.) 2/4 2/9 2/9
Inner doors / tempered safety glass 1 1 2
Unit doors 1 1 2
Interface RS 422 RS 422 RS 422
Measures - Internal Dimensions
Width 222 mm 1000 mm 1000 mm
Height 330 mm 800 mm 1200 mm
Depth 277 mm 500 mm 600 mm
Measures - Outer dimensions
Width 435 mm 1235 mm 1235 mm
Height 495 mm 1025 mm 1530 mm
Depth 520 mm 765 mm 865 mm



Accesorii optionale
Port de acces cu mufa silicon, ø mm: 10, 30, 50, 100
Priza interna rezistenta la apa, 230 V AC (max. 500 W), clasa de protectie IP 65
Alarma audio depasire temperatura setata
Senzor aditional de temperatura PT 100, flexibil, include conector LEMO (3-pini)
Certificat de calibrare conform DIN 12880 in 15 puncte la 37°C (27 de puncte)
Extensie la certificatul de calibrare. Fiecare punct additional de masurare in temperatura sau in camera
Platforma anti-alunecare (1 set de 4 piese)
Sistem achizitii de date T220 cu inregistrare continua a temperaturii in domeniul -90 °C pana la 220 °C. Kitul include 1 data logger, senzor PT 100 cu cablu de extensie 2 m Teflon si fittinguri pentru montare in incubator
Software pentru data logger
Raft additional cromat sau din inox
Raft perforat din inox
Lacat pentru usa

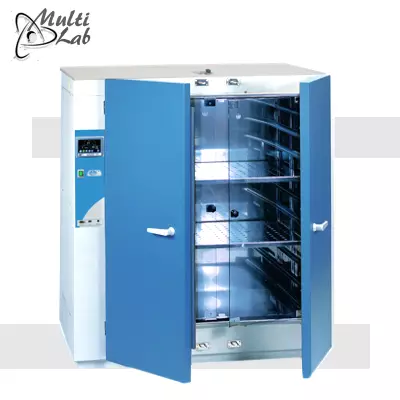

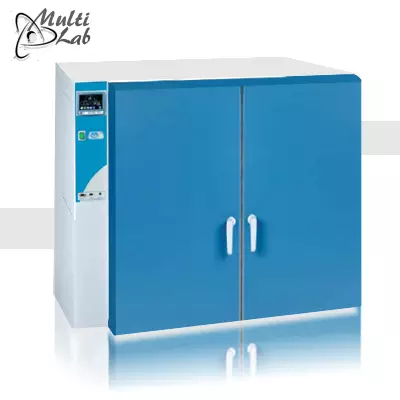

Incubatoare bacteriologice digitale
Capacitate :: 288lit. / 400lit. / 720lit.
Temperatura setabila +5°C .. +80°C
Seria JPSelecta INCUBIG-TFT (3 modele)

Termostate / Incubatore bacteriologice digitale cu ventilatie naturala

Digital Natural Convention Bacteriological Incubators » Series INCUBIG-TFT


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Incubatorul termostat seria INCUBIG-TFT poate fi utilizat in aplicatii de laborator din urmatoarele domenii: microbiologie,industia alimentara, industria cosmetica, biotehnologie,botanica,biochimie, medicina, pentru conservarea sau incubarea probelor de ser si plasma, culturi celulare, microorganisme.
Interiorul este fabricat din otel inox rezistent la substante corozive, foarte usor de curatat
Exteriorul este fabricat din tabla de otel acoperita cu vopsea epoxi rezistenta la coroziune
Usa dubla cu geam transparent care permite vizualizarea fara a modifica echilibrul termic
Control electronic programabil al temperaturii si timp cu microprocesor
Convectie naturala a aerului
Timer programabil digital
Sistem de protectie la supraincalzire cu alarma vizuala si acustica

Date Tehnice

Incubatoare bacteriologice Seria INCUBIG-TFT
Model Incubat 19 Incubat 36 Incubat 52
Capacitate 288 lit. 400 lit. 720 lit.
Domeniu de temperatura +5 .. +80°C +5 .. +80°C +5 .. +80°C
Precizie ±0.1°C ±0.1°C ±0.1°C
Acuratete ±5°C ±5°C ±5°C
Afisaj digital TFT digital TFT digital TFT
Programe ciclice Tempratura / Timp 10 program / 60 segmente 10 program / 60 segmente 10 program / 60 segmente
Panou de control Touch-screen Touch-screen Touch-screen
Nr. de rafturi (satandard/optional) 2/8 2/10 2/12
Interfata RS-232 - USB - Ethernet RS-232 - USB - Ethernet RS-232 - USB - Ethernet
Alarma all events all events all events
Nr. de usi interioare (sticla) 1 2 2
Nr. de usi 1 2 2
Dimensiuni int. HxWxD / cm 80x60x60 100x80x50 120x100x60
Dimensiuni ext. HxWxD / cm 97x91x76 130x114x75 152x134x85
Putere 570 W 1100 W 1600 W
Greutate 87 160 225
Cod produs 2000238 2000239 2000240

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

Main features
Natural convection.microprocessor control and digital display of temperature and time. Adjustable temperature from ambient +5 °C to 80 °C
Atability: ±0.1 °C, up to 37 °C
Homogeneity: ±0.5 °C, up to 37 °C
Set error: ±2% of the working temperature, resolution 0.1 °C
Internal tempered glass door
Control panel 4.3 inches TFT touch screen
Visual audible alarm
Clock calendar
Single or cyclic On / Off programming
Up to 10 work programs; 6 segments per program
Stability time in each segment (from 1 min to 99h )
Alarms and events storage
Probe error detection
Self Diagnostics
Ramps between segments
Door open alarm
Network failure detection and saving
Over temperature and low temperature alarms and memorization (date, start time, end time and tempe-rature)
Safety thermostat (TS) by software
Mechanic safety thermostat (TS)
USB, RS -232 output, Ethernet output para for LAN connection
PC software
User manual on screen
Temperature control auto-tuning
Configurable parameters: Date / time, temperature correction, data collection interval, over temperature and low temperature limit
Security thermostat

Technical Data

Bacteriological incubators Series INCUBIG-TFT
Model Incubat 19 Incubat 36 Incubat 52
Capacity 288 lit. 400 lit. 720 lit.
Tempreture range +5 .. +80°C +5 .. +80°C +5 .. +80°C
Stability ±0.1°C ±0.1°C ±0.1°C
Homogeniety ±5°C ±5°C ±5°C
Display digital TFT digital TFT digital TFT
Tempreture / Timer cyclic programms 10 program / 60 segmente 10 program / 60 segmente 10 program / 60 segmente
Control Pannel Touch-screen Touch-screen Touch-screen
Nr. of shelves (satandard/optional) 2/8 2/10 2/12
Interface RS-232 - USB - Ethernet RS-232 - USB - Ethernet RS-232 - USB - Ethernet
Alarm all events all events all events
Nr. of inetrior doors (glass) 1 2 2
Nr. of doors 1 2 2
Inter. dimension HxWxD / cm 80x60x60 100x80x50 120x100x60
Ext. dimension HxWxD / cm 97x91x76 130x114x75 152x134x85
Power 570 W 1100 W 1600 W
Weight 87 160 225
Prod. Code 2000238 2000239 2000240



Accesorii optionale
• Imprimanta integrata
• Raft aditional
• Inregistrator data-logger (extern)
• Termohigrometru cu senzor extern
• Termometru cu senzor extern
• Pungi sterile

multilab_team

Solutions for science, industry and safety
Suntem bucurosi sa te ajutam ... Fie ca vrei sa comanzi si nu esti sigur care este cea mai buna alegere, sau vrei sa afli mai multe despre serviciile noastre, consultantii nostri Iti raspund la orice intrebare
Pentru orice detalii suplimentare tehnice sau comerciale sintem la dispozitia Dvs.
direct Tel. +4 021 312 7144 / 45
sau

service_reparatie

Superior Service MultiLab's aim is to differentiate ourselves and add value to our customers, by providing superior service throughout the sales and after-care processes :: Preventative Maintenance - Calibration - Repair - Validation .. more »
Centru service autorizat de producator Service - Mentenantei preventive - Reparati - Consumabile - Piese de schimb pentru aparatura de laborator .. mai multe »

multilab_laboratories

*Important acest site este unul de prezentare! date tehnice; poze afisate si preturile sunt cu titlu informativ se pot schimba fara notificare prealabila! detalii »

All rights Reserved MultiLab© SRL Romania 2003 - 2017
