Ultracongelatoare Criogenice temperaturi ultrajoase pana la - 160°C


Congelator răcirea criogenica :: Laborator - Medical - Farmaceutic - Panificatie - Industrie - Electronica
Domeniu Tmp. -125 °C la -155 °C
Capacitate :: 128 si 231 lit.
Seria MDF

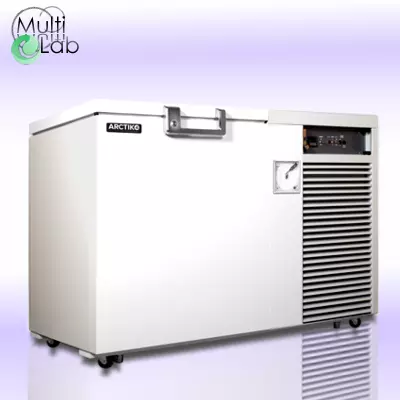

Ultra-Congelatoare Criogenice cu înghețare până la -156 grade Celsius

Ultra Low Temperature Cryo Freezer -156°C


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Utilizare: pastrarea, conservarea probe medicale si de laborator, produse farmaceutice, medicamete, organe, celule stem si biologice, produse alimentare speciale, etc.

Caracteristici
• Domeniul de temperatura: - 125 °C la - 156 °C / acuratete 1 °C
• Culoare: Gri
• Structura: exterior si interior din otel inox AISI 304 cu izolare; interior 2 compartimente.
• Izolare: tripla siliconica de 200 mm,
• Panoul de control: afisaj digital multifunctional alarma si lampi de avertizare permite controlul tuturor functiilor si afisarea starii de lucru a congelatorului inclusiv alarmare in caz de probleme.
• sistem de baterie back-up 72 de ore pentru alarma, afisaj temperatura in cazul unei caderi de curent
• Conform normative CE; CEI 66.5

Date Tehnice

Model MDF-1156-PE MDF-1156ATN-PE MDF-C2156VAN-PE
Dimensiune externe (W x D x H) 1400 x 800 x 945 mm 1400 x 800 x 945 mm 1730 x 765 x 1010 mm
Dimensiune interne (W x D x H) 500 x 450 x 572 mm 500 x 450 x 572 mm 760 x 495 x 615 mm
Volum 128 lit 128 lit 231 litres
Greutate (aprox) 265 Kg 272 Kg 318 kg
Performanta
Racire -152°C -152°C -150°C
Domeniu de temperatura -125 ~ -155°C -125 ~ -155°C -125 ~ -152°C
Control domeniu de temp. -130 ~ -150°C -130 ~ -152°C -125 ~ -150°C
Control
Controller Microprocessor cu memorie ne-volatila
Display LED LED LCD
Senzor temperatura Pt-100 Pt-100 Pt-100
Refrigerare
Sistem refrigerare Cascade cu auto-cascade de nivel scazut
Compresor nivel inalt 1100 W 1100 W 1100 W
Refrigerant nivel inalt HFC HFC HFC
Compresor nivel scazut 1100 W 1100 W 1100 W
Refrigerant nivel scazut HFC Mixed HFC Mixed HFC Mixed
Material izolare *PUF *PUF *PUF/VIP Plus
Grosime strat d eizolare 175 mm 175 mm 135 mm
Alarme
Pana curent *V-B-R *V-B-R *V-B-R
Temperatura depasita *V-B-R *V-B-R *V-B-R
Temperatura scazuta x x *V-B-R
Filtru *V-B *V-B *V-B
Capac deschis x x *V-B
Constructie
Material exterior / carcasa otel vopsit otel vopsit otel vopsit
Material Interior aluminiu aluminiu aluminiu
Nr. capace interioare 1 1 2
Capac exterior /lachet da da da
Sarcina maxima 300 Kg 300 Kg 207 Kg

Access port / pozitia left left right
Access port / diametru Ø 40 mm Ø 40 mm Ø 40 mm
Roti 6 (2 de nivel) 6 (2 de nivel) 6 (3 de nivel)
Alimentare 230V 50Hz Single 230V 50Hz Single 230V 50Hz Single
Nivel zgomot 61 dB 61 dB 51 dB

PUF = izolare cu poliureten rigid
V = alarma vizuala
B = alarma sonora
R = alarm cu remote

Conformitate - Certificate - Service
• Certificat de conformitate
• Certificat de garantie si post garantie
• Firma Multi-Lab este Certificata si Autorizata pentru comercializare, instalare si service produsele prezentate

With extreme cooling precision at 1°C and its high tech microprocessor controller, this unit is the perfect Ultra low chest freezer for testing special material, ideal for hospitals, university laboratories, military industry or sanitation stations.
Main Features
The Panasonic MDF-C2156VAN-PE Ultra Low Temperature Freezer is Ideally suited for cryogenic and long-term storage in laboratories and no loger uses harmfull CFC's to achieve a ultra low temperature of -150°C. The Panasonic MDF-C2156VAN-PE is a mechanical cryogenic freezer.
VIP PLUS technology maximizes storage capacity over conventionally insulated models. Whatever your preservation needs are, Panasonic provides the right equipment to meet your exact requirements. Panasonic preservation systems employ advanced technology to insure a high precision temperature environment.
The MDF-C2156VAN -150°C ULT freezer is equipped with Panasonic’s new Cool Safe compressors. These compressors achieve a 10% higher energy conservation and the aerodynamically designed and placed components in the refrigeration compartment provide superior airflow, making it possible to significantly reduce the stress to the freezer and contributing to excellent durability.
Environmentally friendly
The MDF-C2156VAN utilises binary mixed non-HCFC refrigerants. The new Vacuum Insulation Panels and double door gaskets reduce the power consumption.
Advantages
Safe and Convenient Usability
Specially designed cascade refrigeration system
Standard LN2 backup
Low operational costs
Convenient Control with LCD panel
LN2 Cost Savings
No liquid supply problems
No danger of sudden liquid eruptions
Panasonic Cool Safe compressors are specifically designed for refrigeration systems that achieve ultra-low temperatures
VIP PLUS insulation maximizes storage capacity
Recheargeable battery
Cool Safe compressors
Panasonic patented VIP Plus Vacuum Insulation
Three levels of cabinet security
High performance, quiet-running Panasonic-designed refrigeration
No CFC's in the by Panasonic developed special mixed Refrigerant
Enhanced reliability of long-term preservation
Advanced controlling features
LED digital display and flat key data entry for accurate temperature setting, confirmation and operation
Inner cabinet maintains temperature safely below the -130°C
Ultra-low temperature created by a high-efficiency oil separator
Special foamed-in-place polyurethane insulation material for maximum cabinet protection
Microprocessor-controlled filter-clogged check function
High temperature warning equipment
Power failure alarm lamp and buzzer
Remote alarm contact
Optional liquid nitrogen and CO2 back-up system

Technical Specifications

Dimensions MDF-1156-PE MDF-1156ATN-PE MDF-C2156VAN-PE
External dimensions (W x D x H) 1400 x 800 x 945 1400 x 800 x 945 1730 x 765 x 1010 mm
Internal dimensions (W x D x H) 500 x 450 x 572 500 x 450 x 572 760 x 495 x 615 mm
Volume 128 lit 128 lit 231 litres
Net weight (approx) 265 Kg 272 Kg 318 kg
Performance
Cooling performance -152°C -152°C -150°C
Temperature setting range -125 ~ -155°C -125 ~ -155°C -125 ~ -152°C
Temperature control range -130 ~ -150°C -130 ~ -152°C -125 ~ -150°C
Control
Controller Microprocessor Non-volatile memory Microprocessor Non-volatile memory Microprocessor Non-volatile memory
Display LED LED LCD
Temperature sensor Pt-100 Pt-100 Pt-100
Refrigeration
Refrigeration system Cascade with auto-cascade low-stage Cascade with auto-cascade low-stage Cascade with auto-cascade low-stage
High-stage compressor 1100 W 1100 W 1100 W
High-stage refrigerant HFC HFC HFC
Low-stage compressor 1100 W 1100 W 1100 W
Low-stage refrigerant HFC Mixed HFC Mixed HFC Mixed
Insulation material *PUF *PUF *PUF/VIP Plus
Insulation thickness 175 mm 175 mm 135 mm
Alarms
Power failure *V-B-R *V-B-R *V-B-R
High temperature *V-B-R *V-B-R *V-B-R
Low temperature x x *V-B-R
Filter *V-B *V-B *V-B
Lid / door open x x *V-B
Construction
Exterior material Painted steel Painted steel Painted steel
Interior material Aluminium Aluminium Aluminium
Inner door/lid 1 1 2
Outer door/lid lock Y Y Y
Max. load -total 300 300 207
Access port
position left left right
diameter 40 40 40
Casters 6 (2 leveling feet) 6 (2 leveling feet) 6 (3 leveling feet)
Electrical and Noise Level
Power supply 230V 50Hz Single 230V 50Hz Single 230V 50Hz Single
Noise level 61 dB 61 dB 51 dB

PUF = Rigid polyurethane foamed insulation
V = Visual alarm
B = Buzzer alarm
R = Remote alarm
