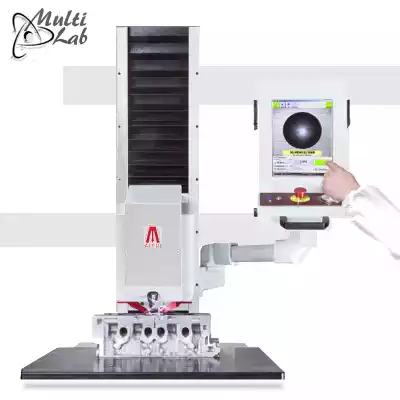

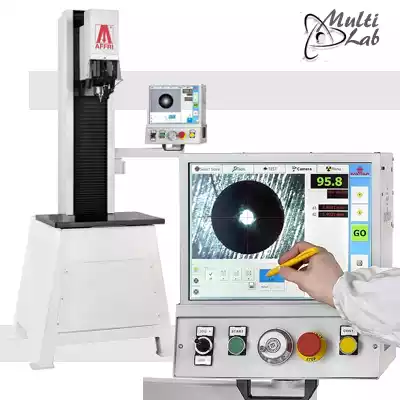

Tester Universal duritatii Materialelor cu camera video
Seria NEXUS 7501

Durimetru universal pentru testelor pe scarile Rockwell si Rockwell superficial, Brinell, Vickers, Knoop, HBT & HVT.

Universal Benchtop Hardness Tester with integrated optical system


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

modele din seria Nexus 7501 permit realizarea testelor pe scarile Rockwell si Rockwell superficial, Brinell, Vickers, Knoop, HBT & HVT.

Date tehnice

Scari de duritate Brinell - Vickers - Rockwell - Superficial Rockwell - Knoop - Vickers depth (HVT) - Brinell depth (HBT) - Plastic
Sistem optic 5 mega-pixel camera video HD - indent zoom function
Valoarea fortei de incarcare 1 .. 250 kgf
Display High resolution industrial LCD touch screen - Optional: desk top LCD screen - Optional: desk top LCD touch screen - Optional: Height adjustable LCD touch screen
Microprocesor CPU Embedded high performance PC with 2 solid state HD drives - Optional: External high performance PC
Sistem IMPRESSIONS - advanced hardness testing software including options for: manual measurement - automatic measurement - indent zoom function - scale - conversion - file storage - report printing - test program storage - machine settings - storage - graphic interface for swivel system position
Standarde Conforms to ISO 6506 - 6507 - 6508 - 4545 - ASTM E18 - E92 - E10 and JIS
Celula de forta Loadcell closed loop - force feedback system - Complies to EN/ISO and ASTM standards
Ciclu de testare Automatic and indent evaluation
Forta de incarcare (0 - 5*) 1 - 3 - 5 - 10 - 15 - 15.625 - 20 - 30 - 31.25 - 50 - 60 - 62.5 - 100 - 125 - 150 - 187.5 - 250kgf
Proceduri teste Brinell HB1 1 - 2.5 - 5 - 10 - 30 - HB2.5: 6.25 - 15.625 - 31.25 - 62.5 - 187.5 - HB5: 25 - 62.5 - 125 - 250 - HB10: 100 - 250
Proceduri teste Vickers HV (0 - 5*) 1 - 2 - 3 - 5 - 10 - 20 - 30 - 50 - 100
Proceduri teste Rockwell A - B - C - D - E - F - G - H - K - L - M - P - R - S - V - Bm - Fm - 15N - 30N - 45N - 15T - 30T - 45T - 15W - 30W - 45W - 15X - 30X - 45X - 15Y - 30Y - 45Y - 30 TM - HMR 5/25
Tip penetrator (inclus) Brinell Balls: 1 - 2.5 - 5 - 10mm - Vickers Diamond: 136º Rockwell Diamond Cone: 120º Balls: 1/16 in - 1/8 in - 1/4 in - 1/2 in
Durata de incarcare 0.1 .. 255 sec.
Interfata USB-2(6) RS-232 - UTP RJ45 - LAN - W-LAN
Suport specimen Maximum test height 300mm - maximum throat 220mm
Access specimen External surfaces - internal surfaces with goose neck adapter (optional)
Dimensiune 620mm x 250mm x 900mm (L x W x H)
Greutate 170kg
Alimentare 230V / 50Hz other voltages and/or frequencies on request



The NEXUS 7501 universal hardness tester is based on the successful NEXUS 7000 load cell closed loop concept with indenter/objective swivel system.
The NEXUS 7501 is a hardness tester for all hardness procedures according to Rockwell, Superficial Rockwell, Brinell, Vickers and Knoop. Also possible are ball and indentation hardness testing for thermo plastics and the new Vickers depth (HVT) and Brinell depth (HBT) procedures.
The load range goes from 1 to 250kgf (optional from 0.5kgf). All procedures complying to EN/DIN/ISO, ASTM and JIS.
The new user interface IMPRESSIONS guarantees hassle free tester operation with a minimum amount of training. IMPRESSIONS allows you to operate the tester's main functions but also incorporates advanced algorithms for automatic impression detection and hardness measurement.

Available Models

Hardness scales Brinell - Vickers - Rockwell - Superficial Rockwell - Knoop - Vickers depth (HVT) - Brinell depth (HBT) - Plastic
Optical 5 mega-pixel HD camera - indent zoom function
Load range 1-250kgf
Display High resolution industrial LCD touch screen - Optional: desk top LCD screen - Optional: desk top LCD touch screen - Optional: Height adjustable LCD touch screen
CPU Embedded high performance PC with 2 solid state HD drives - Optional: External high performance PC
Firmware IMPRESSIONS - advanced hardness testing software including options for: manual measurement - automatic measurement - indent zoom function - scale - conversion - file storage - report printing - test program storage - machine settings - storage - graphic interface for swivel system position
Standards Conforms to ISO 6506 - 6507 - 6508 - 4545 - ASTM E18 - E92 - E10 and JIS
Test load type Loadcell closed loop - force feedback system - Complies to EN/ISO and ASTM standards
Test cycle Automatic and indent evaluation
Test loads (0 - 5*) 1 - 3 - 5 - 10 - 15 - 15.625 - 20 - 30 - 31.25 - 50 - 60 - 62.5 - 100 - 125 - 150 - 187.5 - 250kgf
Brinell test procedures HB1 1 - 2.5 - 5 - 10 - 30 - HB2.5: 6.25 - 15.625 - 31.25 - 62.5 - 187.5 - HB5: 25 - 62.5 - 125 - 250 - HB10: 100 - 250
Vickers test procedures HV (0 - 5*) 1 - 2 - 3 - 5 - 10 - 20 - 30 - 50 - 100
Rockwell test procedures A - B - C - D - E - F - G - H - K - L - M - P - R - S - V - Bm - Fm - 15N - 30N - 45N - 15T - 30T - 45T - 15W - 30W - 45W - 15X - 30X - 45X - 15Y - 30Y - 45Y - 30 TM - HMR 5/25
Indenter types (included) Brinell Balls: 1 - 2.5 - 5 - 10mm - Vickers Diamond: 136º Rockwell Diamond Cone: 120º Balls: 1/16 in - 1/8 in - 1/4 in - 1/2 in
Load duration 0.1-255 seconds
Connectivity USB-2(6) RS-232 - UTP RJ45 - LAN - W-LAN
Specimen accommodation Maximum test height 300mm - maximum throat 220mm
Specimen access External surfaces - internal surfaces with goose neck adapter (optional)
Dimensions 620mm x 250mm x 900mm (L x W x H)
Weight 170kg
Power Supply 230V / 50Hz other voltages and/or frequencies on request



Optional accessories

Cerificat de verificare metrologica
