Containere metalice din otel si plasa de sarma pentru cilindri, butelii si recipiente de gaze

dulapuri_metalice_omologate

ro Protectie si siguranta » Cabinete de siguranta » Containere de siguranta pentru bultelii si cilindri de gaz

uk Safety » Safety Storage Cabinets » Exterior Safety Storage Containers for gas cylinders

Date tehnice

Dulapuri de protecţie pentru depozitare si stocare cilindirii de gaz comprimat sunt construite in conformitate 3804/30/91.1

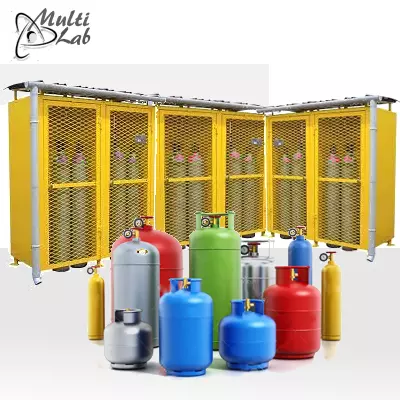

PANDESA deposit for compressed gas cylinders
Main Features
Certified deposit for compressed gas cylinders
Authorisation of the Ministry of the Interior
Certified n° 3804/30/91.1
Built with steel panels folded and welded on perimetrical spars to limit structuraldeflexions, complete of adjustable feet for fixing to the floor on a cement base;possibility of filling the above-mentioned panels with sand or concrete, therefore fixed
Modularity predisposition.
Complete with continuous earthing system for every unit (FARADAY CRATE)
Modular roof in tarred corrugated fibreboard fixed on varnished steel load-bearing base
PVC eaves
Doors with anti-intrusion net complete of security block
Zinc-plating treatment on all components
Painting with polyurethane auto-extinguishable resin
Possibility to separate combustible material from supporters of combustion
No need of building licence
Different possible combinations

Cylinder storage container in galvanised steel with base for exteriors
Main Features
Hinged doors with intrusion protection safety lock
Top in galvanised steel
The inside base is made in uniformly uneven steel
Earthed
Chain and spring catch inner to hook the cylinders
Pre-arranged for modular assembly
Safety labelling included.

Containere si lazi de siguranta pentru exterior
container_siguranta_butelii_gaz

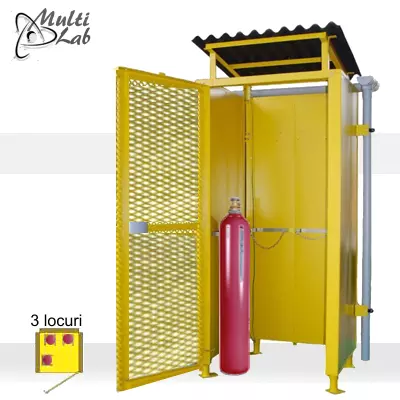

Model PAN 01
Container de siguranta cu 1 compartiment / 1 usa cu sistem de blocare
Dimensiune: 960 x 880 x 2400 mm
Capacitate: 3 cilindri
Greutate: 262 Kg

PANDESA deposit for compressed gas cylinders
Capacity: 3 places
Dimension WxDxH: 960 x 880 x 2400 mm
Weight: 262 Kg

container_butelii_gaz

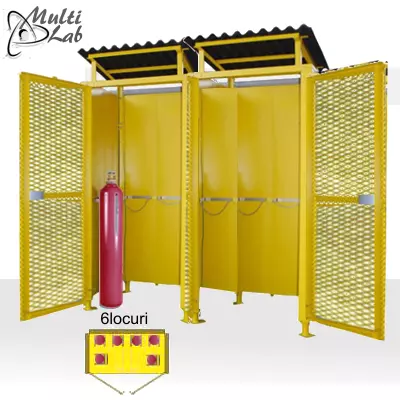

Model PAN 02
Container de siguranta cu 1 compartiment / 2 usi cu sistem de blocare
Dimensiune: 1760 x 880 x 2400 mm
Capacitate: 6 cilindri
Greutate: 377 Kg

PANDESA deposit for compressed gas cylinders
Capacity: 6 places
Dimension WxDxH: 1760 x 880 x 2400 mm
Weight: 377 Kg

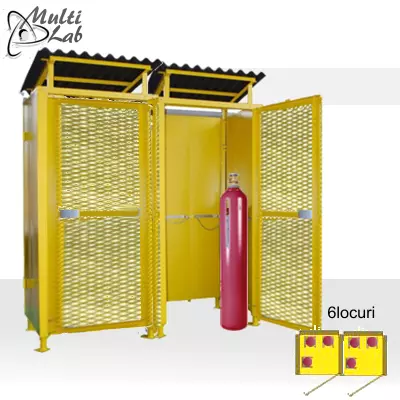

dulap_metalic_cilindri_gaz

Model PAN 03
Container de siguranta cu 2 compartimente / 2 usi cu sistem de blocare
Dimensiune: 1840 x 880 x 2400 mm
Capacitate: 3 + 3 cilindri
Greutate: 448 Kg

PANDESA deposit for compressed gas cylinders
Capacity: 3 + 3 places
Dimension WxDxH: 1840 x 880 x 2400 mm
Weight: 448 Kg

container_cilindrii_gaz_gpl

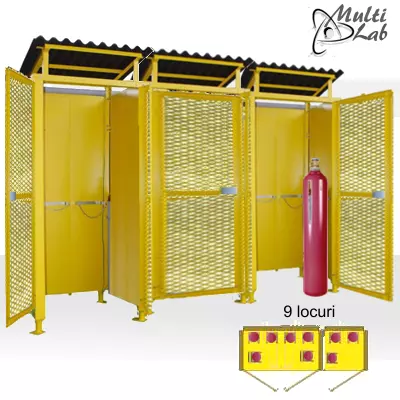

Model PAN 04
Container de siguranta cu 2 compartimente / 3 usi cu sistem de blocare
Dimensiune: 2640 x 880 x 2400 mm
Capacitate: 6 + 3 cilindri
Greutate: 568 Kg

PANDESA deposit for compressed gas cylinders
Capacity: 6 + 3 places
Dimension WxDxH: 2640 x 880 x 2400 mm
Weight: 568 Kg

container_plasa_sarma

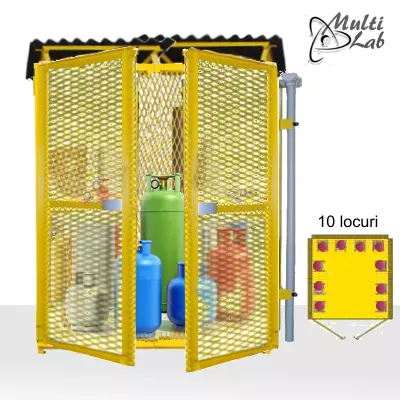

Model PAN 05
Container de siguranta cu 1 compartiment / 2 usi cu sistem de blocare
Dimensiune: 1760 x 1680 x 2400 mm
Capacitate: 10 cilindri
Greutate: 550 Kg

PANDESA deposit for compressed gas cylinders
Capacity: 10 places
Dimension WxDxH: 1760 x 1680 x 2400 mm
Weight: 550 Kg

dulap_metalic_combustibili

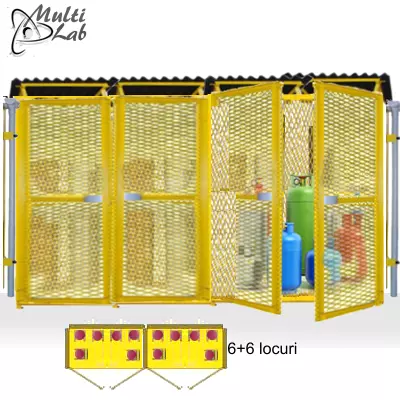

Model PAN 06
Container de siguranta cu 2 compartimente / 4 usi cu sistem de blocare
Dimensiune: 3440 x 880 x 2400 mm
Capacitate: 6 + 6 cilindri
Greutate: 683 Kg

PANDESA deposit for compressed gas cylinders
Capacity: 6 + 6 places
Dimension WxDxH: 3440 x 880 x 2400 mm
Weight: 683 Kg

dulap_depozitare_cilindrii_gaz_lichefiat

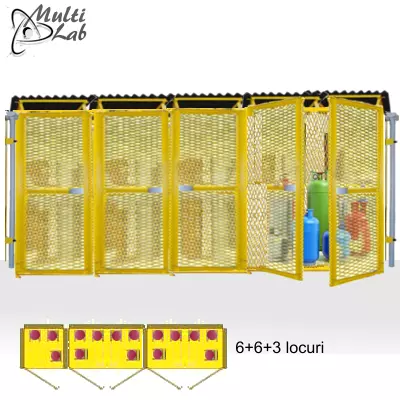

Model PAN 07
Container de siguranta cu 3 compartimente / 5 usi cu sistem de blocare
Dimensiune: 4320 x 880 x 2400 mm
Capacitate: 6 + 6 + 3 cilindrii
Greutate: 875 Kg

PANDESA deposit for compressed gas cylinders
Capacity: 6 + 6 + 3 places
Dimension WxDxH: 4320 x 880 x 2400 mm
Weight: 875 Kg

dulap_metalic_plasa_sarma

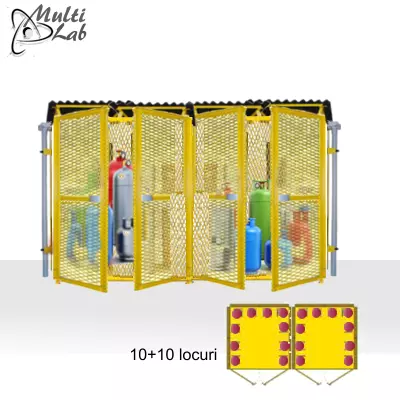

Model PAN 08
Container de siguranta cu 2 compartiment / 4 usi cu sistem de blocare
Dimensiune: 3440 x 1680 x 2400 mm
Capacitate: 10 + 10 cilindri
Greutate: 909 Kg

PANDESA deposit for compressed gas cylinders
Capacity: 10 + 10 places
Dimension WxDxH: 3440 x 1680 x 2400 mm
Weight: 909 Kg

lada_depozitare_butelii_gaz

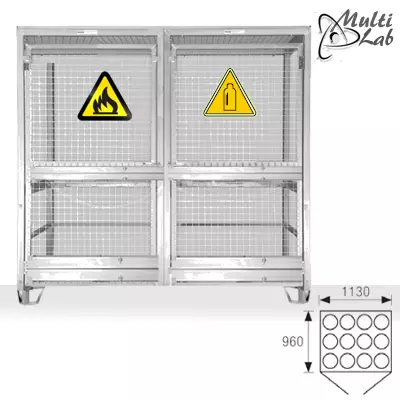

Model PBOX912
Lada de siguranta din otel si plasa de sarma cu sistem de blocare
Dimens. exter.: 1130 x 960 x 2100 mm
Dimens. inter.: 1065 x 900 x 1890 mm
Capacitate: 9/12 cilindri
Greutate: 175 Kg

Cylinder storage container in galvanised steel with base
Capacity: 9/12 places
Exter. Dimension: 1130 x 960 x 2100H mm
Inter. Dimension: 1065 x 900 x 1890H mm
Weight: 175 Kg

dulap_faraday_cilindri_gaz

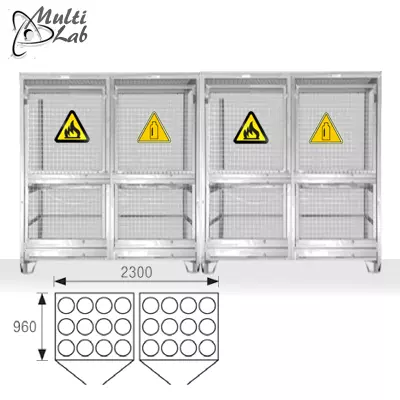

Model PBOX1824
Lada de siguranta din otel si plasa de sarma cu sistem de blocare
Dimens. exter.: 2300 x 960 x 2100 mm
Dimens. inter.: 2130 x 900 x 1890 mm
Capacitate: 18/24 cilindri
Greutate: 350 Kg

Cylinder storage container in galvanised steel with base
Capacity: 18/24 places
Exter. Dimension: 2300 x 960 x 2100H mm
Inter. Dimension: 2130 x 900 x 1890H mm
Weight: 350 Kg

container_faraday_buteli_gaze

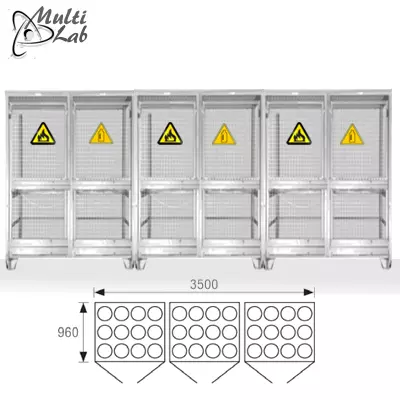

Model PBOX2436
Lada de siguranta din otel si plasa de sarma cu sistem de blocare
Dimens. exter.: 3500 x 960 x 2100 mm
Dimens. inter.: 3195 x 900 x 1890 mm
Capacitate: 24/36 cilindri
Greutate: 520 Kg

Cylinder storage container in galvanised steel with base
Capacity: 24/36 places
Exter. Dimension: 3500 x 960 x 2100H mm
Inter. Dimension: 3195 x 900 x 1890H mm
Weight: 520 Kg

Accesorii optionale
- set de 4 roti
- rampa rulanta
