Sisteme de digestie kjeldahl



Unitati de digestie Kjeldahl

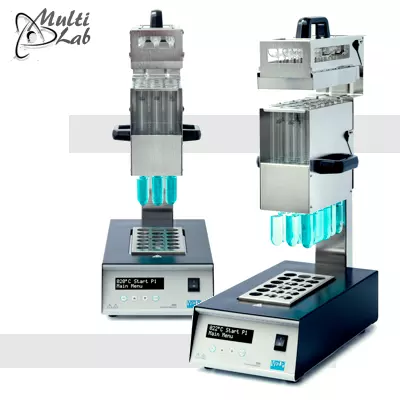

Seria Velp DK Modele: DK6 - DK6/48 - DK8 - DK20 - DK20/26 - DK42/26

Digistoare Kjeldahl semi-automte

Semi-Automatic Kjeldahl Digestion Units


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Digestor multi-posturi; dezagregare prin metoda umeda si mineralizare cu incalzire (materialelor solide sau a solutiilor apoase; cantitatea de proba pentru analiza poate fi pina la 15 ml sau 5 g/ alternative: cu 8, 12, 20 sau 42 de locuri)

Descriere
• permite analiza probelor cu volum maxim de 250 ml
• manipulare simpla a probei
• procesare simultana de probe
• stabilitate termica: ±0,5°C la 100°C, ± 1°C la 450°C
• incalzire uniforma
• capacitate de memorare a 20 de programe cu 4 etape de temperatura si timp
• timer programabil in functie de tipul probei si de metoda folosita
• timp de incalzire programabil pina la 999 min
• posibilitate de captare a vaporilor folosind pompa cu jet de apa
• semnal acustic la sfirsitul unui ciclu
• oprire automata
• sistem de colectare al gazelor
• permite selectarea temperaturii de la 45 la 450°C
• Memorie: 20 programe;
• Timp maxim pentru o treapta: 600 min
• Senzor temperatura de tip K
• Indicator acustic si visual care arata finalul ciclului de digestie
• suport pentru tuburi confectionat din material non-coroziv
• prevazut cu manere pe partile laterale ce evita pierderile de caldura
• extractor de fum asigura colectarea gazelor rezultate
• este prevazut cu suport
• confectionat din sticla borosilicata si otel inoxidabil

Date Tehnice

Model DK 6 DK 6/48 DK 8 DK 20 DK20/26 DK 42/26
nr. de locuri / tuburi cu probe 6 6 8 20 20 42
volum tuburi de digestie 250 ml 300 ml 250 ml 250 ml 20 ml 100 ml
Diametru tuburi de digestie Ø 42 mm Ø 48 mm Ø 42 mm Ø 42 mm Ø 26 mm Ø 26 mm
Domeniu de temperatura 450°C 450°C 450°C 450°C 450°C 450°C
Timer programabil / minute 0.. 999 0.. 999 0.. 999 0.. 999 0.. 999 0.. 999
nr. programe de operare 20 20 20 20 20 20
Cicluri de temperatura 1 la 4 1 la 4 1 la 4 1 la 4 1 la 4 1 la 4
Display LCD LCD LCD LCD LCD LCD
Interfata Pc RS232 RS232 RS232 RS232 RS232 RS232
Greutate 10 Kg 9 Kg 11 Kg 23 Kg 10 Kg 25 Kg
Alimentare 230V 230V 230V 230V 230V 230V
Dimensiune / mm 293 x 152 x 339 293 x 152 x 339 233 x 152 x 448 293 x 152 x 339 293 x 152 x 339 293 x 152 x 339
Cod.prod. F30100182 F30100188 F30100020 F30100350 F30100185 F30100360

*NB: sistemul vine echipat cu tuburi, set recipienti pentru reactivi si tubulatura

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
Semi-automatic Kjeldahl Digestion Units for nitrogen analysis and protein determination, with an aluminum heating block that offers an excellent thermal homogeneity, with a maximum working temperature of 450 °C.
Excellent thermal homogeneity
High temperature stability with aluminum block
Good repeatability of temperature
Choice of 6 operating languages
LCD display of all parameters
20 customizable program memories
Very small footprint
Constantly monitor the digestion process on display
Conforms to "GLP" Good Laboratory Practice standard

Technical data

Model DK 6 DK 6/48 DK 8 DK 20 DK20/26 DK 42/26
Nr. of places 6 6 8 20 20 42
Test tube volume 250 ml 300 ml 250 ml 250 ml 20 ml 100 ml
Test tube diameter Ø 42 mm Ø 48 mm Ø 42 mm Ø 42 mm Ø 26 mm Ø 26 mm
tempreture range 450°C 450°C 450°C 450°C 450°C 450°C
Timer / minute 0.. 999 0.. 999 0.. 999 0.. 999 0.. 999 0.. 999
Programs 20 20 20 20 20 20
Tempreture ramps 1 to 4 1 to 4 1 to 4 1 to 4 1 to 4 1 to 4
Display LCD LCD LCD LCD LCD LCD
Interface RS232 RS232 RS232 RS232 RS232 RS232
Weight 10 Kg 9 Kg 11 Kg 23 Kg 10 Kg 25 Kg
Power supply 230V 230V 230V 230V 230V 230V
Dimension / mm 293 x 152 x 339 293 x 152 x 339 233 x 152 x 448 293 x 152 x 339 293 x 152 x 339 293 x 152 x 339
Product code F30100182 F30100188 F30100020 F30100350 F30100185 F30100360





  Description pt. modele / for models Cod. prod.
Support system DK 6, DK 6/48 and DK 20/26 A00001206
Support system DK8 A00000064
Support system DK 20, DK 42/26 A00000190
Sample rack with heat shields DK 6 A00001111
Sample rack with heat shields DK 6/48 A00001113
Sample rack with heat shields DK 8 A00000063
Sample rack DK 20 A00000168
Sample rack DK 20/26 A00001110
Sample rack DK 42/26 A00000180
Suction cap DK 6 A00001096
Suction cap DK 6/48 A00001101
Suction cap DK 8 A00000065
Suction cap DK 20 A00000169
Suction cap DK 20/26 A00109626
Suction cap and drip tray DK 42/26 A00000179
Test tubes Ø 42x300 mm, 250 ml (3 pcs/box) DK 6, DK 8, DK 20 A00000144
Test tubes Ø 48x260 mm, 300 ml DK 6/48 A00001088
Test tubes Ø 26x300 mm, 100 ml (6pcs/box) DK 20/26 and DK 42/26 A00000146

La cerere oferim si accesorii optionale pentru determinarea azotului total, precum si pentru analiza consumului chimic de oxigen COD si CCOCr.


Unitati de digestie Kjeldahl
Seria Velp DKL Modele: DKL8, DKL12, DKL20 si DKL 42/26

Digistoare Kjeldahl automte

Automatic Kjeldahl Digestion Units


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Sisteme complet automate gata de utilizare, incluzand un bloc de digestie din aluminiu (ce asigura o omogenitate excelenta a temperaturii, o precizie si o acuratete foarte buna); si un dispozitiv automat de ridicare cu un cap de aspirare, set de eprubete, suport pentru probe (rack) si tava de retinere scurgeri de lichide.
Seria DKL cuprinde urmatoarele modele:
- DKL 8 (8-pozitii cu eprubete de 250 ml, Ø 42 mm)
- DKL 12 (12-pozitii cu eprubete de 250/400 ml, Ø 42 mm)
- DKL 20 (20-pozitii cu eprubete de 250 ml, Ø 42 mm)
- DKL 42/26 (42-pozitii cu eprubete de 100 ml, Ø 26 mm)
Prevazute cu microprocesor de control a temperaturii blocului si cu un sistem de calibrare temperaturii automat ce asigura o repetabilitate foarte buna a analizelor.
Display grafic LCD va permite accesul la toate datele obtinute inclusiv cele 54 de programe disponibile, 24 din ele sunt configurabile si programabile de operator.
Conform cu GLP (Good Laboratoiry Practice), datele pot fi printate sau pot fi transmise la un PC.
Siguranta
Depasire temperatura setata: termostat integrat
Sonda de temperatura defecta: detectie automata / alarma vizuala
Lift in miscare (dispozitiv de ridicare / cobarire): alarma vizuala / sonora
Temperatura suprafata: semnal vizual daca depaseste 50 °C
Pentru neutralizarea fumului produs in timpul procesului de digestie, seria DLK ar trebui folosita cu o pompa de aspiratie "pompa JP" si un sistem de neutralizare a fumului (scrubber SMS); Producatorul VELP va recomanda sa utilizati pompa JP si sistemul Scrubber SMS; pentru modelul DKL 42/26 doua pompe JP sunt recomandate.

Date Tehnice

Model DKL 8* DKL 12* DKL 20* DKL42/26*
nr. de locuri / tuburi cu probe 8 12 20 42
volum tuburi de digestie 250 ml 250 sau 400 ml 250 ml 100 ml
Diametru tuburi de digestie Ø42 mm Ø 42 mm Ø 42 mm Ø 26 mm
Domeniu de temperatura 450°C 450°C 450°C 450°C
Timer programabil / minute 0.. 999 0.. 999 0.. 999 0.. 999
nr. programe de operare 54 54 54 54
Cicluri de temperatura 1 la 4 1 la 4 1 la 4 1 la 4
Interfata Pc USB USB USB USB
Greutate 20 Kg 23 Kg 30 Kg 34 Kg
Alimentare 230V 230V 230V 230V

*NB: sistemul vine echipat cu tuburi, set recipienti pentru reactivi si tubulatura

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
Fully Automatic Kjeldahl Digestion Units for nitrogen analysis and protein determination that incorporate the revolutionary TEMS™ technology for unprecedented Savings in terms of Time, Energy - as much as 35%, Money and Space.
Microprocessor control of precise block temperature
Real time display of process steps
54 programs (30 pre-installed, 24 customizable)
Calibration automatic for top precision & repeatability
No hands lowering and lifting of test tubes
Auto separation of manifold from the rack
Aluminum block for absolute temperature homogeneity
Unmatched conductivity for fast response up to 450 °C
Conforms to Good Laboratory Practice standard
LCD display for immediate understanding
Up to 6 languages available from a wide selection
All necessary items supplied in one package
Very small footprint

Safety
Overtemperature: Thermostat
Damaged temperature probe: Automatic detection and alarm message
Lift movement: Visual/acustic signal
Hot surface: Visual signal (if T>50 °C)

6 available models
DKL 8 (8-position with 250 ml tubes, Ø 42 mm)
DKL 12 (12-position with 250/400 ml tubes, Ø 42 mm)
DKL 20 (20-position with 250/400 ml tubes, Ø 42 mm)
DKL 42/26 (42-position with 100 ml tubes, Ø 26 mm)

Technical data

Model DKL 8* DKL 12* DKL 20* DKL42/26*
Number of positions 8 12 20 42
Test tube volume 250 ml 250 or 400 ml 250 ml 100 ml
Test tube dimeter Ø42 mm Ø 42 mm Ø 42 mm Ø 26 mm
Tempreture range 450°C 450°C 450°C 450°C
Timer / minute 0.. 999 0.. 999 0.. 999 0.. 999
Program 54 54 54 54
Selectable ramps 1 to 4 1 tp 4 1 la 4 1 la 4
Interface USB USB USB USB
Weight 20 Kg 23 Kg 30 Kg 34 Kg
Power supply 230V 230V 230V 230V





Description pt. model / for model cod. prod.
8 Sample rack

DKL

A00000173
Sample rack, 250 ml tubes DKL 12 A00000172
Sample rack DKL 20 A00000168
Sample rack DKL 42/26 A00000180
Suction cap and drip tray DKL 8 A00000175
Suction cap and drip tray DKL 12 A00000174
Suction cap and drip tray DKL 20 A00000169
Suction cap and drip tray DKL 42/26 A00000179
Stand for sample rack DKL 8 A00000184
Stand for sample rack DKL 12 A00000183
Stand for sample rack DKL 20 A00000182
Stand for sample rack DKL 42/26 A00000182
Test tubes Ø 42x300 mm, 250 ml (3pcs/box) DKL 8, DKL 12, DKL 20 A00000144
Test tubes Ø 26x300 mm, 100 ml (6pcs/box) DKL 42/26 A00000146
Test tube Ø 50x300 mm, 400 ml DKL 12, DKL 20 A00000185
Sample rack for test tubes 400 ml DKL 12 A00000181
Sample rack for test tubes 400 ml DKL 20 A00000246
Glass cap DKL 8, 12, 20 A00000243
Sample rack for COD analysis DKL 20 A00000237
Test tubes Ø42x200mm, 200 ml with cone NS 29/32 (3pcs/box) for COD analysis DKL 20 A00000145
Air refrigerator with ground cone for COD analysis DKL 20 A00001041
Antisplash bell for COD analysis DKL 20 A00001045
PTFE sheaths for 29/32 cones for COD analysis DKL 20 A00001042
USB cable A/B 1,8mt all 10003134
IQ/OQ Manual all A00000186

La cerere oferim si accesorii optionale pentru determinarea azotului total, precum si pentru analiza consumului chimic de oxigen COD si CCOCr.
