Densimetre portabile

densimetru_combustibil

Densimetre portabile

Tehnologie aplicata tubului oscilant
Seria Anton Paar DMA Modele: DMA35 - DMA35 Tag&Log - DMA35 Ex - DMA35 Ex Petrol

Densimetru portabil automat cu aprobare de model din partea BRML

Portable Density Meter


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Instrument portabil si de laborator pt. determinarea densitatii, greutatii specifice si a concentratiei lichidelor cu compensare de temperatura integrat.
Metoda de masurare bazata pe tehnologia tubului oscilant de la Anton Paar.

Caracteristici tehnice / Densimetre seria DM35
• stocare de pana la 100 de ID-uri de proba pt. identificarea usoara a probelor, utilizatori, locatii de masurare, etc
• stocare de pana la 20 de metode diferite de masurare
• stocare de pana la 1024 de masurare rezultate
• Utilizare usoara prin intermediul a sapte butoane mari, chiar si atunci cand purtati manusi de protectie
• Afisaj cu fundal iluminat LC pt. o mai buna vizibilitate a rezultatelor de masurare, chiar si in intuneric.
• Fundalul iluminat al celulei de masurare pt. observarea mai buna a procedurii de umplere .
• Interfata infrarosu IrDA pt. schimbul de date cu PC-ul si imprimanta
• Mod de economisire a energiei integrat
• Umplerea probelor cu pompa tip piston (usor de curatat si de intretinut) sau seringa (pentru probe foarte vascoase)
• Ajustare: ajustat din fabrica cu posibilitate de reajustare cu apa distilata sau orice alt lichid de referinta

Versiuni disponibile:
- Model DMA 35: pentru aplicatii generale
- Model DMA 35 Tag&Log: uz general cu data logger, prevazut cu un cititor de etichete electronice tip RFID, scimbarea facila a metodelor, locul de prelevare si numele probei, etc.
- Model DMA 35 Ex: pentru zone clasificate Ex, chimicale, vopsele si produse inflamabile
- Model DMA 35 Ex Petrol: pentru medii periculoase, zone clasificate Ex, chimicale, combustibili, produse petroliere inflamabile, aparatul este prevazut cu data-logger cititor de etichete electronice

Date Tehnice

Model DMA 35 DMA 35 Tag&Log DMA 35 Ex DMA 35 Ex Petrol
Domeniu de masura Densitate: 0 g/cm3 la 3 g/cm3
Temperatura: 0 °C la 40 °C
Viscozitate: 0 mPa.s la 1000 mPa·s
Acuratete Densitate: 0.001 g/cm3
Temperatura: 0.2 °C
Repetabilitate S.D. Densitate: 0.0005 g/cm3
Temperatura: 0.1 °C
Temperatura de operare -10 °C la +50 °C
Volum proba 2 mL 2 mL 2 mL 2 mL
Dimensiune 140 x 138 x 27 mm
Memorie 1024 rezulatate
Alimentare 2 x 1.5 V bat. alcaline
Greutate 345 g 351 g 351 g 396 g
Interfata IrDA OBEX/LPT IrDA OBEX/LPT, RFID IrDA OBEX/LPT, RFID IrDA OBEX/LPT, RFID
Siguranta intrinseca / protectie la explozie pentru medii periculoase x x [Ex] II 2 G Ex ib IIC T4 [Ex] II 2 G Ex ib IIC T4
Domenii de aplicatie industrie alimentara
industria chimica
industria farmaceutica si cosmetica
medicina si biotehnologie
industria electronica
Industria chimica si electronica industria petroliera si chimicala (pacura, motorina, benzina,..etc)

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

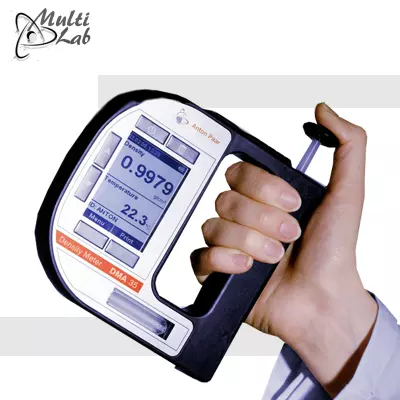

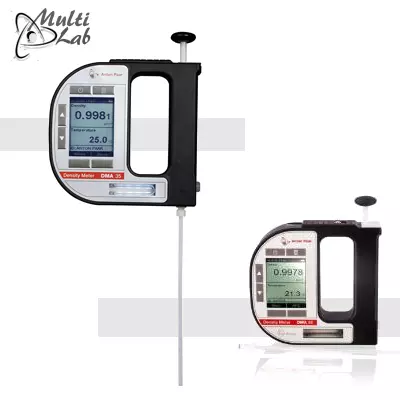

Portable Density Meter: DMA 35 The DMA 35 portable density meter measures the density and concentration of your sample and is characterized by the highest level of user friendliness. Its robust and lightweight design enables on-site operation in a wide range of work environments. The four product versions - DMA 35, DMA 35 Tag&Log, DMA 35 Ex and DMA 35 Ex Petrol - differ from each other in terms of interfaces, housing material and intrinsic safety. Each instrument version is tailored to the needs of certain fields of applications.

Main Features
Compact, lightweight, easy operation design enabling one-hand measurement
No-hassle measurement of hard-to-reach samples
Large LC display with backlight
Measuring cell with inspection window and backlight
Rugged, leakproof housing design for industrial and field applications
The vetted parts of each product version have proven resistance to their respective common samples
Intrinsically safe product versions (Ex marking [Ex] II 2 G Ex ib IIC T4) for use in hazardous areas
Wireless communication
IrDA interface for data exchange with a PC and data export to a printer
Product versions with RFID interface for changing measurement settings quickly by reading RFID tags
Storage of up to 100 sample IDs for easy sample identification
Storage of up to 20 measuring methods
Storage of up to 1024 measurement results including time stamp and sample ID
Two exchangeable batteries ensure long-term, reliable service
Integrated conversion tables for simple density and concentration measurement
Additional custom specific measuring units programmable
Four product versions
DMA 35, the economic solution for general industrial and laboratory applications
DMA 35 Tag&Log with RFID interface for quick sample identification
DMA 35 Ex, the intrinsically safe instrument for chemical applications
DMA 35 Ex Petrol, the intrinsically safe instrument with a special housing, resistant to petrochemical samples

Model DMA 35 DMA 35 Tag&Log DMA 35 Ex DMA 35 Ex Petrol
Measuring range Density: 0 g/cm3 to 3 g/cm3
Temperature: 0 °C to 40 °C
Viscosity: 0 mPa·s to 1000 mPa·s
Accuracy Density: 0.001 g/cm3
Temperature: 0.2 °C
Repeatability, s.d. Density: 0.0005 g/cm3
Temperature: 0.1 °C
Ambient temperature -10 °C to +50 °C
Supported measuring units Specific gravity
Alcohol tables
Sugar/extract tables
API functions
H2SO4 tables
Ten programmable custom functions (e.g. H2O2, HCl, CH2O)
Sample volume 2 mL 2 mL 2 mL 2 mL
Dimensions (L x W x H) 140 x 138 x 27 mm
Data memory 1024 measured results
Power supply Two 1.5 V alkaline batteries
Weight 345 g 351 g 351 g 396 g
Interfaces IrDA OBEX/LPT IrDA OBEX/LPT, RFID IrDA OBEX/LPT, RFID IrDA OBEX/LPT, RFID
Intrinsically safe x x [Ex] II 2 G Ex ib IIC T4 [Ex] II 2 G Ex ib IIC T4
Industries Beverages
Chemical Industry
Cosmetics, Personal Care
Education, Research
Electronics
Environmental
Food Industry
Pharmacy, Medicine, Biotechnology
Chemical Industry
Electronics
Petroleum Industry
industria petroliera si chimicala (pacura, motorina, benzina,..etc)



Accesori livrate:
1 # Tub de umplere 180 mm Mat. No. 68527
1 # Adaptor Luer ¼ - 28 UNF Mat. No. 64792
10 # seringi de 2 ml Mat. No. 58802
2 # manual de instructiuni (eng, rom) Mat. No. 88155
Optional: verificare metrologica


Densimetru portabil
Model Anton Paar EasyDens

Densimetru / Alcoolmetru portabil automat cu aprobare de model din partea BRML

Portable Density and Concentration Meter


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Caracteristici generale
Aparat portabil digital masoara densitatea unei game extrem de largi de lichide cum ar fi apa, produse alimentare, petroliere neinflamabile, farmaceutice, sucuri naturale, vin si must de vin si de bere, bauturi (alcoolice si non-alcoolice)

Date Tehnice

Domeniu de masura
Extract –10 %w/w to 40 %w/w
Zahar –10 °Brix to 80 °Brix
Alcool 0 %v/v to 100 %v/v
Temperatura 5 °C to 30 °C
Acuratete
Extract 0.3 %w/w
Zahar 0.3 °Brix
Alcool 0.5 %v/v
Temperatura 0.2 °C
Rezolutie
Extract / Zahar / Alcool 0.1 %w/w / °Brix / %v/v
Temperatura 0.1 °C
Specificatii tehnice
Volum proba approx. 2 mL
Temperatura de operare 5 °C la 35 °C
Temperatura de depozitare 5 °C to 35 °C
Umiditate 5 % la 90 % relativa umid. aerului, fara condens
Interfata Bluetooth Low Energy
Alimentare 2 x 1.5 V LR6 AA bat. alkaline sau 2 x AA NiMH bat. reincarcabile
Durata de functionare cu 2 bat. alkaline > 40 ore
Dimensiune 120 mm x 80 mm x 35 mm
Grutate 200 g
Sistem de operate Android 4.3 si urmatorul; iOS 7.0 si urmatorul

Certificate
» Certificate ISO furnizor si service autorizat (MultiLab Romania)
» Certifcat de garantie si post garantie

Main Features
EasyDens determines your wort's extract content, the sugar content in your home-produced fruit juices and the alcohol content in spirits with no sugar added
Monitors the fermentation process of beer and wine via a daily measurement of apparent extract or sugar
Provides the information you need to decide when it's time for bottling
After downloading the free app for EasyDens, you have all results displayed on your smartphone
Simple, quick and reliable measurement using only 2 mL of sample

Measuring Range
Extract –10 %w/w to 40 %w/w
Sugar –10 °Brix to 80 °Brix
Alcohol 0 %v/v to 100 %v/v
Temperature 5 °C to 30 °C
Accuracy
Extract 0.3 %w/w
Sugar 0.3 °Brix
Alcohol 0.5 %v/v
Temperature 0.2 °C
Resolution
Extract / Sugar / Alcohol 0.1 %w/w / °Brix / %v/v
Temperature 0.1 °C
General specifications
Sample volume approx. 2 mL
Ambient temperature 5 °C to 35 °C
Storage temperature 5 °C to 35 °C
Humidity 5 % to 90 % relative air humidity, non-condensing
Interface Bluetooth Low Energy
Power supply Two 1.5 V LR6 AA alkaline batteries or two AA NiMH rechargeable batteries
Battery operation lifetime > 40 hours
Dimensions 120 mm x 80 mm x 35 mm
Weight (incl. batteries) 200 g
Mobile Operating System Android 4.3 and higher; iOS 7.0 and higher
