Celule de conductivitate
Senzori de conductivitate WTW

Celule de conductivitate

Universal conductivity measuring cells



Model Celula de conductivitate Domeniu de masura Tmp. Cod. prod.

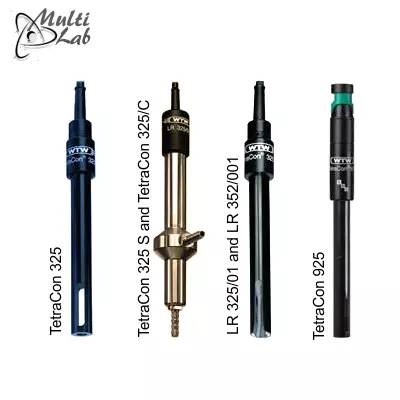

TetraCon® 325 S 4 electrode graphite cell for pasteous samples 1 µS/cm ... 2 S/cm* 0 .. 100°C 301602
TetraCon® 325/C 4 electrode graphite cell for process applications 1 µS/cm ... 2 S/cm* 0 .. 100°C 301900
TetraCon® DU/T Flow-through measuring cell, temperature sensor 1 µS/cm ... 1 S/cm 0 .. 100°C 301252
TetraCon® DU/TH Flow-through measuring cell, temperature sensor, Hansen connector 1 µS/cm ... 1 S/cm 0 .. 100°C 301254
LR 325/01 2 electrode stainless steel measuring cell, flow vessel 0.001 µS/cm ... 200 µS/cm 0 .. 100°C 301961
LR 325/001 2 electrode stainless steel measuring cell, flow vessel, trace conductivity 0.0001 µS/cm ... 30 µS/cm 0 .. 100°C 301962
LR01 V 2 electrode stainless steel measuring cell, flow vessel for Vario Cond 0.001 µS/cm ... 200 µS/cm 0 .. 100°C 301961
TetraCon® 325 4 electrode graphite cell, 1.5 m cable 1 µS/cm ... 2 S/cm* 0 .. 100°C 301960
TetraCon® 325-3 4 electrode graphite cell, 3 m cable 1 µS/cm ... 2 S/cm* 0 .. 100°C 301970
TetraCon® 325-6 4 electrode graphite cell, 6 m cable 1 µS/cm ... 2 S/cm* 0 .. 100°C 301971
TetraCon® 325-10 4 electrode graphite cell, 10 m cable 1 µS/cm ... 2 S/cm* 0 .. 100°C 301972
TetraCon® 325-15 4 electrode graphite cell, 15 m cable 1 µS/cm ... 2 S/cm* 0 .. 100°C 301973
TetraCon® 325-20 4 electrode graphite cell, 20 m cable 1 µS/cm ... 2 S/cm* 0 .. 100°C 301974
TetraCon® V 4 electrode graphite cell, Vario Cond 1 µS/cm ... 2 S/cm* 0 .. 100°C 301990

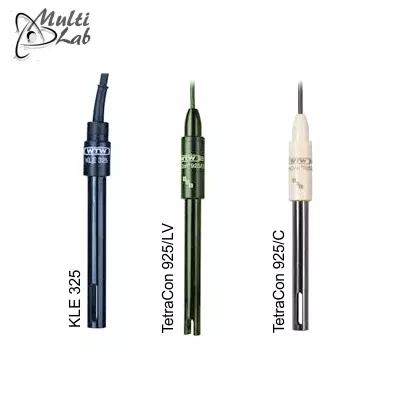

KLE 325 2 electrode graphite cell, 1.5 m cable 1 µS/cm ... 20 mS/cm* 0 .. 100°C 301995





Aplicatii Standard Universal Universal Special Apa pura Apa ultrapura Urme Conductivitati joase
Model KLE 325 TetraCon® 325 TetraCon® V TetraCon® 325/S LR 325/01 LR 01 V LR 325/001 TetraCon® DU/T
Material electrod grafit grafit grafit grafit otel V4A otel V4A otel V4A grafit
Material tija epoxy epoxy epoxy epoxy otel V4A otel V4A otel V4A epoxy
Lungimea tijei 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 120 mm 155 mm
Constanta celulei K 0.84 cm-1 K 0.475 cm-1 K 0.475 cm-1 K 0.491 cm-1 K 0.491 cm-1 K 0.1 cm-1 K 0.01 cm-1 K 0.778 cm-1
Diametru 15.3 mm 15.3 mm 15.3 mm 15.3 mm 12 mm 12 mm 20 mm
Lungime cablu 1.5 m 1.5 m 1.5 m 1.5 m 1.5 m 1.5 m 1.5 m 1 m (cu KKDU 325)
Domeniu de masurare 1 µS/cm … 20 mS/cm 1 µS/cm ... 2 S/cm* 1 µS/cm ... 2 S/cm* 1 µS/cm ... 2 S/cm* 0.001 µS/cm ... 200 µS/cm 0.001 µS/cm ... 200 µS/cm 0.0001 µS/cm ... 30 µS/cm 1 µS/cm ... 2 S/cm*
Domeniu de temp. 0 .. 80°C 0 .. 100°C 0 .. 100°C 0 .. 100°C 0 .. 100°C 0 .. 100°C 0 .. 100°C 0 .. 60°C
Volum de umplere         17 ml (fara senzor) 17 ml (fara senzor) 10 ml (fara senzor) 7 ml
Adancimea de imersie min/max 36/120 mm 36/120 mm 40 mm 40/120 mm 30/120 mm 40 mm 40/120 mm
Cod.prod. 301 995 301 960 301 990 301 602 301 961 301 992 301 962 301 252**
