Distilator oenologic :: Alcool - Vin - Bere - Otet


Distilator alcool / Grad de alcool
Modele Unistill & DualStill

Distilator pentru determinarea gradului de alcool in acord cu normele EEC

Automatic distiller for alcohol and volatile acidity


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Distilator oenologic automat permite determinarea aciditatii volatile; procentului de alcool si aciditatea volatila a vinului; must; lichioruri si a tariei alcoolice
Avantaje
- determina conținutul de aciditate volatila a Vinului in 6 minute
- determina tariei alcoolice in 3 minute
(suma acizilor volatili ce apartin seriei acetic, aflati sub forma libera sau sub forma de saruri)

DateTehnice
• Oenologie: gradul alcoolic, aciditatea volatila, acid sorbic
• Ciclu de extractie: Senzor Infra Rosu
• Procesul de distilare: vizibil
• Sistem dublu de incalzire: Generator de abur + Electric
• Modul de distilare: automat / reglabil
• Panou de control: cu membrana
• Sistem de racire: apa / recirculare automata / oprire automata
• Timp de distilare:
- aprox. 3 minute pentru determinarea gradul de alcool / 100 ml
- aprox. 7 minute pentru aciditate volatila / 250 ml
• Materialul de constructie: Otel Inox + PTFE + AKULON de rezistenta mare la temperaturi inalte
• Cupa de distilare: deschisa

Specificatii tehnice
• Debitul apa de racire: 75 lit./min.
• Generator de abur: 1800 W
• Consum de apa (generator de abur): 1,6 lit./ora
• Recipient apa distilata: 10 lit.
• Durata distilarii: 7 min./200 ml
• Putere: 2000 W
• Dimensiune externe: 855 x 385 x 350 mm
• Greutate: 27 Kg

Certificate
- Certifiucat CEE 2676/90 si CEE 2870/2000
- Certificat de conformitate
- Certifcat de garantie si post garantie
:: Service autorizat pentru Romania » MultiLab

Automatic distiller for alcohol and volatile acidity according to CEE 2.676/90 - 2870/2000
Totally automatic ultra-rapid instrument for alcohol and volatile acidity detection. Born and designed to automate all the steps, before and after the distillation. Heating process occurs through a double system: electric (electrodes with electronic controls) and steam (high-efficiency boiler with electronic controls).
During the heating process, an electro-valve automatically closes the boiling chamber.
The instrument has two distillation columns: one for the alcoholic distillation and one for the volatile acidity distillation, both automatically selected by a two-way valve.
In this way, it is possible to avoid both unpleasant analysis mistakes due to previous distillations traces and long washing procedures before starting a new analysis.
The cooling water is only driven when an analysis process is activated; furthermore, a flow detector indicates on the display when water is missing.
The distillation stop automatically occurs through an infra-red system.
A powered system places the sensor at the right height according to the type of flask used in that moment.
Once the analysis is finished, the distillation residual is automatically sucked by the boiling chamber, which is later automatically washed with flowing water: the instrument is now ready for a new distillation.

Main Features
Wide graphic display and comfortable membrane keyboard, to easy program all the analysis parameters.
It is possible to insert up to 99 different types of analysis.
The backlit display allows to check the status of the analysis in any moment.
Automatic reagents (sodium hydroxide antifoaming solution and others) dosing through peristaltic pumps.
The reagent quantity and analysis time can be manually set through the keyboard (up to 99 type of analysis can be set).
The instrument has a dispenser system for distilled water dosing (for flask start and final volume setting)
Automatic closure of the analysis chamber through electrovalve.
Dispenser system for distilled water dosing.
Automatic dosing of the analysis reagents.
Programmable system up to 99 types of analysis.
Double distillation column.A two-way valve selectsto analysis column:alcohol or volatile acidity.
The cooling water is driven and controlledby the microprocessor.
Distillation stop systemthrough infrared, driven by the instrument, according to the type of collection flask used.Automatic emptying of the analysis chamber.
Automatic cleaningof the analysis chamber.

Technical data
Heating system: electric/steam
End distillation stop: automatic
Cooling circuit: automatic water stop
Distillation cup: Duran PTFE
Structure: stainless steel - PTFE
Power: 240/220V 50/60Hz 15A
ALCOHOL Distillation time: approx. 3 min 30 sec. / for 100 ml distillate
VOLATILE ACIDITY Distillation time: circa 7 min. / Approx. 7 min for 250 ml distillate

Accesorii optionale

Cod produs Descriere Volum Dimensiune
TB-42300 Tuburi de distilare
Distillation tube
250 ml Ø 42 × 300
TB-80300 Tuburi de distilare
Distillation tube
200 ml Ø 80 × 300 mm
GRA-640 Suport pentru 6 tuburi
Rack 6 tubes
  Ø 42 × 300 mm
GRA-680 Suport pentru 6 tuburi
Rack 6 tubes
  Ø 80 × 300 mm
ALC-0-10 Alcoholometer 0,1% 0 - 10%
ALC-10-20 Alcoholometer 0,1% 10 - 20 %
ALC-20-30 Alcoholometer 0,1% 20 - 30%
ALC-30-40 Alcoholometer 0,1% 30 - 40%
ALC-40-50 Alcoholometer 0,1% 40 - 50%
ALC-50-60 Alcoholometer 0,1% 50 - 60%
ALC-60-70 Alcoholometer 0,1% 60 - 70%
ALC-70-80 Alcoholometer 0,1% 70 - 80%
ALC-80-90 Alcoholometer 0,1% 80 - 90%
ALC-90-100 Alcoholometer 0,1% 90 - 100%
HI3563 Solutie de curata sticla 500 ml
HI9239 Planie pentru filtre de hartie   Ø140mm x 170mm
HI8823 Pahar/Vas conic gradat din sticla borosilicat conform DIN12380 1000ml
HI8823 Pahar erlenmeyer gradat din sticla borosilicata
* vezi gama de sticlarie »
800ml
9512 Filtre de hartie .. cutie/100buc   Ø240mm
9513 Filtre de hartie .. cutie/100buc
vezi gama de filtre »
  Ø320mm
  Bai de curatare ultrasunete cu sau fara incalzire
vezi gama de bai ultrasunete »

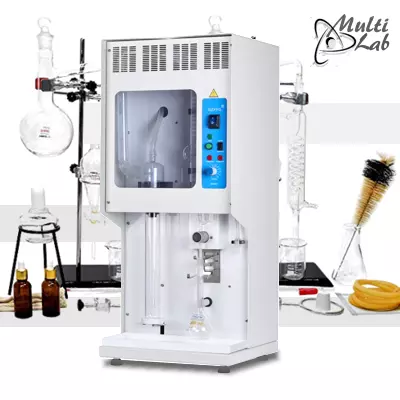

Distilator oenologic pentru vinificatie
Model EnoDest

Aparat pentru determinarea taria alcoolica potentiala in acord cu normele EEC

Automatic Oenologic distiller


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Distilator oenologic automat permite determinarea aciditatii volatile; procentului de alcool si aciditatea volatila a vinului; must; lichioruri si a tariei alcoolice
Avantaje
- determina conținutul de aciditate volatila a Vinului in 6 minute
- determina tariei alcoolice in 3 minute
(suma acizilor volatili ce apartin seriei acetic, aflati sub forma libera sau sub forma de saruri)

DateTehnice
• Oenologie: gradul alcoolic, aciditatea volatila, acid sorbic
• Ciclu de extractie: Senzor Infra Rosu
• Procesul de distilare: vizibil
• Sistem dublu de incalzire: Generator de abur + Electric
• Modul de distilare: automat / reglabil
• Panou de control: cu membrana
• Sistem de racire: apa / recirculare automata / oprire automata
• Timp de distilare:
- aprox. 3 minute pentru determinarea gradul de alcool / 100ml
- aprox. 6 minute pentru aciditate volatila / 250 ml
• Materialul de constructie: Otel Inox + PTFE + AKULON de rezistenta mare la temperaturi inalte
• Cupa de distilare: deschisa

Specificatii tehnice
• Debitul apa de racire: 75 lit./min.
• Generator de abur: 1800 W
• Consum de apa (generator de abur): 1,6 lit./ora
• Recipient apa distilata: 10 lit.
• Durata distilarii: 7 min./200 ml
• Putere: 2000 W
• Dimensiune externe: 855 x 385 x 350 mm
• Greutate: 27 Kg

Certificate
- Certifiucat CEE 2676/90 si CEE 2870/2000
- Certificat de conformitate
- Certifcat de garantie si post garantie
:: Service autorizat pentru Romania » MultiLab

Determination of the volumetric alcoholic degree in wines, musts, beers and spirit drinks of high graduation. Volatile acidity and sorbic acid. According to regulation CEE 2676/90 y CEE 2870/2000.
Distillation unit by steam dragging.

Main Features
It has a steam generator automatically fed with distilled water, having electronic level control and automatic stop in the case of lack of water in the container.
Safety thermostat.
Automatic stop when reaching 200 ml of distillate.
Manual levelling of the distillate to 200 ml avoiding adding distilled water.
Automatic stop of refrigerating water at the end of distillation.
Optical display of minimal level of water

Technical data
Refrigeration water flow: 75 l/h.
Water consumption (steam generator): 1.6 l/h.
Distilled water reservoir: 10 l.
Approx. distillation time: 7 min./200 ml.
Power: 2000W
Dimension: 350 × 385 × 855 mm
Weight: 27 Kg

Components supplied with the equipment
1 sample tube macro Ø 42 × 300 mm.
1 sample tube macro Ø 80 × 300 mm.
1 volumetric flask of 200 ml.
1 reservoir of 10 litres for H2O.
Connection tubing.

Accesorii optionale

Cod produs Descriere Volum Dimensiune
TB-42300 Tuburi de distilare
Distillation tube
250 ml Ø 42 × 300
TB-80300 Tuburi de distilare
Distillation tube
200 ml Ø 80 × 300 mm
GRA-640 Suport pentru 6 tuburi
Rack 6 tubes
  Ø 42 × 300 mm
GRA-680 Suport pentru 6 tuburi
Rack 6 tubes
  Ø 80 × 300 mm
ALC-0-10 Alcoholometer 0,1% 0 - 10%
ALC-10-20 Alcoholometer 0,1% 10 - 20 %
ALC-20-30 Alcoholometer 0,1% 20 - 30%
ALC-30-40 Alcoholometer 0,1% 30 - 40%
ALC-40-50 Alcoholometer 0,1% 40 - 50%
ALC-50-60 Alcoholometer 0,1% 50 - 60%
ALC-60-70 Alcoholometer 0,1% 60 - 70%
ALC-70-80 Alcoholometer 0,1% 70 - 80%
ALC-80-90 Alcoholometer 0,1% 80 - 90%
ALC-90-100 Alcoholometer 0,1% 90 - 100%
HI3563 Solutie de curata sticla 500 ml
HI9239 Planie pentru filtre de hartie   Ø140mm x 170mm
HI8823 Pahar/Vas conic gradat din sticla borosilicat conform DIN12380 1000ml
HI8823 Pahar erlenmeyer gradat din sticla borosilicata
* vezi gama de sticlarie »
800ml
9512 Filtre de hartie .. cutie/100buc   Ø240mm
9513 Filtre de hartie .. cutie/100buc
vezi gama de filtre »
  Ø320mm
  Bai de curatare ultrasunete cu sau fara incalzire
vezi gama de bai ultrasunete »

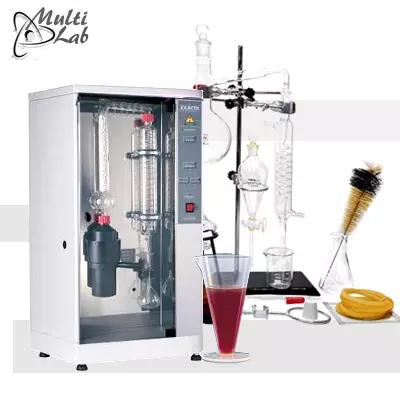

Distilator oenologic pentru vinificatie
Model DE-1626

Analizor aciditatii volatile si continutului de alcool in acord cu normele EEC

Automatic Oenological Distillation unit


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Distilator oenologic automat conceput pentru distilarea alcoolului in concordanta cu prevederile Regulamentului CEE nr. 2676/90 (analiza vinului) si a Regulamentului CEE nr. 2870/2000 (analiza bauturilor spirtoase)
Aplicatii: determinarea continutului de alcool in vinuri si bauturi alcoolice, aciditatii volatile si acidului sorbic

Avantaje
- permite determinarea aciditatii volatile; procentului de alcool si aciditatea volatila a vinului; must; lichioruri si a tariei alcoolice
- acuratete mai buna de 0,1%
- determina conținutul de aciditate volatila a Vinului in 6 minute
- determina tariei alcoolice in 3 minute
(suma acizilor volatili ce apartin seriei acetic, aflati sub forma libera sau sub forma de saruri)

DateTehnice
• Volumul maxim al probei de distilat: 400 ml
• Oprire automata la sfarsitul distilarii
• Operare simpla, service minim
• Sistem de protectie a generatorului de vapori
• Furnizat impreuna cu tuburi cu Ø 42 mm, 52 mm si 80 mm si un recipient de 200 ml pentru colectarea distilatului
• Oenologie: gradul alcoolic, aciditatea volatila, acid sorbic
• Ciclu de extractie: Senzor Infra Rosu
• Procesul de distilare: vizibil
• Sistem dublu de incalzire: Generator de abur + Electric
• Modul de distilare: automat / reglabil
• Panou de control: cu membrana
• Sistem de racire: apa / recirculare automata / oprire automata
• Timp de distilare:
- aprox. 3 minute pentru determinarea gradul de alcool / 100ml
- aprox. 6 minute pentru aciditate volatila / 250 ml
• Materialul de constructie: Otel Inox + PTFE + AKULON de rezistenta mare la temperaturi inalte
• Cupa de distilare: deschisa

Specificatii tehnice
• Debitul apa de racire: aprox. 80 lit./min.
• Generator de abur: 2400 W
• Consum de apa (generator de abur): 1,25 ml.
• Recipient apa distilata: 10 lit.
• Durata distilarii: 7 min./200 ml
• Putere: 2400 W
• Dimensiune externe: 900 x 300 x 300 mm
• Greutate: 20 Kg

Certificate
- Certifiucat CEE 2676/90 si CEE 2870/2000
- Certificat de conformitate
- Certifcat de garantie si post garantie
:: Service autorizat pentru Romania » MultiLab

Apparatus to obtain the distillation of alcohol from alcoholic beverages in accordance with CEE NO. 2676/90 ( WINE ANALYSIS) and CEE NO. 2870/2000 ( ANALYSIS OF SPIRITS.)
Application: Degree of alcohol in wines, Degree of alcohol in spirits, Volatile acids and Sorbic acid.

Main Features
Vapour distillation.
Designed especially to obtain the distillation of wines and spirits todetermine the alcohol grade by volume, volatile acid, ascorbic acidand other components.
Distillation volume up to 400 ml.
Auto stop at the end of the distillation.Simple operation with minimum service.
Vapour generator protection system.
- Tube Ø 42 mm for volatile acid samples.
- Tube Ø 52 mm for volatile acid samples and 100 ml proof alcohol.
- Tube Ø 80 mm for samples of 200 ml for proof alcohol.
- 200 ml Matrix flask to collect distillate.

Technical Specifications
Validated to the criteria of CEE No. 2676/90 and CEE No. 2870/2000
Distillation speed: 30-40 ml/min (Recover of 200 ml of distillate in5/6 minutes).
Condenser coolant water rate: 80-100 l/hr.
Generator water consumption: 1 and 1.25 ml for each ml of disti-llate.
Vapour generator power: 2400 W.
Electronic controller allows the distillate to set burette level, then, there is no need to fill up with water to a level of 200 ml.

Validation The oenological DE-1626 has been validated by the oenological laboratory INCAVI for the determination of alcohol proof by volumetric analysis, following the criteria of CEE No 2676/90 and CEE 2870/2000. Analysed samples of hydrated alcohol, different wines and spirits with a high alcohol content.

Technical data
Refrigeration water flow: aprox.80 l/h.
Water consumption (steam generator): 1.25 l/h.
Distilled water volume: 400 ml.
Approx. distillation time: 7 min./200 ml.
Power: 2400W
Dimension: 900 × 300 × 300 mm
Weight: 20 Kg
Product code: 4001626

Components supplied with the equipment
Set of tubes and flasks Ø 42, 52 and 80 mm and a 200 ml matrix flask.

Accesorii optionale

Cod produs Descriere Dimensiune
042300 Glass tube adapter Ø 42 x 300 mm
1001422 Glass tube adapter Ø 52 x 300 mm
1000646 Glass tube adapter Ø 80 x 300 mm
4000648 Stainless steel support rack for 6 tubes Ø 42 mm
4001473 Stainless steel support rack for 6 tubes Ø 52 mm
4001613 Stainless steel support rack for 6 tubes Ø 80 mm
1001636 Matrix flask 200 ml.
1001629 Alcoholmeters 0.1 grade alcohol. gradution 0 - 10
1001630 Alcoholmeters 0.1 grade alcohol. gradution 10 - 20
1001631 Alcoholmeters 0.1 grade alcohol. gradution 20 - 30
1001632 Alcoholmeters 0.1 grade alcohol. gradution 30 - 40
1001633 Alcoholmeters 0.1 grade alcohol. gradution 40 - 50
1001634 Alcoholmeters 0.1 grade alcohol. gradution 50 - 60
1001635 Alcoholmeters 0.1 grade alcohol. gradution 90 - 100
1000015 Alcoholmeters stand gradution 6 places
  Bai de curatare ultrasunete cu sau fara incalzire
vezi gama de bai ultrasunete »

9513 Filtre de hartie .. cutie/100buc
vezi gama de filtre »
Ø320mm
9512 Filtre de hartie .. cutie/100buc Ø240mm
HI8823 Pahar erlenmeyer gradat din sticla borosilicata
* vezi gama de sticlarie »
800 ml
HI8823 Pahar/Vas conic gradat din sticla borosilicat conform DIN12380 1000 ml



multilab_team

Solutions for science, industry and safety systems

Suntem bucurosi sa te ajutam ... Fie ca vrei sa comanzi si nu esti sigur care este cea mai buna alegere, sau vrei sa afli mai multe despre serviciile noastre, consultantii nostri Iti raspund la orice intrebare
Pentru orice detalii suplimentare tehnice sau comerciale sintem la dispozitia Dvs.
direct Tel. +4 021 312 7144 / 45
sau

service_reparatie

Superior Service
MultiLab's aim is to differentiate ourselves and add value to our customers, by providing superior service throughout the sales and after-care processes :: Preventative Maintenance - Calibration - Repair - Validation .. more »
Centru service autorizat de producator
Service - Mentenantei preventive - Reparati - Consumabile - Piese de schimb pentru aparatura de laborator .. mai multe »

Localizare MultiLab

multilab_laboratories

*Important
acest site este unul de prezentare! date tehnice; poze afisate si preturile sunt cu titlu informativ se pot schimba fara notificare prealabila! detalii »
MultiLab© SRL reserve the right to change products and prices without notice.

All rights Reserved MultiLab© SRL Romania 2003 - 2017
