Aparate pentru determinarea Consumului Biochimic de Oxigen

Sisteme BOD
necesar la determinarea consumului de oxigen necesar pentru descompunerea biochimica a substantelor organice la temperatura si timpul standard de 5 zile
- OxiTop IS6 :: Sistem determinare consum biochimic de oxigen cu 6 locuri
- OxiTop IS12 :: Sistem determinare consum biochimic de oxigen cu 12 locuri
- OxiTop Control-6 & OxiTop Control-12 :: Sistem avansat pentru determinare consumul biochimic de oxigen
- OxiTop Box :: Mini Incubator / termostat
* Ghid selectie :: Selection Guide




Aparat CBO5 / BOD5
Capacitate cu 6 sau 12 Capuri de masurare
Seria Oxi Top IS

Sistem determinare consum biochimic de oxigen BOD 5

Respirometric measuring system for the biochemical oxygen demand (BSB) and further aerobic and anaerobic degradation tests


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Aparat BOD5 pentru determinări respirometrice prevazut cu capete de masura cu senzor piezoelectric
Aparatul serveste la determinarea cantitativa a consumului biochimic de oxigen din apele de suprafata, uzate si potabile consum biochimic de oxigen în 5 zile;
2 taste de functionare: M pentru afisarea valorii momentane si S pentru valori stocate
2 LED-uri cu scala de diviziuni de la 0.0 la 50; o diviziune de scala corespunde la 3,55 hPa
Memorie pentru 5 masuratori la intervale zilnice; nu trebuie citite valorile in fiecare zi, pot fi citite si dupa 5 zile (BOD5)
Optiune AutoTemp: aparatul intarzie startul masuratorilor pentru probele prea reci, putand astepta pana la 1 ora pentru a avea o temperatura constanta
Modelul OxiTop IS 6 are 6 locuri de masurare, iar IS 12, 12 locuri
Un loc de masurare contine: 1 Oxitop galben sau verde, 1 sticla PF 600 pentru proba, 1 manson de cauciuc RST 600, 1 bara pentru agitare

Date tehnice

Model OxiTop – Cap de masurare
Principiu de masura manometric cu senzor de presiune
Cantitate masurata BODn (consum de oxigen conform DIN38 502 part 52)
Domeniu de masura 0 .. 40 digit corespunde la 0 .. 40 / 80 / 200 / 400 / 800 / 2000 / 4000 mg/l BOD
Acuratetea display-ului + 1digit (corespunde la (+ 3,55hPa)
Domeniu de functionare 500 .. 1350 hPa
Memorie Pentru BOD5 / 24 ore
Display LED cu 2 caractere, 7 segmente, 10 mm
Dimensiuni Ø 70 x 70 mm
Alimentare baterii litiu (280 mAh), 2 x CR2430
Putere consumata max. 25 mA in timpul afisarii masuratorilor
Clasa de protectie IP 54 DIN 40 050; 3, conf. IEC 1010
Temp. ambiant Stocare: -25 .. +65°C :: Operare: +5 .. +50°C
Cod produs 208210

Ghid Comanda

Model Descriere Cod prod.
OxiTop IS 6 Set complet utilizat la 6 masuratori simultane, cu platforma de agitare, 6 sisteme de citire OxiTop si accesoriile corespunzatoare 208210
OxiTop IS 12 Set complet utilizat la 12 masuratori simultane, cu platforma de agitare, 12 sisteme de citire OxiTop si accesoriile corespunzatoare 208211
OxiTop IS 6/12 Set complet cu 6 locuri care se poate extinde la 12, cu 1 platforma de agitare IS12 cu cablu AC 230V/50/60 Hz, inclusiv accesorii 208212



Main Features
The BOD measurement with OxiTop is based on pressure measurement in a closed system: The micro-organisms in the sample consume the oxygen and generate CO2 in the process. This is absorbed with NaOH. This will cause a vacuum pressure, which can be determined as a measured value in mg/l BOD
The sample volume used regulates how much oxygen is available in order for full BOD to run. With different volumes, measuring ranges up to 4,000 mg/l BOD can be measured
The OxiTop heads (green and yellow to differentiate between infeed and output) have an AutoTemp function: If the sample temperature is still too cold, the start of the measurement is delayed automatically until a constant temperature is reached, but at least for 1 hour
In addition to the automatic saving of 5 measured values (1 value per day), you can also manually read other measured values after these 5 days have elapsed, so that control values or measurements can be tracked over time (long-term)
The OxiTop IS is ready for use immediately, as we will always supply you with product sets including accessories.

Technical specifications

Measuring range 0 .. 40 digits (display units)
  equals after conversion with scaling factor
  0 .. 40 / 80 / 200 / 400 / 800 / 2000 / 4000 mg/l BSB

Model Variations

Model Description Order #
OxiTop IS 6 Set with 6 measuring points
BOD measuring instrument for self-check with 6 measuring units, universal power supply 100 to 240 VAC, 50/60 Hz
208210
OxiTop IS 12 Set with 12 measuring points
BOD measuring instrument for self-check with 12 measuring units, universal power supply 100 to 240 VAC, 50/60 Hz
208211
OxiTop IS 6/12 Set with 6 measuring points on 12x stirring platform
BOD measuring instrument for self-check with 6 measuring units, may be extended to 12, 1 stirring platform IS 12, universal power supply 100 to 240 VAC, 50/60 Hz
208212



Optional accessories

Model Description Cod.Prod.
OxiTop GN Measuring head green 208800
OxiTop GB Measuring head yellow 208810
OxiTop-6 3 x measuring head GN, 3 x measuring head GB 208812
OxiTop-10 5 x measuring head GN, 5 x measuring head GB 208813
OxiTop-2 1 x measuring head GN,1 x measuring head GB 208814
OxiTop SET-6 Set with 6 measuring points, without stirring platform 208817
OxiTop SET-10 Set with 10 measuring point, without stirring platform 208818
OxiTop SET-2 Set with 2 measuring points, without stirring platform 208819
ST-OxiTop Storage rack for heads 209010
PF 600 Replacement bottle, minimum order 3 209100
Dia/600 Diagram blocks 209020
RST 600 Stirrers 209120
REF 600 Stirrer remover 209130
NHP 600 Sodium hydroxide pads 209140
NTH 600 Nitrification inhibitor 209331
OxiTop PM Calibration tablets 209333
OxiTop PT Leakage test material 209334

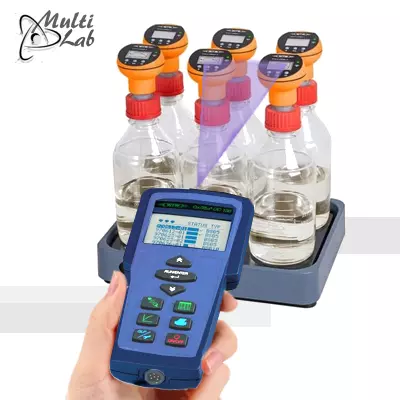

Controlor pentru CBO5 / BOD5
pentru 6 sau 12 Capuri de masurare
Seria OxiTop Control-6 & OxiTop Control-12

Sistem avansat pentru determinare consumul biochimic de oxigen BOD 5

BOD self check measurement OxiTop Control


produsul poate fi achizitionat si prin SEAP


solicit oferta personalizata »

Cap de masura cu senzor piezoelectric; Prevazute cu interfata IR pentru transmiterea datelor la controller cu lampa pilot Controlerul identifica probele alocandu-le automat cate un numar; calculeaza, evalueaza si prezinta grafic valoarea BOD, se adapteaza usor la diferite tipuri de masuratori specifice.
Memorie pentru 360 masuratori; acestea sunt stocate automat la intervale de timp presetatede la 0,5h la 99 zile Cu ajutorul controlerului pilot pot fi monitorizate toate etapele procesului.
Prin afisarea curbelor pentru fiecare process se pot detecta din timp neregularitatile si interferentele si se poate interveni in consecinta Optiune AutoTemp: aparatul intarzie startul masuratorilor pentru probele prea reci, putand astepta pana la 3,5 ore pentru a avea o temperatura constanta
Echipat cu 2 baterii pentru 1 an
Modelul OxiTop Control 6 are 6 locuri de masurare iar OxiTop Control 12, 12 locuri.
Fiecare loc de masurare contine: 1 Oxitop-C, 1 sticla PF 600 pentru proba, 1 manson de cauciuc GK 600, 1 bara pentru agitare RST 600

Setul contine:
1 controller OC 100;
1 platforma de agitare IS 6/ IS 12 cu alimentare la retea;
1 dispozitiv de scoatere a barei de agitare REF 600;
1 NHP 600 – pastile de NaOH;
1 NTH 600 innibitor de nitrificare;
1 vas de preaplin de 164 ml MK 164/600;
1 vas de preaplin de 432 ml, MK 432/600;
1 bloc de hartie Dia/600.

Date tehnice

OxiTop Control OxiTop Control OC 100 OxiTop Control OC 110
BOD de rutina Individual samples up to 4,000 mg/l Individual samples up to 4,000 mg/l
BOD standard Multiple samples with statistical evaluation up to 4,000 mg/l Multiple samples with statistical evaluation up to 4,000 mg/l
BOD special X User-defined volumes, 0.5 h – 99 days, up to 400,000 mg/l BOD
Respirația solului X User-defined volume determination
Aplicatii OECD / Aerobic X User-defined volume determination
Determinare Biogas X Pressure p 500 - 1350 hPa 10 intermediate values
Date setate pe masuratoare 180 .. 360 (depinde de durata de functionare)
Interval de masurare 0.5 ore .. 99 zile
Alimentare 3 mignon (AA); alkaline 1.5 V
Interfata IR (infrarosu); RS 232 comunicare cu PC
Temp. Ambiant Stocare: -25 °C .. +65 °C
Operare: +5 °C .. +40 °C
Dimensiune (H x W x D) 45 x 100 x 200 mm
Greutate aprox. 390 g

Ghid Comanda

Cap de masurare OxiTop C Measuring Head
Principiu de masura Manometric cu senzor de presiune
Cantitate masurata BODn (consum de oxigen conform DIN38 502 part 52)
Domeniu de presiune 500 - 1350 hPa
Acuratete ±1% din valoare ±1 hPa
Rezolutie 1 hPa (corespunde cu 0.7% din domeniu de masurare BODn)
Alimentare Baterii Litiu (280 mAh), 2 x CR2430
Temperatura ambiant Stocare: -25 .. +65 °C
Operare: +5 .. +50 °C
Dimensiuni H: 70 mm, Ø 70 mm

Ghid Comanda

Model Descriere Cod prod.

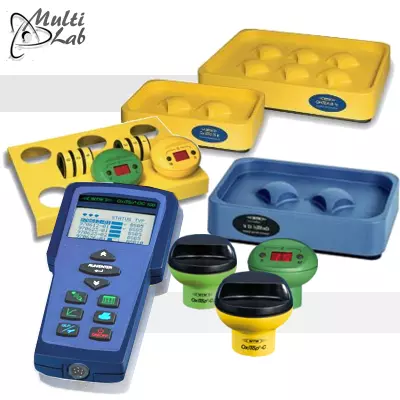

OxiTop Control 6 Set complet cu 6 locuri, include controller OxiTop OC 100, platforma 6 locuri cu agitare individuala si cap de masurare OxiTop-C, cablu de alimentare AC 230/50/60Hz si accesorii 208201
OxiTop Control 12 Set complet cu 12 locuri, include controller OxiTop OC 100, platforma de agitare IS 12 si cap de masurare OxiTop-C, cablu de alimentare AC 230V/50/60HZ , inclusiv accesorii. 208204
OxiTop C IS 6 Set complet cu o platforma de agitare IS6, 6 capete de masurare OxiTop C, 6 sticle de proba, 6 garnituri de cauciuc, 6 bare magnetice 208130
OxiTop C IS 12 Set complet cu o platforma de agitare IS 12, 12 capete de masurare OxiTop C, 12 sticle de proba, 12 garnituri de cauciuc, 12 bare magnetice 208133
OC 100 OxiTop Controlorr digital OxiTop 208207



Main Features
This system is the successor of the OxiTop system.
With a practical controller, the OC 100, is has an infrared interface and software-controlled functions: You can start, manage, save and track 100 measuring heads at the same time on a large display, also grouped together.
The data can be transferred to the PC for evaluation via the cable AK-540/B and the communications program Achat OC.
For users who have other applications than just BOD, OxiTop Control S6 / S12 with the OC 110 is the right choice.

Technical specifications

Model OC 100
Measuring range 0 to 4000 mg/l BSB
Data sets (depending on measuring interval) 180 to 360 data sets per head
Measuring interval 0.5 h to 99 days
Model OxiTop-C, OxiTop-C/B
Measuring range 500 to 1350 hPa
Accuracy ±1 % v. Mw. ± 1hPa

Model Variations

Model Description Order #
Set with 6 measuring points BOD measuring instrument for self-check, with controller OC 100, 6 measuring units with IR interface, universal power supply 100 to 240 VAC, 50/60 Hz 208201
Set with 12 measuring points BOD measuring instrument for self-check, with controller OC 100, 12 measuring units with IR interface, universal power supply 100 to 240 VAC, 50/60 Hz 208204
6 measuring points without controller BOD meter extension set for self-check measurement with OxiTop-C, stirring platform IS 6 for 6 measuring units, universal power supply 100 to 240 VAC, 50/60 Hz 208130
12 measuring points without controller BOD meter extension set for self-check measurement with OxiTop-C, stirring platform IS 12 for 12 measuring units, universal power supply 100 to 240 VAC, 50/60 Hz 208133
OC110 OxiTop Controller for the control of BOD and special applications of OxiTop Control measuring systems 208207



Optional accessories

Cod prod Model Descriere
208822 OxiTopC 6 6 measuring heads
208823 OxiTopC 2 2 measuring heads
208830 OxiTopC Measuring head
208831 OxiTopC/B Measuring head biogas
902842 AK 540/B Interface cable
209140 NHP 600 Sodium hydroxide pads
209331 NTH 600 Nitrification inhibitor
209333 OxiTop PM Calibration tablets
209334 OxiTop PT Leakage test material



Ghid selectie sistem BOD

OxiTop measuring systems OxiTop
IS
OxiTop Control
6/12
OxiTop Control
B6/B6M/B6M 2.5
Control
S6/S12/A6/A12
Control
AN 6/AN 12
Manual reading
Reading via IR controller
BOD routine
BOD standard
BOD special
Pressure measurement
BOD measurement

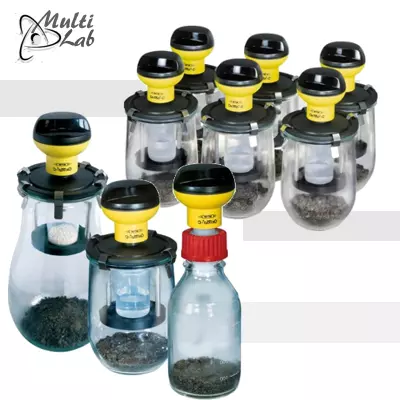

Soil respiration
Aerobic degradation
Anaerobic degradation, anoxic degradation
